Performance & Installation
- Published performance: 8,399–42,305 lumens at 70 CRI; 57–260 W. Output depends on performance code, optic, CCT and CRI. The specification tables state ±10% normal tolerance; follow their multiplier for 80 CRI.
- Optical choices: NEMA 6×6 flood and 3×3 spot optics, plus narrow-spot, rectangular and wall-grazer options.

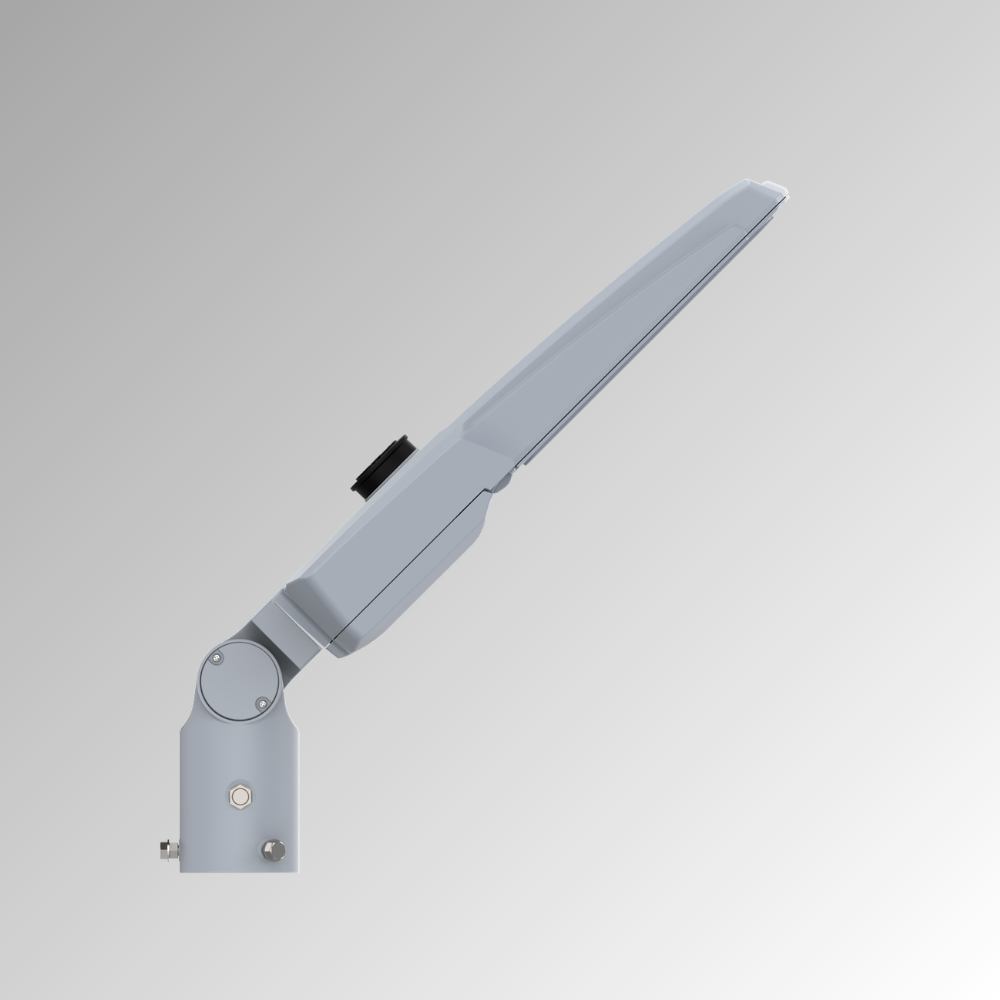

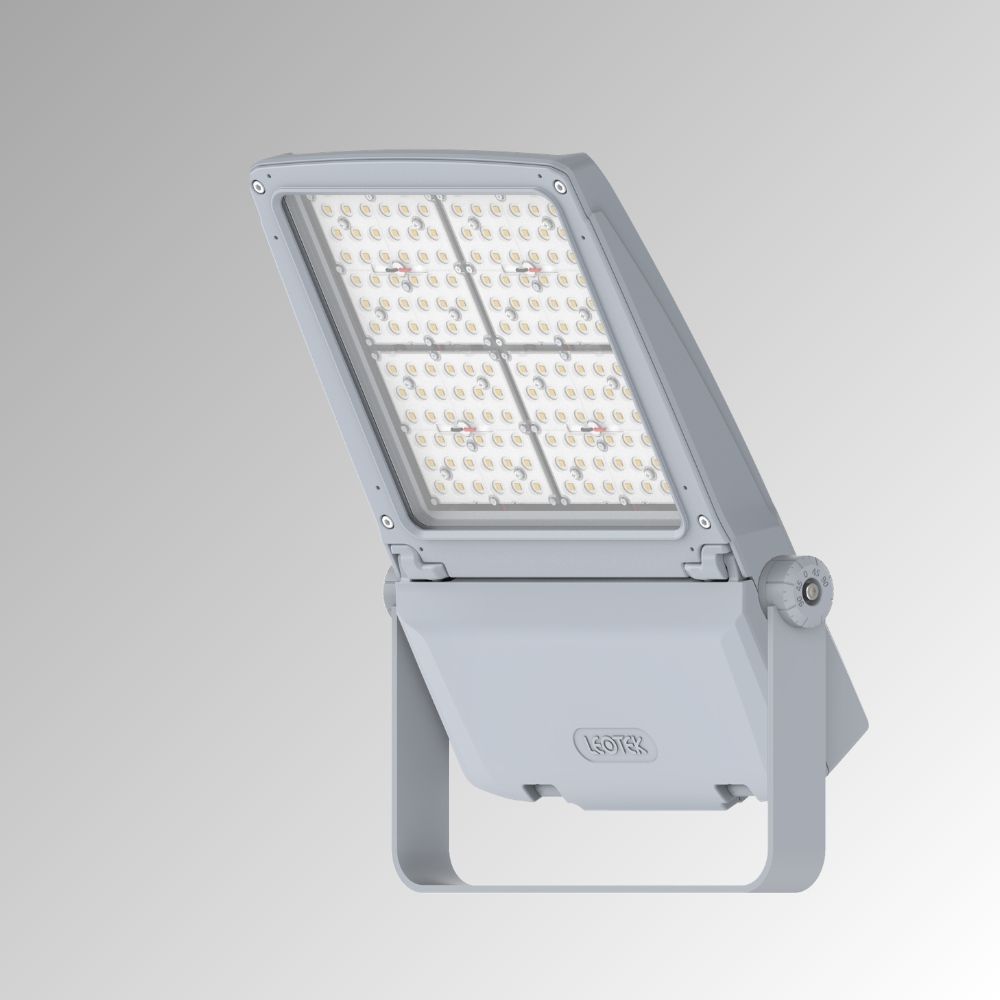

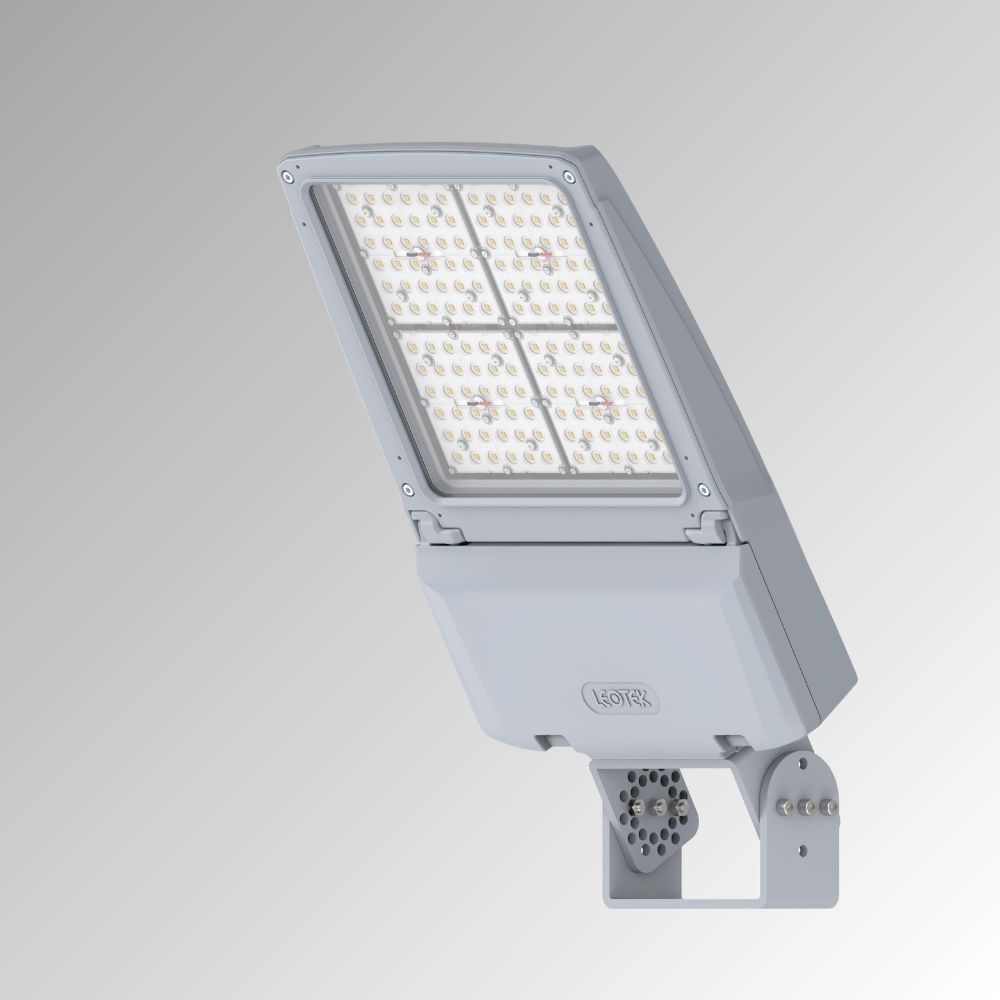

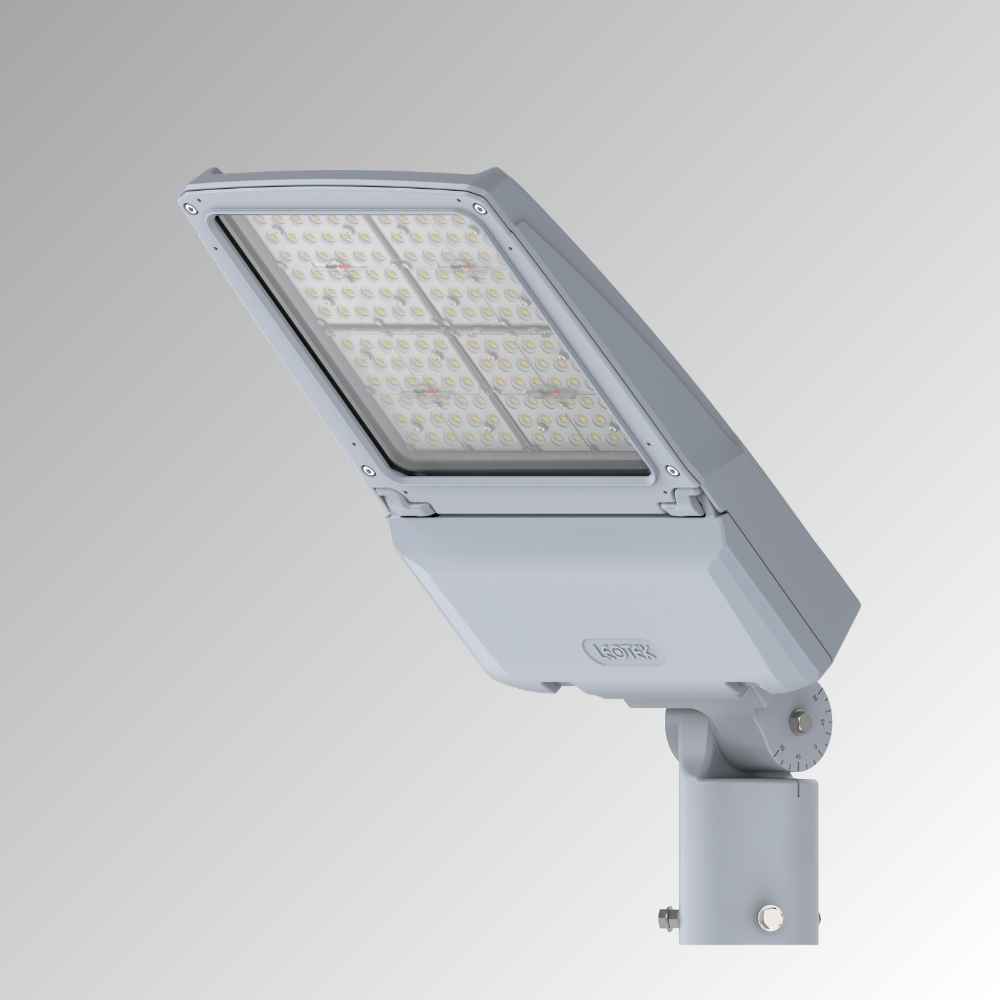

- Mounting: Slipfitter, trunnion, yoke, adjustable pole-arm and wall-mount options. Availability and option combinations are defined in the ordering table.
- Configuration weight: 27.9–35.9 lb, depending on mounting configuration. Check the specified mount before planning installation.
- Outdoor construction: IP66-rated luminaire with A360 die-cast aluminum housing, integral heatsink and pass-through cooling. Qualified operating ambient: −40°C to 50°C.

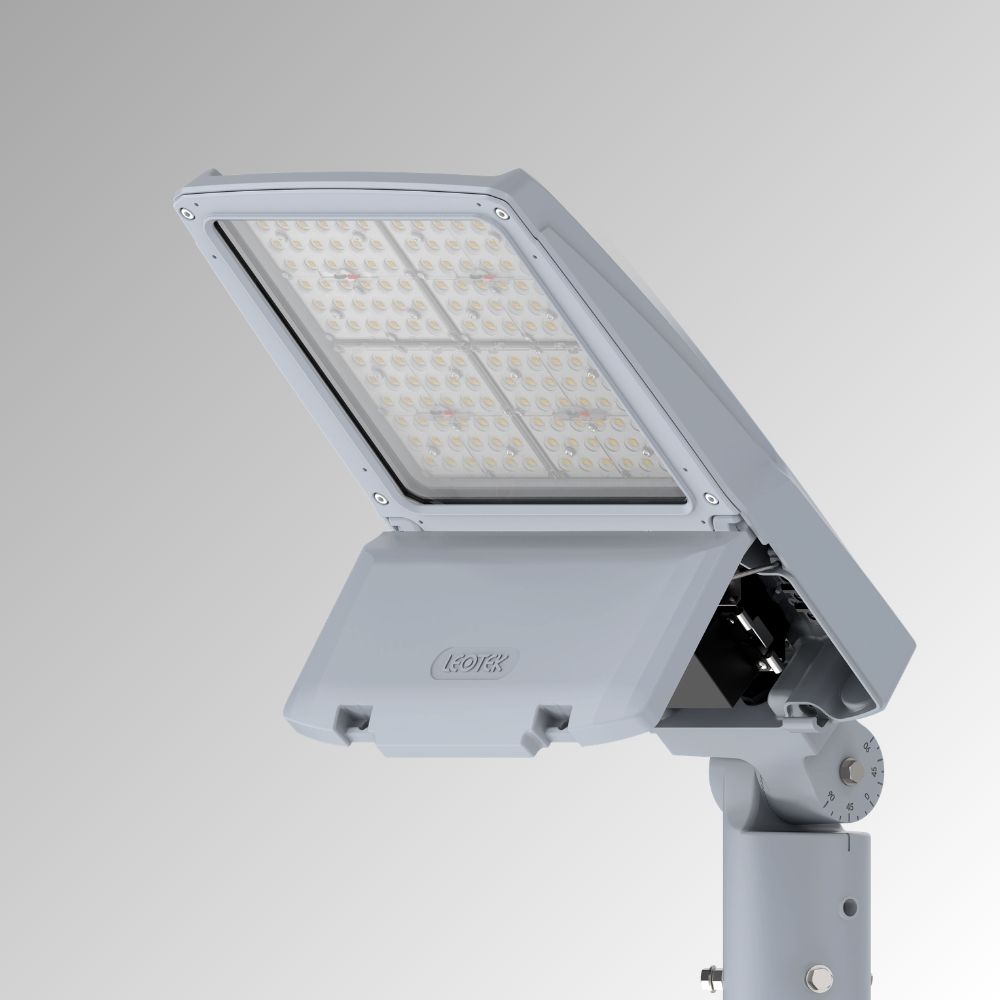

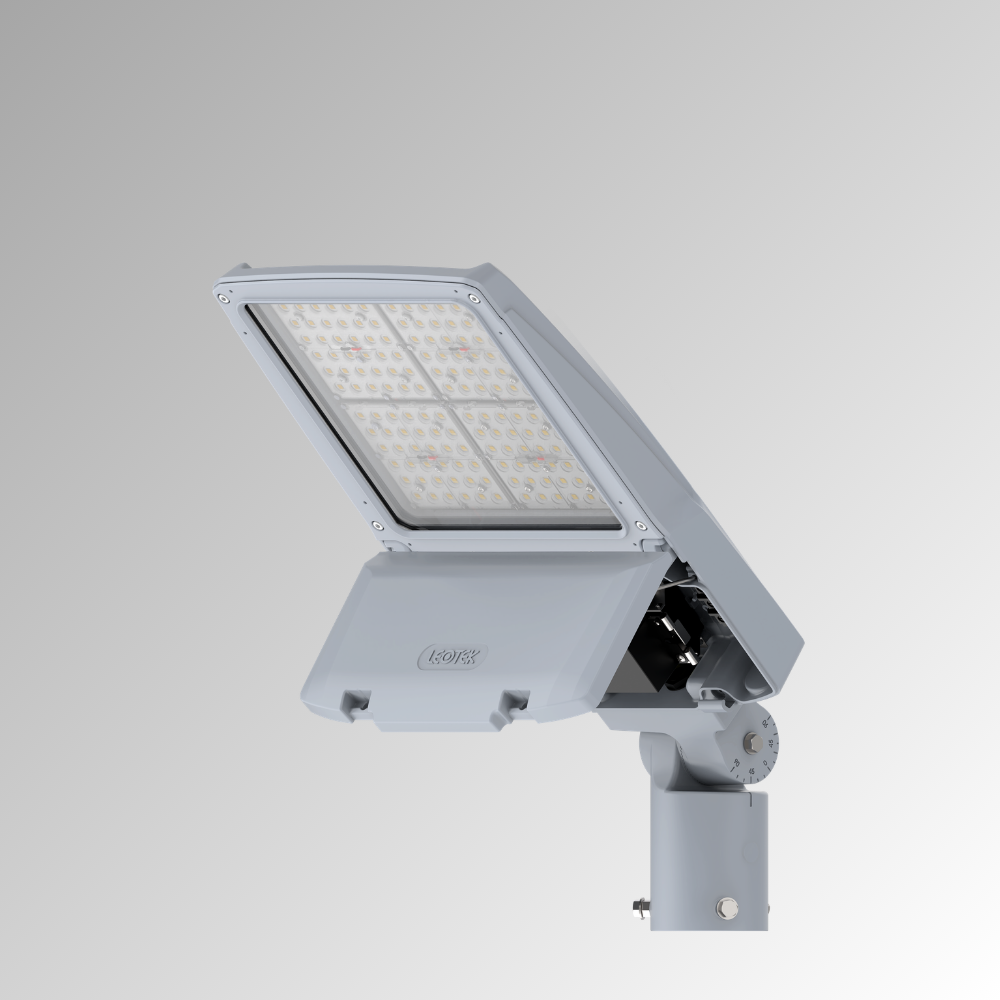

- Service access: Tool-free electrical access with an integral VersaKICK door support. Optional PWRD Power Door carries serviceable electrical components on a removable door.
- Color temperature: 2700K, 3000K, 4000K and 5000K. 80 CRI options are available in 3000K, 4000K and 5000K; confirm availability and lead time.

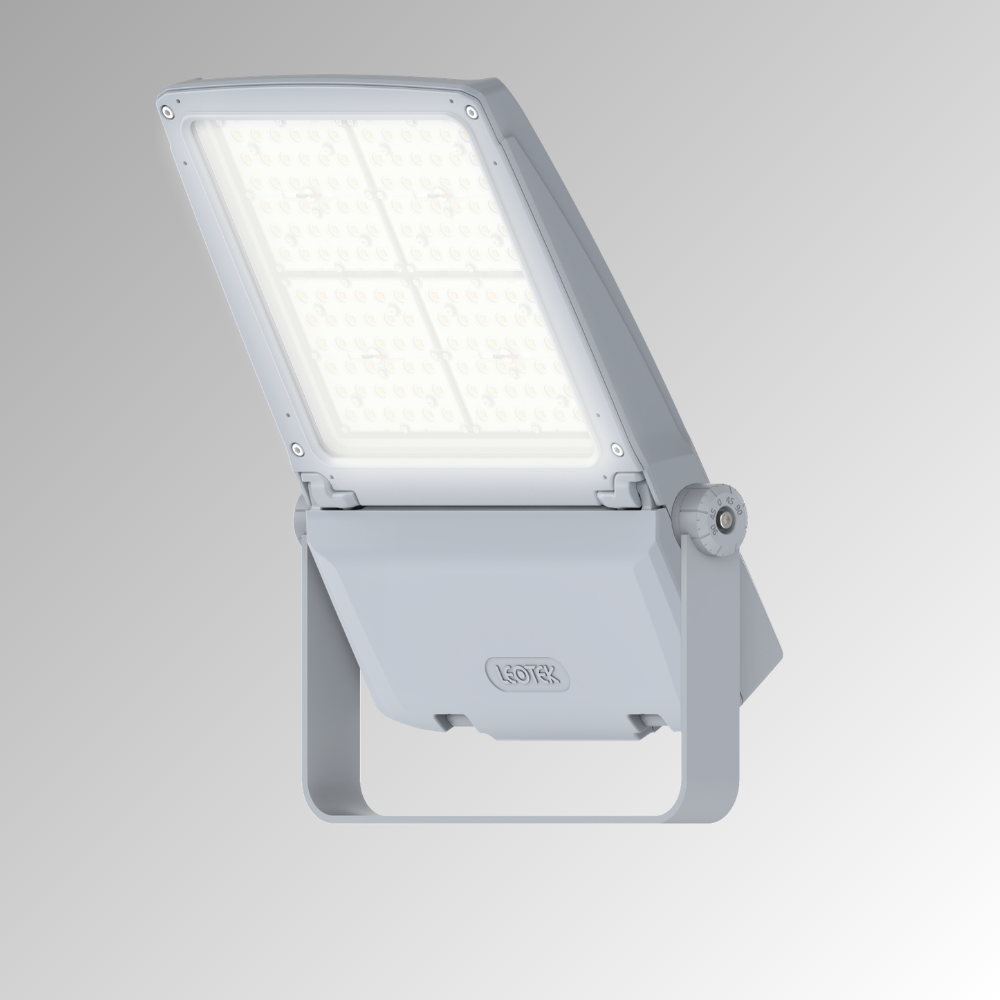

- Floodlight lens: IK10-rated glass lens. Select the beam distribution and aiming angle using the product photometric files.
LEOLink Smart-Control Options

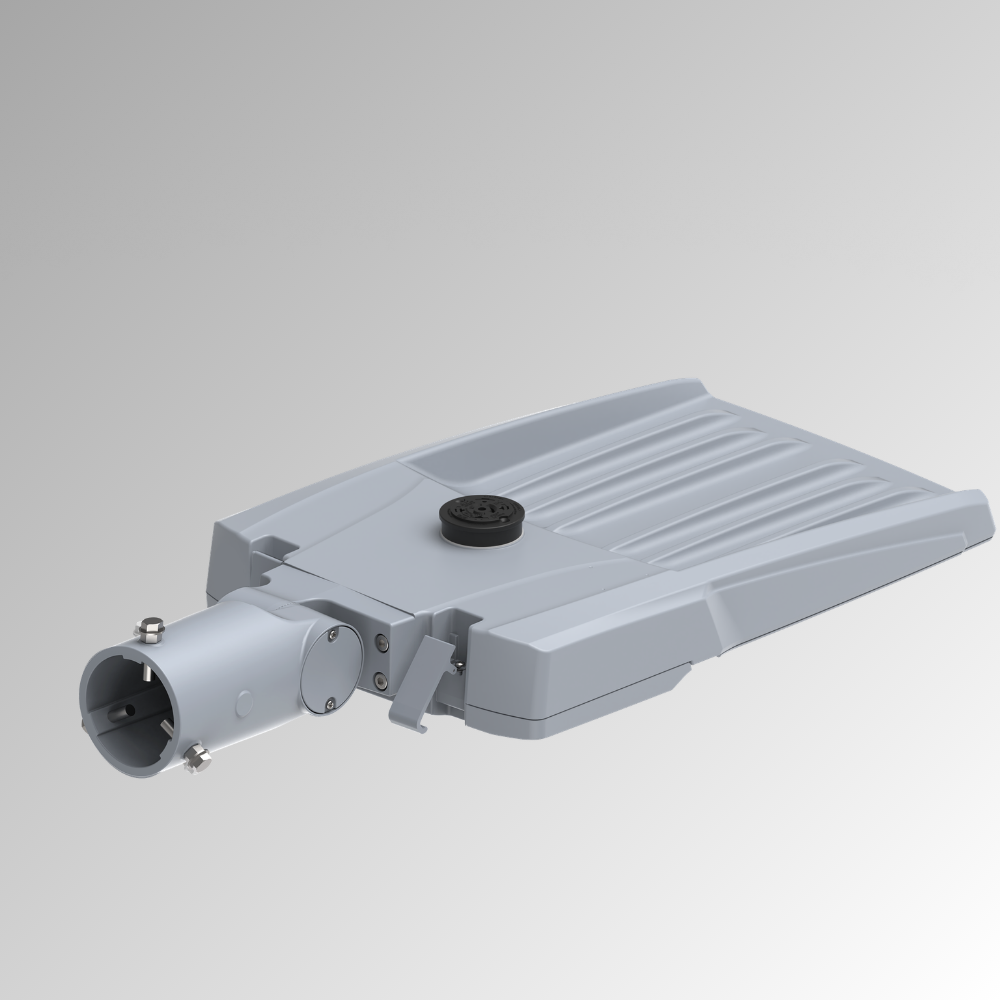

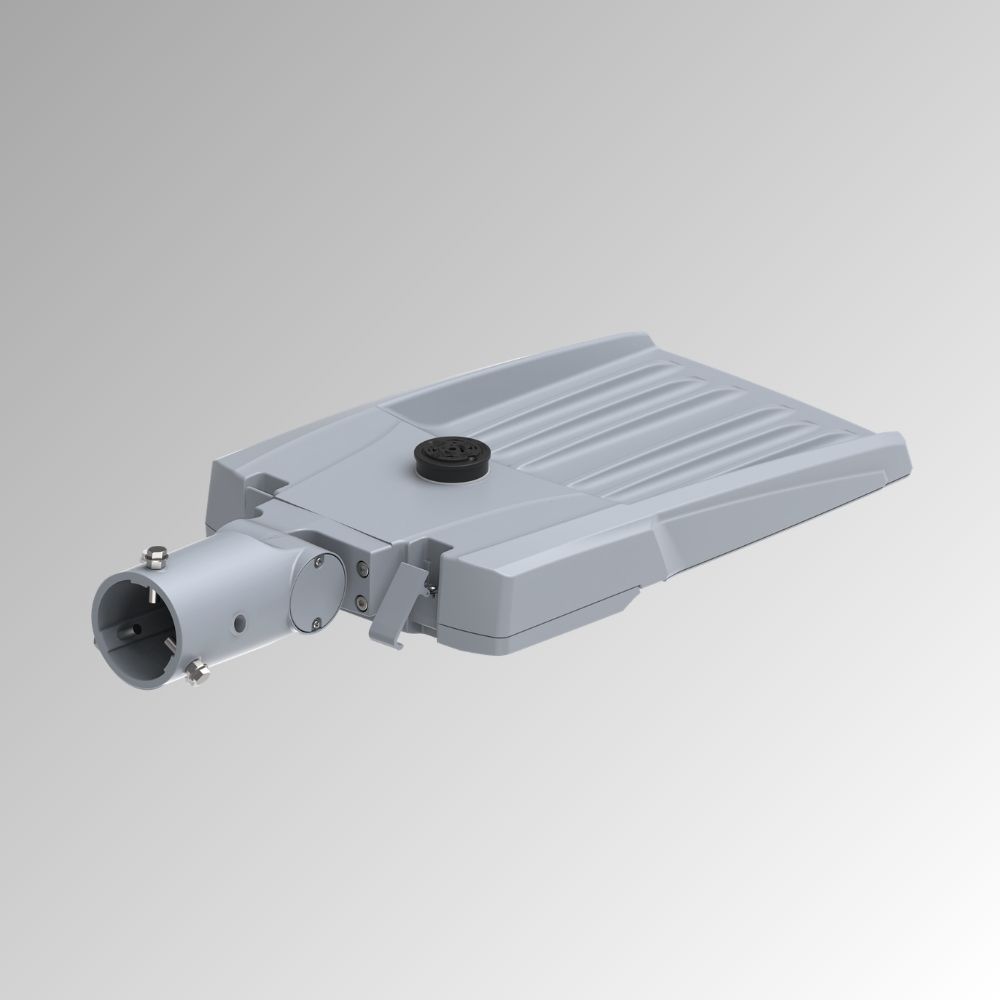

- External smart node: LEOLink NB01-Plus NB01P05 / NB01P10 requires the wired PCR7CR ANSI 7-pin controls-ready receptacle and the standard 0–10V driver. NB01-Plus is not compatible with the D4I DALI driver configuration.
- Controller voltage: NB01P05 / NB01P10 is offered for MV 120–277V. Contact LEOTEK for HV 347–480V availability; do not assume the luminaire HV option includes an HV controller.
- Management and connectivity: Each controller requires a RenAI CMS subscription (RXX) and network data plan (DXX). R00 / D00 requires prior LEOTEK approval. NB01P05 and NB01P10 specify 5-year and 10-year controller warranty options.
- Field adjustment: The optional PS Performance Selector adjusts output with the standard 0–10V driver; PS is not compatible with the DALI driver option.
- DALI configuration: D4I and the specified DALI-compatible receptacle are a separate configuration. TLR4U / TLR4L requires the D4I driver; confirm the compatible DALI node or sensor in the ordering table.
- Cord option restriction: The 5WSO option cannot be combined with PCR7CR, PS, PND, D4I, TLR4U or TLR4L. Select only the mounting combinations listed in the specification sheet.
Procurement & Reliability
- Surge protection: Standard SP1 protection is 10kV / 5kA, fail-to-on. Optional SP2 is 20kV / 10kA, fail-to-on; LSSP2 is the 20kV / 10kA fail-to-off option.
- BABA ordering: When BABA compliance is required, specify the BABA ordering option and request the applicable project documentation. The specification sheet states that an order without the BABA code receives a non-BABA configuration.
- Luminaire warranty: 10-year limited luminaire and component warranty; consult the current warranty terms.
- Performance selection: Compare the selected IES file, mounting height, aiming, glare, shielding and required illuminance. HID equivalence, energy savings and pole spacing depend on the project design and baseline.
Selection & Related Resources
Specification basis: VTMFL Spec Sheet (10.1.26 V4).pdf. Performance tables and LEOLink ordering information (page 10); confirm the final configuration before purchase.
