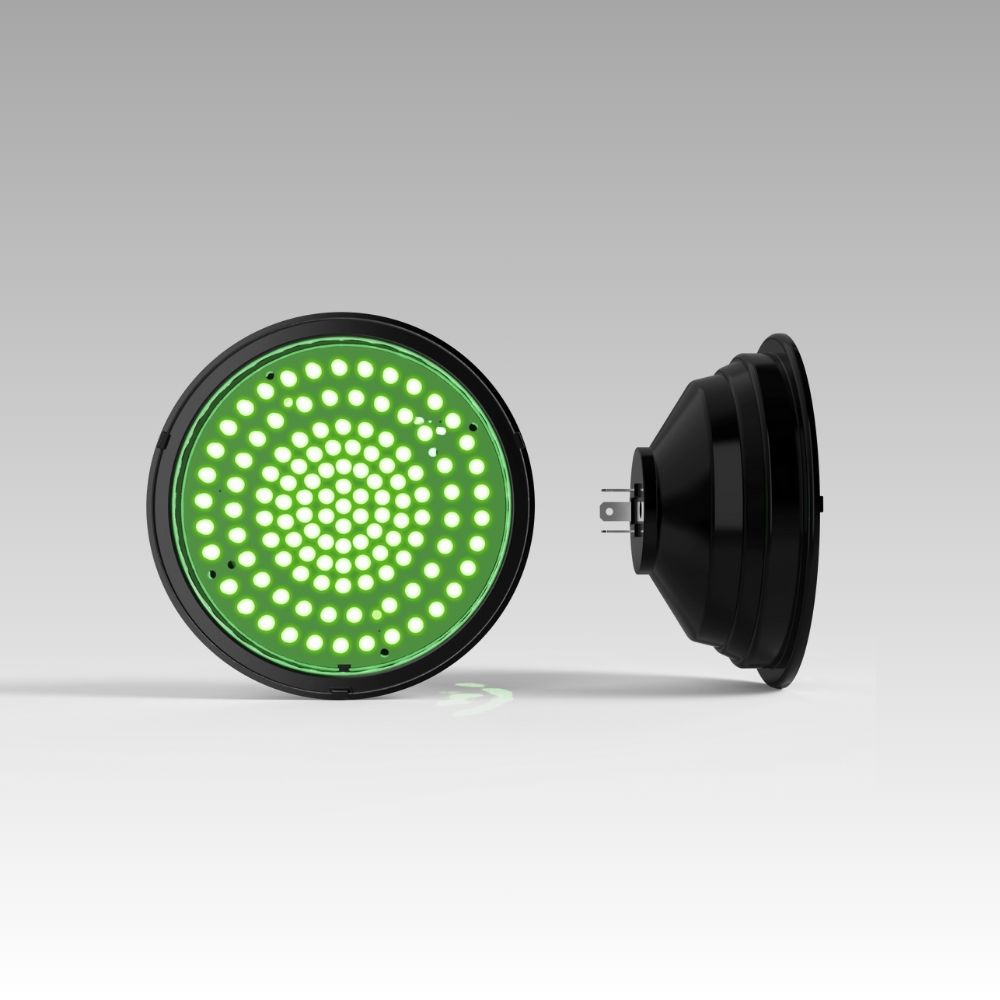

Green circular LED traffic signal module.

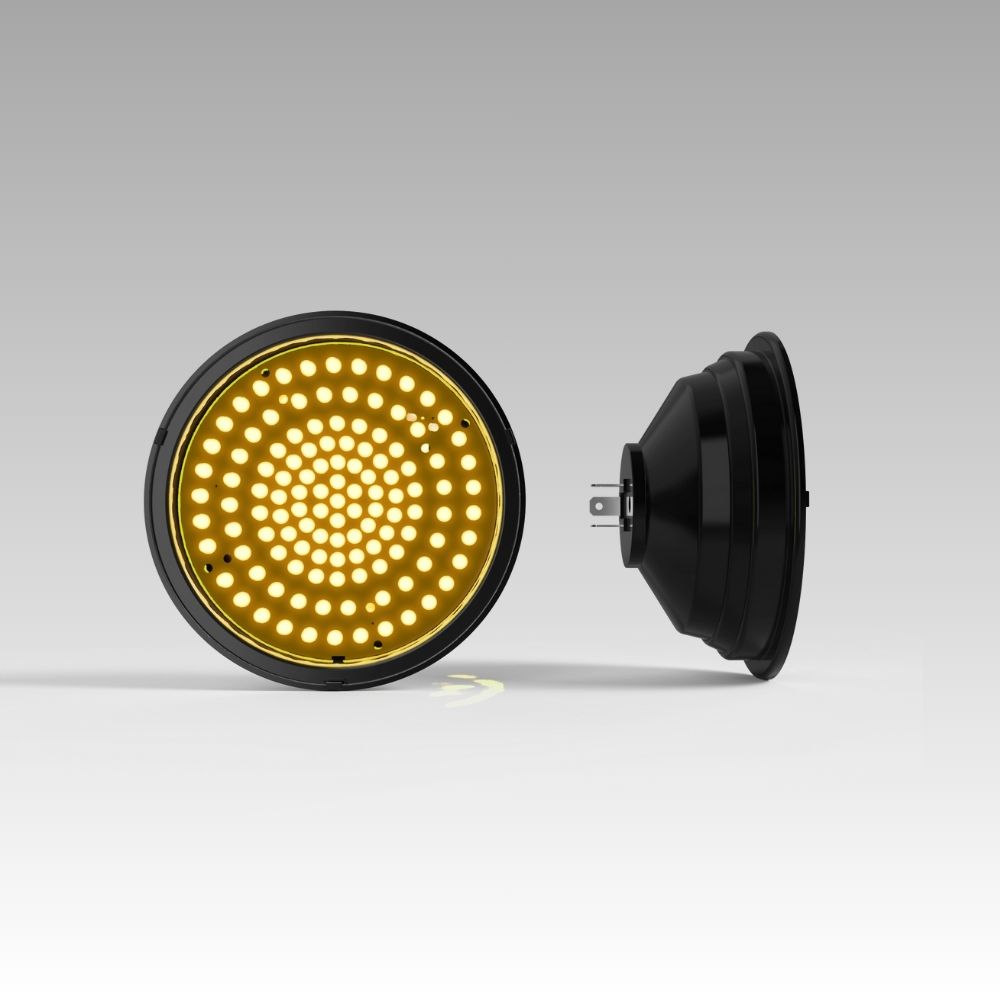

Amber circular LED traffic signal module.

White circular LED traffic signal module.

PV Series

PV Series Traffic Signal Module – Ball

Name: PV 5-Inch Programmable Visibility Signal | LEOTEK
Brand: LEOTEK

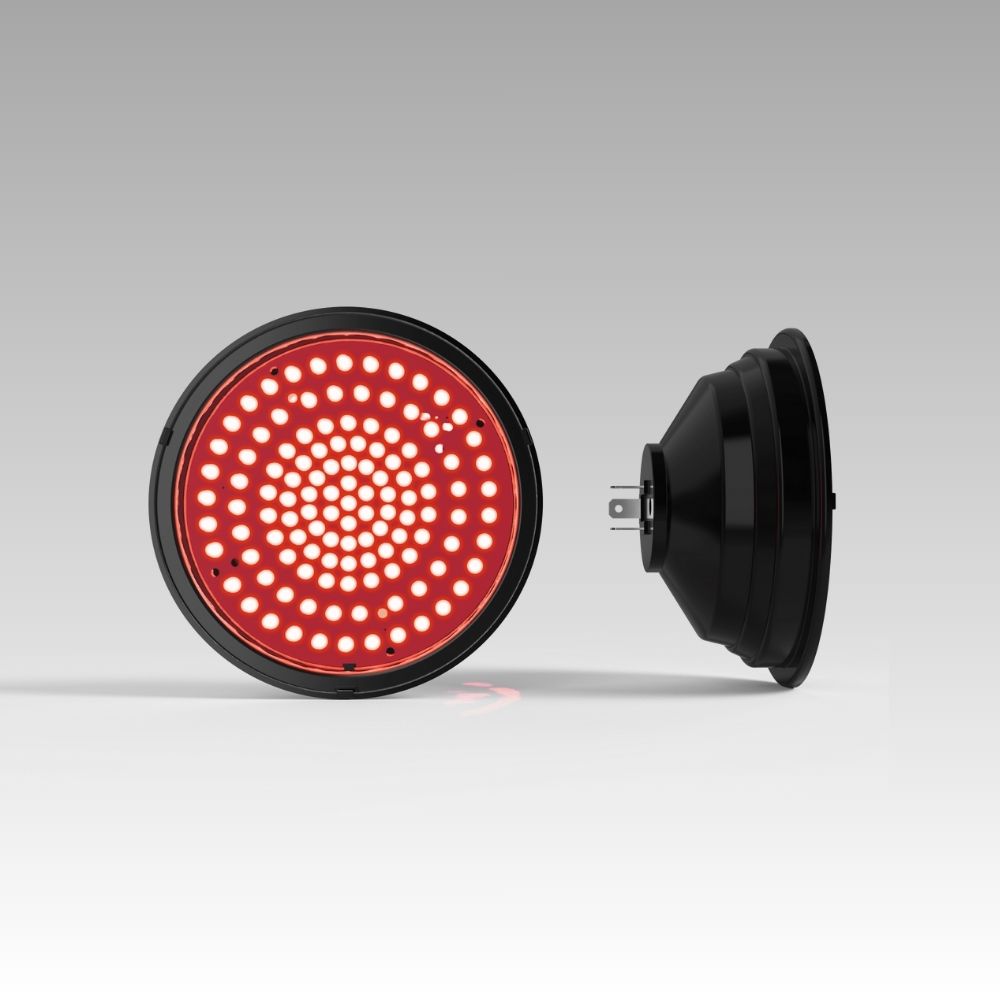

The PV Series 5-inch programmable-visibility LED signal module is a plug-in retrofit for compatible PV signal housings. The current product sheet includes standard and -DIM dimmable red, yellow, green and white order codes, with a clear lens only.

Its published electrical range is 70–135 Vac, rather than the 80–135 Vac filter previously shown on this page. Listed model power is 7.2–7.9 W, and the sheet specifies a five-year limited warranty. Confirm dimming controls, cabinet output and the exact model suffix before ordering.

Features

Configuration & Electrical

5-inch programmable-visibility ball module; red, yellow, green and white entries.
Standard and -DIM dimmable configurations at 70–135 Vac; 7.2–7.9 W listed by model.
Clear lens only; confirm PV housing geometry and dimmer/controller compatibility.

Optics & Field Performance

Plug-in retrofit design for compatible PV housings and constant-current optical output.
UV-stabilized polycarbonate lens; specified operation from −40°C to 74°C.
Published 70% initial intensity at 100,000 hours and five-year limited warranty.

Specifications

Color

Red, Green, Yellow, White

Indication

Ball

Lens Color

Clear

Lens Size

Voltage

70-135Vac
