Arieta® Architectural Area Light – AR18

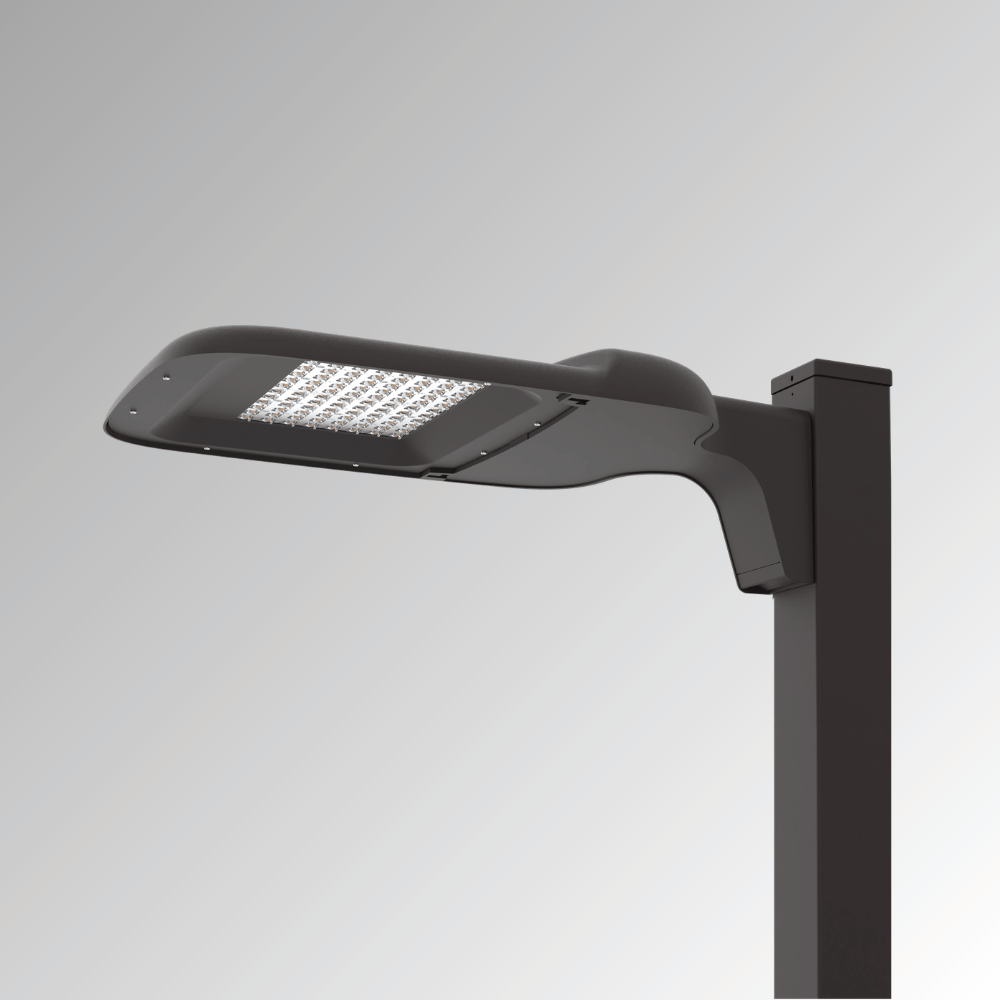

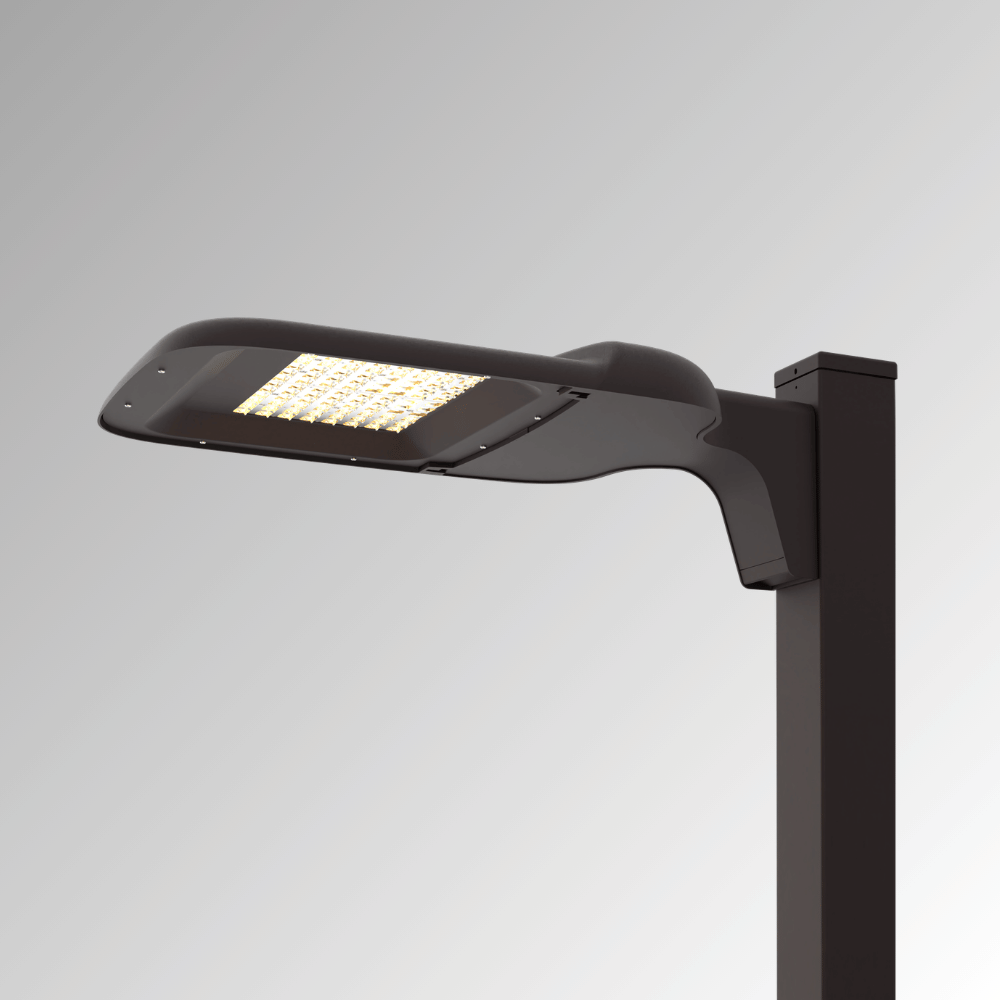

AR18L (2)

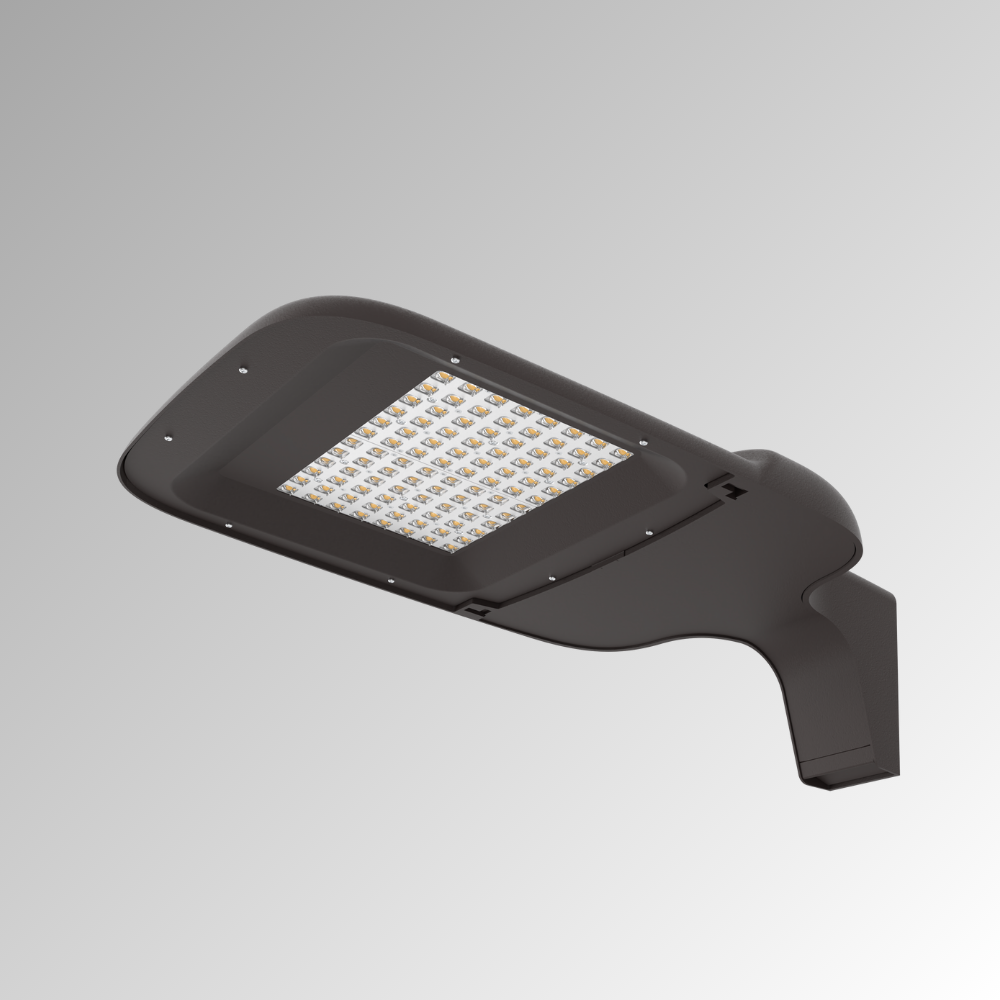

Arieta® Architectural Area Light – AR18 - Image 3
Arieta®

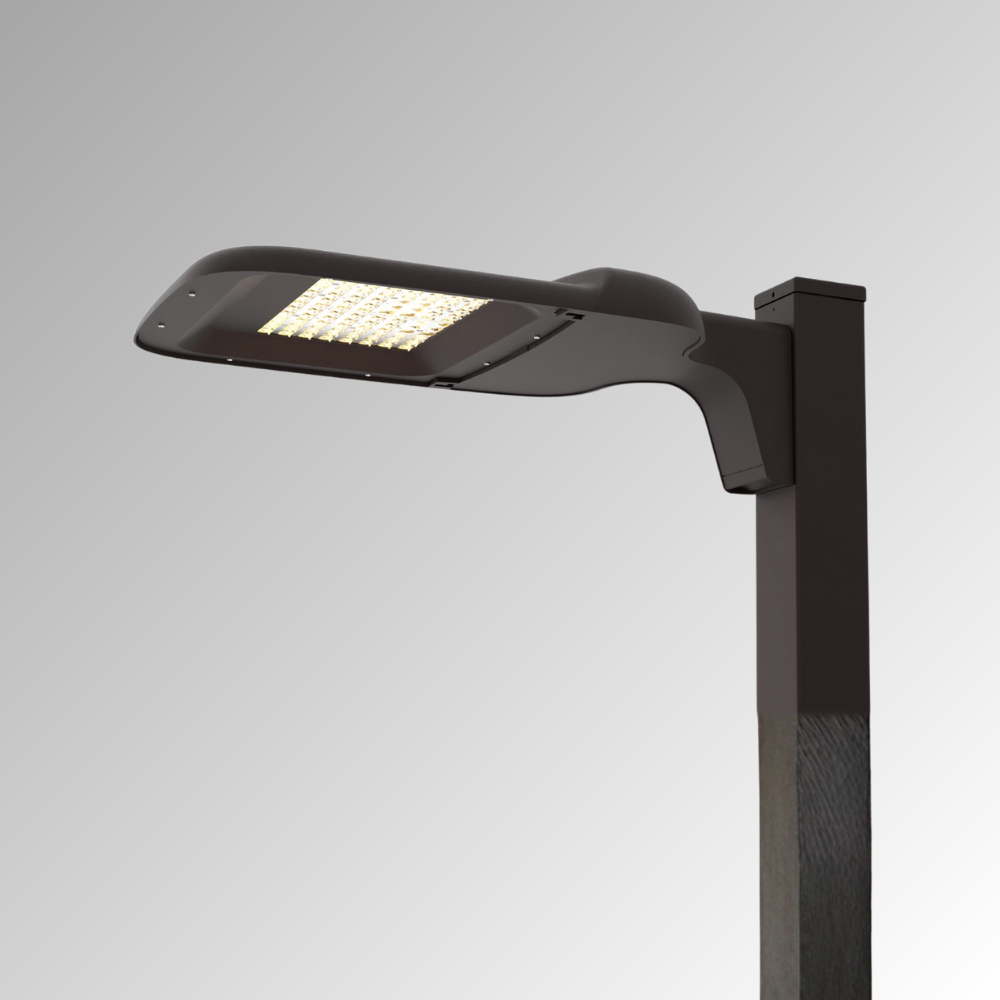

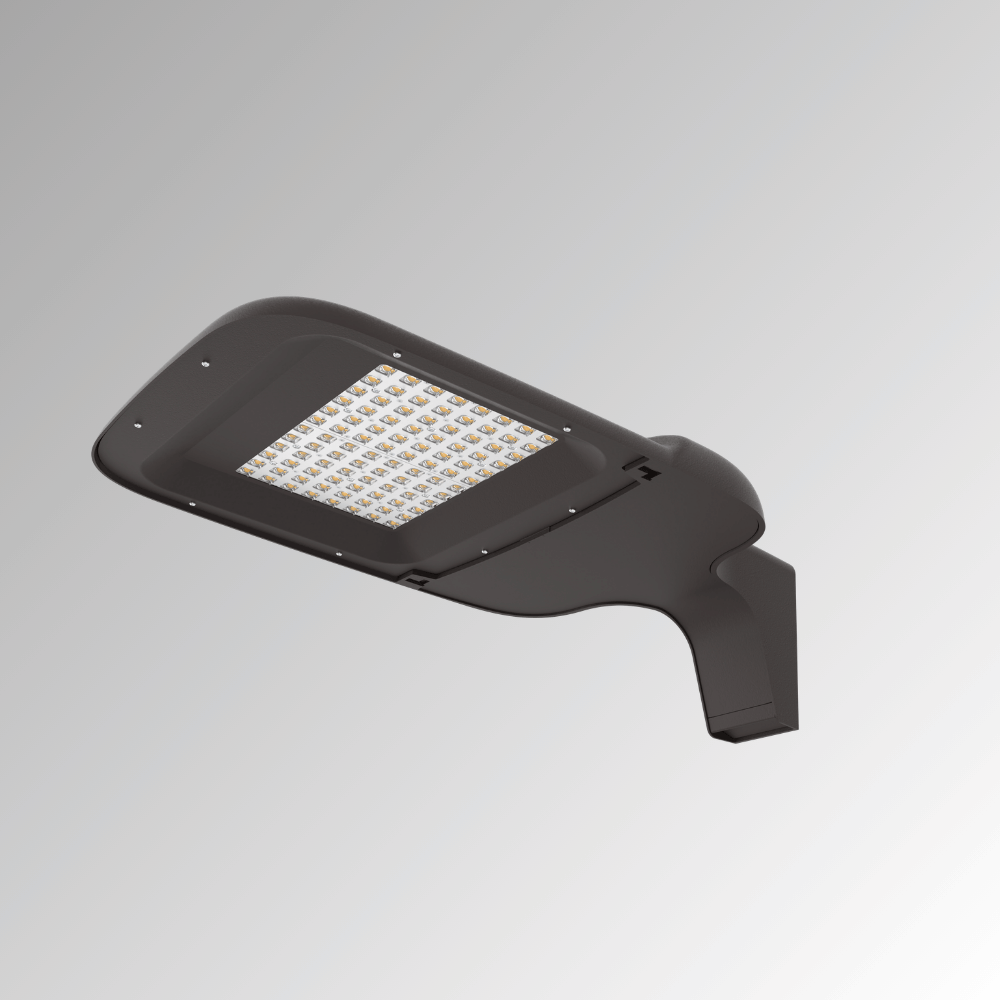

Arieta® Architectural Area Light – AR18

Assembled-in-USA
Darksky-Approved
UL-Listed

The Arieta® AR18 LED luminaire serves large outdoor sites and parking areas. Its published nominal performance spans 14,600–40,990 lumens at 103–299 W across listed output and color configurations. Compare the selected optics, mounting arrangement and project-specific IES file before ordering.

Features

Performance & Installation

  • Optics & color: N-Series Type 2 / 3 / 4 / 5 and Auto Front Row (AFR) optics. 3000K, 4000K, 5000K; minimum 70 CRI.
  • Protection & installation: Sealed optical system IP66; universal mounting for existing poles and removable power door. Rated −40°C to +40°C ambient.
  • Performance selection: Factory-set output code; field output selector is unavailable with FOC or PCR7-CR. Photometry varies by configuration; consult the IES file. Nominal tabulated tolerance is ±10%.

Controls & Warranty

  • External node configuration: Factory-wired PCR7-CR is the listed control-ready 7-wire receptacle. For LEOLink NB01-Plus, confirm factory wiring, the 1–10V dimming-driver interface, voltage and approved configuration. PCR7 alone does not mean wireless dimming is enabled by default.
  • Connected service: External nodes require a RenAI CMS subscription and network data plan. EB01 embedded support is limited to approved KarbonCobra configurations.
  • Other control options: Motion sensor MSL3 / MSL7 and factory part-night dimming are listed; part-night dimming is MV-only. Confirm compatibility when combining options.
  • Warranty: The current North America warranty V37 lists AR Arieta luminaires for 10 years and optional motion sensors for 5 years. Confirm combined-option terms for the selected order.

Selection & Related Resources

Performance and ordering information: AR18 Specification Sheet (2024-04-22). Confirm the selected IES file before ordering.

Specifications

Series
Arieta®
Application
Roadway & Street, Site & Area
Lumen Output
14,600–40,990 lm (published nominal range)
Color Temperature
3000K, 4000K, 5000K
Wattage
103–299 W
Light Source
LED
CRI
70
Voltage
120–277V / 347–480V
Dimming Control
Yes
Electrical Standard
UL
Mount Type
Pole Arm, Wall Mount
Distribution
Type II, Type III, Type V, Type IV, AFR
