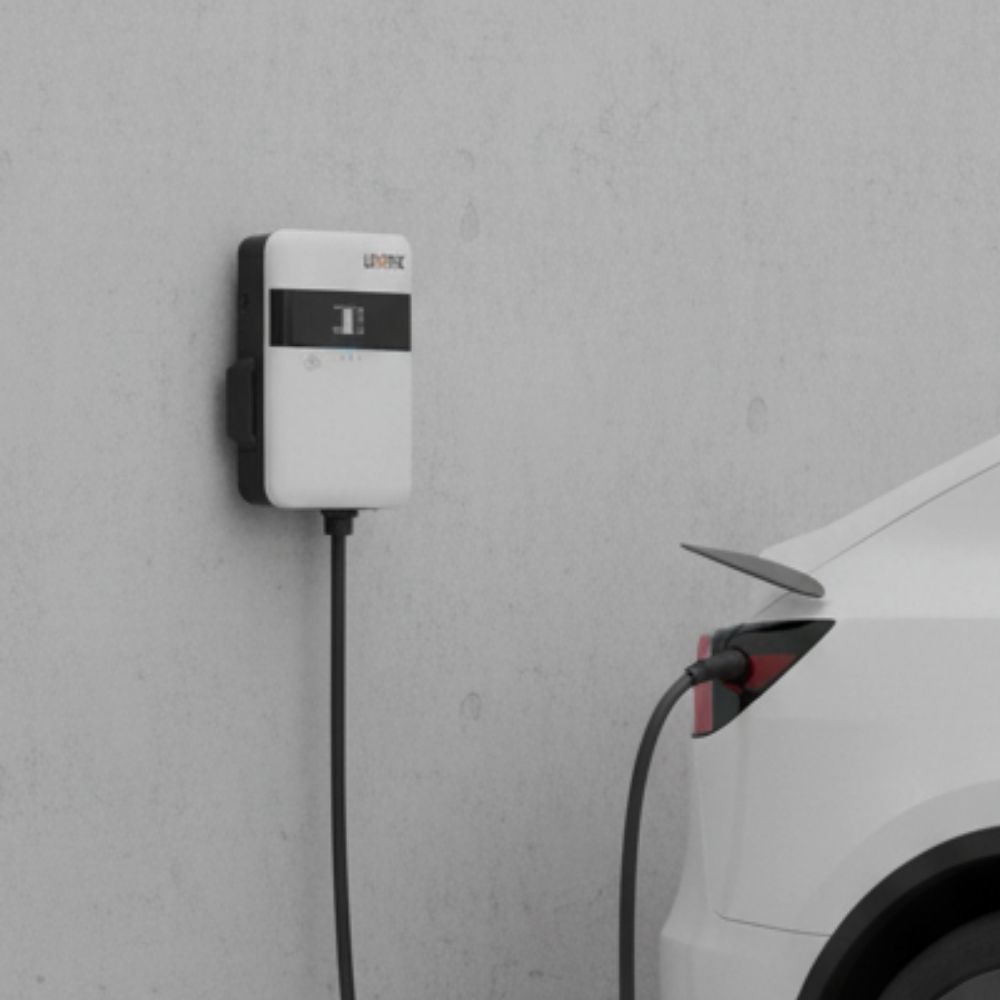

LEOTEK IC48A EV Charger (2)
EV Charger EVL2 Series - 48A MAX - Image 2
EV Charger EVL2 Series - 48A MAX - Image 3

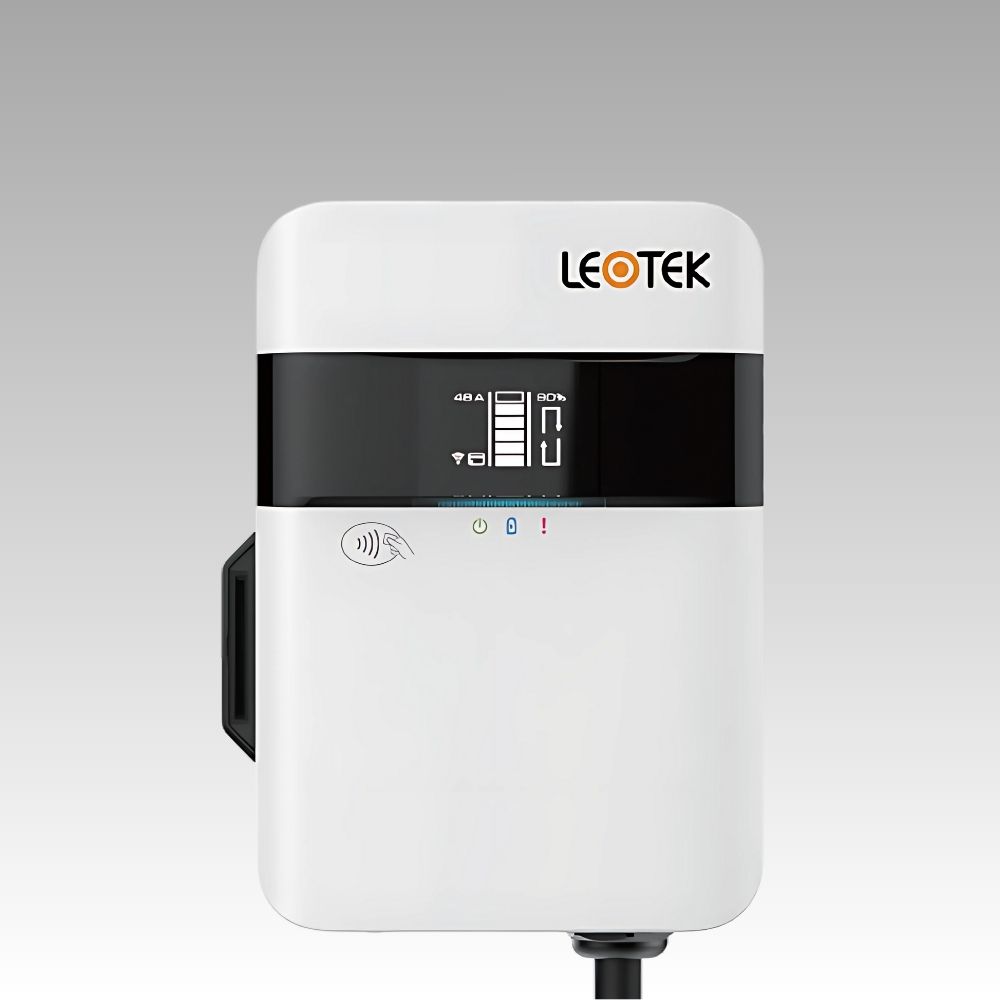

LEOTEK EV Charger 48A MAX
EV Charger EVL2 Series - 48A MAX - Image 5

EV Charger EVL2 Series – 48A MAX

UL-Listed
Energy Star
Energy Commision

The LEOTEK EVL2 48A Level 2 AC charger is intended for commercial, municipal and public charging sites. It provides up to 48A / 11.5 kW at 208 / 240 Vac single-phase input. Select the connector, network configuration, mounting method and site electrical design before ordering; actual charging rate depends on the vehicle and installation.

Features

Charging Hardware & Installation

  • Charging output: This 48A EVL2 model delivers up to 48 A / 11.5 kW at 208 / 240 Vac single-phase input, 60 Hz. Its attached family sheet also lists separate 32A / 40A codes; confirm the 48A order code for this page.

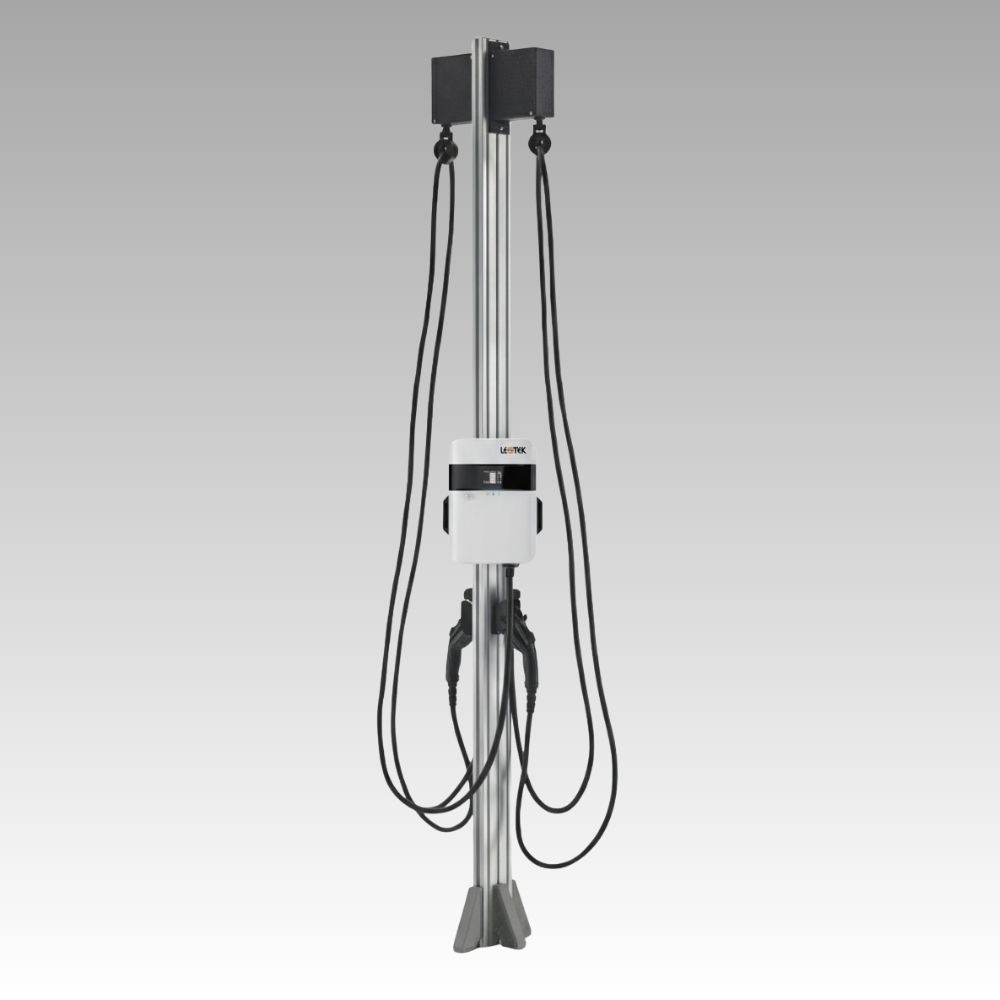

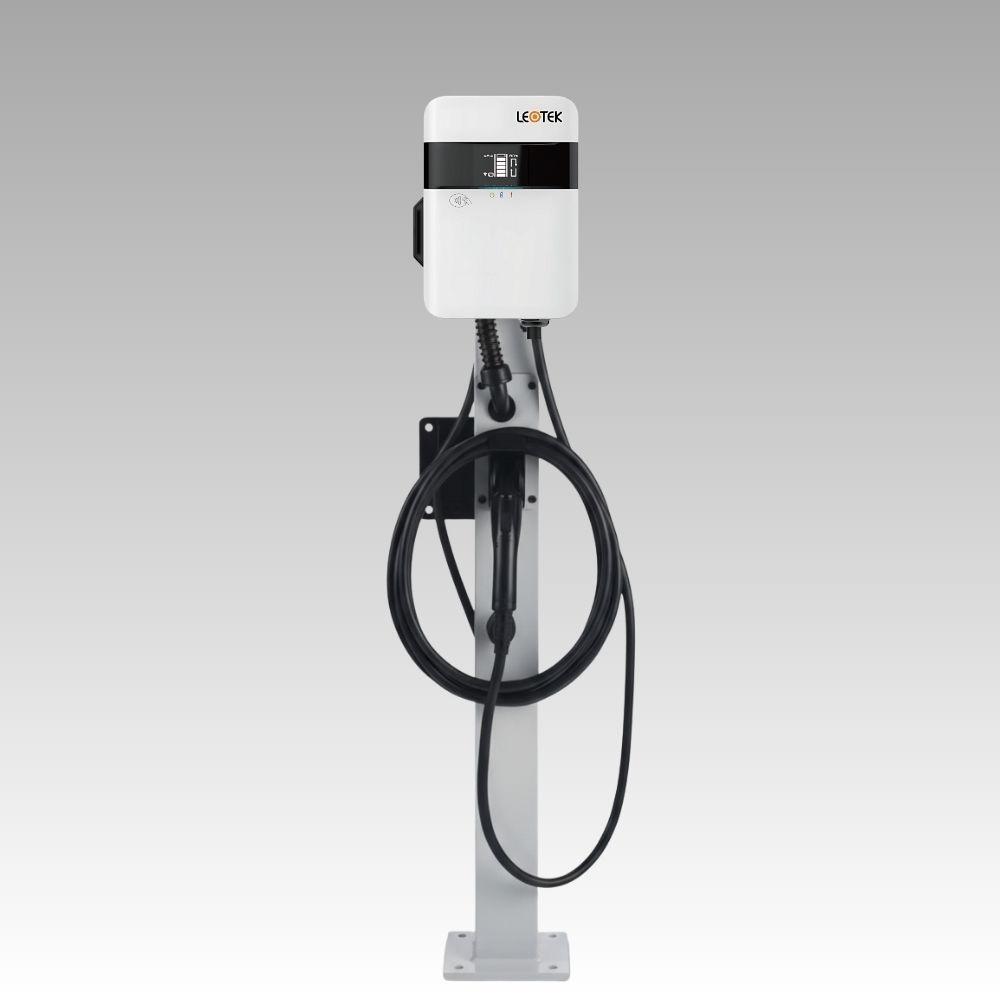

  • Connector & enclosure: J1772 (18 / 25 ft) or NACS (25 ft) by order code. Wall or pedestal mount; standard non-POS enclosure NEMA 4, POS variant NEMA 3R, housing IK10.
  • Operating range: The technical table lists −30°C to +50°C ambient, with −40°C to +80°C storage. Verify site circuit and selected connector with the contractor.

Connectivity, Software & Warranty

  • Network options: S includes Wi-Fi 802.11 b/g/n, Ethernet and OCPP 1.6J, with no display in the ordering table. ADV can add LTE, RFID / 3.5-inch LCD, ISO 15118 Plug & Charge and optional POS. OCPP 2.0.1 is an upgrade option.
  • AmpUp software: The attached sheet lists AmpUp Core / Pro subscription options. Confirm tier, network plan, payment integration and commissioning before procurement.
  • Warranty: The sheet states a 3-year limited warranty on electrical components, excluding the charging cable; verify current terms for the selected build.

Selection & Related Resources

Ordering and technical details: EVL2 48A Specification Sheet (2026-06-22). Confirm current catalog options before purchase.

Specifications

Output Current / Power (kW)
48 A max. / 11.5 kW
Input Rating (V)
208 / 240 Vac, 1Ø, 60 Hz
Frequency (Hz)
60Hz
Metering Accuracy
On power-board, ±1%
Real-Time Clock
Yes (min. 7 days)
Wi-Fi
802.11 b/g/n
Ethernet
Yes
RFID
ADV: ISO 14443 A/B, ISO 15693, FeliCa
Display
S: none; ADV: 3.5 in LCD
Backend Protocol
OCPP 1.6J; 2.0.1 upgrade available
EV Protocol
ADV: ISO 15118 Plug & Charge
Operating Temp.
-30 ~ 50 °C (-22 ~ 122 °F)
Storage Temp.
-40 ~ 80 °C (-40 ~ 176 °F)
Mounting Type
Wall Mount / Pedestal
Impact Rating
IK10
Weight
15 lb (technical table)
Web Portal Management
Yes
Console Management
Yes
Certification
UL 1998, UL 2231, UL2594, FCC Part 15B, FCC Part 15C/IC, ICES-003, CTEP, Energy Star
