Eseta

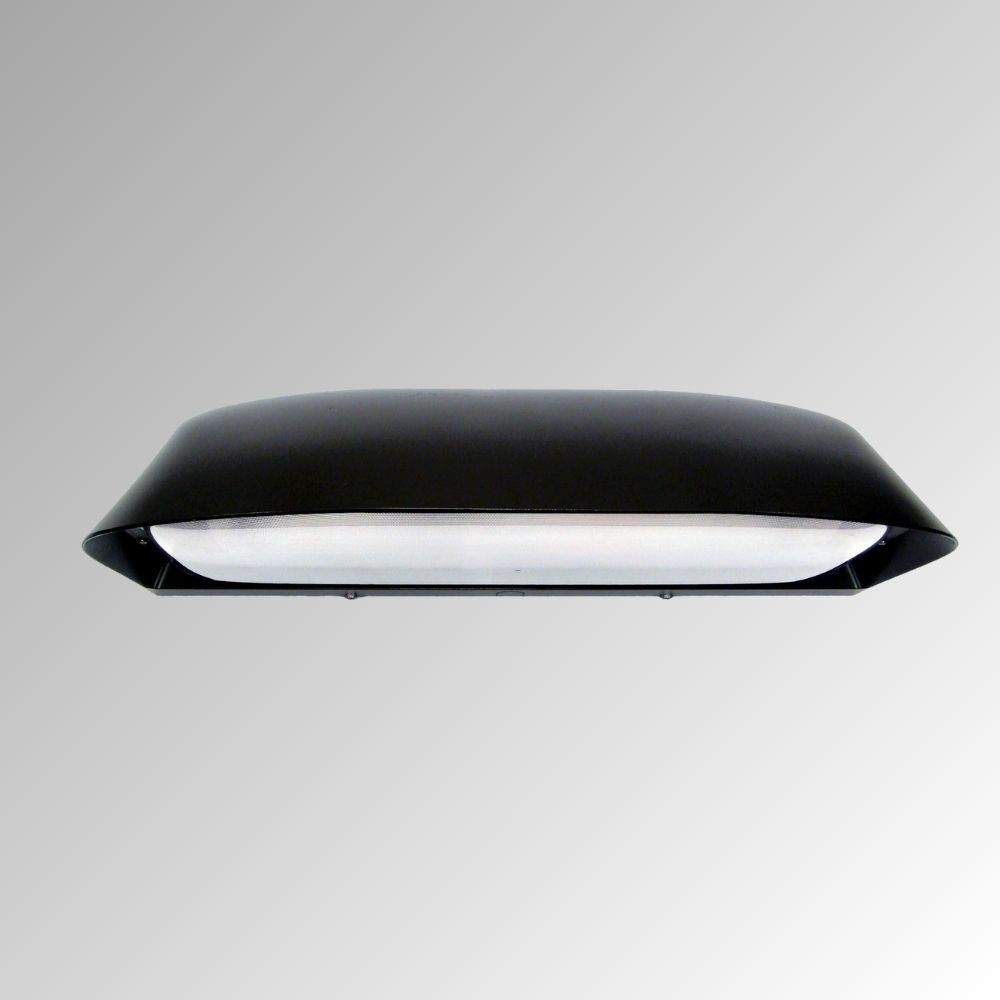

Eseta LED Wall Sconce – ES2

Name: Eseta ES2 LED Wall Sconce | LEOTEK
Brand: LEOTEK

Availability varies by configuration; see the specification sheet.

The Eseta™ ES2 LED wall sconce supports higher-output building-exterior and site-perimeter lighting projects. Compare OMNI Lens™ Wide and Forward Throw distributions using the selected IES file. Published nominal performance spans 13,285–19,625 lumens at 125.6–185.8 W across listed configurations.

Features

Performance & Installation

Optics & color: Wide (W) / Forward Throw (FT); 3000K, 4000K, 5000K; minimum 70 CRI.
Mounting & protection: Back-plate hanging mount and top/bottom conduit knockouts. Entire fixture IP66 / IK10; non-emergency ambient rating −40°C to +40°C.
Performance selection: Output varies by CCT, optics and LED configuration. Drive current is factory-set, not field-adjustable. 88H / 130H performance rows use the standard 450mA setting.

Controls & Emergency Options

External controller: PCR7-CR is the listed 7-wire receptacle option. For LEOLink NB01-Plus, confirm factory wiring, dimming-driver interface, supply voltage and supported configuration.
Connected operation: Each controller requires a RenAI CMS subscription and network data plan; controller warranty is separate. EB01 embedded support is limited to approved KarbonCobra configurations.
Local options: Button photocontrol, MSL3 / MSL7 motion sensors and MV-only EM / EM2 battery options. Check compatibility when combining controls and emergency options.
Emergency configuration: 130H with EM / EM2 requires 350mA. The sheet applies 0.81 to lumens and 0.77 to wattage versus 450mA table data; do not use standard output unchanged.
Emergency operation: Nominal 2,300 lumens for at least 90 minutes. EM and EM2 battery-system temperature ratings differ; confirm the complete luminaire configuration for the project.
Warranty: The current North America warranty statement (V37) lists Eseta luminaires for 10 years, optional motion sensors for 5 years and ES battery packs for 3 years. Photocontrol terms and combined-option coverage require confirmation for the ordered configuration.

Specifications

Series

Eseta

Application

Site & Area, Wall & Surface

Lumen Output

13,285–19,625 lm (published nominal range)

Color Temperature

3000K, 4000K, 5000K

Wattage

125.6–185.8 W

Light Source

LED

CRI

Voltage

120–277V / 347–480V

Dimming Control

Yes

Electrical Standard

Mount Type

Wall Mount

Distribution

Type FT, Type W
