Eseta LED Wall Sconce – ES1
Eseta LED Wall Sconce – ES1

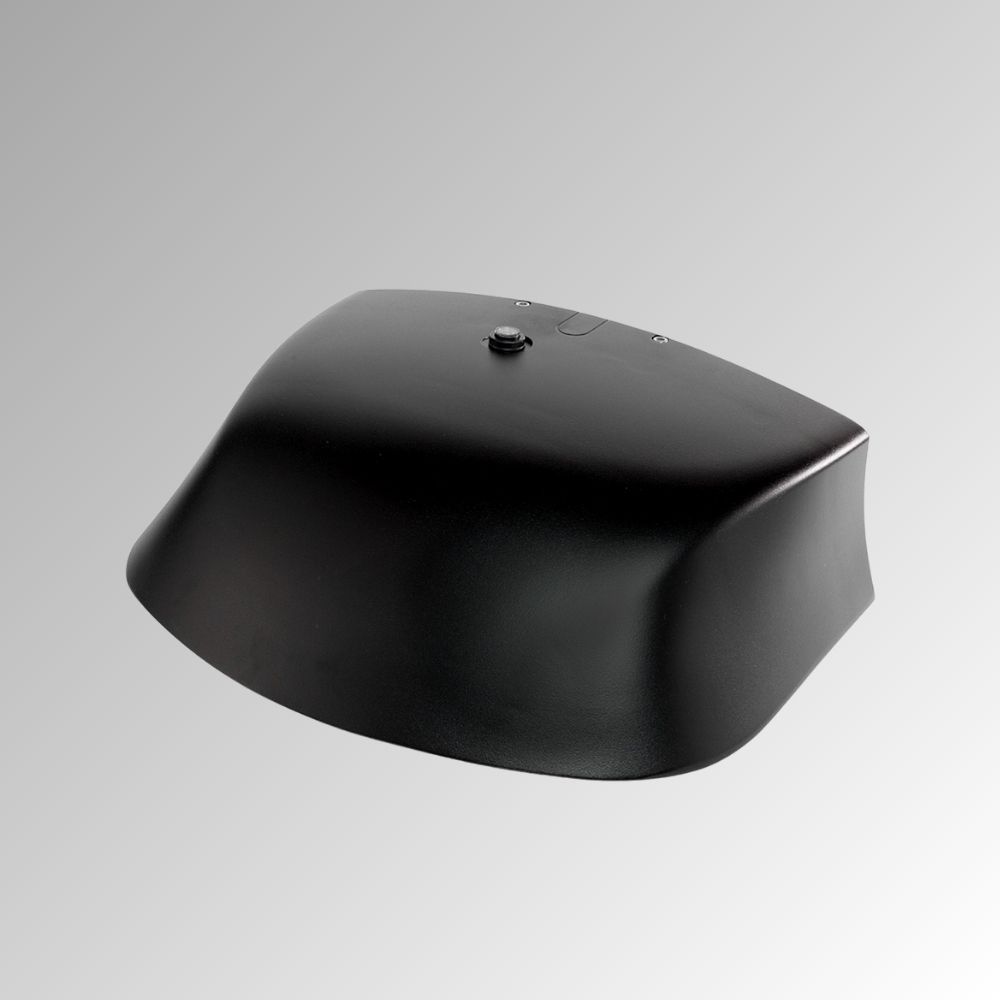

Black architectural luminaire rear housing.
Eseta LED Wall Sconce – ES1 details
Eseta

Eseta LED Wall Sconce – ES1

DLC ListedAssembled in USA

Availability varies by configuration; see the specification sheet.

The Eseta™ ES1 LED wall sconce supports compact building-perimeter and walkway lighting projects. Compare OMNI Lens™ Wide and Forward Throw distributions using the selected IES file. Published nominal performance spans 3,618–9,839 lumens at 29–84 W across listed configurations.

Features

Performance & Installation

  • Optics & color: Wide (W) / Forward Throw (FT); 3000K, 4000K, 5000K; minimum 70 CRI.
  • Mounting & protection: Back-plate hanging mount and top/bottom conduit knockouts. Entire fixture IP66 / IK10; non-emergency ambient rating −40°C to +40°C.
  • Performance selection: Output varies by CCT, optics and LED configuration. Drive current is factory-set, not field-adjustable. 24H offers 350 / 530 / 700mA; 48H allows 350 / 530mA only. The published 48H performance rows cover 530mA.

Controls & Emergency Options

  • Controller support: ES1 does not support LEOLink NB01-Plus or embedded EB01. Use only the approved local-control configurations.
  • Local options: Button photocontrol, MSL2 / MSL3 motion sensors and EM / EM2 battery options. Motion sensors and emergency options require MV.
  • Emergency operation: Nominal 2,300 lumens for at least 90 minutes. EM and EM2 battery-system temperature ratings differ; confirm the complete luminaire configuration for the project.
  • Warranty: The current North America warranty statement (V37) lists Eseta luminaires for 10 years, optional motion sensors for 5 years and ES battery packs for 3 years. Photocontrol terms and combined-option coverage require confirmation for the ordered configuration.

Selection & Related Resources

Performance and ordering information: ES1 Specification Sheet (2024-02-26). Confirm the selected configuration and IES file before ordering.

Specifications

Series
Eseta
Application
Site & Area, Wall & Surface
Lumen Output
3,618–9,839 lm (published nominal range)
Color Temperature
3000K, 4000K, 5000K
Wattage
29–84 W
Light Source
LED
CRI
70
Voltage
120–277V / 347–480V
Dimming Control
Yes
Electrical Standard
UL
Mount Type
Wall Mount
Distribution
Type FT, Type W
