IL6 Series 12″ Traffic Signal Module – Bus Indication

IL6 Series Traffic Signal Module – Bus Indication - Image 2

IL6 Series

IL6 Series Traffic Signal Module – Bus Indication

Name: IL6 Bus Traffic Signal Module | LEOTEK
Brand: LEOTEK

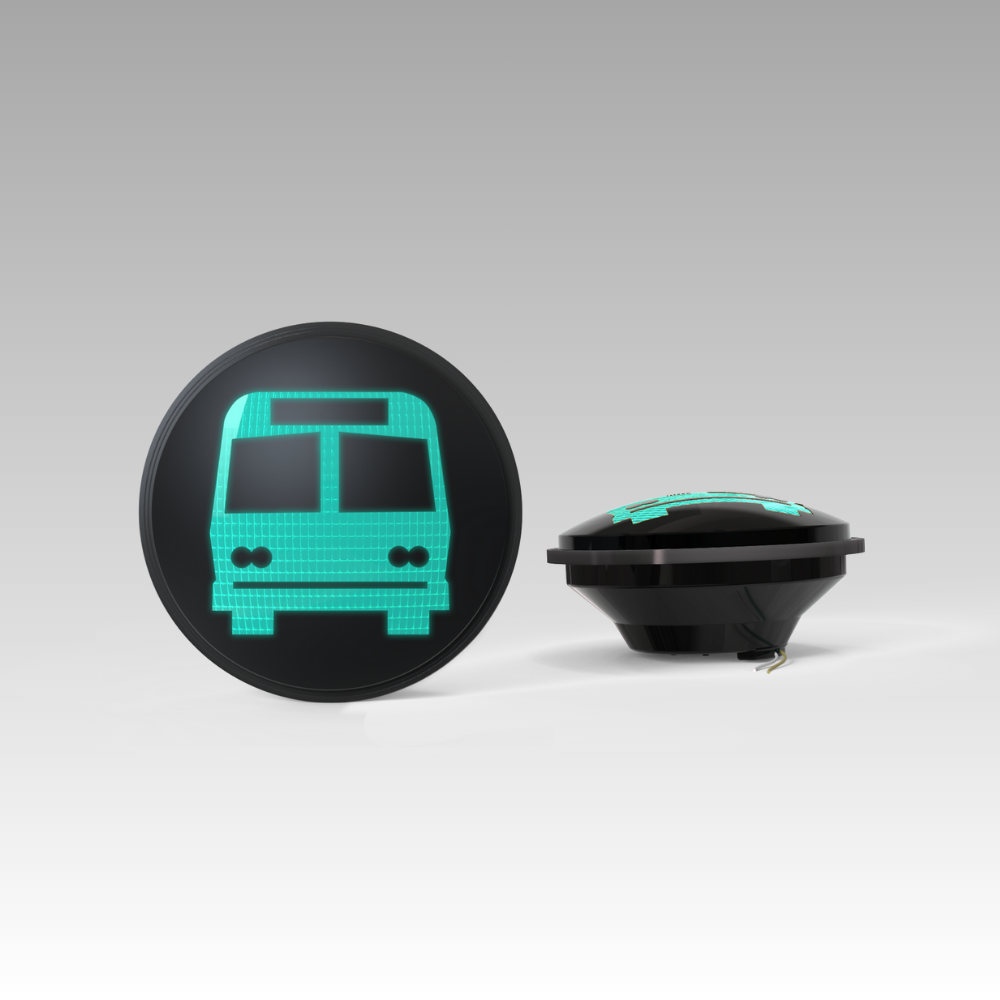

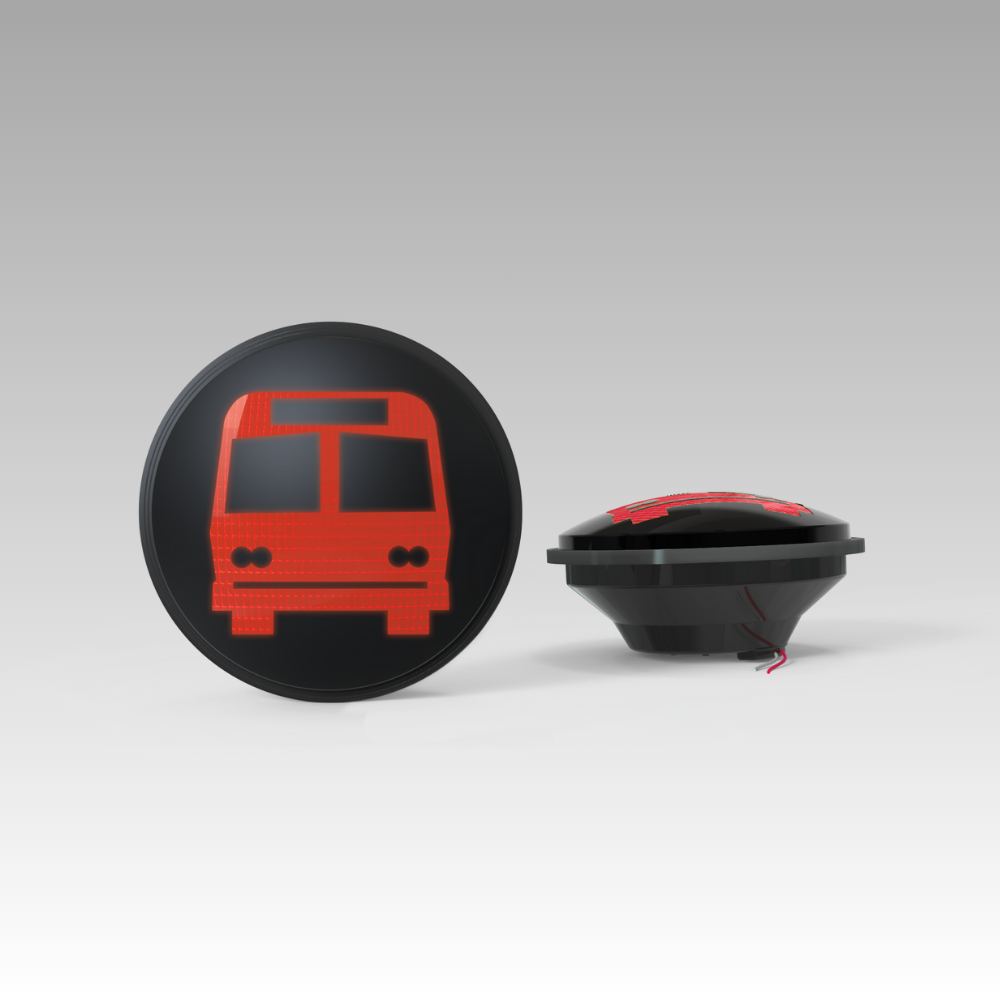

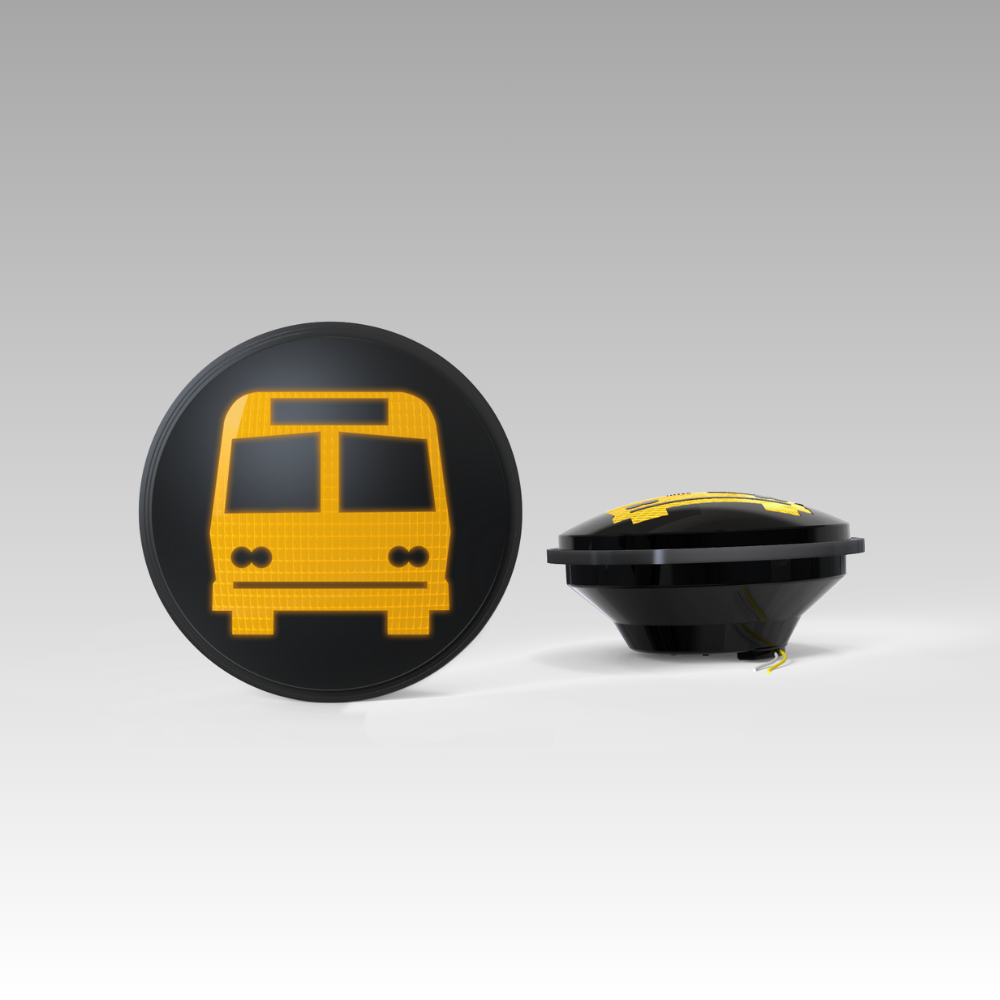

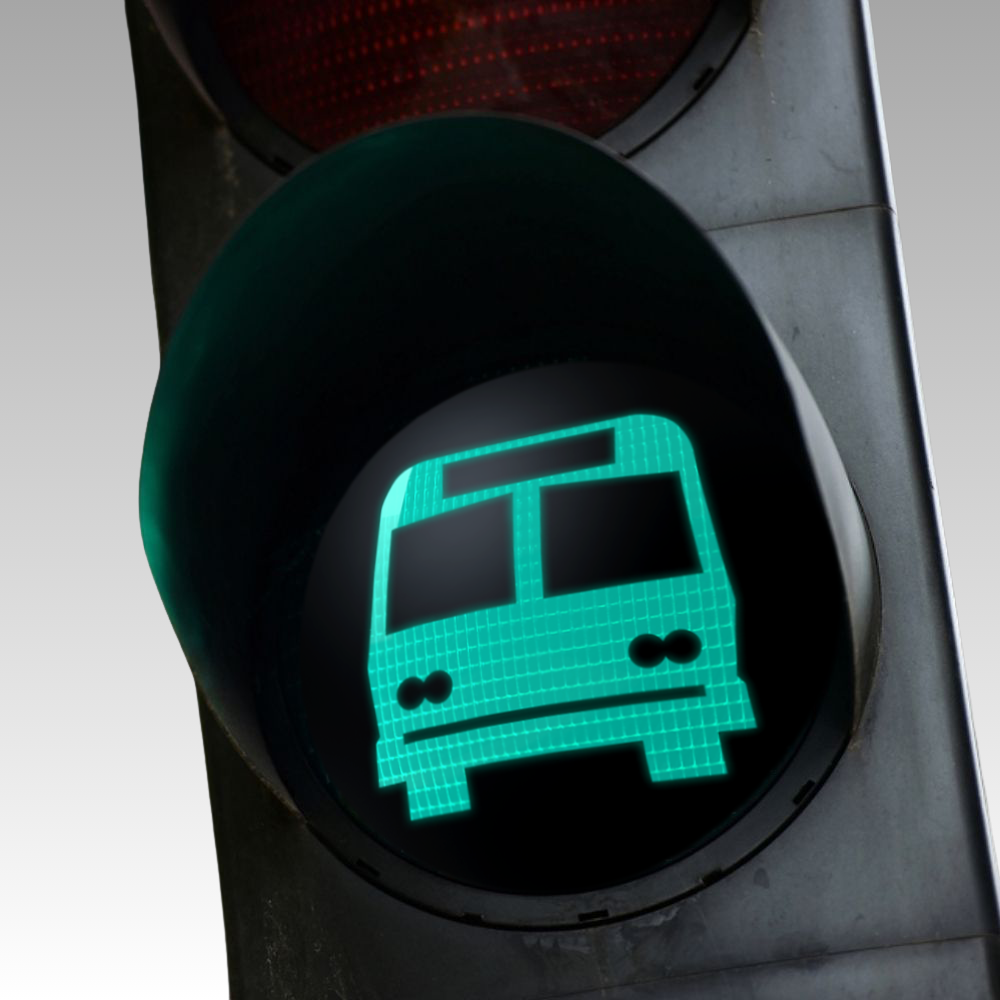

The IL6 Series 12-inch LED bus traffic signal module provides a dedicated bus symbol for transit-priority signal heads. The available IL6 bus specification covers red, yellow and green models at 80–135 Vac, 60 Hz.

Published order codes TSL-12R/Y/G-IL6-BS-A1 draw 5.6 W, 6.8 W and 7.0 W respectively. Check the signal controller, indication rules and compatible housing before specifying the bus display.

Features

Configuration & Electrical

12-inch red, yellow or green dedicated bus indication at 80–135 Vac, 60 Hz.
Model-specific draw: 5.6 W red, 6.8 W yellow and 7.0 W green.
Match the selected symbol and color to the transit agency’s signal plan.

Optics & Field Performance

Hard-coated UV-stabilized lens, O-ring sealing and engineered aluminum heat sink.
Constant-current optical output and published <75 ms response.
70% initial intensity at 100,000 hours and five-year limited warranty.

Specifications

Color

Red, Green, Yellow

Indication

Bus

Lens Color

Clear, Tinted

Lens Size

12"

Voltage

120Vac (80-135Vac)
