SPC Series 16″ x 18″ Pedestrian & Countdown Signal Module

Name: SPC 16 x 18-Inch Pedestrian Countdown Signal | LEOTEK
Brand: LEOTEK

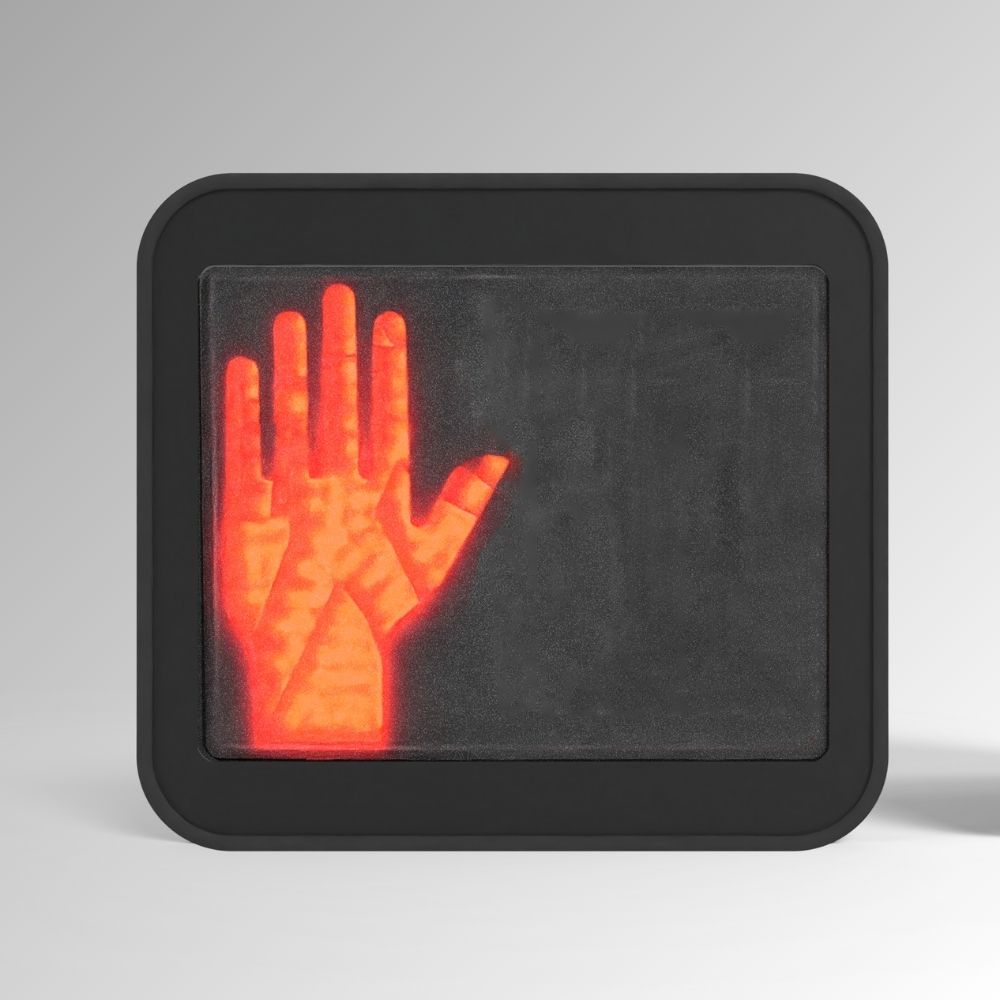

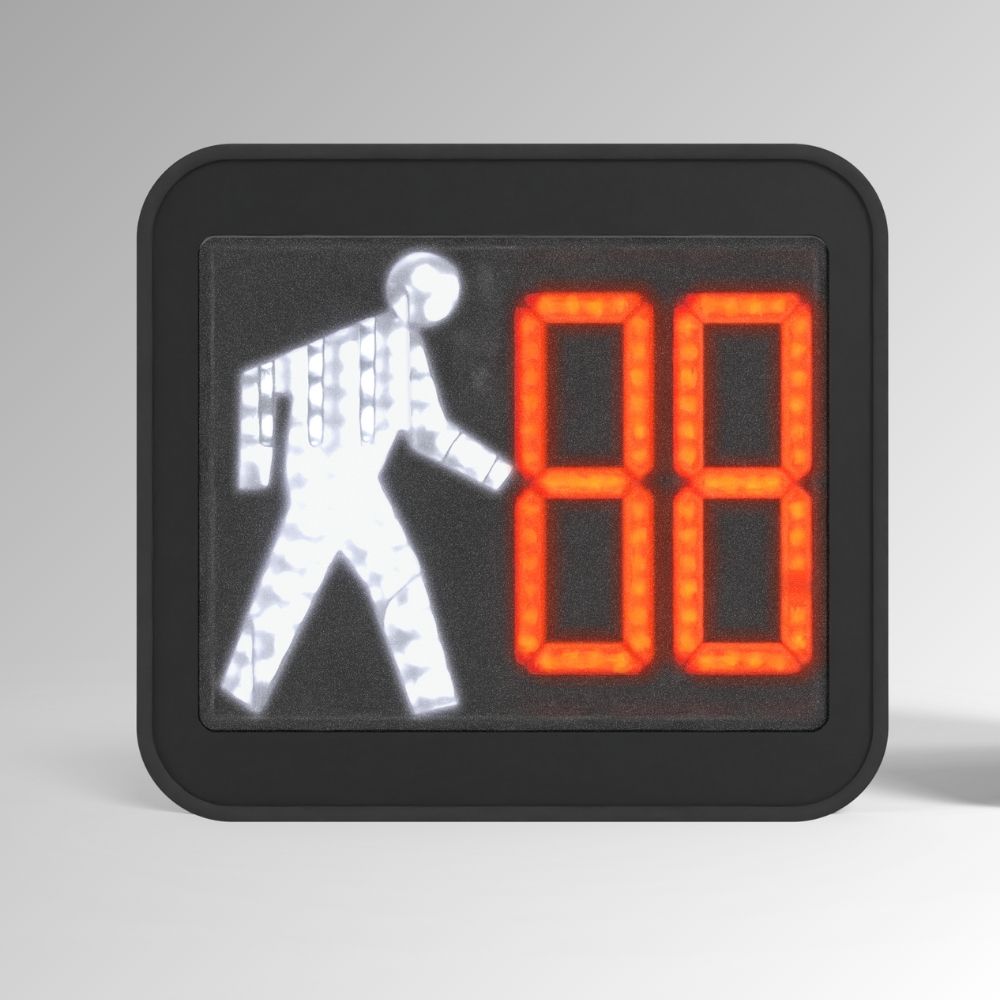

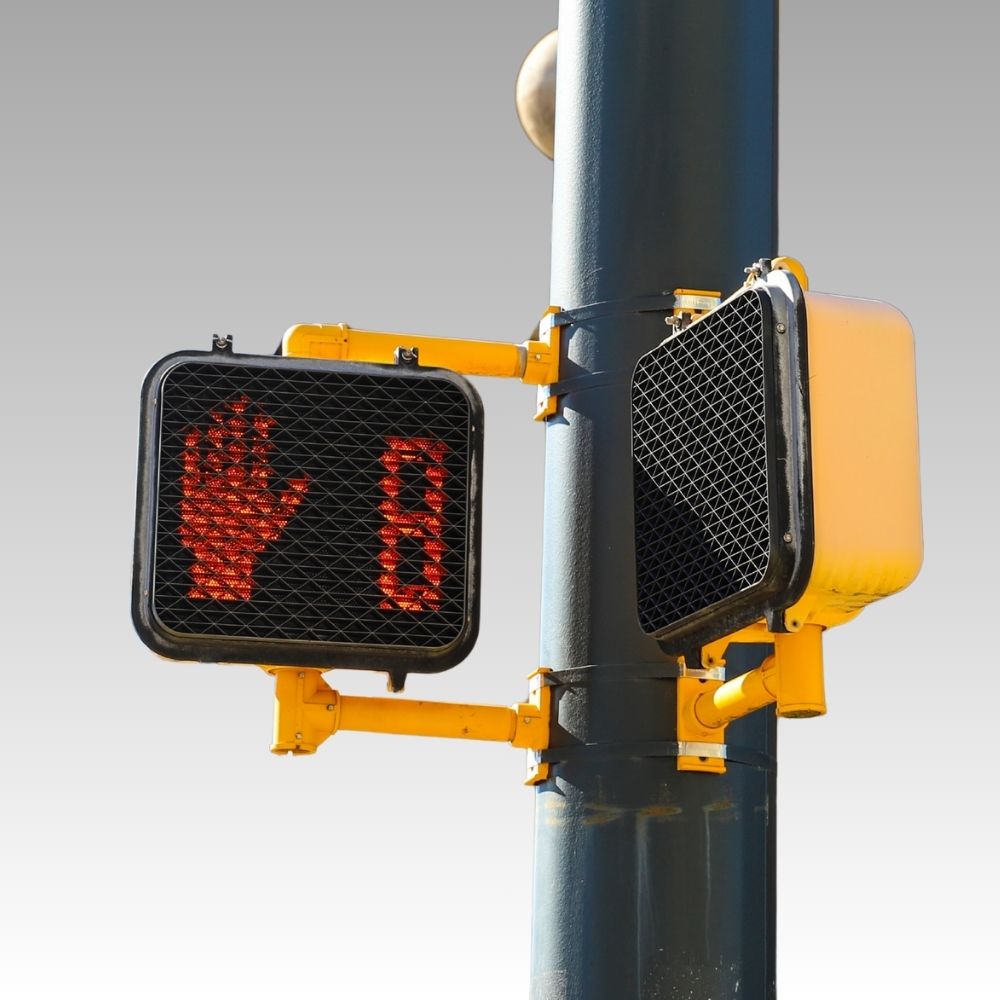

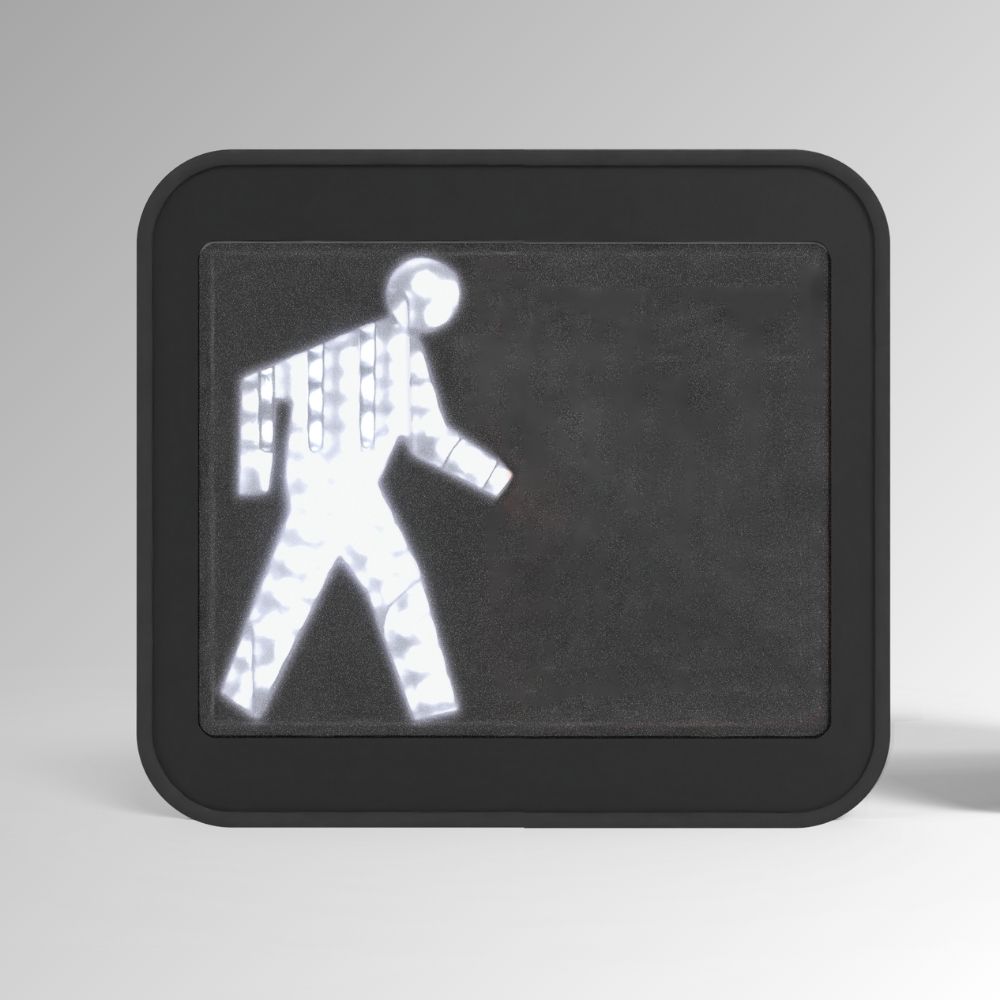

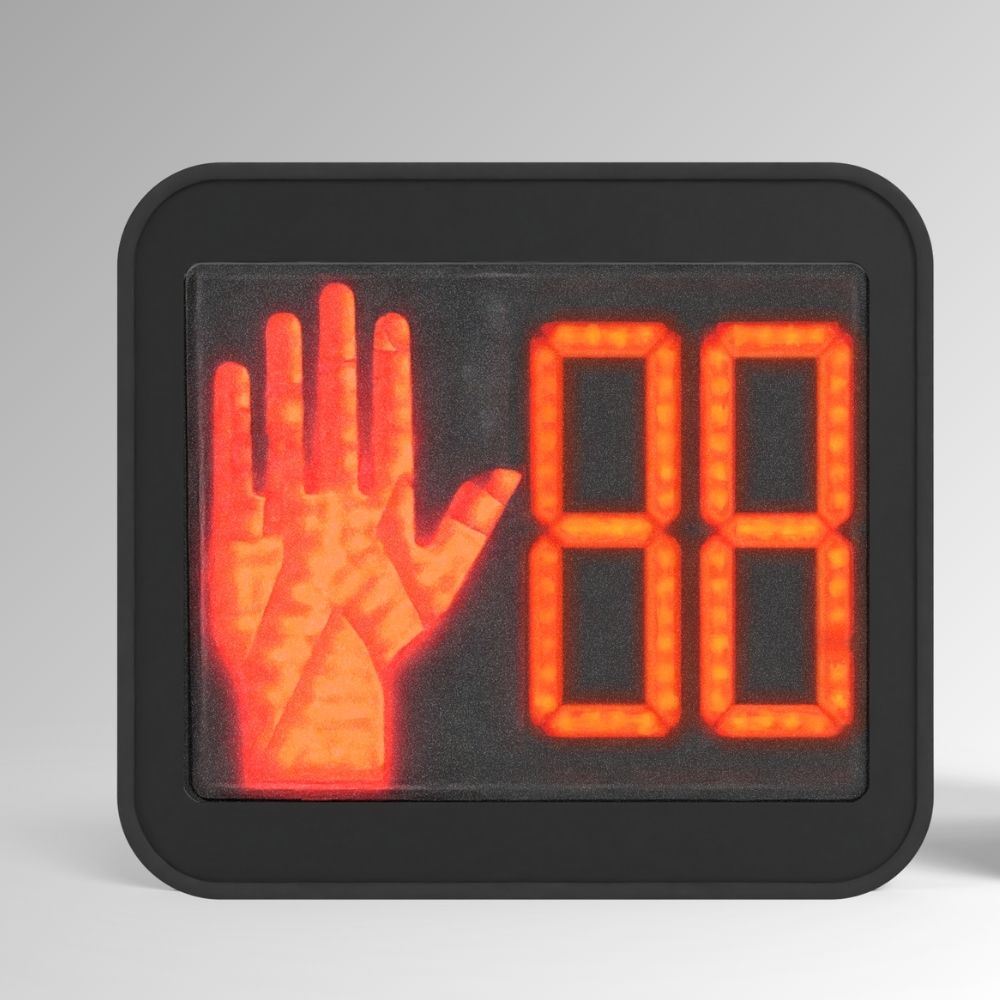

The SPC 16 × 18-inch LED pedestrian and countdown signal family combines Portland Orange upraised-hand and countdown indications with a Lunar White walking person. Its incandescent-look optics provide a 9-inch countdown display for compatible pedestrian signal housings.

Select the electrical version for the cabinet: TSL-PED-16-SPC-V1 operates at 80–135 Vac, -B1 at 10–28 Vdc for appropriate solar or battery-backed systems, and -L1 at 36–60 Vdc for compatible 48 V cabinets. Features and power draw vary by version; verify the matching downloadable specification before ordering.

Features

Configuration & Electrical

16 × 18-inch hand/person/countdown display with 9-inch digits.
Separate published configurations: V1 (80–135 Vac), B1 (10–28 Vdc) and L1 (36–60 Vdc).
Low-voltage variants support the specified solar, battery-backup or 48 V cabinet applications; verify wiring and controls by version.

Visibility & Durability

Internal conflict monitor prevents simultaneous Walk and Don’t Walk indications.
Hard-coated, UV-stabilized polycarbonate lens, moisture sealing and constant-current light output.
Rugged one-piece construction and five-year limited warranty; conformance depends on the selected electrical model.

Specifications

Indication

Upraised Hand, Walking Person, Countdown digits

Lens Size

16" x 18"

Light Color

Lunar White, Portland Orange

Voltage

120Vac (80-135Vac), 10-28Vdc, 48Vdc (36-60Vdc)

Warranty (Years)

5 year(s)

Certification

ETL
