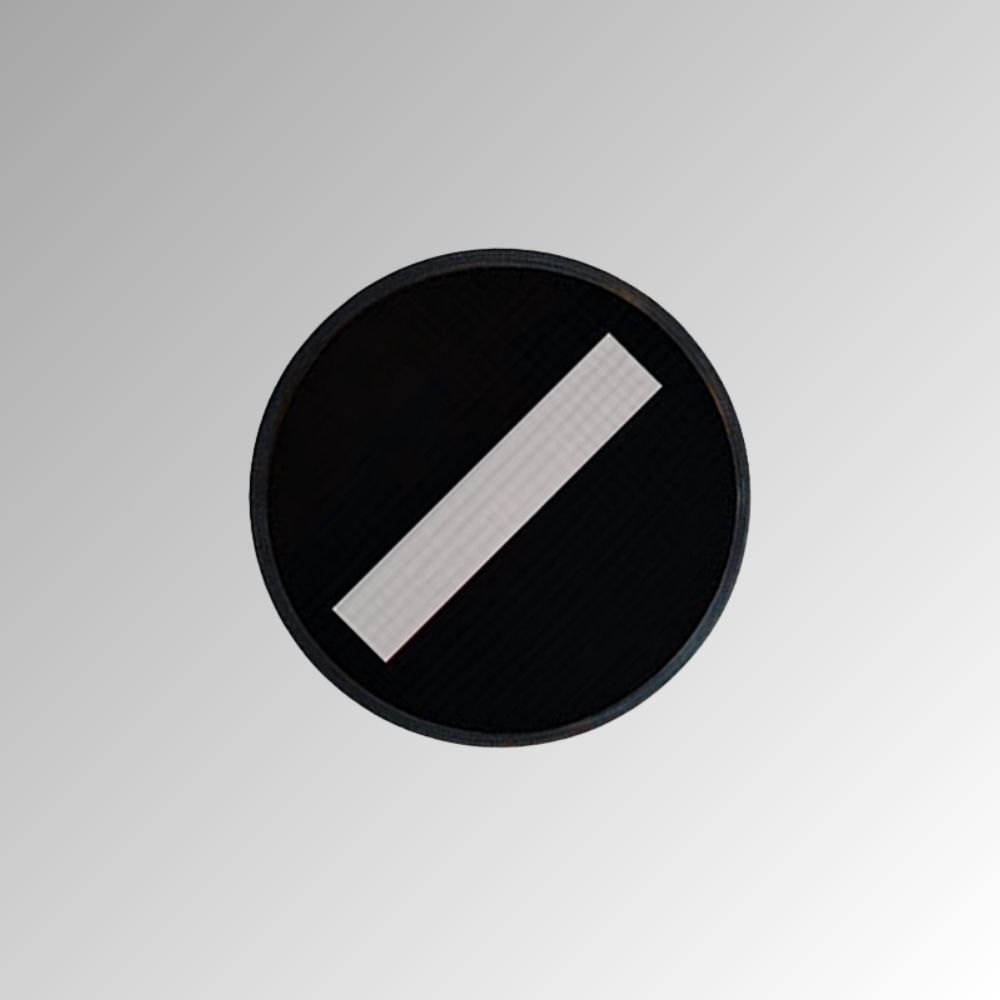

LED Transit Indications (8) Clear Bar diagnol

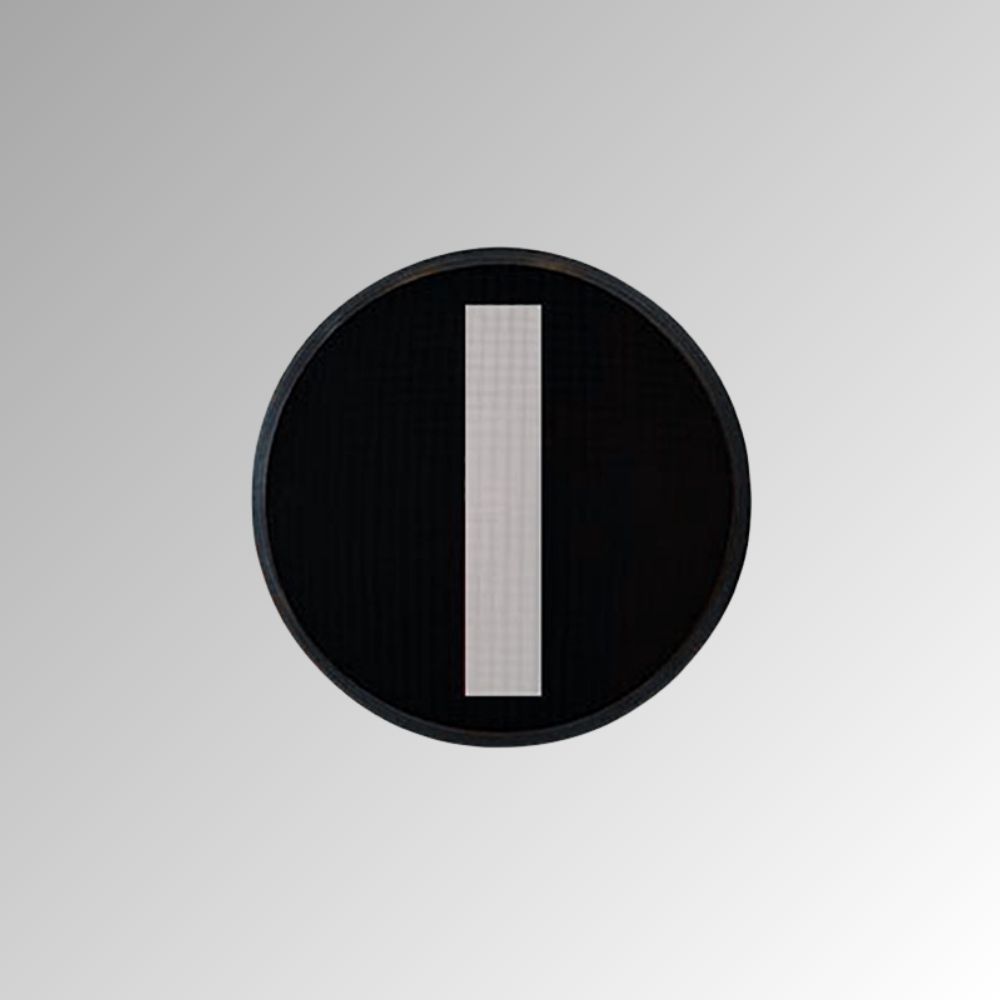

LED Transit Indications (8) Clear Bar vertical

IL Series Railroad Signal Module, Transit Indications

Name: IL Series Railroad Transit Indications | LEOTEK
Brand: LEOTEK

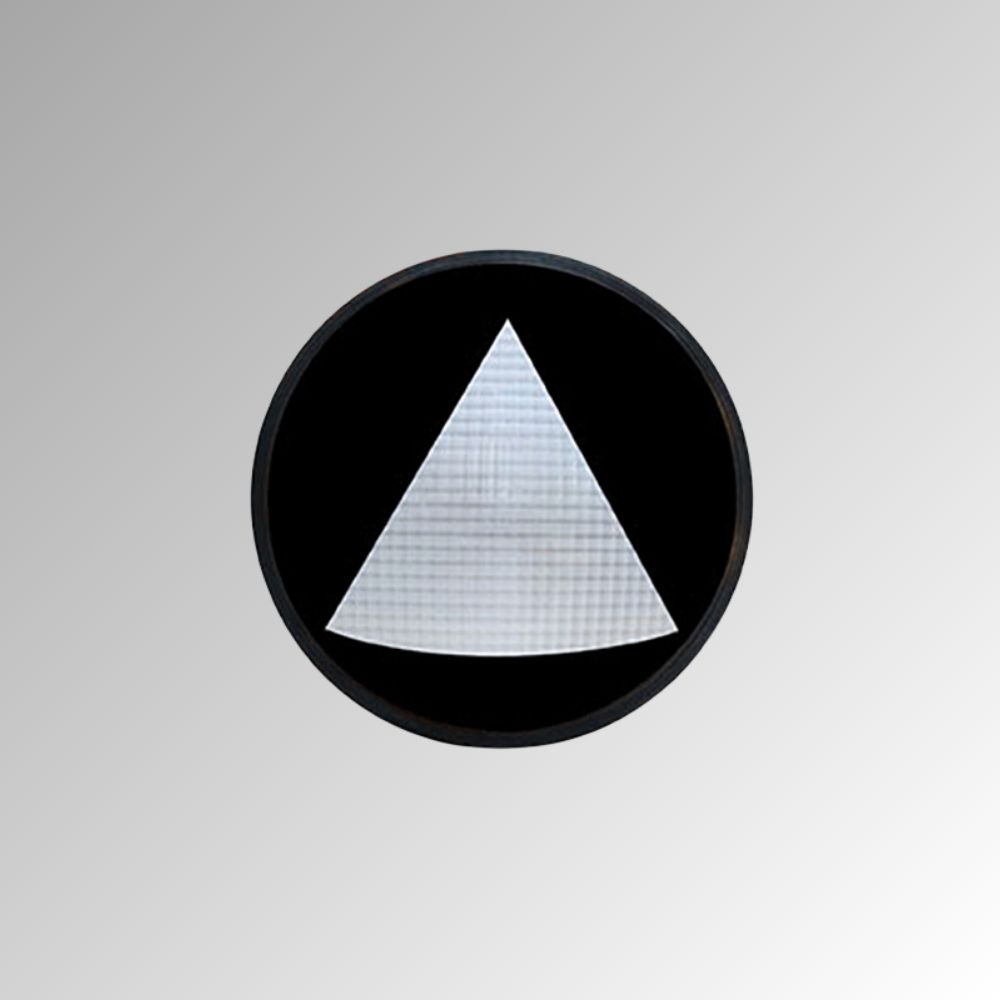

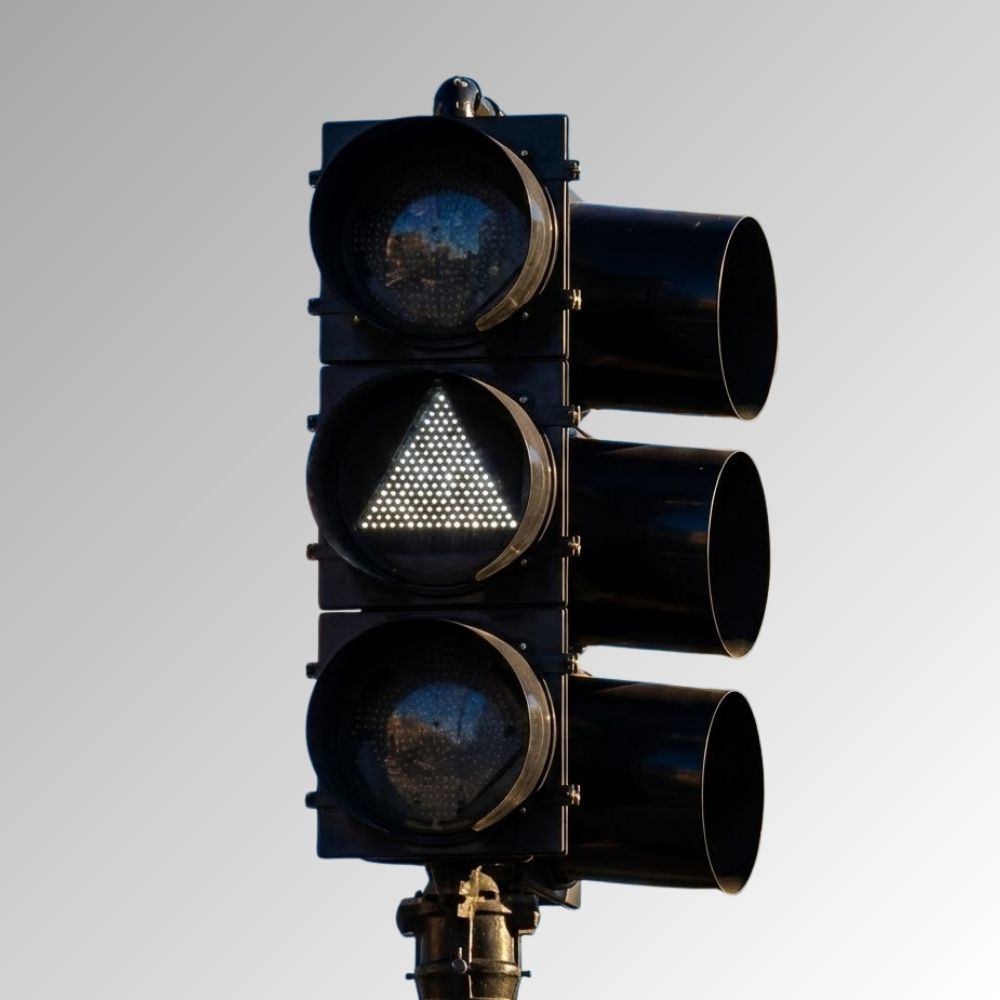

The IL Series LED railroad transit-indication modules provide 8-inch and 12-inch signal formats for transit interfaces. Published configurations include an 8-inch white triangle and 12-inch white or red bar and indication patterns. These are transit indications, not the IL or EV red grade-crossing warning modules.

The IL transit data sheet specifies 80–135 Vac, 60 Hz. Listed models draw 5.9 W for the 8-inch module and 5.6–6.9 W across the 12-inch entries. Select the exact symbol, color and size from the order table, then verify housing and controller compatibility.

Features

Configuration & Electrical

8-inch and 12-inch IL railroad transit-indication modules, including triangle and bar configurations.
80–135 Vac, 60 Hz input; 5.9 W for the listed 8-inch model and 5.6–6.9 W for listed 12-inch models.

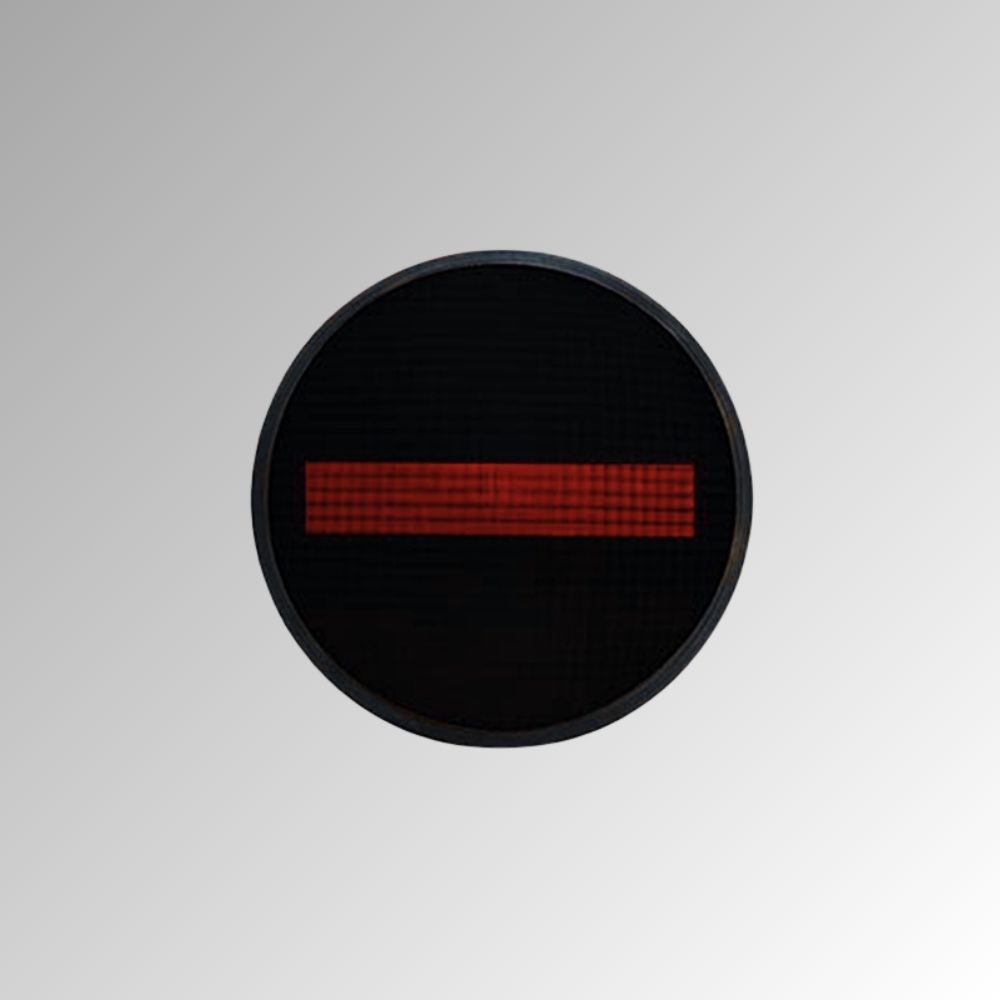

Check the model suffix for size, symbol orientation and color; the 12-inch table includes white and red entries.

Visibility & Durability

AREMA and Transport Canada requirements are cited in the series sheet; verify exact project approval documents separately.
High-flux LED optics, hard-coated UV-stabilized polycarbonate lens and moisture-resistant construction.
Published operating temperature −40°C to 74°C; 70% intensity at 100,000 hours and five-year limited warranty.

Specifications

Indication

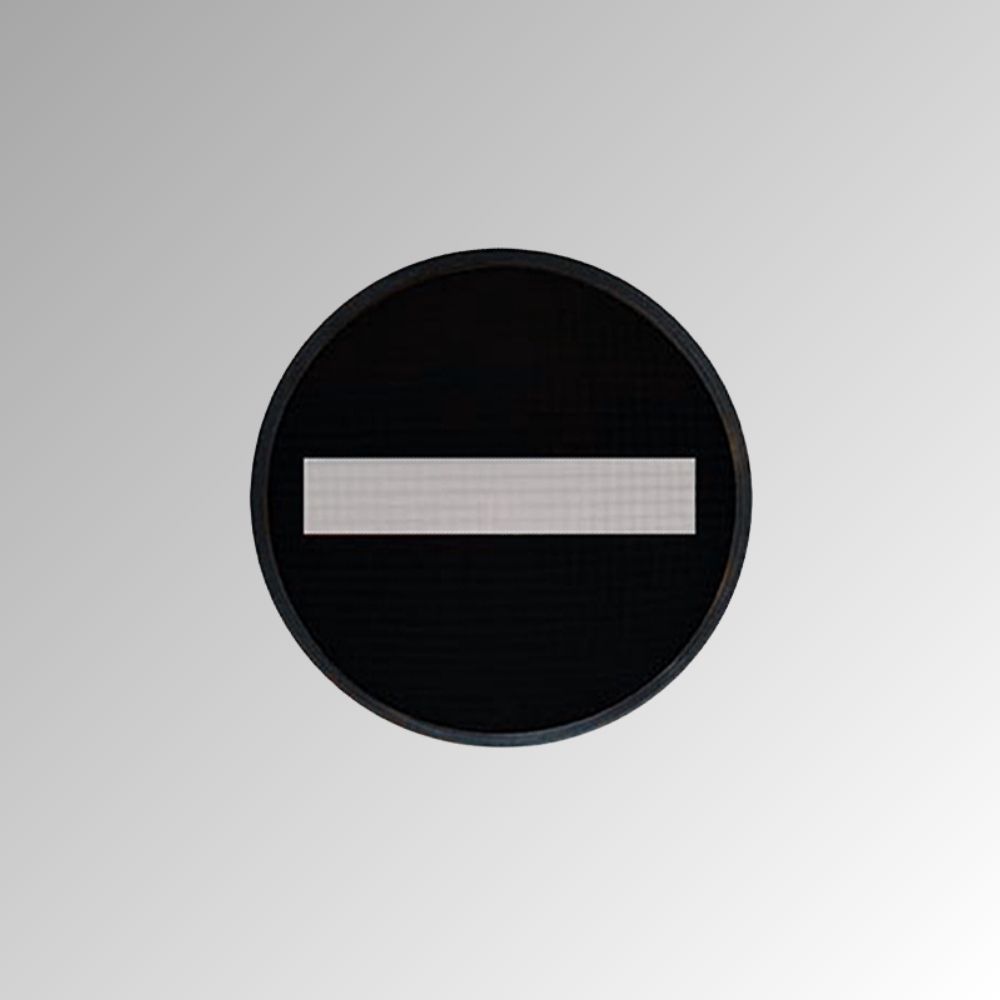

Transit, Transit – Bar Horizontal

Lens Size

8", 12"

Color of Lens

Clear, Tinted

Light Color

Red, White

Voltage

120Vac (80-135Vac)
