CD Series 12″ Countdown Signal Module (Canada)

Name: CD 12-Inch Countdown Signal: Canada | LEOTEK
Brand: LEOTEK

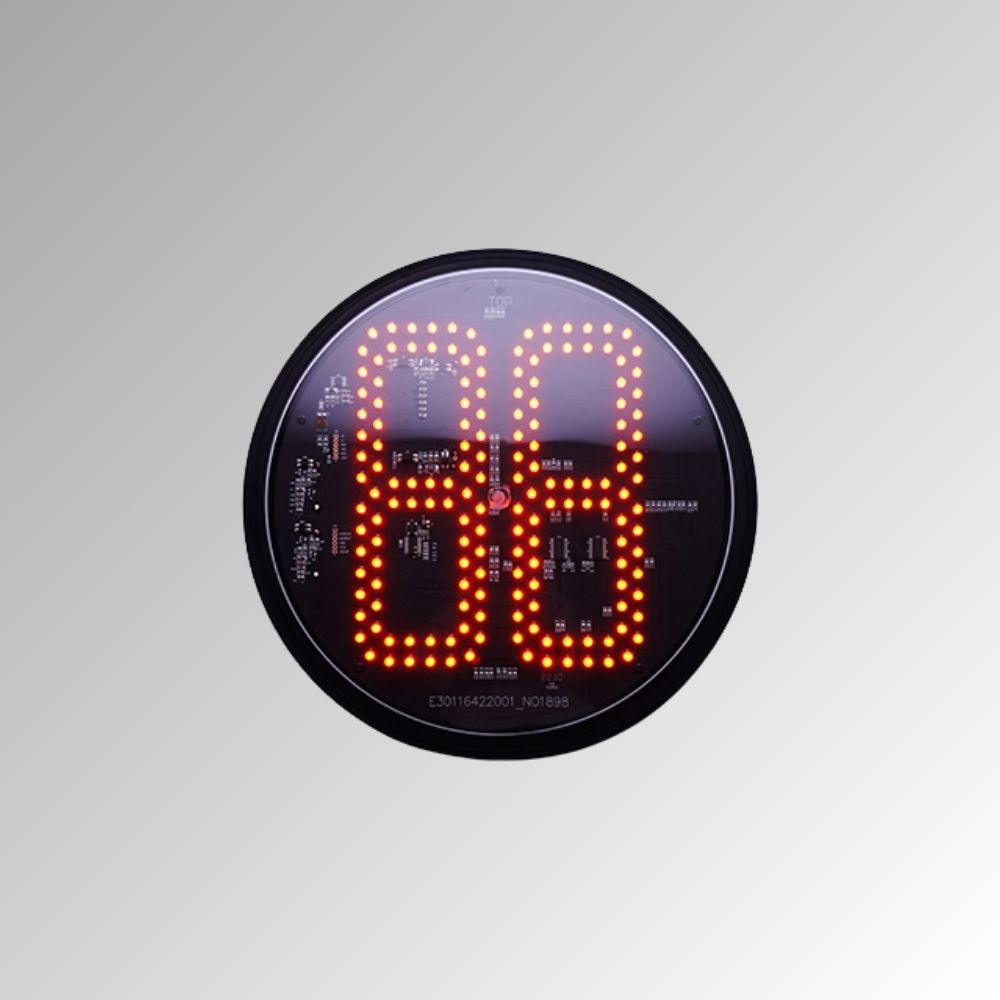

The CD 12-inch round pedestrian countdown module for Canada displays Portland Orange countdown digits for compatible round pedestrian signal housings. The published Canadian CD/HM specification lists an 80–135 Vac operating range (120 Vac nominal).

The round Canadian specification identifies model TSL-PED-12-CD-CR1 with an 8.6 W countdown indication. Check the specification, housing and electrical connection before including it in a municipal or agency procurement schedule.

Features

Configuration & Electrical

12-inch round countdown module for Canadian pedestrian-signal applications.
80–135 Vac operating range; TSL-PED-12-CD-CR1 is the model shown in the Canadian round-module specification.
Portland Orange countdown digits; 8.6 W listed power draw.

Visibility & Durability

Optical system supports uniform digits and a wide viewing angle.
Overmolded connection options, O-ring sealing and UV-stabilized polycarbonate lens support outdoor reliability.
Specified to retain 70% of initial luminous intensity after 100,000 operating hours; five-year limited warranty.

Specifications

Indication

Countdown digits

Lens Size

12"

Light Color

Portland Orange

Voltage

120Vac (80-135Vac)

Country

Canada

Warranty (Years)

5 year(s)

Termination

Faston with Spade Insert, Spade Terminals, Stripped and Tinned W

Certification

CSA
