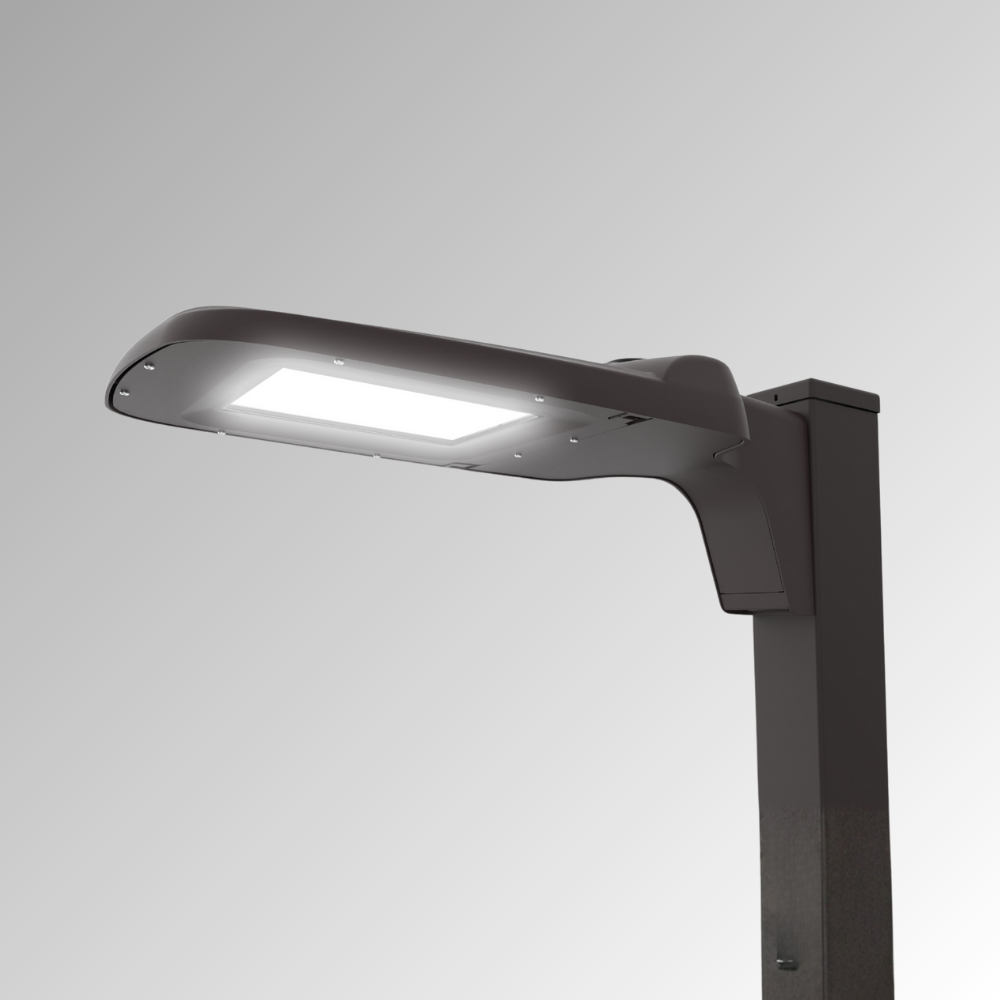

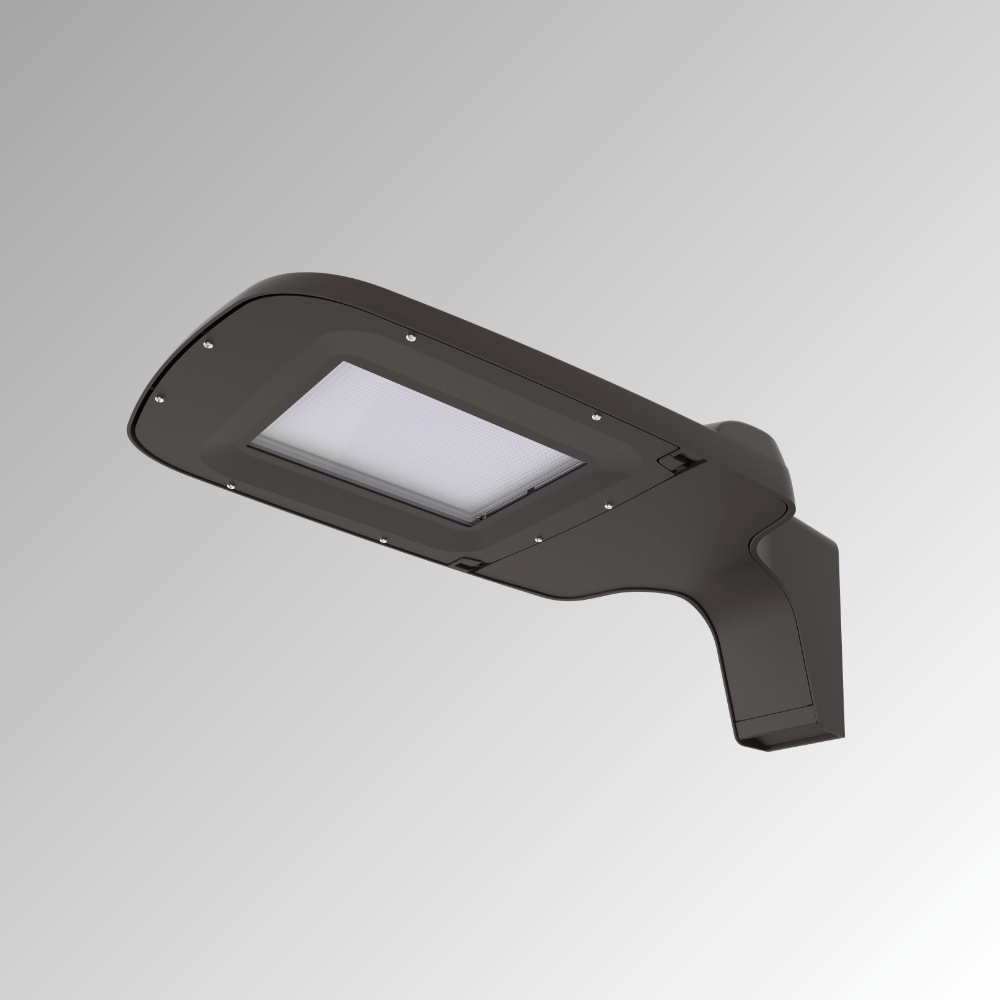

AR13CG (3)

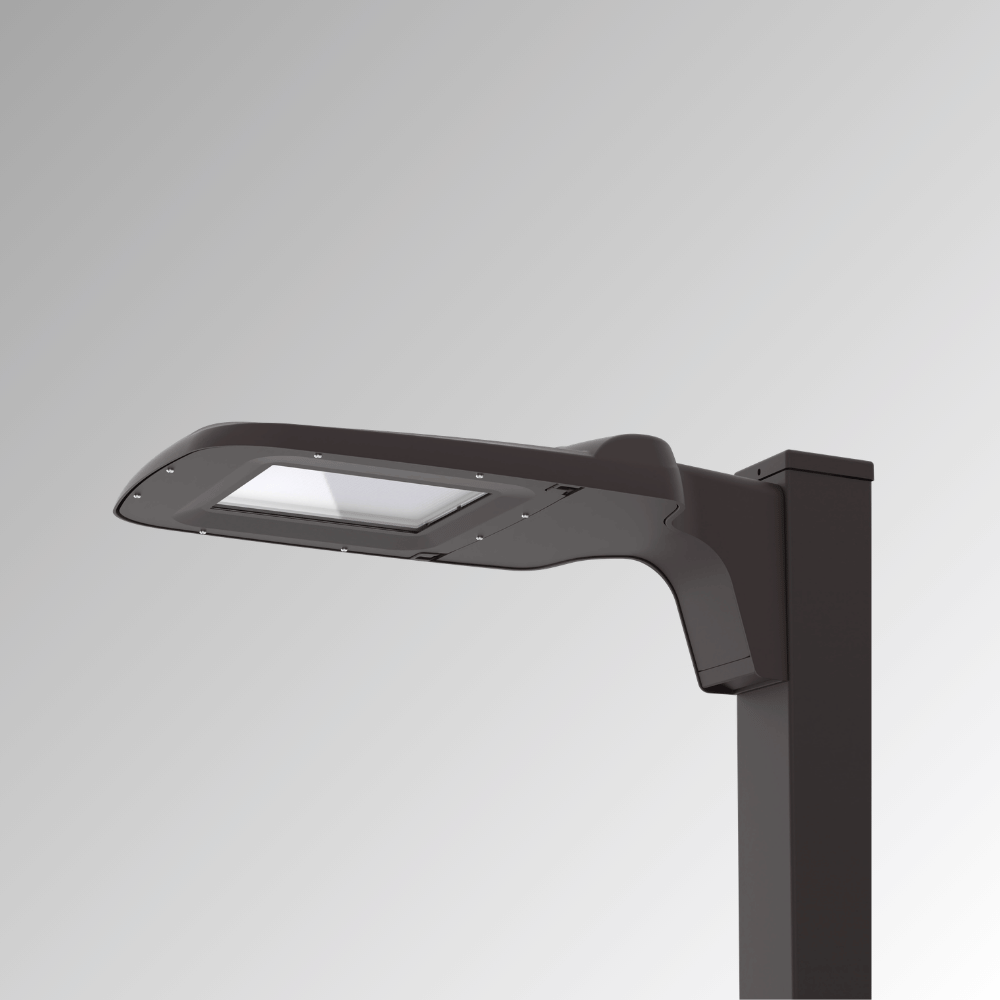

Arieta® ComfortGuide™ – AR13-CG - Image 2

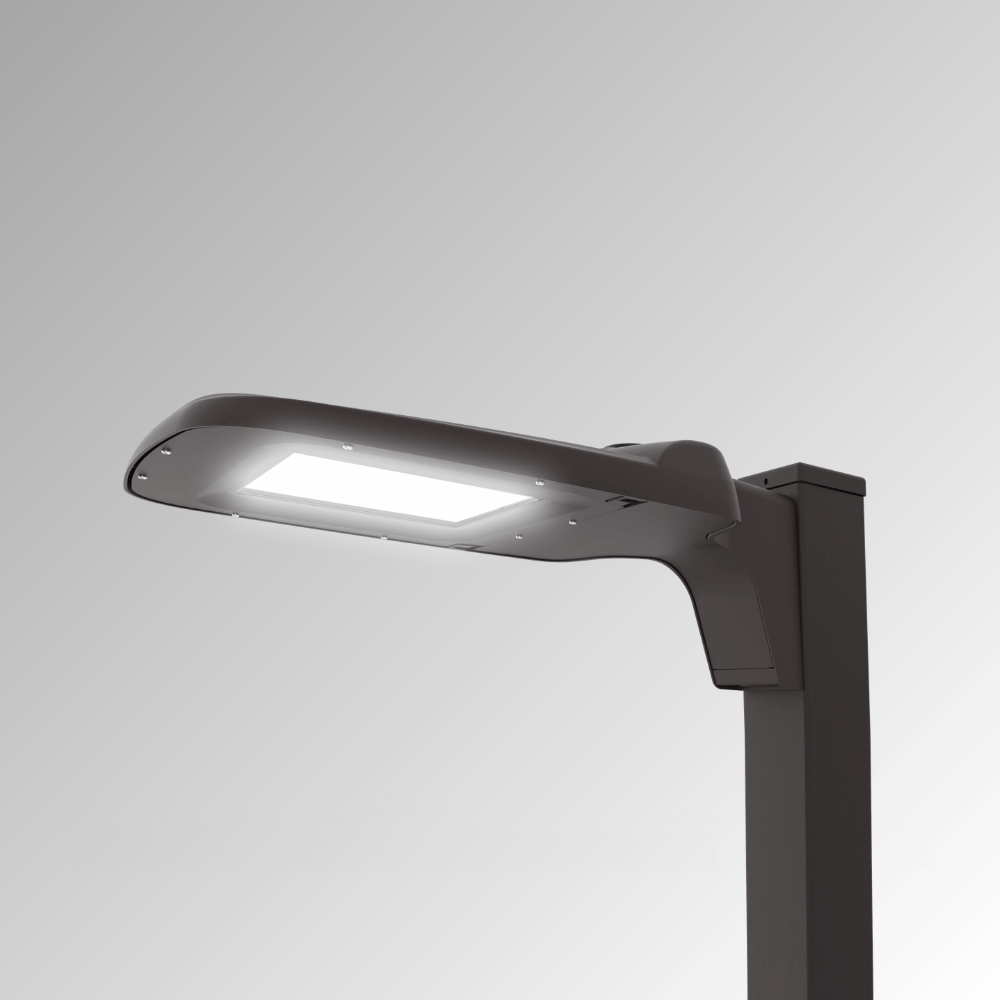

Arieta® ComfortGuide™ – AR13-CG - Image 3
Arieta®

Arieta® ComfortGuide™ – AR13-CG

Assembled-in-USA
Darksky-Approved
UL-Listed

The Arieta® AR13-CG LED luminaire serves pedestrian routes, campuses and site areas. Its published nominal performance spans 3,400–12,000 lumens at 29–97 W across listed output and color configurations. Compare the selected optics, mounting arrangement and project-specific IES file before ordering.

Features

Performance & Installation

  • Optics & color: ComfortGuide CG1 / CG2 light-panel system with Type 2, Type 3 and Type 5 optics. 2700K, 3000K, 4000K; minimum 70 CRI.
  • Protection & installation: ComfortGuide light panel IP66; housing and optics IK09. Rated −40°C to +40°C ambient.
  • Performance selection: Factory-set output code; field output selector is unavailable with FOC or PCR7-CR. Photometry varies by configuration; consult the IES file. CG1 / CG2 are separate output families.

Controls & Warranty

  • External node configuration: Factory-wired PCR7-CR is the listed control-ready 7-wire receptacle. For LEOLink NB01-Plus, confirm factory wiring, the 1–10V dimming-driver interface, voltage and approved configuration. PCR7 alone does not mean wireless dimming is enabled by default.
  • Connected service: External nodes require a RenAI CMS subscription and network data plan. EB01 embedded support is limited to approved KarbonCobra configurations.
  • Other control options: Motion sensor MSL3 / MSL7 and factory part-night dimming are listed; part-night dimming is MV-only. Confirm compatibility when combining options.
  • Warranty: The current North America warranty V37 lists ARCG ComfortGuide luminaires for 5 years and optional motion sensors for 5 years. Confirm combined-option terms for the selected order.

Selection & Related Resources

Performance and ordering information: AR13-CG Specification Sheet (2024-03-07). Confirm the selected IES file before ordering.

Specifications

Series
Arieta®
Application
Roadway & Street, Site & Area
Lumen Output
3,400–12,000 lm (published nominal range)
Color Temperature
2700K, 3000K, 4000K
Wattage
29–97 W
Light Source
LED
CRI
70
Voltage
120–277V / 347–480V
Dimming Control
Yes
Electrical Standard
UL
Mount Type
Pole Arm
Distribution
Type II, Type III, Type V
