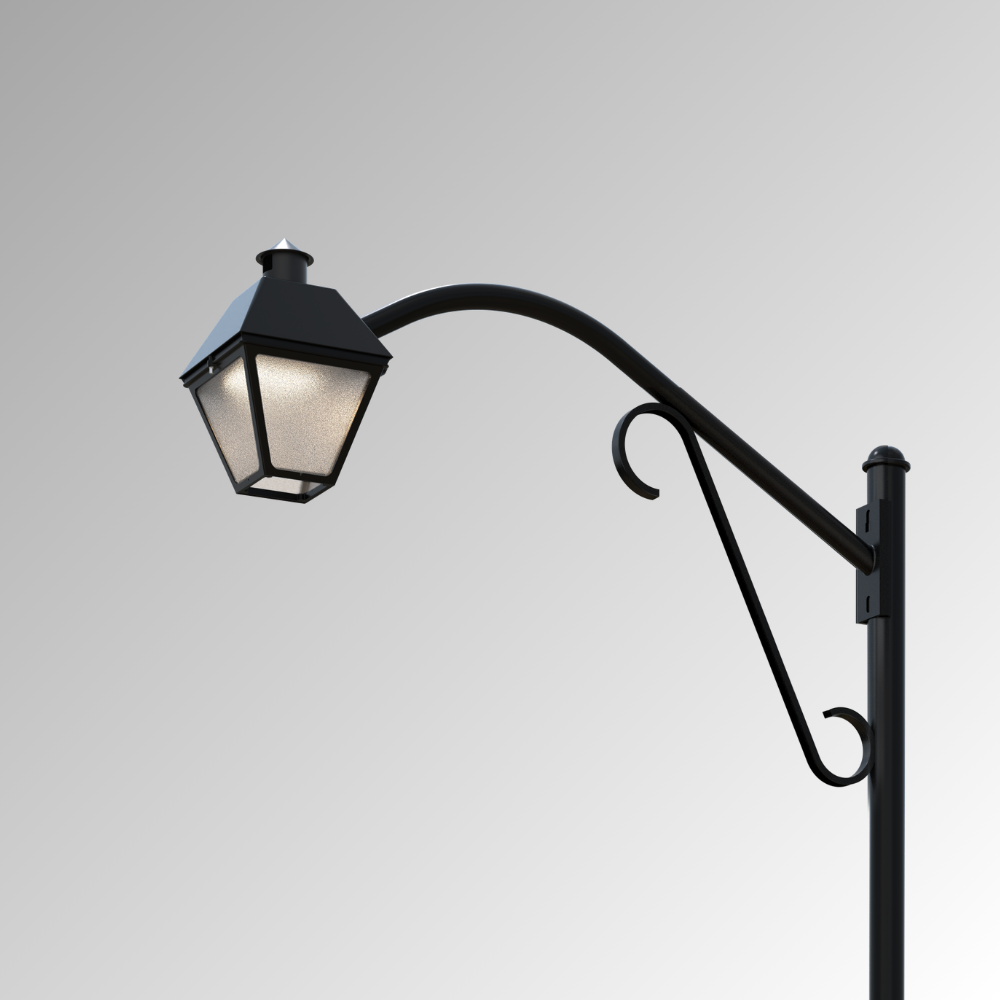

Arm Mount Colonial LED Lantern mounted on decorative arm for urban streetscapes

Arm Mount Colonial LED Lantern for wall and surface outdoor lighting applications

Arm Mount

Arm Mount Colonial LED Lantern – AMC

Name: AMC Arm-Mount Colonial LED Lantern | LEOTEK
Brand: LEOTEK

Availability varies by configuration; see the specification sheet.

The AMC arm-mount colonial LED lantern serves municipal streetscapes, heritage districts, parks and campuses. The current specification sheet lists 2,869–13,256 nominal lumens at 70 CRI across no-panel and textured-panel configurations, with factory performance codes P1–P10 drawing 23–91 W. Compare the selected panel, optical distribution, IES file and arm compatibility before ordering.

Features

Performance & Installation

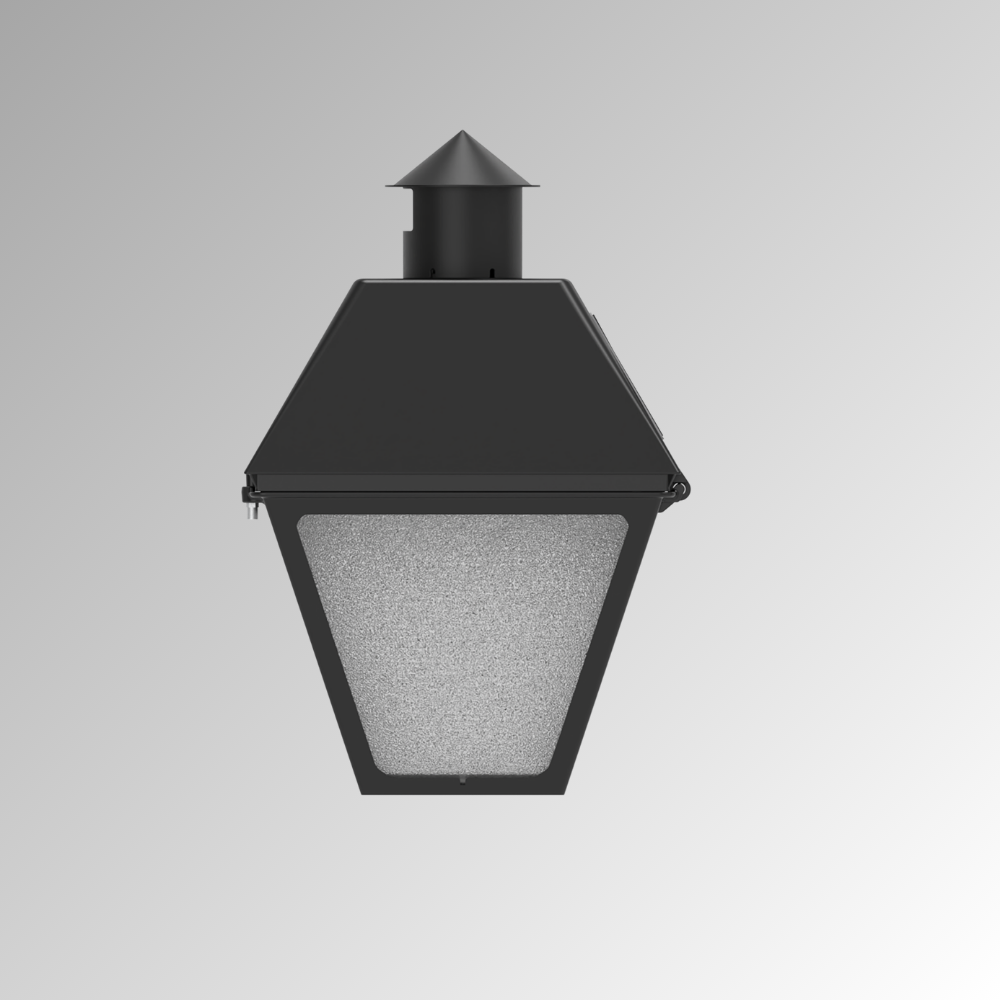

Output by panel: The 70-CRI tables span 3,037–13,256 lm without side panels, 2,957–12,878 lm with SPL / TA panels, and 2,869–12,492 lm with textured polycarbonate panels. 80-CRI options at 3000K / 4000K / 5000K use an additional 0.91 lumen multiplier; actual output depends on the ordered optic and panel.
Factory power & selector: P1–P10 factory codes draw 23–91 W. Optional PS performance selector can lower the selected configuration to as little as 7 W at P1; PS is incompatible with the DALI driver.
Optics & color: NR / MR / WR roadway and T2R / T2F / T3R / T3F / T4R / T4F / T5 optics. 2700K is 70 CRI only; 3000K, 4000K and 5000K offer 70 or 80 CRI. Optical rotation ORR / ORL is an orientation option, not a separate beam distribution.

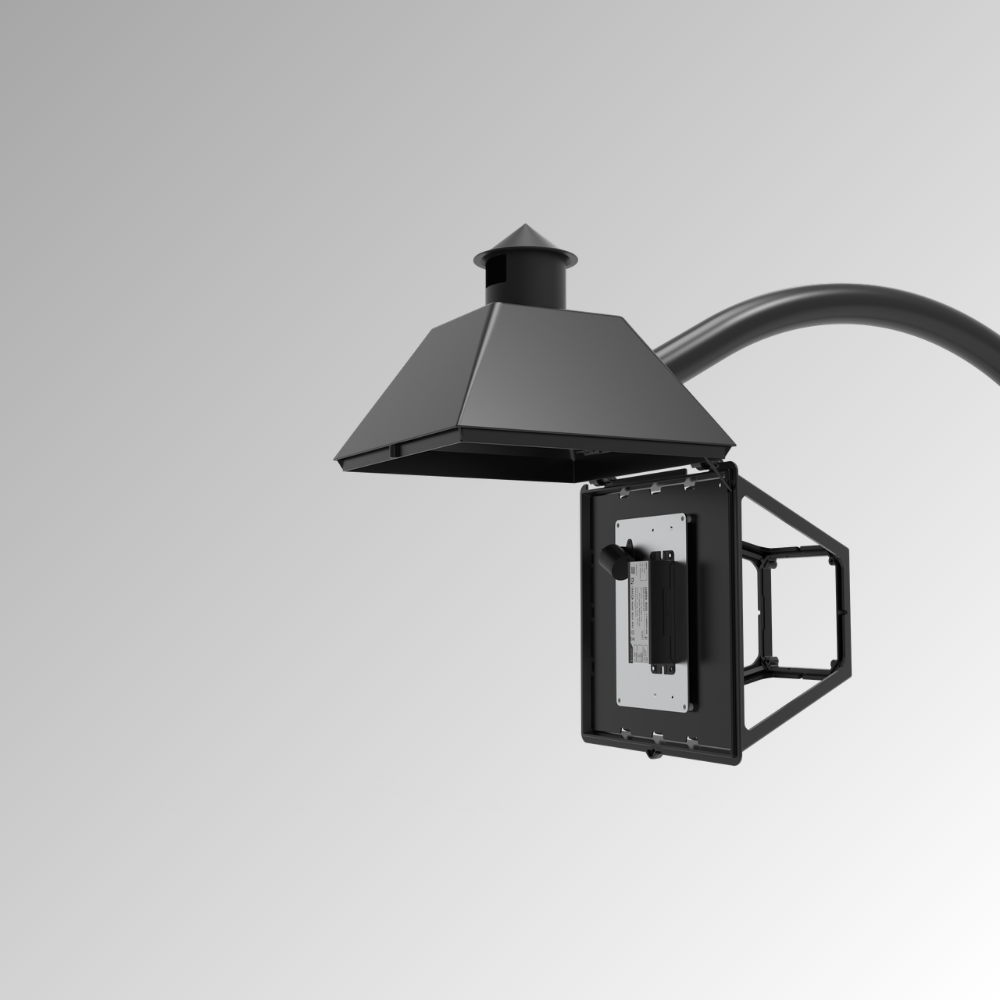

Build & installation: Sealed micro-lens optical systems IP66; U=0 applies to no-panel installations mounted horizontally. ADC1 die-cast housing with tool-free hinged access. Side-arm compatibility must be confirmed for the project. 120–277V MV or 347–480V HV; rated −40°C to +50°C ambient.

Controls & Warranty

External LEOLink controller: NB01P requires the factory PCR7CR 7-wire control-ready option. The sheet lists NB01P with 120–277V MV; ask LEOTEK about 347–480V HV availability. Confirm the chosen driver, node and catalog configuration before ordering. Review the external LEOLink controller.
Connected services: The AMC NB01P ordering note includes a 10-year data / RenAI subscription bundle; confirm the actual controller package and service terms. Explore RenAI CMS. EB01 embedded nodes remain limited to approved KarbonCobra configurations.
Other control options: Standard 0–10V dimmable driver; optional DALI D4i and compatible 4-pin twist-lock receptacle. Part-night dimming is MV only unless the factory confirms HV. Verify option combinations.
Warranty & procurement: The current North America warranty V37 lists AMC for 5 years. The attached sheet discusses BAA / BABA; confirm the exact order and current procurement terms with LEOTEK before making a project-specific compliance claim.

Specifications

Series

Arm Mount

Application

Roadway & Street, Wall & Surface

Lumen Output

2,869–13,256 lm (70 CRI, panel-dependent)

Color Temperature

2700K, 3000K, 4000K, 5000K

Wattage

23–91 W

Light Source

LED

CRI

70, 80

Voltage

120–277V / 347–480V

Dimming Control

Yes

Electrical Standard

Mount Type

SAM

Distribution

NR, MR, WR, T2R, T2F, T3R, T3F, T4R, T4F, T5
