IL Series 12″ Railroad Signal Module, Special Application Indications

Name: IL Series T-Bar and X-Sign Railroad Signals | LEOTEK
Brand: LEOTEK

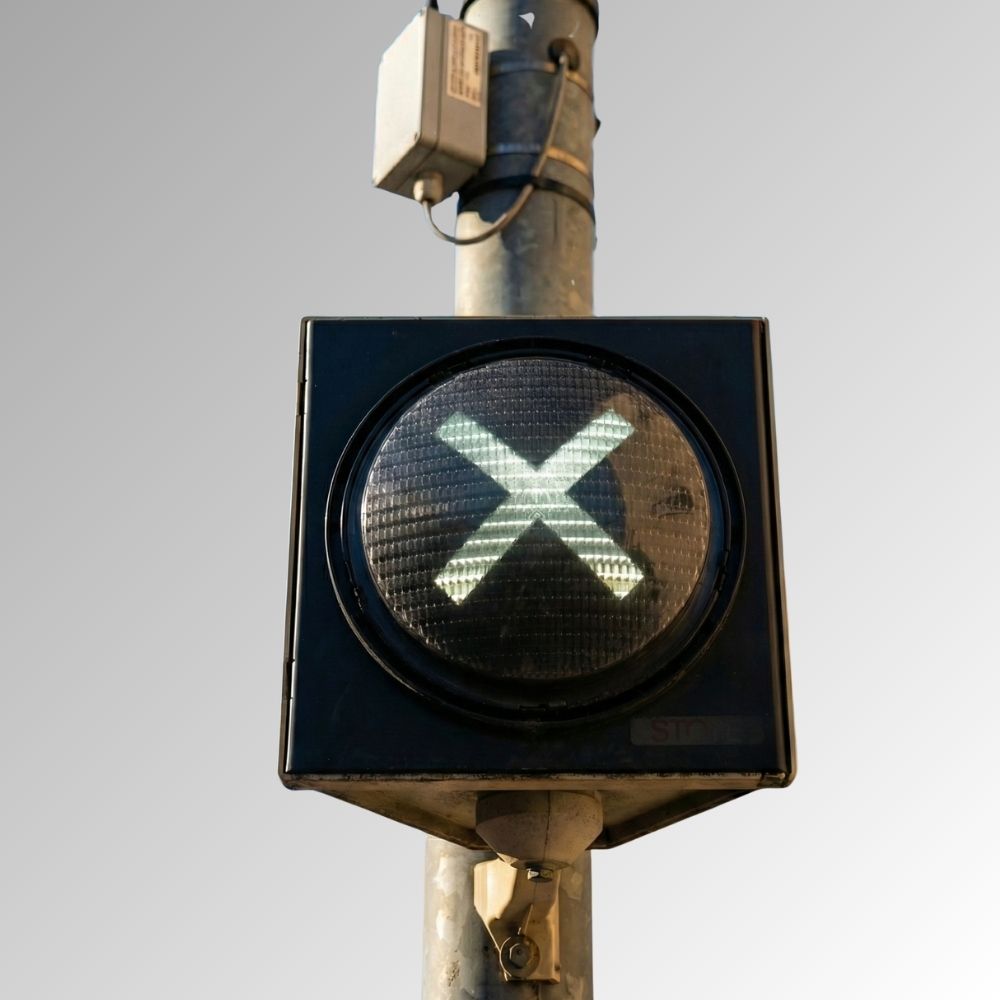

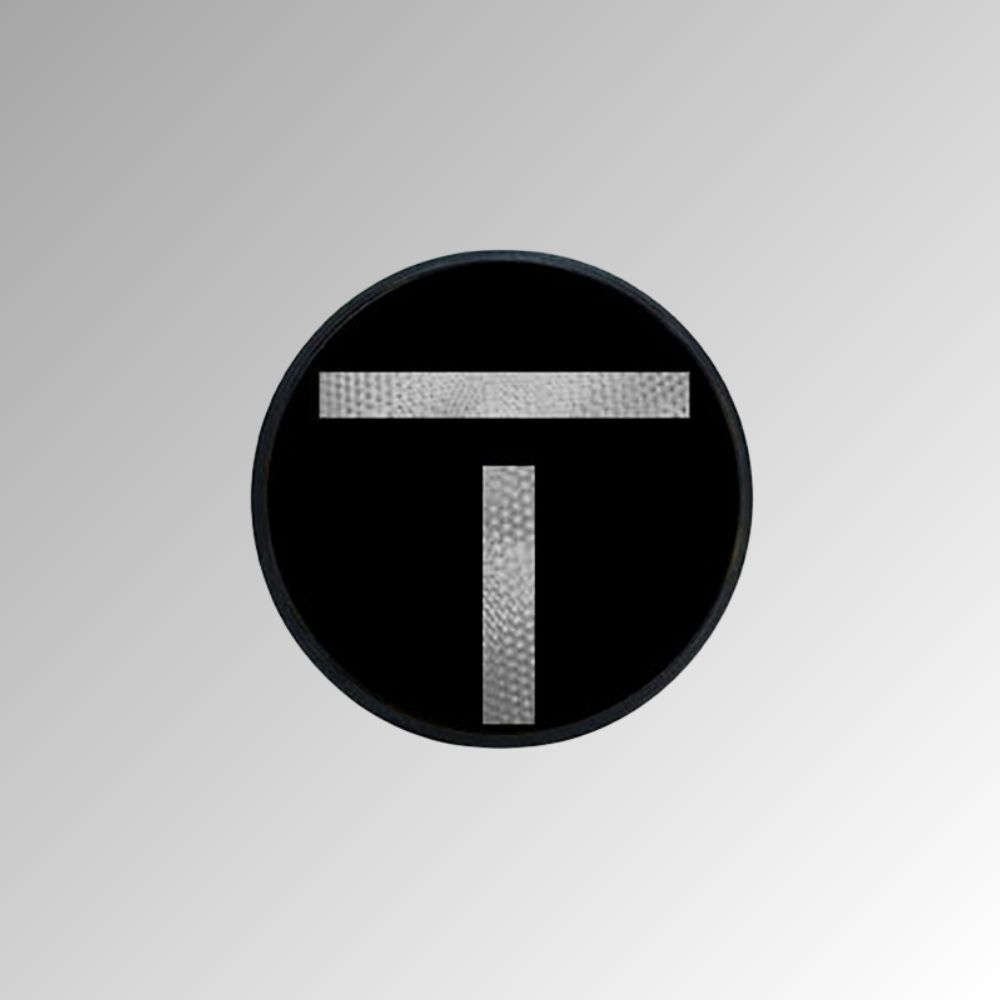

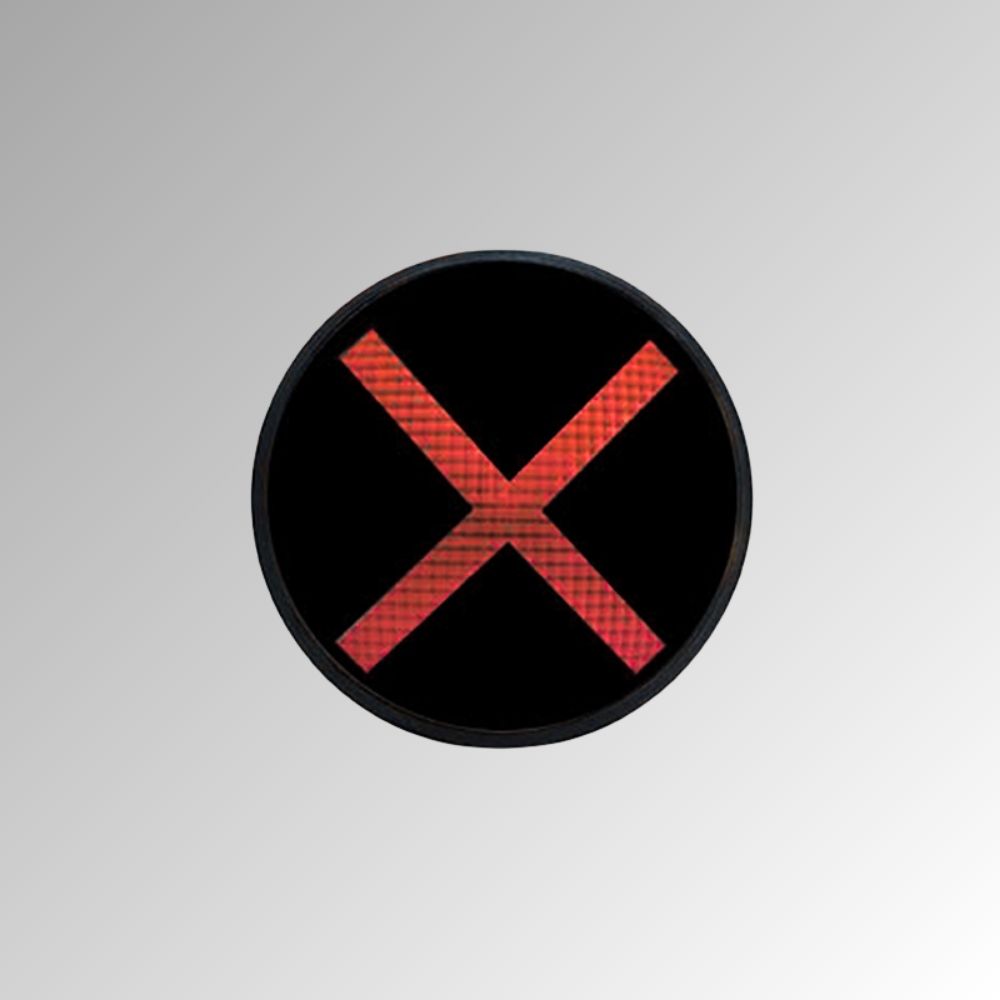

The IL Series 12-inch railroad special-application signal module provides T-Bar and X-sign indications for specified rail and transit interfaces. The published order table lists red and green X-sign models and red and white T-Bar models, each at 6.9 W. This page covers special symbol indications, distinct from standard transit bars and red grade-crossing warning lenses.

The Resources folder identifies an 80–135 Vac T-Bar configuration, while the downloadable IL special-application data sheet does not print a voltage field. Confirm the electrical rating, symbol, color and housing for the exact order code before including it in a project specification.

Features

Configuration & Electrical

12-inch IL LED T-Bar and X-sign railroad/transit special indications.
Published order codes cover red/green X signs and red/white T-Bars; each listed model draws 6.9 W.
The Resources folder names an 80–135 Vac configuration; obtain the exact model’s electrical confirmation because the attached sheet omits input voltage.

Visibility & Durability

Uniform, non-pixelated incandescent-look presentation and a tinted lens are specified.
AREMA environmental Class B, MIL-STD-810F moisture and NEMA TS-2 transient protection are listed in the sheet.
Hard-coated UV-stabilized polycarbonate lens, 70% intensity at 100,000 hours and five-year limited warranty.

Specifications

Indication

T-Bar, X Sign

Lens Size

12"

Color of Lens

Clear, Tinted

Light Color

Red, Green, White

Voltage

120Vac (80-135Vac)
