LEOLink NB01-Plus

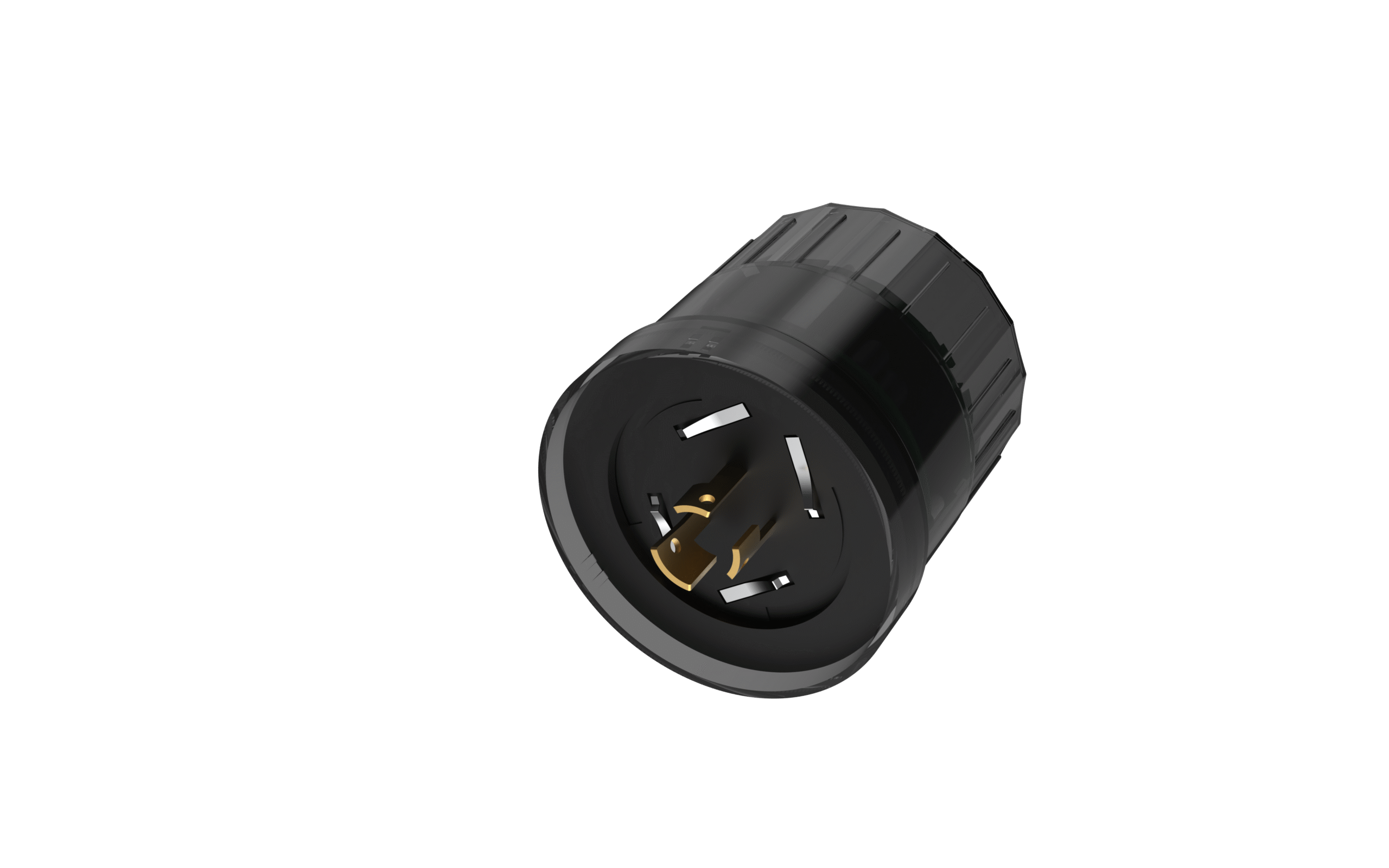

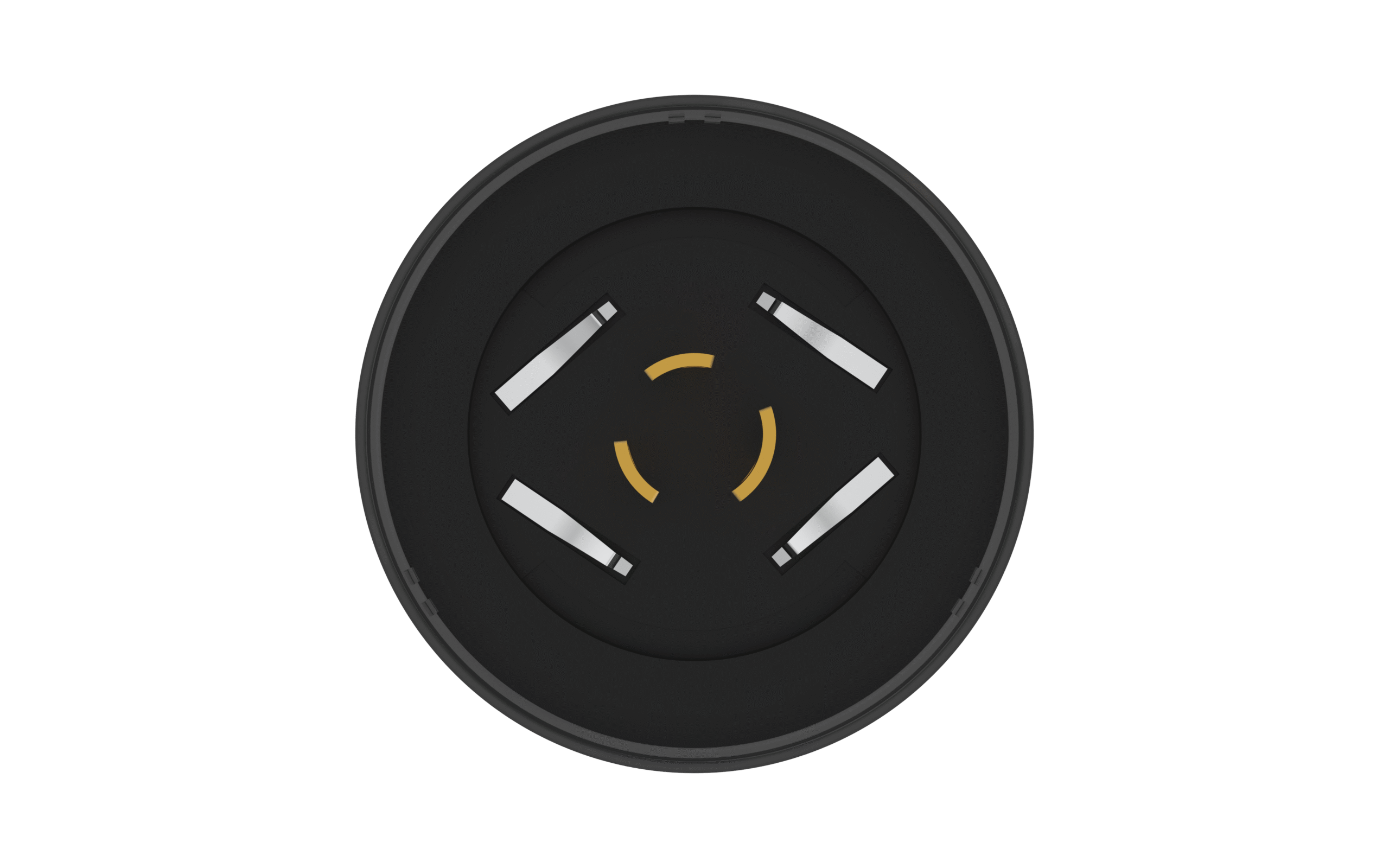

• Field-installable controller: Fits a wired NEMA 7-pin receptacle on compatible luminaires with a 0-10V driver.
• Cellular connectivity: Supports NB-IoT/CAT-M1 networks with remotely provisioned eSIM.
• Monitoring and metering: Includes GPS, photocell and tilt sensing, 0.5% energy metering, and last-gasp alerts.
• Secure data transport: Uses MQTT over TLS 1.3 and AES-256 encryption.

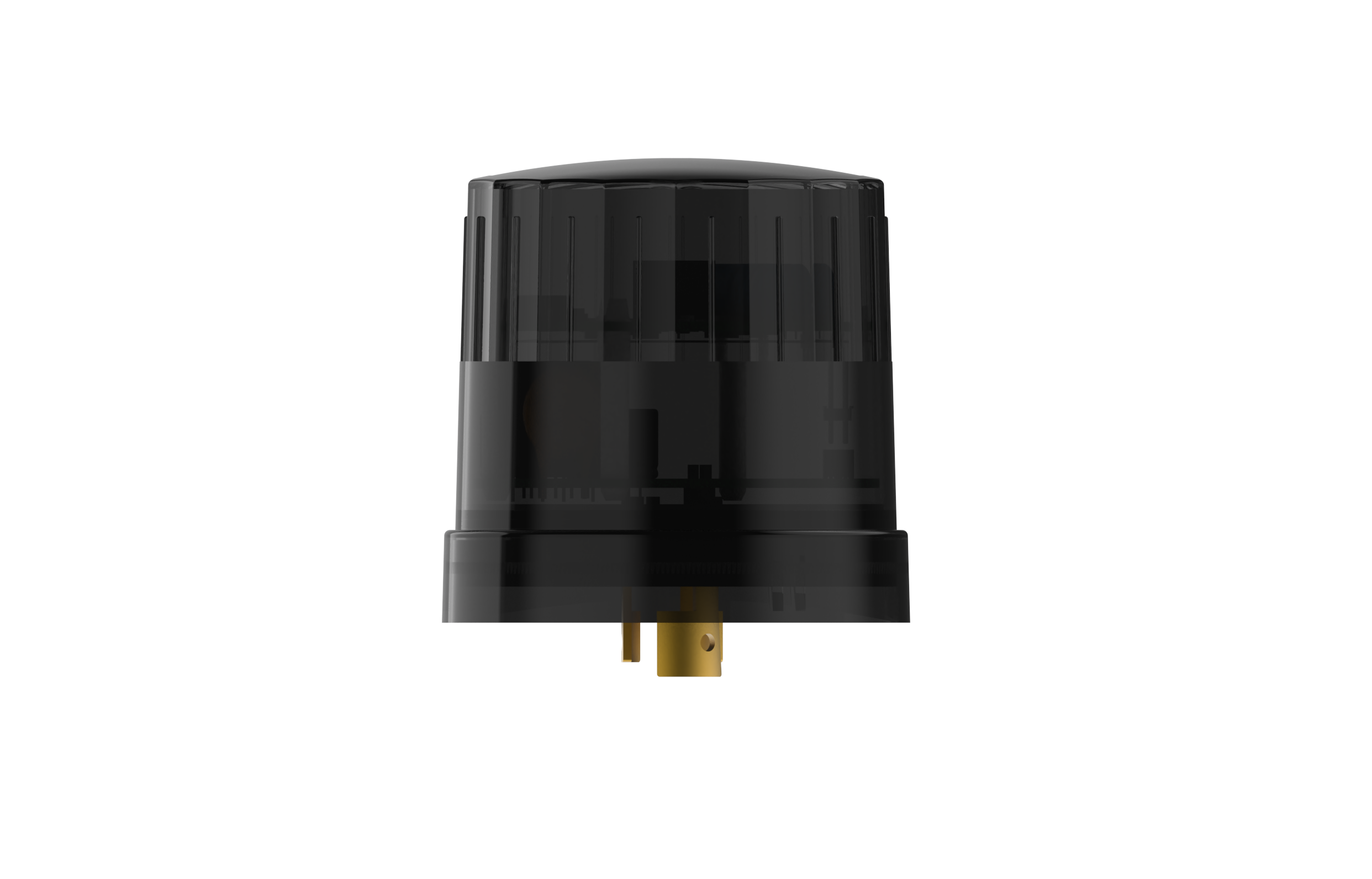

• Outdoor construction: UV-stabilized polycarbonate housing with IP66 protection and 110-277V input.
• RenAI management: Supports lighting control, schedules, asset tracking, fault notifications and energy reporting through the LEOLink ILS ecosystem.

Configuration requirements

Specify a compatible 0-10V driver and wired NEMA 7-pin receptacle. A RenAI subscription and network data plan are required for each controller; R00 and D00 configurations require prior approval from LEOTEK. NB01P05 and NB01P10 ordering codes provide 5-year and 10-year controller warranty options.

NB01-Plus is the external NEMA controller. For supported luminaires requiring a factory-integrated DALI D4i controller, review the separate EB01 configuration.
