LD Series

LD Series Traffic Signal Module – Bi-Modal Arrow

Name: LD Bi-Modal Traffic Signal Arrow | LEOTEK
Brand: LEOTEK

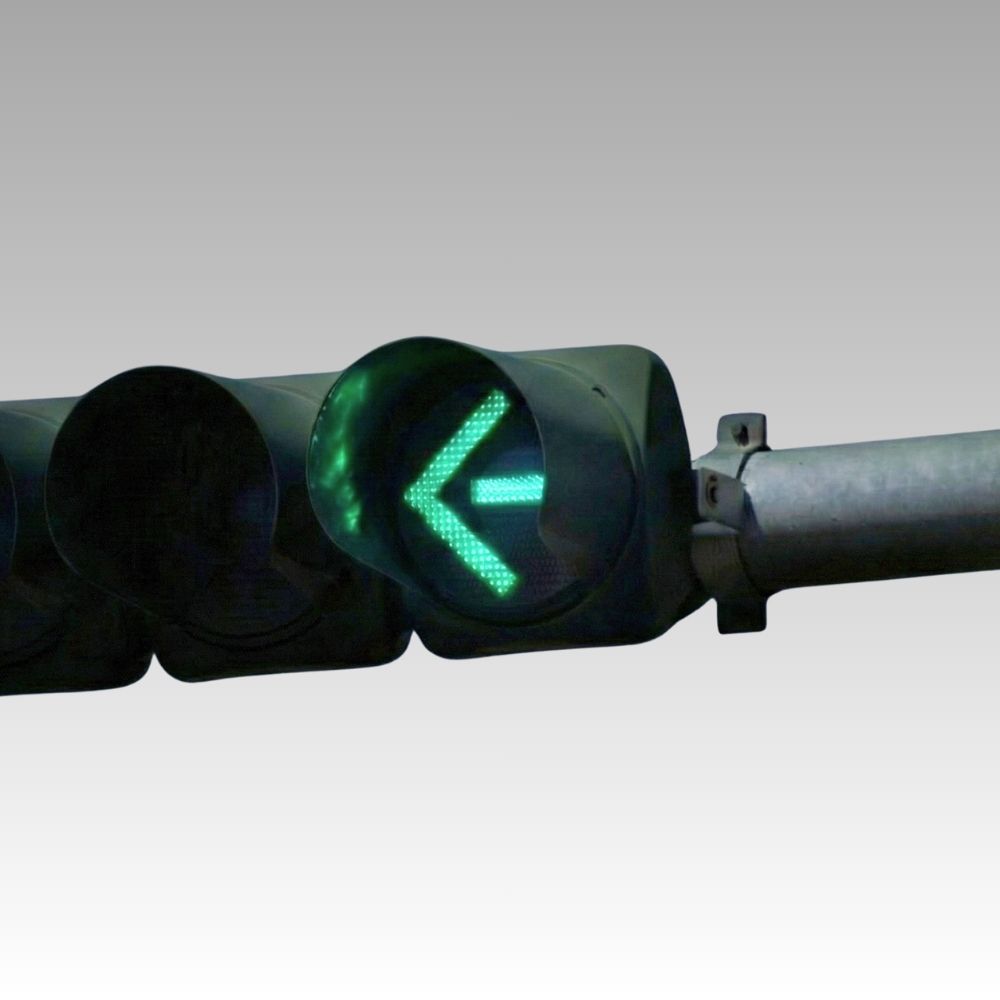

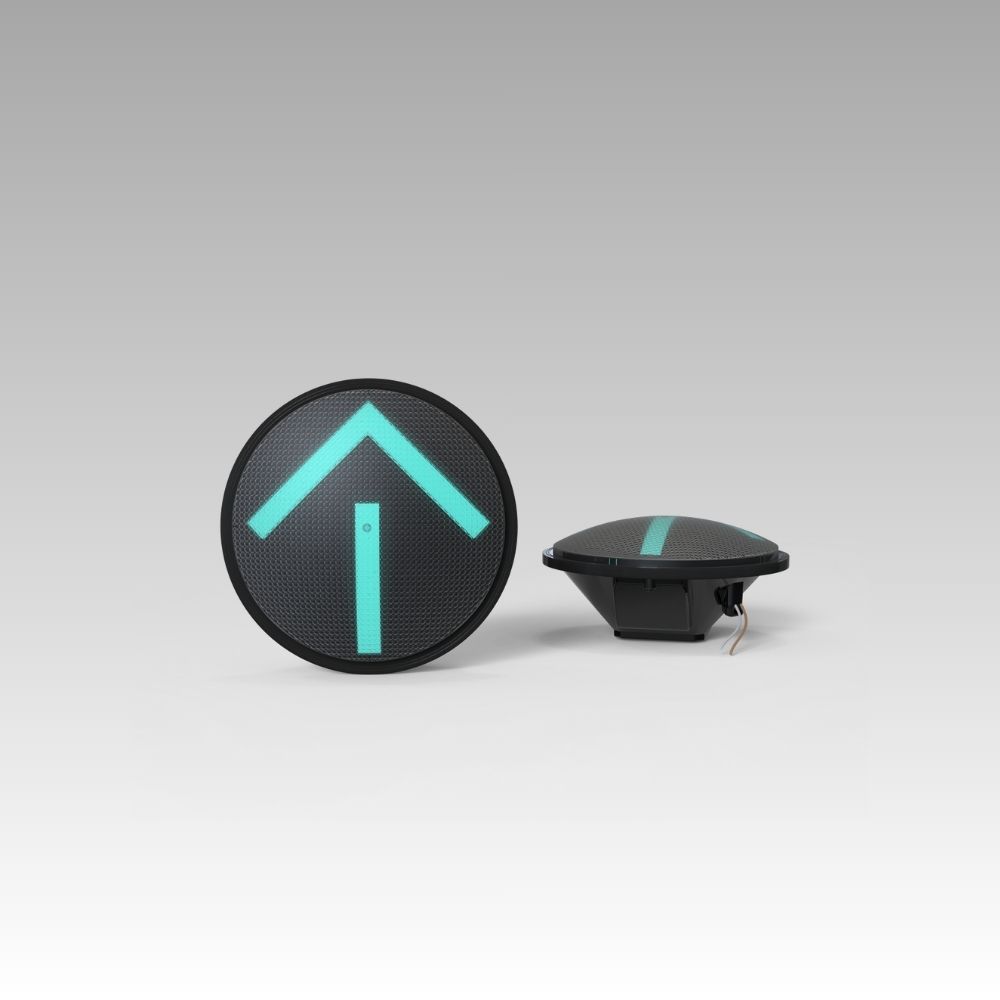

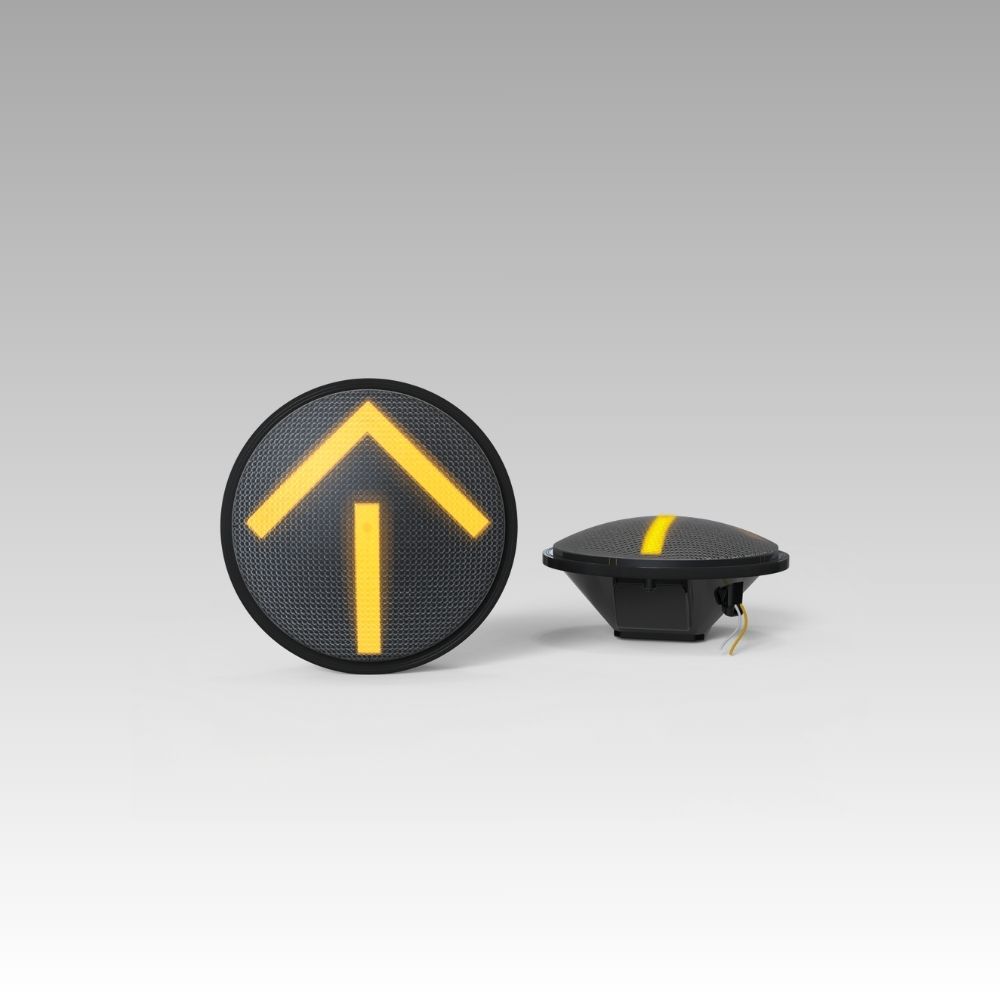

The LD Series 12-inch bi-modal LED traffic signal arrow supports two specified indication combinations: Yellow-to-Green and Yellow-to-Yellow. It is intended for compatible signal heads and controller wiring where a paired arrow display is required, rather than a conventional single-color arrow module.

The LD data sheet identifies TSL-12BM-LD-A1 for Yellow/Green and TSL-12YYBM-LD-A1 for Yellow/Yellow operation at 80–135 Vac. Match the requested sequence, termination and controller behavior to the exact order code before specifying.

Features

Configuration & Electrical

12-inch bi-modal arrow; Yellow/Green and Yellow/Yellow are separate order codes.
80–135 Vac input; published Yellow/Green draws 7 W yellow and 6.2 W green, while Yellow/Yellow draws 6.2 W for each indication.
Fail-state impedance design and multiple connection options are listed in the specification.

Optics & Field Performance

Hard-coated UV-stabilized polycarbonate lens with O-ring moisture sealing.
Constant-current light output, uniform appearance and <75 ms turn-on/off response.
Published 70% initial intensity at 100,000 hours and five-year limited warranty.

Specifications

Color

Yellow, Yellow & Green

Indication

Arrow

Lens Color

Clear

Lens Size

12"

Voltage

120Vac (80-135Vac)
