GCJ ComfortView™ Neighborhood LED Street Light – CV1 (1)

ComfortView CV1 rear housing with circular mounting feature.

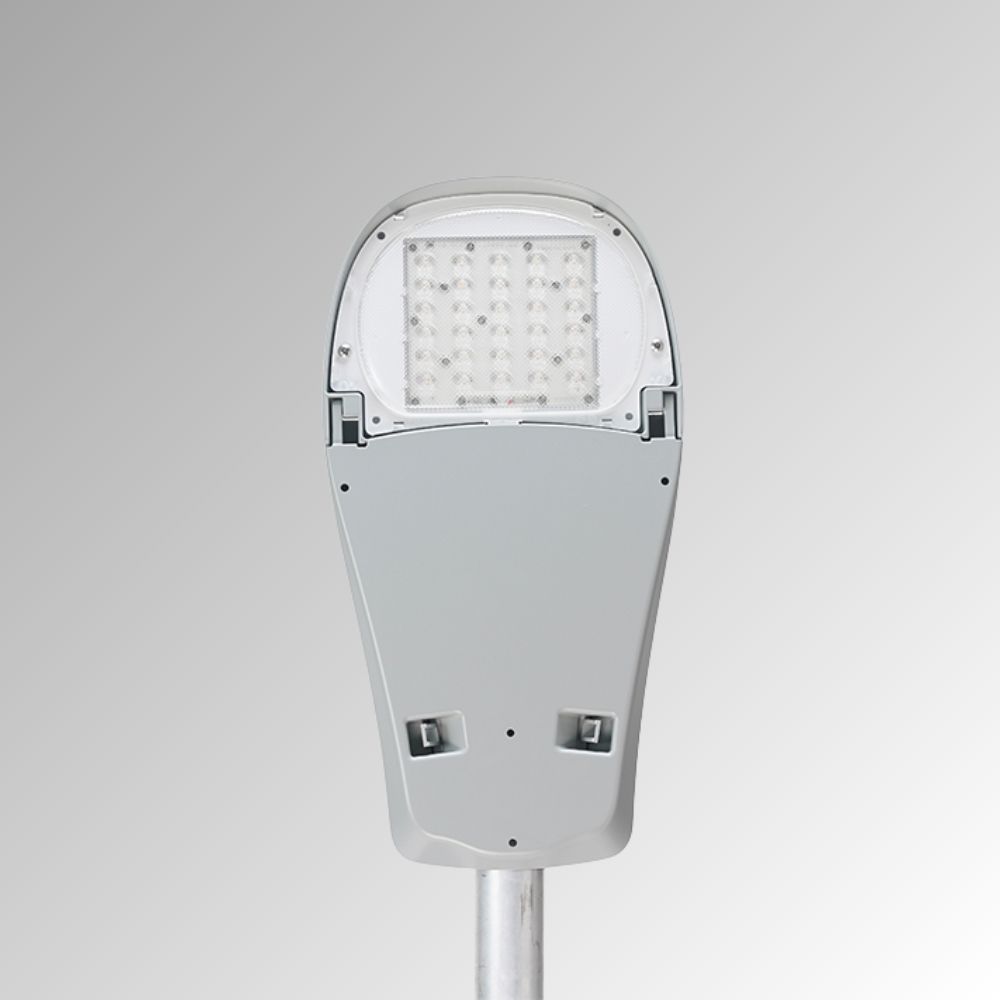

Front view of a ComfortView CV1 LED array.

GreenCobra®

ComfortView™ Neighborhood LED Street Light – CV1

Name: CV1 ComfortView Neighborhood LED Streetlight | LEOTEK
Brand: LEOTEK

SOLA Community Friendly Lighting Program

Availability varies by configuration; see the specification sheet.

The ComfortView™ CV1 neighborhood LED streetlight supports residential streets, community walkways and local roads where controlled distribution and visual comfort matter. The current specification sheet lists 2,087–8,227 nominal lumens at 19–67 W for Type 2 optics across 2200K, 2700K, 3000K and 4000K. Review the exact Type 3 IES file, output code and mounting before specifying a project.

Features

Performance & Installation

Light output & optics: The published Type 2 performance table spans 2,087–8,227 lm and 19–67 W; Type 3 photometry requires its specific IES file. Two-stage reflective optics provide Type 2R / 3R distributions, with U=0 uplight in the published BUG table.
Color & protection: 2200K, 2700K, 3000K or 4000K; minimum 70 CRI. Fully sealed optical system IP66; housing and optics IK10. Rated −40°C to +40°C ambient.
Installation: Universal two-bolt slip fitter mounts to 1¼–2 in mast arms (1⅝–2⅜ in outside diameter); optional mounting brackets and field-installable shields. Specify 120–277V MV or 347–480V HV.
Certification & domestic build: The sheet lists Dark Sky approval and SOLA Community-Friendly certification for 2700K / 3000K ComfortView configurations. BABA compliance requires the explicit BABA ordering option; verify the exact catalog and procurement requirements.

Controls & Warranty

External LEOLink node: Factory-wired PCR7-CR is the control-ready 7-wire receptacle for NB01P05/10 external controllers. The sheet lists these controllers for 120–277V MV; contact LEOTEK for 347–480V HV availability. The node is supplied separately, and RenAI CMS plus a network data plan are required.
Field adjustment: The standard output selector is not included with PCR7-CR, and output cannot be raised above the ordered output code. The PCR7 option retains the field selector and connectors for a later wireless upgrade; FOC is fixed output and unavailable with PCR7-CR.
Node boundary: EB01 is an embedded node limited to approved KarbonCobra configurations. CV1 uses the supported external-controller path and requires a factory-approved catalog configuration.
Warranty: The current North America warranty V37 lists CV1 luminaires for 10 years; controller warranties depend on the selected 5-year or 10-year option and applicable terms.

Specifications

Series

GreenCobra®

Application

Roadway & Street

Lumen Output

2,087–8,227 lm (Type 2 table)

Color Temperature

2200K, 2700K, 3000K, 4000K

Wattage

19–67 W

Light Source

LED

CRI

Voltage

120–277V / 347–480V

Dimming Control

Yes

Electrical Standard

Mount Type

Pole Arm

Distribution

Type II, Type III
