IL6-P3 Series Traffic Signal Module – Ball

Name: IL6-P3 Traffic Signal Ball: AC, DC and 48V | LEOTEK
Brand: LEOTEK

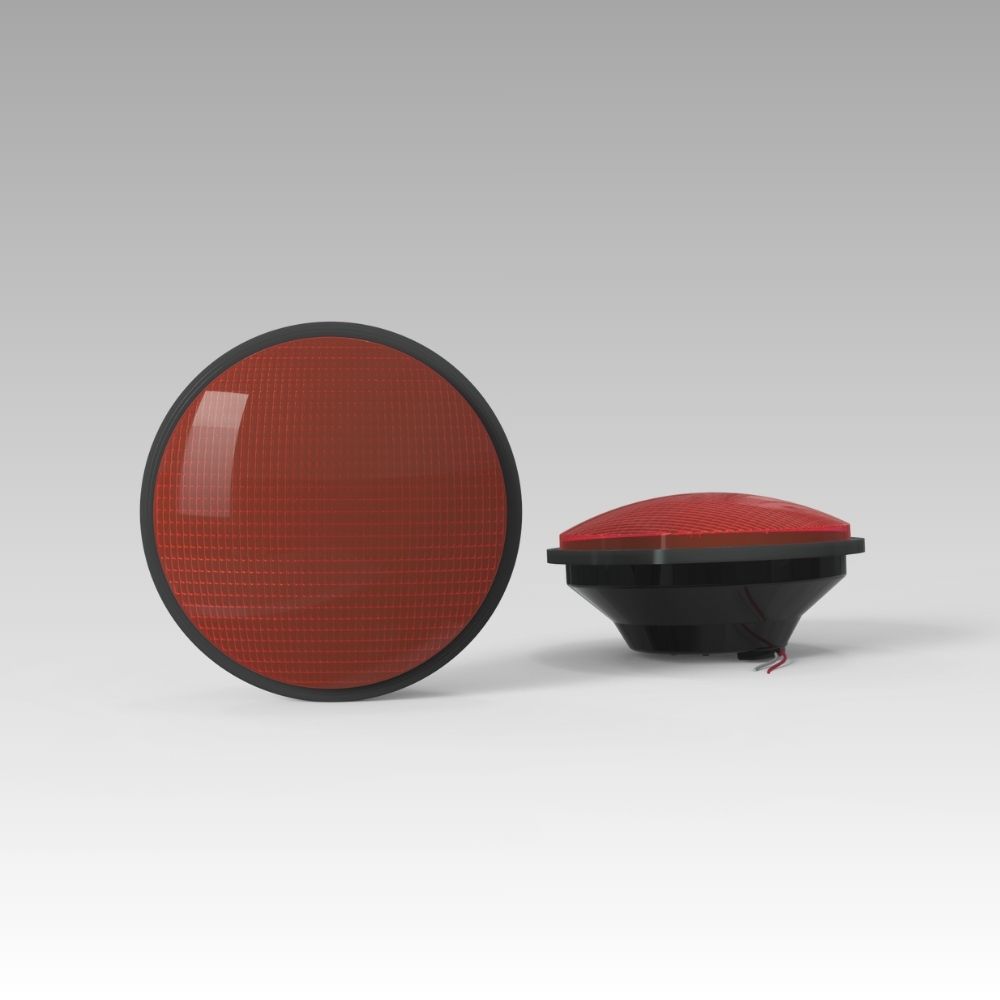

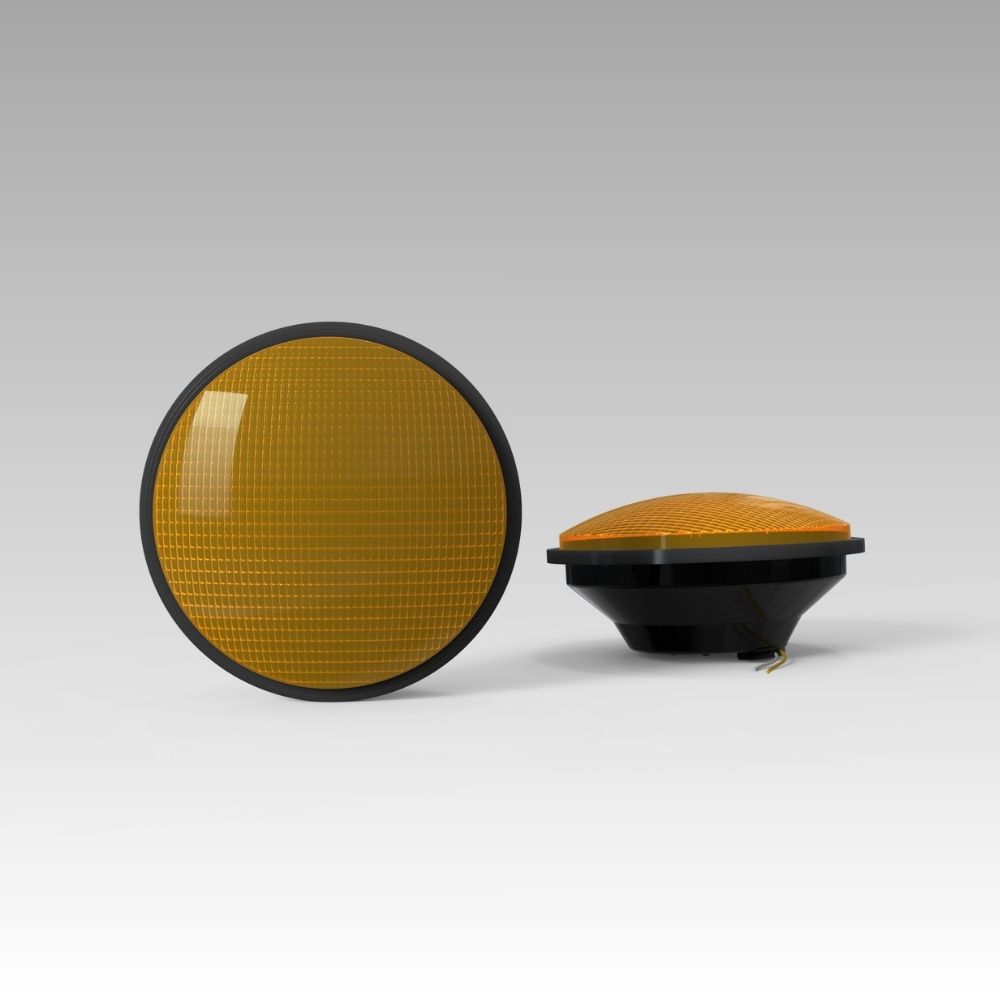

The IL6-P3 LED traffic signal ball family provides red, yellow and green circular indications in 8-inch and 12-inch sizes. Published electrical variants cover 80–135 Vac, 10–28 Vdc and 36–60 Vdc for compatible 48 V cabinets.

The AC sheet lists Intertek ETL verification for its A1 models, whereas the low-voltage B1 and L1 sheets require their own approval review. The 10–28 Vdc sheet also identifies a 12-inch yellow ultra-low-power option with a different intensity entry; select each color, voltage, size and optical requirement by exact order code.

Features

Configuration & Electrical

8-inch and 12-inch circular red/yellow/green modules with A1 AC, B1 10–28 Vdc and L1 36–60 Vdc variants.
Power draw differs by size, color and supply; use the matching Resources table rather than a family-wide wattage.
Tinted lens standard; model-specific -CLR clear-lens option is documented.

Optics & Field Performance

AC A1 sheet identifies ETL-verified entries; do not extend that listing to B1 or L1 without separate evidence.
Constant-current optics, wider viewing angle and moisture-resistant construction.
Published 70% initial intensity at 100,000 hours and five-year limited warranty.

Specifications

Color

Red, Green, Yellow

Indication

Ball

Lens Color

Clear, Tinted

Lens Size

8", 12"

Voltage

120Vac (80-135Vac), 10-28Vdc, 48Vdc (36-60Vdc)
