GreenCobra®

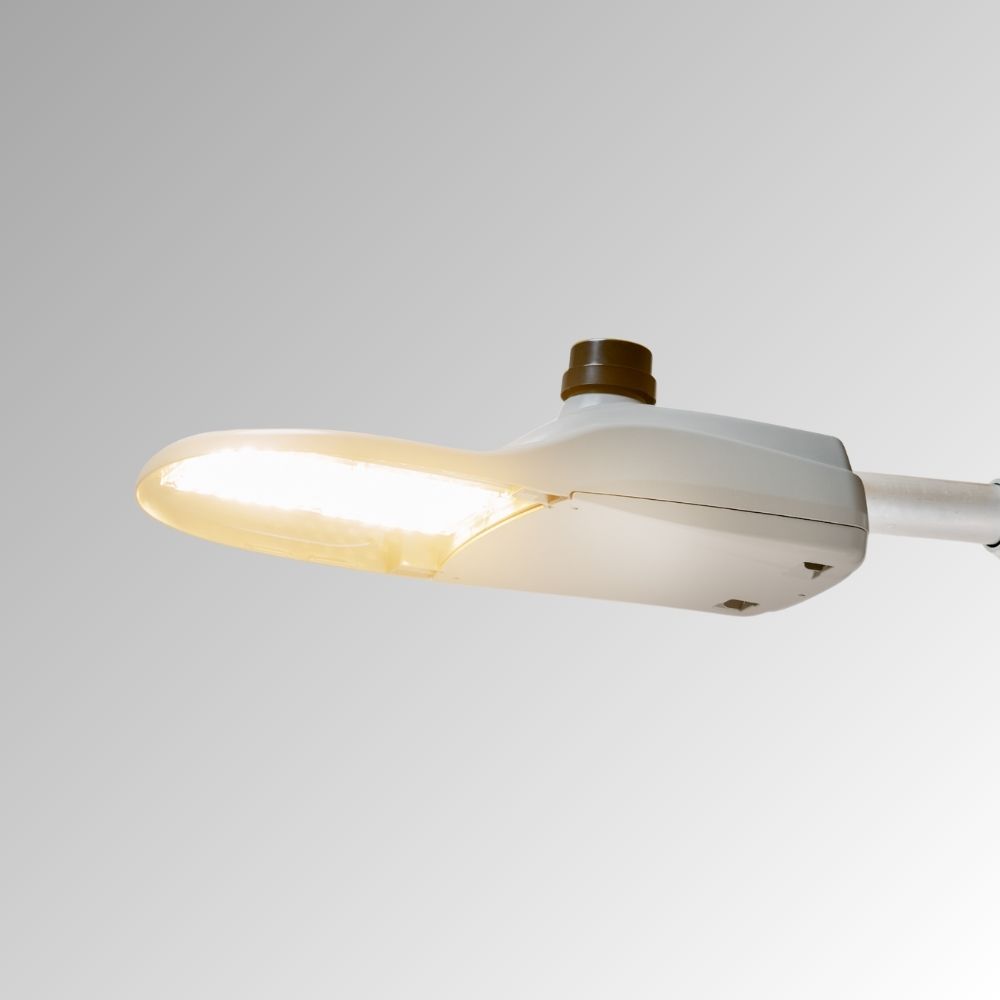

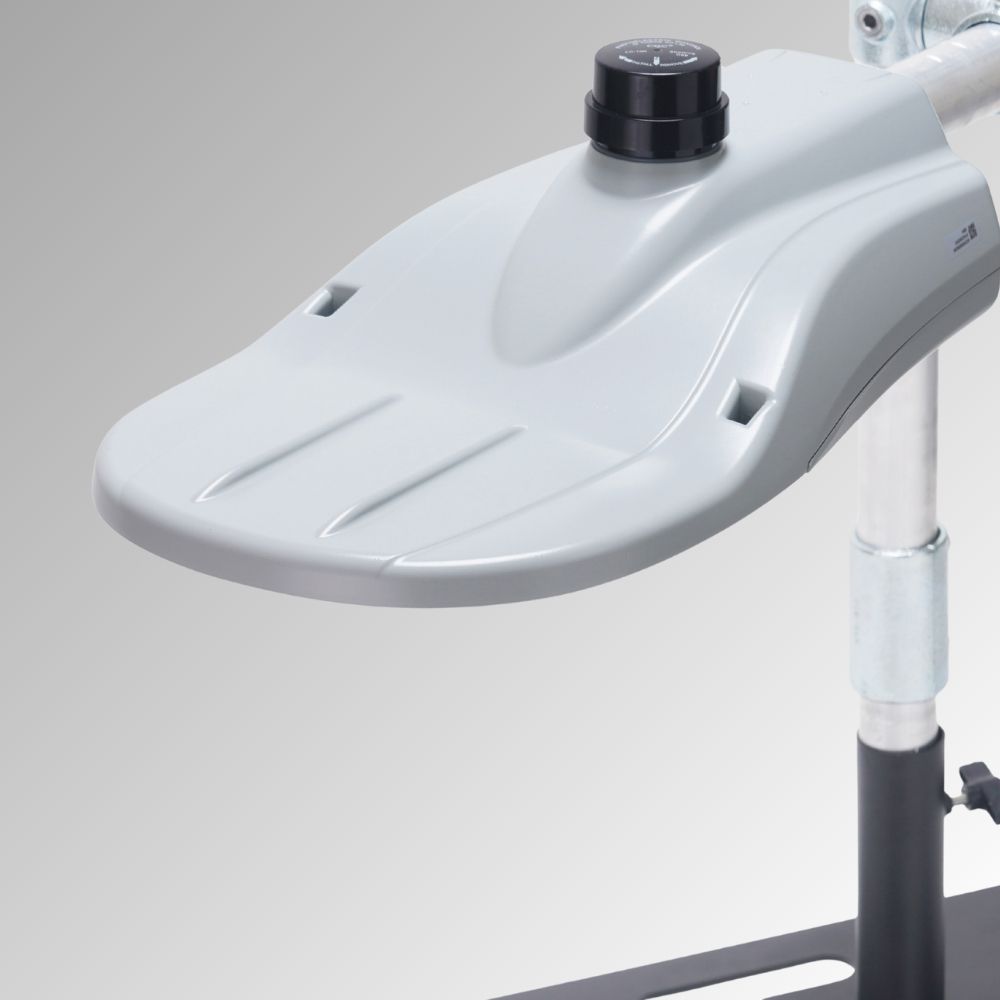

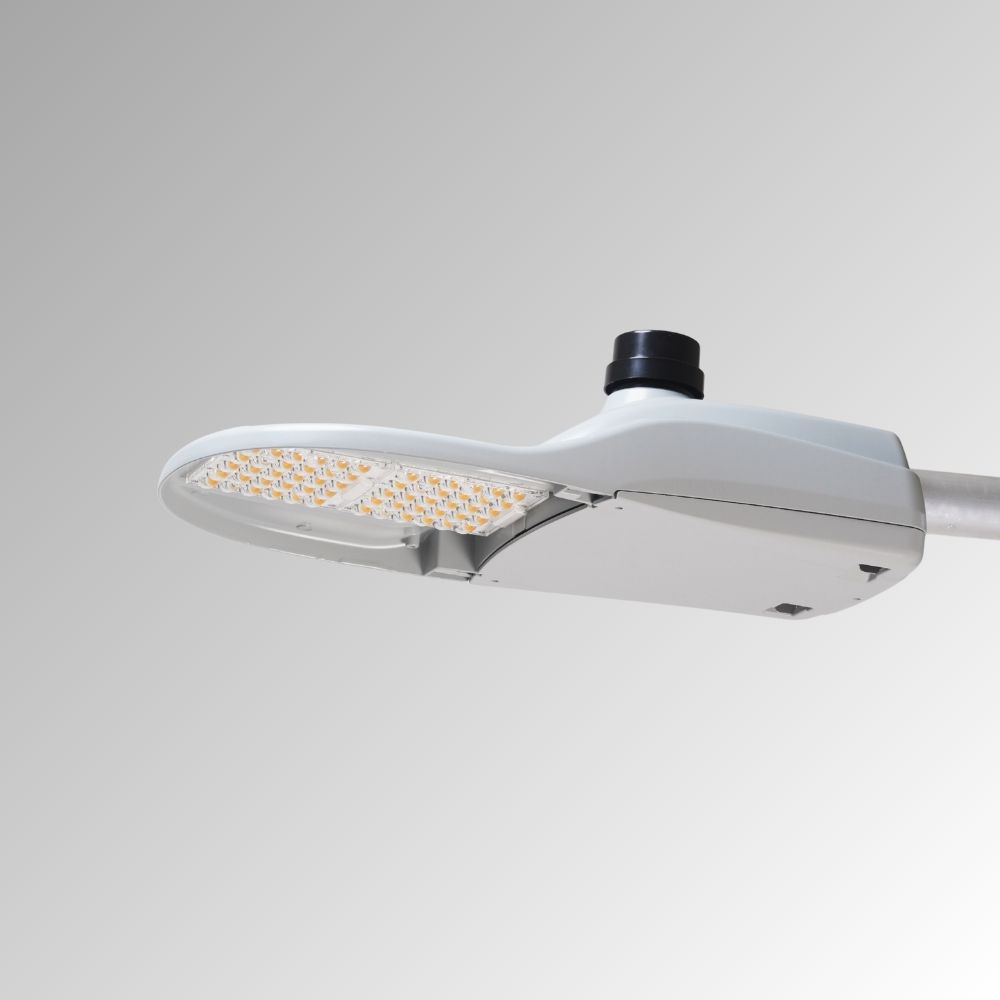

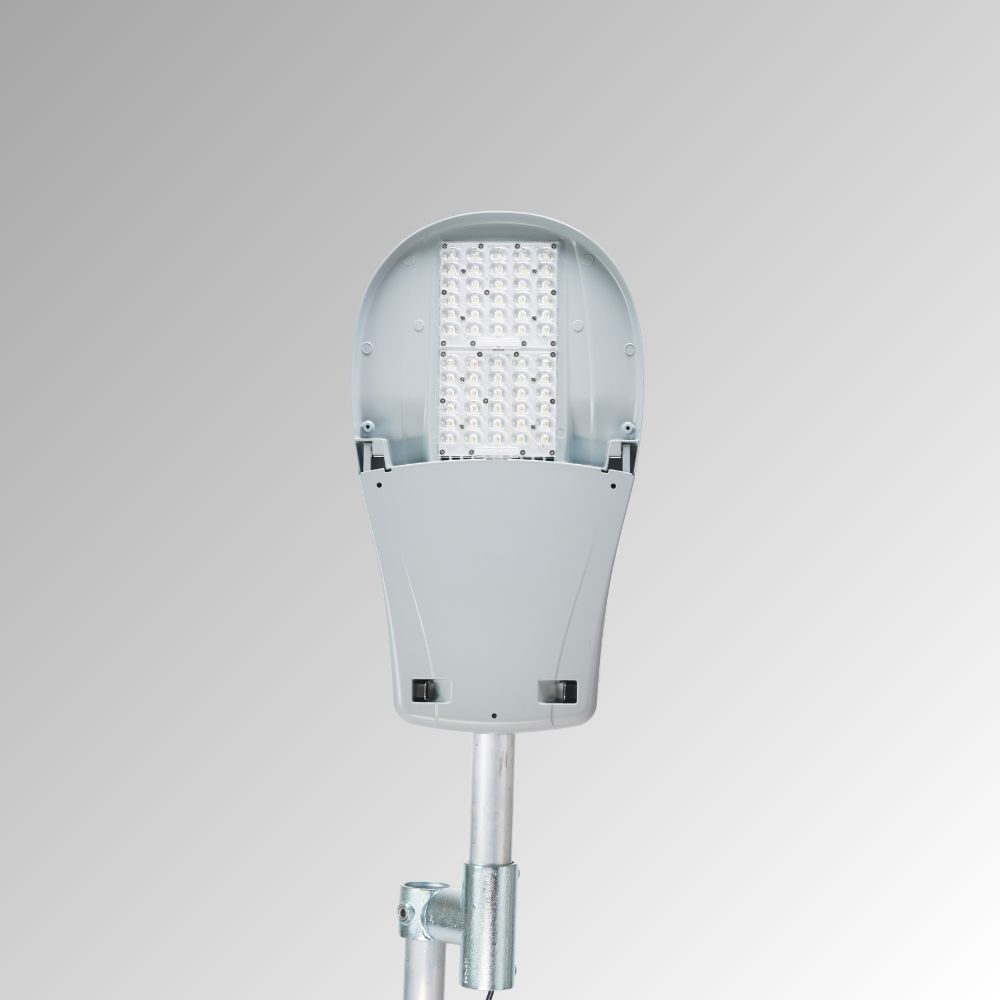

GreenCobra® LED Streetlight – GCM

Name: GCM GreenCobra LED Streetlight | LEOTEK
Brand: LEOTEK

The GreenCobra® GCM is an LED streetlight for midsize municipal and utility roadway lighting. Its published nominal performance tables span 8,250–24,953 lumens at 59–163 W across CCT and output configurations. Select the optical distribution and IES file for the road geometry, mounting height and required light levels.

Municipal engineers, utilities and lighting contractors can specify MV or HV power, mounting accessories and external LEOLink controls. For a connected-lighting project, order the factory-wired PCR7-CR option and confirm the controller, driver and electrical configuration before purchase.

Features

Performance & Installation

Published performance: 8,250–24,953 lumens at 59–163 W across the listed CCT and output codes. Nominal lumen values have ±10% normal tolerance; compare the specific IES file.
Optics & color: Optical codes 2R, 3R, 3F, 4 and 5. 2200K, 2700K, 3000K, 4000K and 5000K options; 70 CRI minimum. Check configuration-specific output and BUG ratings.
Mounting & service: Two-bolt slipfitter with optional 4B four-bolt bracket, ±5° leveling in 2.5° steps and tool-free electrical-door access. Polycarbonate wildlife guard is standard; RWG rubber guard is optional. Fits 1¼–2-inch nominal mast arms (1⅝–2⅜-inch outside diameter). Listed weight: 11 lb (5.0 kg).
Environmental ratings: IP66 optical system and power supply; IK10 housing and optics. Qualified ambient temperature: −40°C to +40°C. Select CF coastal finish where required.

LEOLink External Smart Controls

External smart controller: LEOLink NB01-Plus (NB01P05/10) requires the factory-wired PCR7-CR 7-wire receptacle. Standard controller ordering is MV 120–277V; contact LEOTEK for HV 347–480V.
Output adjustment: The output selector is omitted with FOC or PCR7-CR. PCR7-CR output cannot be increased above the specified factory setting. FOC cannot be combined with PCR7-CR. A generic PCR7 receptacle alone is not the factory control-ready configuration.
Driver interface: The electrical specification lists a 1–10V dimmable power supply. Confirm the ordered driver interface and NB01 compatibility with LEOTEK when specifying PCR7-CR.
CMS & data plan: Each controller requires a RenAI CMS subscription (RXX) and network data plan (DXX). R00 / D00 requires prior LEOTEK approval. Select NB01P05 or NB01P10 for the controller’s 5- or 10-year limited warranty.

Procurement & Reliability

Surge protection: Standard 10kV / 5kA fail-to-on protection. SP2: 20kV / 10kA fail-to-on; LSSP2: 20kV / 10kA fail-to-off.
Warranty: Standard luminaire and components: 10-year limited warranty. Motion-sensor configurations have a 5-year limited warranty. Controller coverage is specified separately; review current warranty terms.
Procurement documents: Specify the BABA ordering code when that build option is required. Request documentation for the selected configuration, including IES data, installation instructions and applicable DLC / DarkSky qualification. Verify project requirements before ordering.

Specification basis: current GCM download, dated 09-22-26. Confirm the final configuration before purchase.

Specifications

Series

GreenCobra®

Application

Roadway & Street

Lumen Output

8,250–24,953 lm (published nominal range)

Color Temperature

2200K, 2700K, 3000K, 4000K, 5000K

Wattage

59–163 W W

Light Source

LED

CRI

Voltage

120–277V / 347–480V

Dimming Control

Yes

Electrical Standard

Mount Type

Pole Arm

Distribution

Type II, Type III, Type V, Type IV
