VersaTEK® Small OFF-Roadway Series – VTSSA

The VersaTEK® Small Site & Area Series (VTSSA) combines clean architectural styling, high-efficiency performance, and proven reliability in a compact, retrofit-friendly design. Delivering 4,577 to 28,325 lumens with efficacies up to 188+ LPW, VTSSA is designed for parking lots, business parks, commercial plazas, campuses, hospitality properties, industrial facilities, and other large outdoor areas.

For end users seeking a value-driven solution without compromising product quality, VTSSA replaces 50–400+ watt HID luminaires while reducing energy consumption by more than 70%. Energy-efficient operation, simplified maintenance, and installation-friendly mounting options can provide up to 70–80% combined energy and maintenance savings over the installed life of the system.

Its low-profile housing integrates cleanly into a wide range of architectural environments. Factory-rotatable performance optics and field-installable shielding options provide uniform illumination while helping control backlight, uplight, glare, and light trespass. Optional LEOLink ILS™, motion sensing, DALI D4i, photocontrol, and part-night dimming capabilities further improve energy management, asset visibility, and system flexibility.

Features

High-Efficiency Performance: Produces 4,577 to 28,325 delivered lumens with efficacies up to 188+ LPW.
True HID Replacement: Replaces 50–400+ watt HID luminaires while delivering more than 70% energy savings.
Lower Total Cost of Ownership: Reduced energy demand and simplified maintenance can provide up to 70–80% combined lifecycle savings.
Architectural Low-Profile Design: Clean housing and pole arm configurations integrate naturally into commercial, institutional, and public environments.
Precision Site and Area Optics: Narrow, medium, and wide roadway distributions are available alongside Type II, Type III, Type IV, Type V, and auto front-row optics.
Light-Trespass Control: Factory-rotated optics and multiple field-installable shields help control backlight, glare, and unwanted spill light.
Performance Selector Option: Enables field-adjustable output from 30% to 100% of the specified performance level.
Smart Lighting Ready: Compatible with the LEOLink ILS™ Intelligent Lighting System and optional NB01P wireless smart controller.
Advanced Control Options: Available with motion sensors, DALI D4i drivers, control-ready receptacles, photocontrols, and part-night dimming.

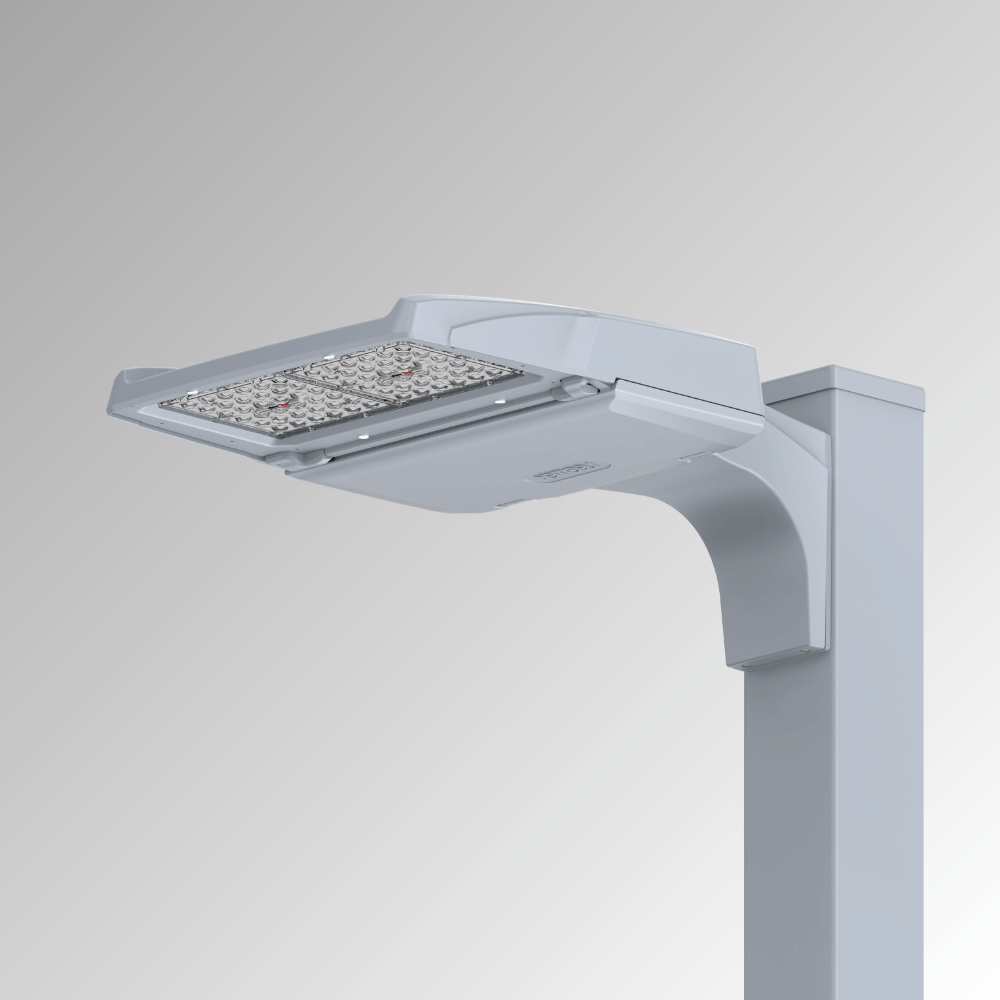

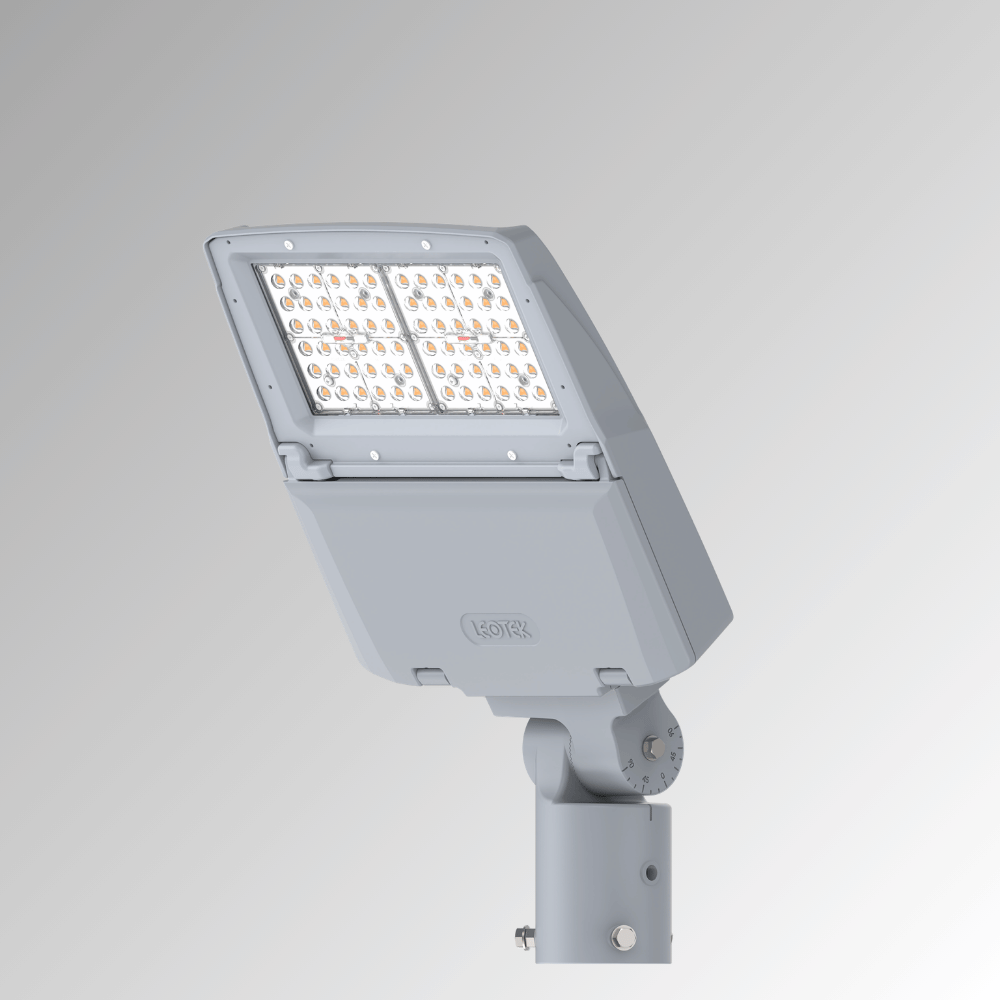

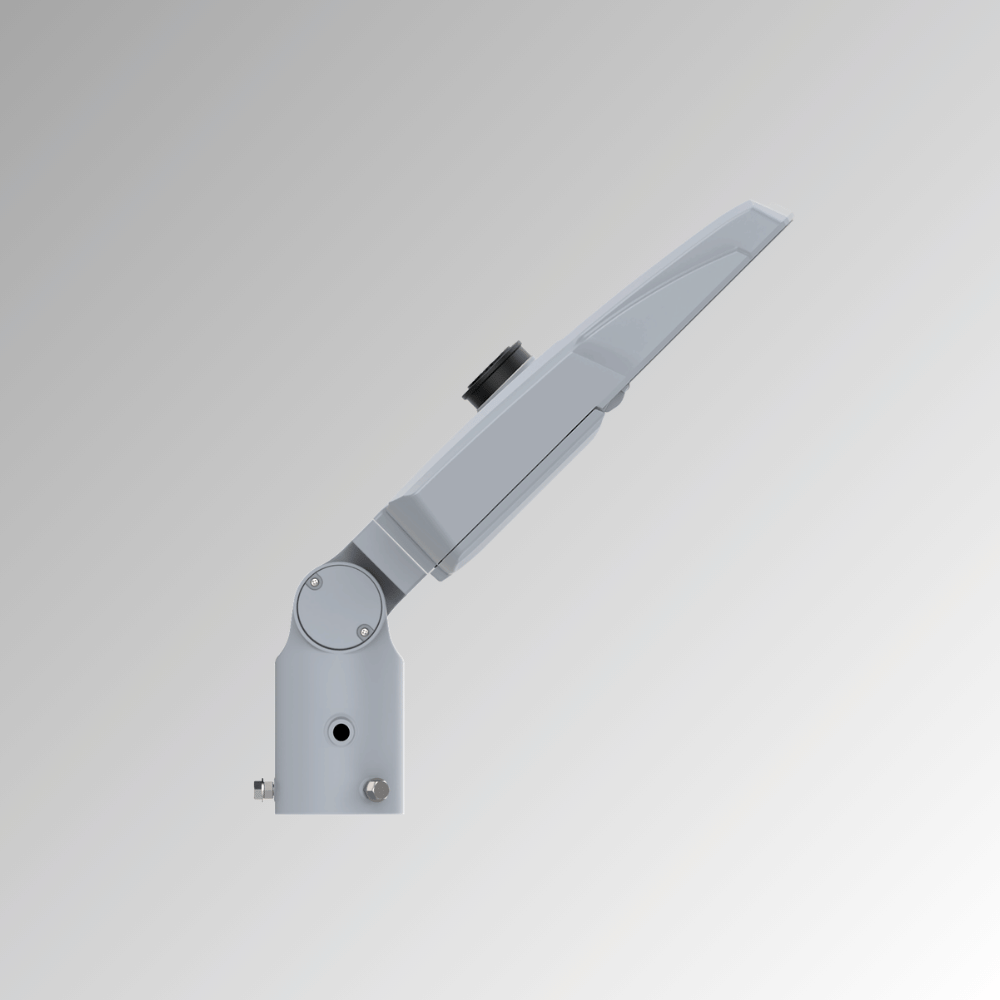

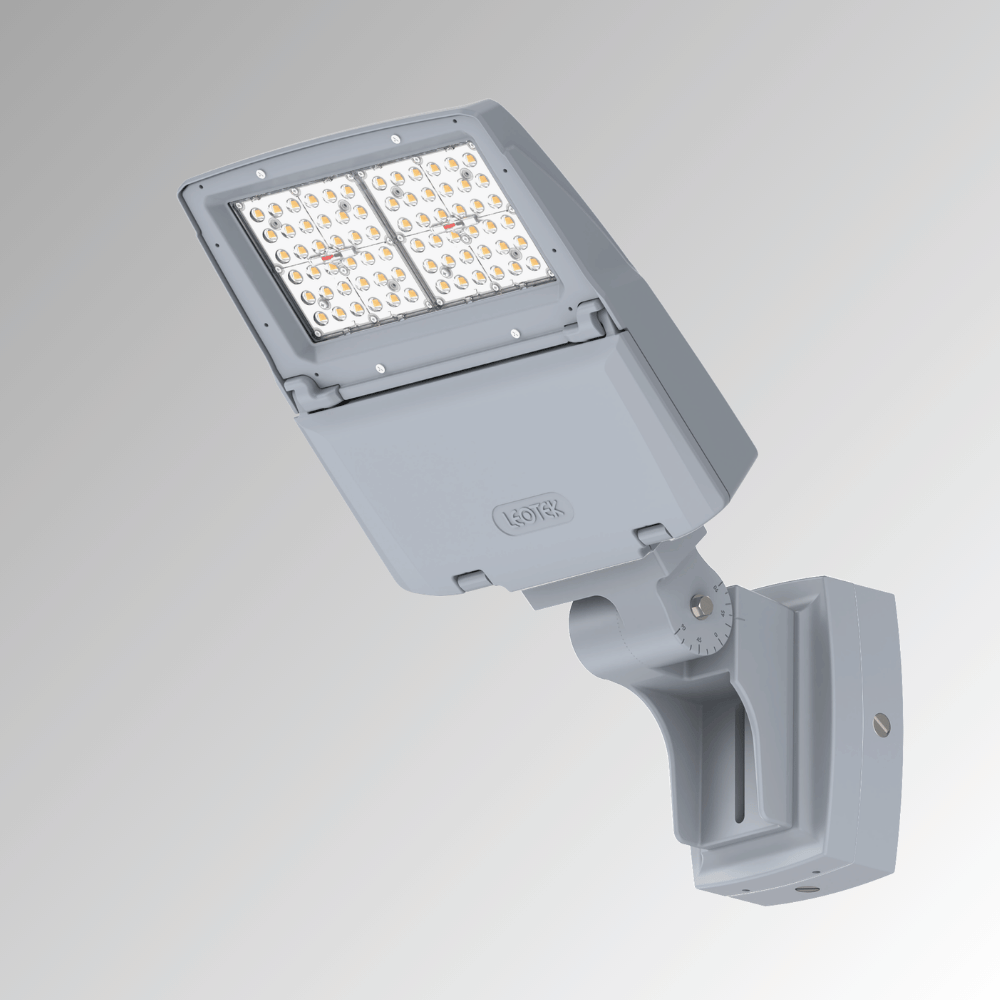

Flexible Mounting: Supports square and round pole arms, mast arms, fixed and adjustable wall mounts, and adjustable pole arm configurations.
Retrofit-Friendly Installation: The SPM square pole arm mount can accommodate existing bolt spacing up to 5.25 inches without additional drilling.
Lightweight Construction: Weighs approximately 20–22 lbs. to support safer single-person installation.
Tool-Free Service Access: Integral VersaKICK door support and an optional removable “Power Door” simplify electrical servicing.
Surge Protection: Includes 10 kV integral surge protection as standard, with an optional 20 kV extreme surge configuration.
Environmental Protection: The complete luminaire and optical assembly is sealed and rated IP66.
High-Ambient Operation: Rated for reliable operation in ambient temperatures up to 50°C (122°F).
Corrosion-Resistant Housing: Constructed from A360 low-copper die-cast aluminum alloy with less than 0.6% copper content.
Durable Finish: Standard 5,000-hour salt spray finish with an optional coastal finish.
Vibration Resistant: 3G vibration rated for high-wind zones, bridges, overpasses, and elevated structures.
Reliability Tested: Each luminaire is tested before and after a rigorous two-hour burn-in cycle.
Assembled in the USA: BAA and BABA compliant and assembled at LEOTEK’s San Jose, California facility.

Specifications

Series

VersaTEK

Application

Site & Area

Lumen Output

4577-28325

Color Temperture

2700K, 3000K, 4000K, 5000K

Wattage

30-165 W

Light Source

LED

CRI

70, 80

Voltage

120-277V / 347-480V

Dimming Control

Yes

Electrical Standard

Mount Type

AWM, AWMSC, ASPM, ARPM, SPM, RPM, MAF, WM, WMSC

Distribution

NR, MR, WR, T2R, T2F, T3R, T3F, T4R, T4F, T5, AFR, ORR, ORL
