UTL Dusk to down street light UTL1
SafeGuard™ Utility Grade Light – UTL1 - Image 2
SafeGuard™ Utility Grade Light – UTL1 - Image 3

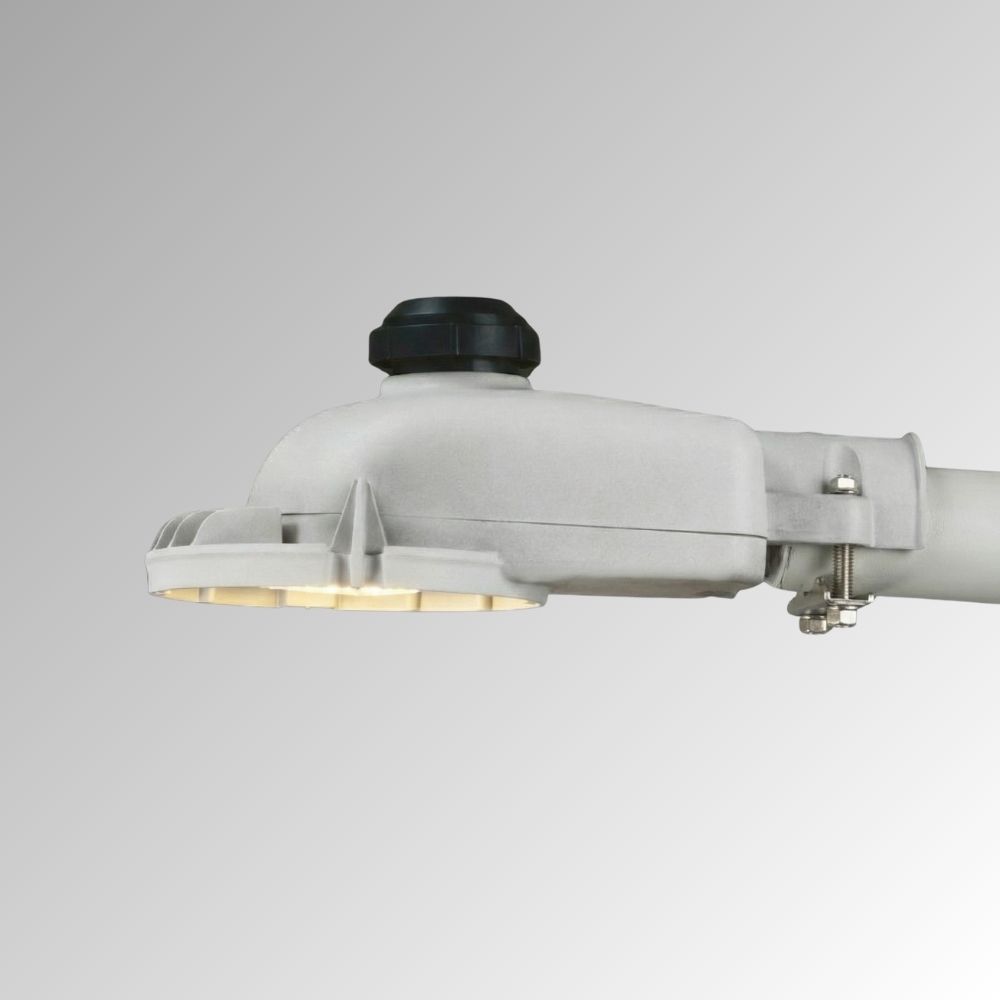

UTL Dusk to down street light side view
SafeGuard™

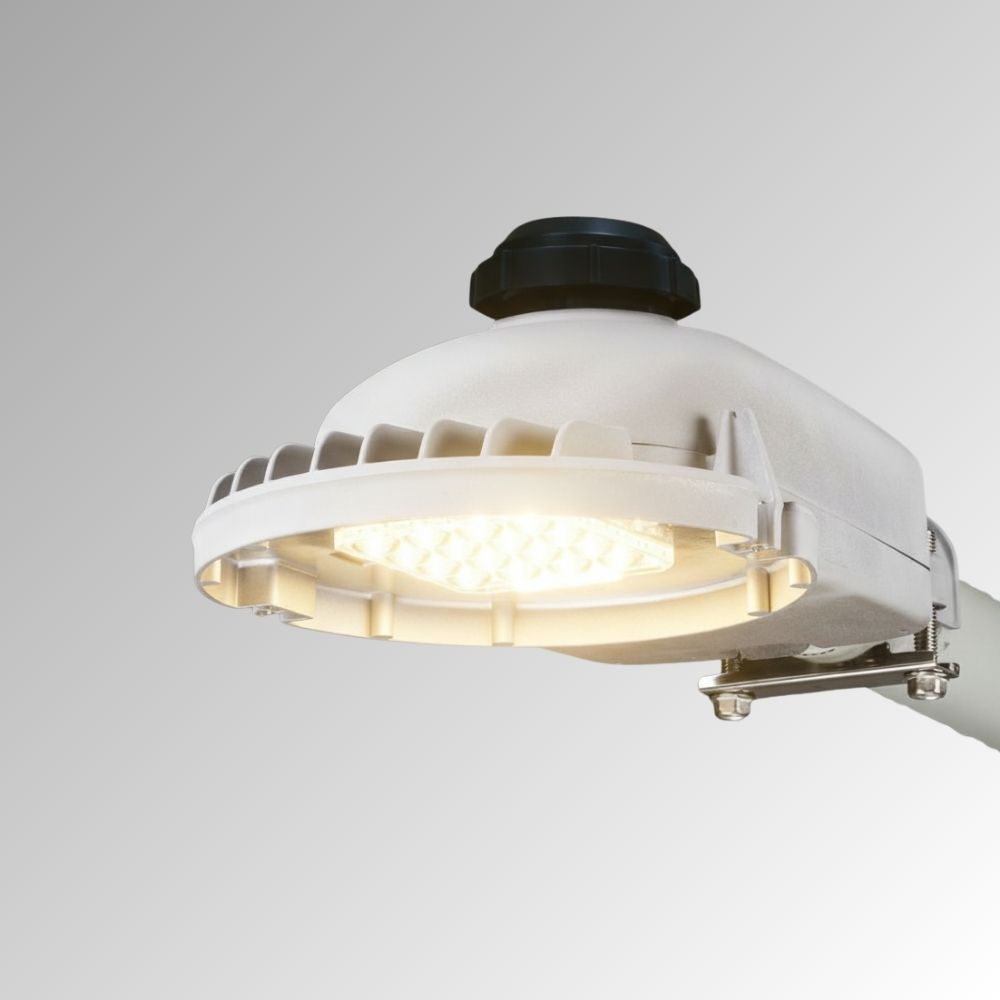

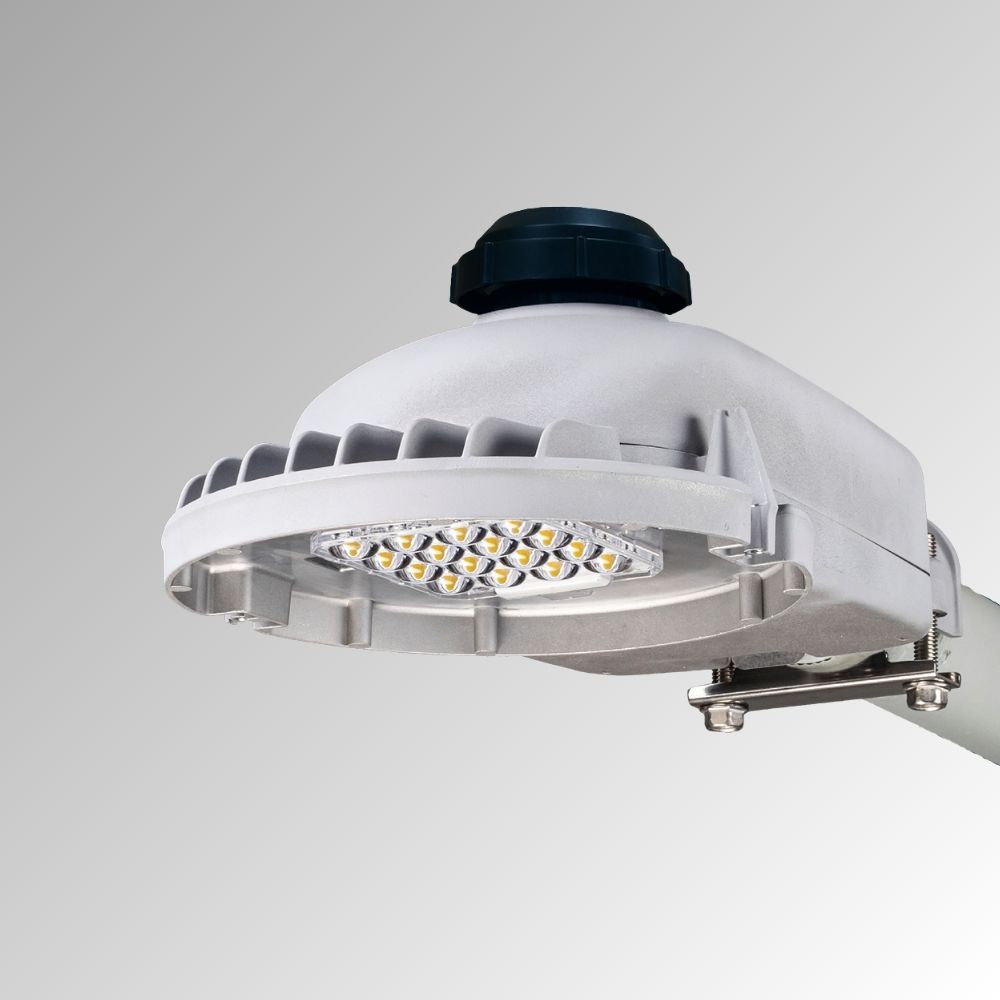

SafeGuard™ Utility Grade Light – UTL1

Assembled-in-USA
Darksky-Approved
UL-Listed

The SafeGuard™ UTL1 Utility Grade LED Security Light is a dependable, multi-purpose luminaire designed for Security, Dusk-to-Dawn, Street, and Area lighting applications. Versatile, efficient, and cost-effective, UTL1 delivers reliable performance for utilities, municipalities, and commercial sites seeking long-lasting illumination with minimal maintenance.

Features

  • Full cut-off design standard—requires no supplemental shielding
  • “DR” drop-down refractor option improves vertical illumination
  • Compatible with industry-standard NEMA refractor/reflector systems
  • Type II, III, and V distributions for optimized application performance
  • Dimmable driver included as standard
  • Standard surge protection; optional 20kA/10kV and 10kA/5kA upgrades
  • 3-position terminal block standard
  • IP66 rated LED light engines for durability
  • 3-pin photocontrol receptacle standard; 7-pin optional
  • Stainless steel, captive, tool-less door latches for easy maintenance
  • Field-installable light trespass shields available
  • Field-adjustable output selector available
  • Field-adjustable color temperature filter available
  • Wide range of mounting accessories for installation flexibility
  • 2-hour burn-in and 100% performance testing before shipment
  • 5-Year Standard Warranty

Specifications

Series
SafeGuard™
Application
Roadway & Street, Site & Area
Lumen Output
Color Temperture
3000K, 4000K
Wattage
21-54 W
Distribution
Type II, Type III, Type IV
Mount Type
Pole Arm
Light Source
LED
CRI
70
Voltage
120-277V / 347-480V
Dimming Control
Yes
Electrical Standard
UL

Resources

Download all

SafeGuard™ – UTL1

UTL1 Drawings IES Filies UTL1
pdf

SafeGuard Utility Series Specification Sheet

Size: 708.56 KB
Hits: 26
Date added: 26-02-2024
Date modified: 02-12-2025
DownloadPreview
pdf

SAFEGUARD Utility Series Lantern Brochure

Size: 7.25 MB
Hits: 19
Date added: 30-04-2024
Date modified: 02-12-2025
DownloadPreview
pdf

SAFEGUARD Installation Guide

Size: 5.00 MB
Hits: 10
Date added: 01-11-2021
Date modified: 02-12-2025
DownloadPreview

Related Products

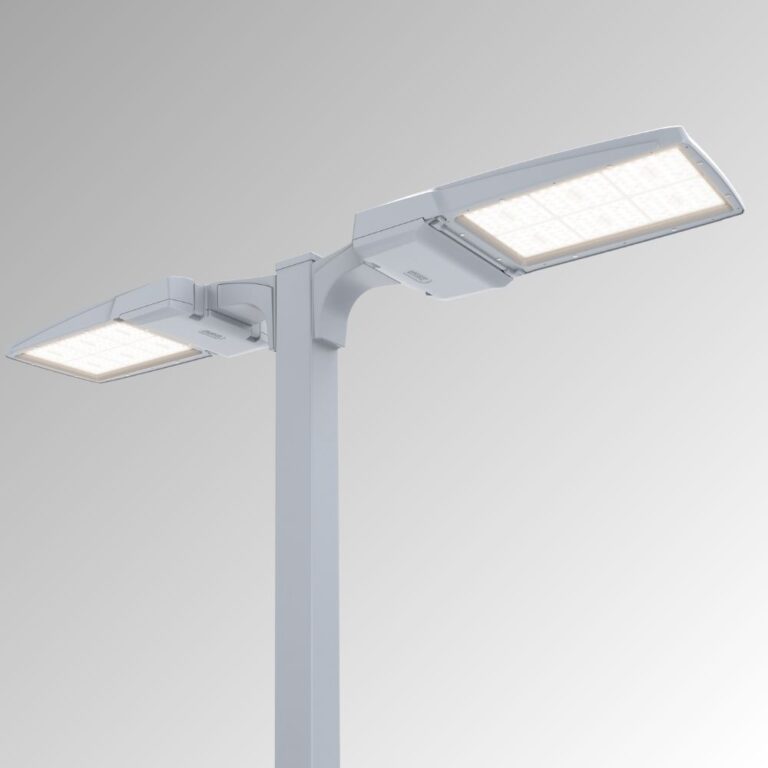

VersaTEK Large Site & Area – VTLSA
VersaTEK
VersaTEK® Large Site & Area Series – VTLSA
Lumen Output: 31759-65563
Voltage: 120-277V / 347-480V

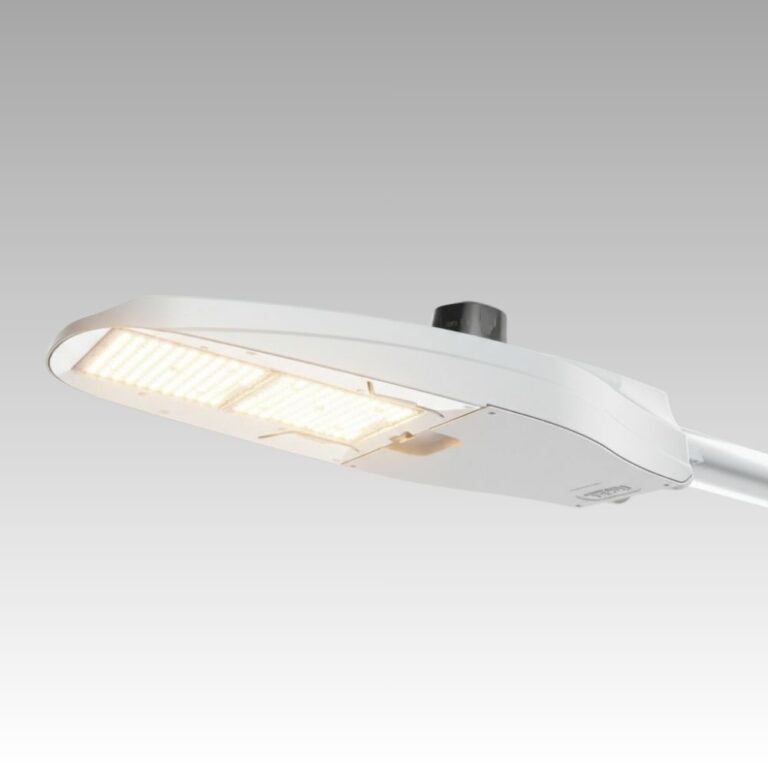

KarbonCobra® ComfortEnhanced – KC2CE (1)
KarbonCobra®
KarbonCobra® ComfortEnhanced – KC2CE
Lumen Output: 9000-25000
Voltage: 120-277V / 347-480V

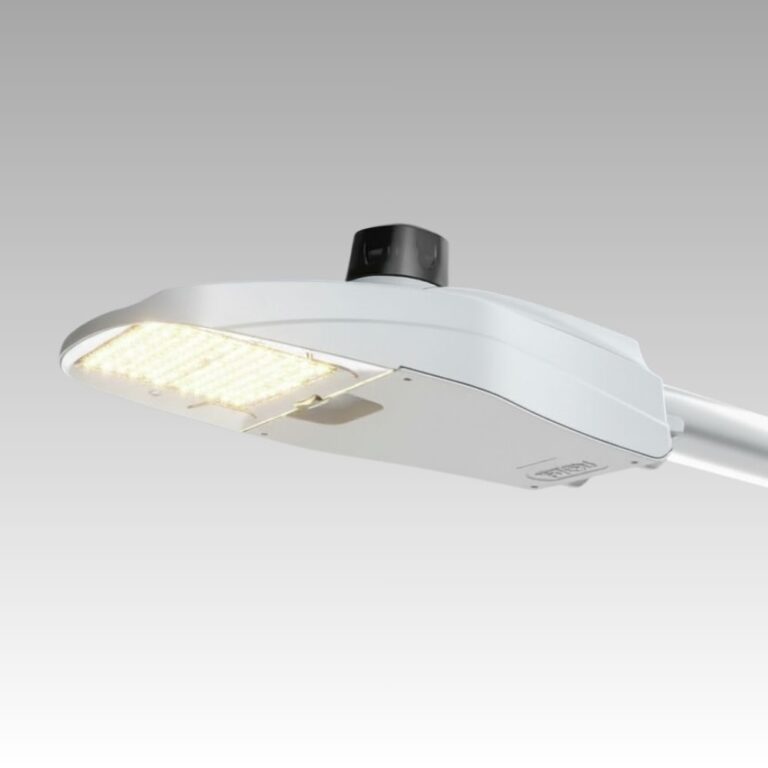

KC1CE
KarbonCobra®
KarbonCobra® ComfortEnhanced – KC1CE
Lumen Output: 2100-15700
Voltage: 120-277V / 347-480V

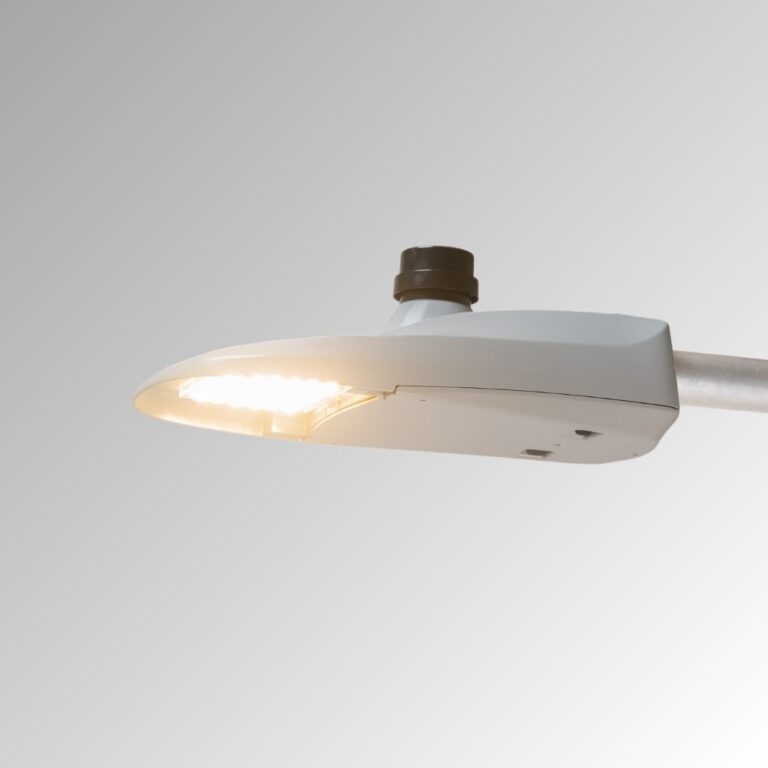

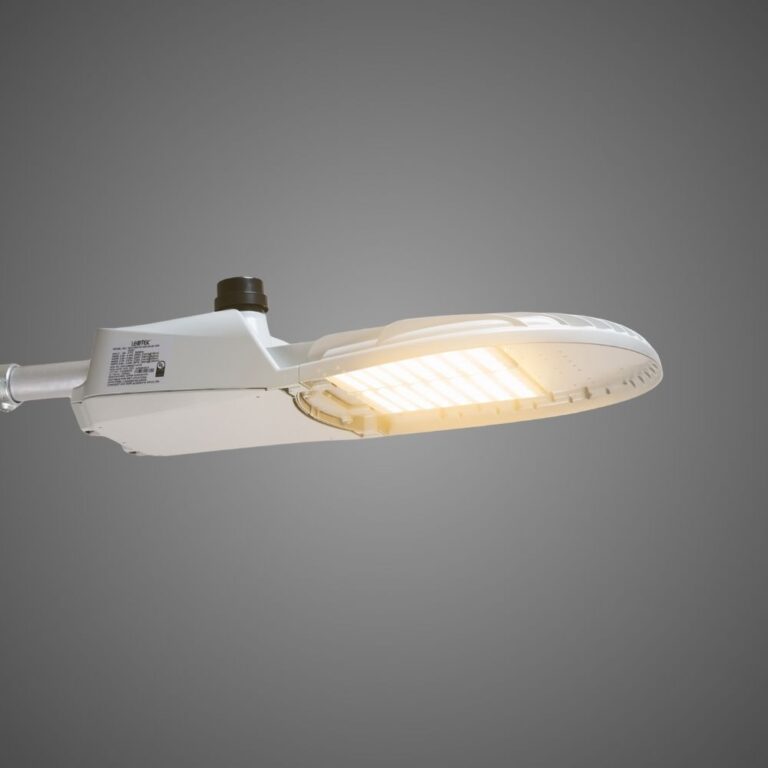

GCJ ComfortView™ Neighborhood LED Street Light – CV1 (1)
