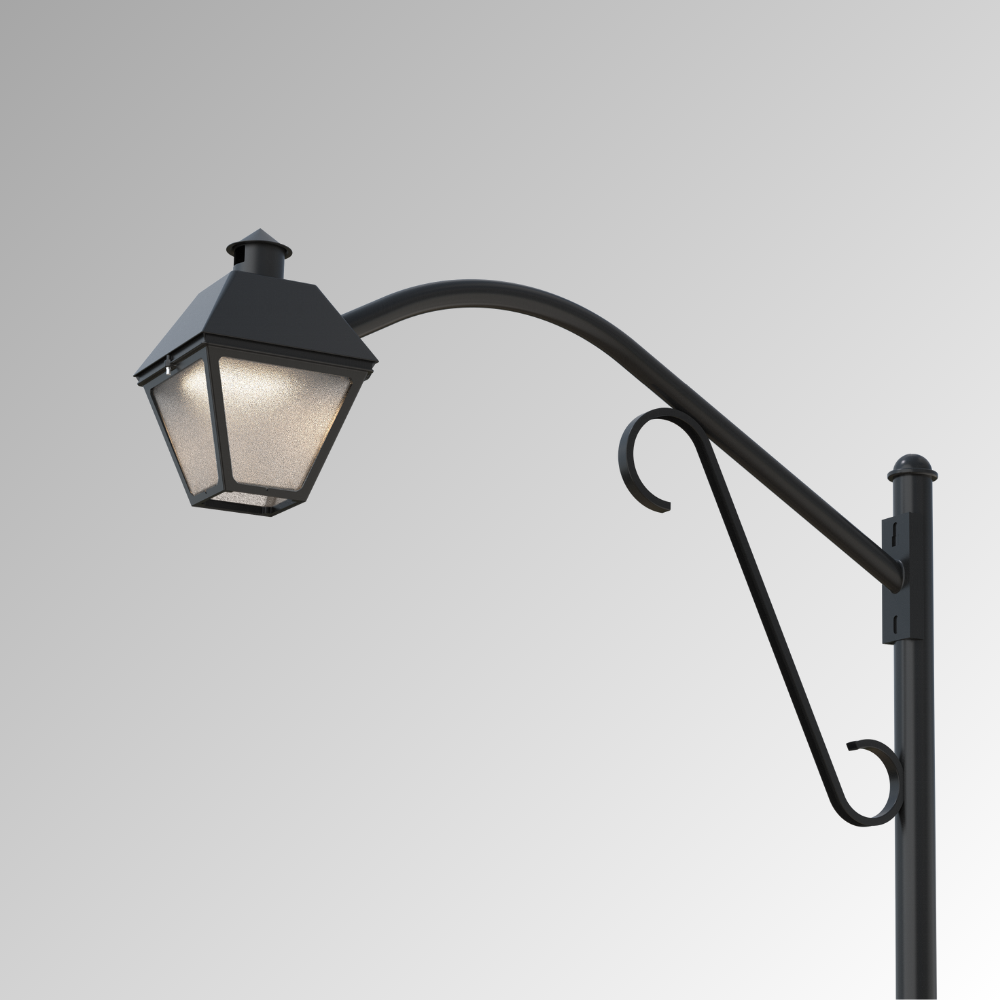

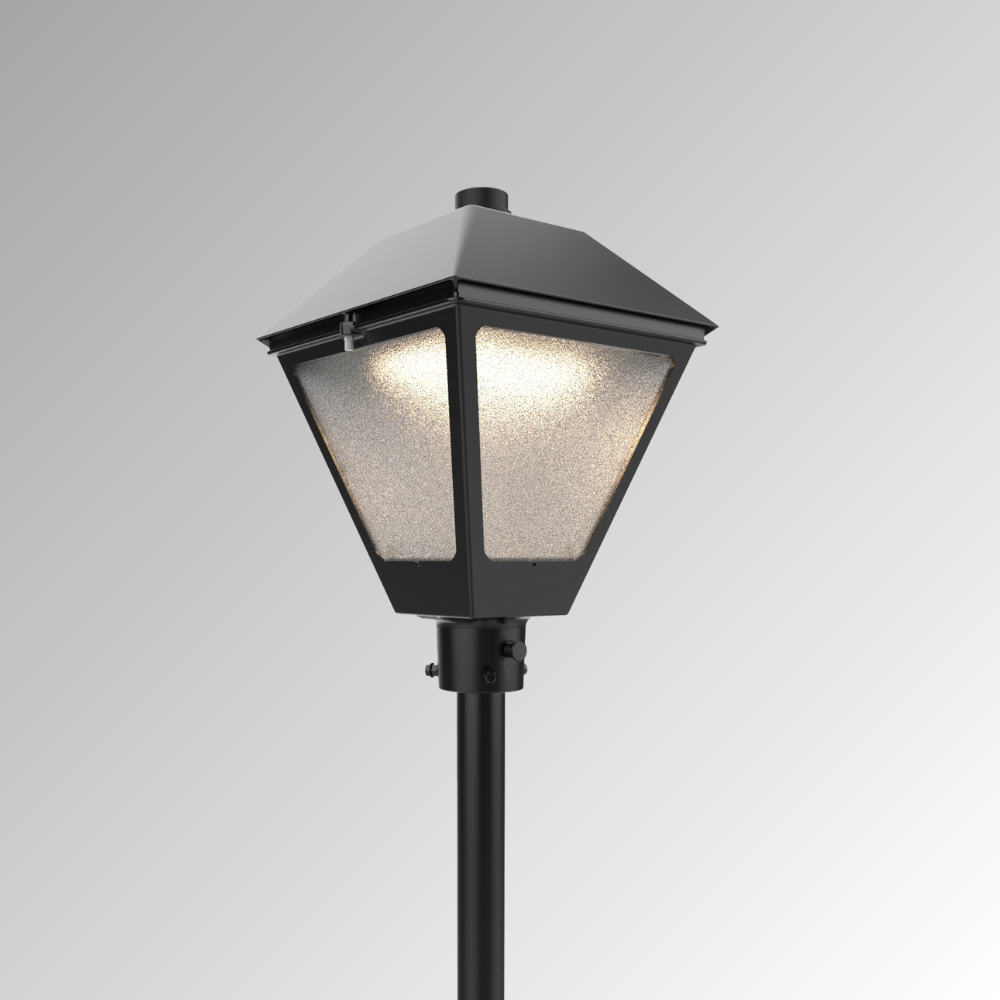

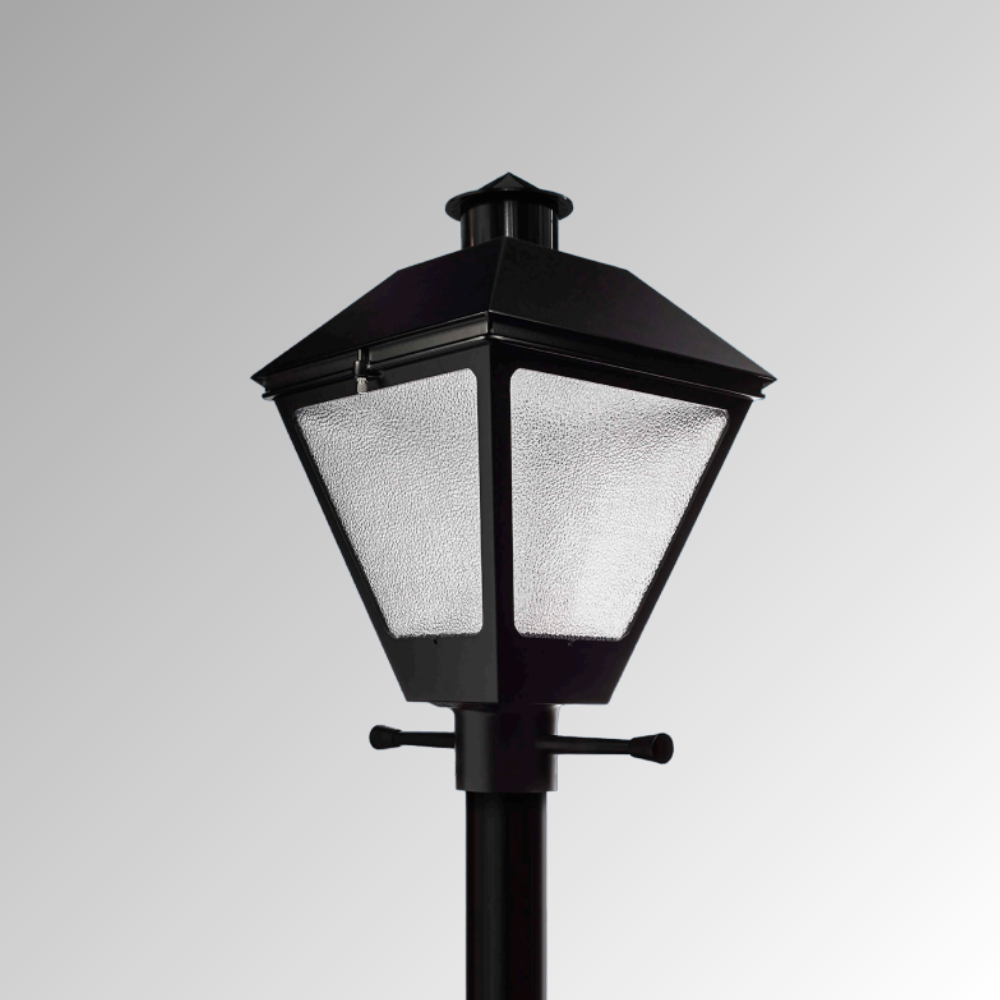

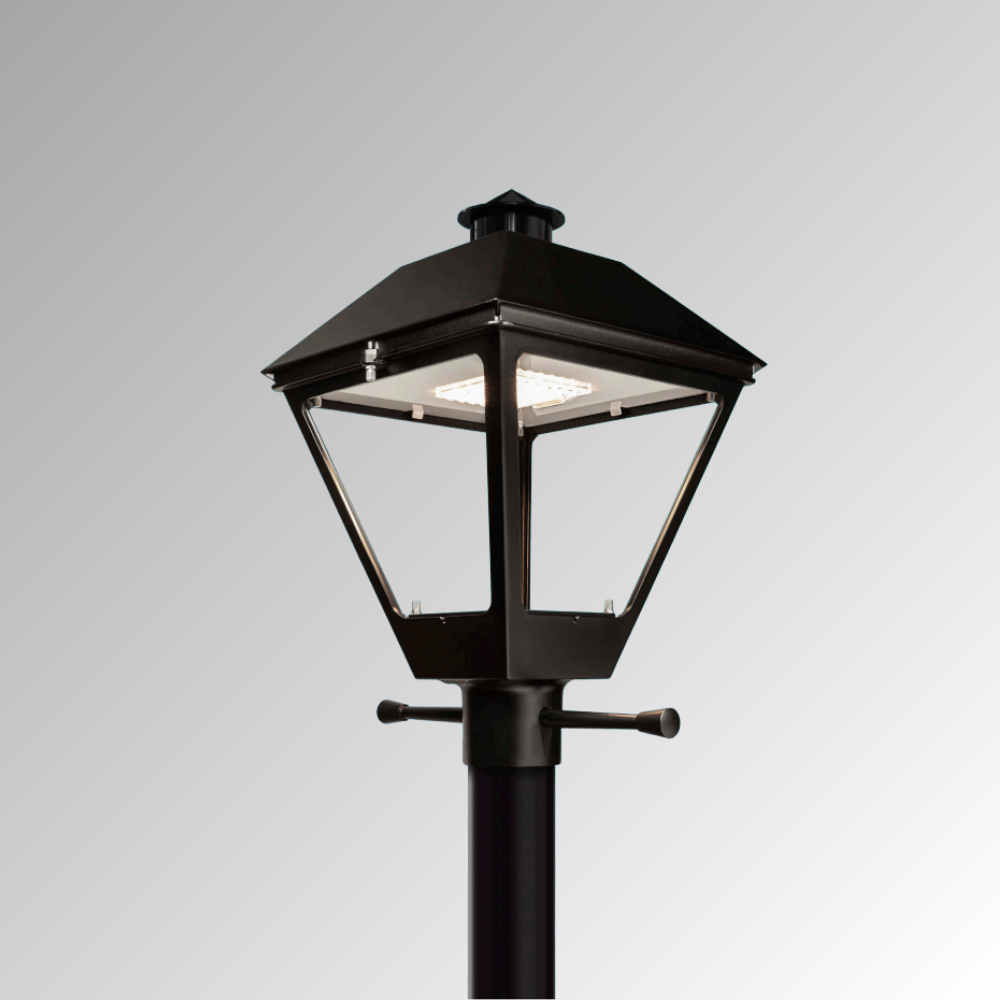

Post Top Colonial Lantern

LEOTEK’s Post Top Colonial Lantern blends classic design with advanced LED technology, offering durability, cost savings, and long-lasting performance. Its die-cast aluminum build and tool-less features ensure reliability and ease of maintenance.

Features

  • Diecast Aluminum Housing

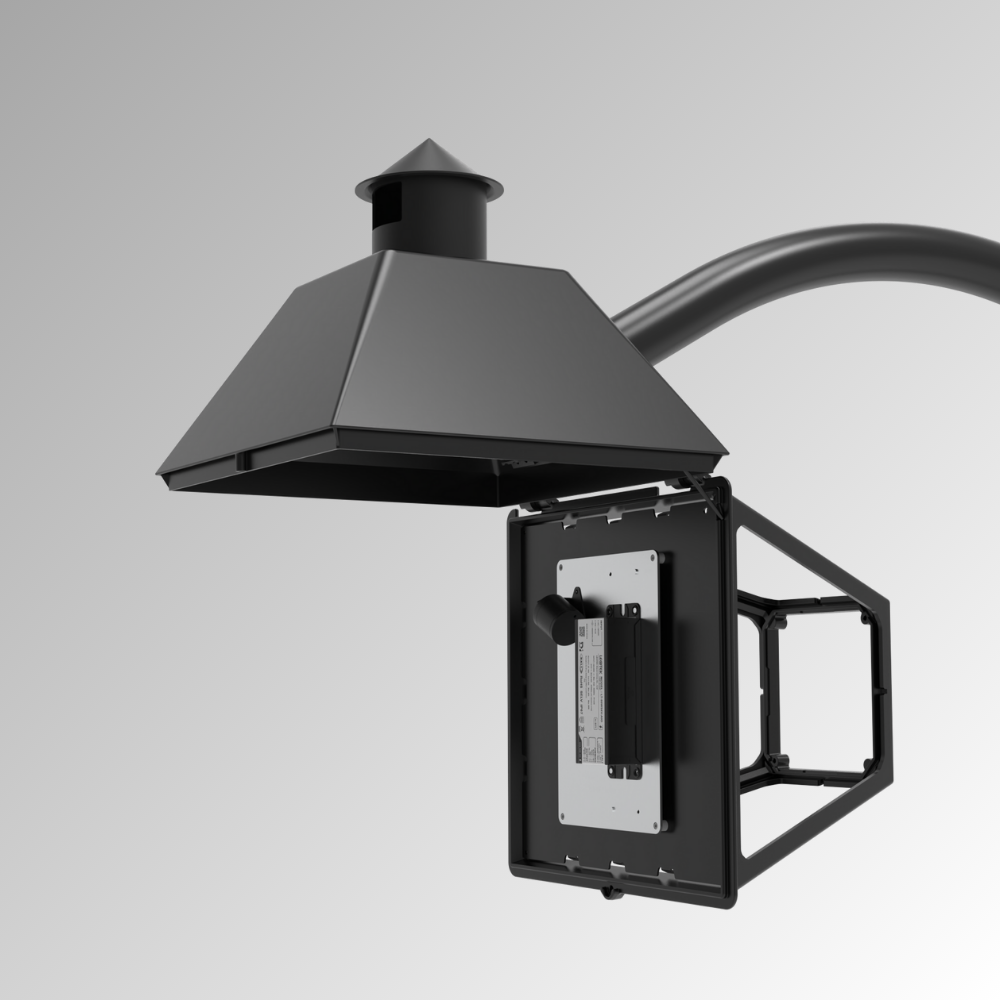

  • Standard Stainless Steel, Captive, Tool-Less Hardware
  • Durable, corrosion resistant powder-coat paint finish
  • Long-life rated power supply, LED, and optical components
  • Uniform light distribution and low glare performance through discrete LED light engine technology
  • Efficacy up to 145 lumens per watt
  • Available in 2700K (27K), 3000K (30K), and 4000K (40K) color temperatures
  • Standard 10kV/5kA enhanced surge protection
  • Field adjustable lighting levels with optional current selector
  • Tool-less field installable light trespass shields for House-Side, Front-Side, & Cul-de-Sac applications
  • 2-hour burn-in and 100% tested to performance specifications
  • 5 Year Standard Warranty
  • Built in the USA
  • For International Dark Sky (IDA) certification, the No Side Panel option and 3000k or warmer LEDs must be selected.

Specifications

Application Roadway & Street, Site & Area, Post Tops & Decorative
Country North America
Dimming Control Y
Electrical standard UL
Lumen output 2778-11690
Series Post Top Colonial
Wattage 23-84
Color temperature 2700K, 3000K, 4000K
CRI 70
Distribution Type Type II, Type III, Type V
Light Source LED
Mount Type post top
Voltage 120-277V / 347-480V
