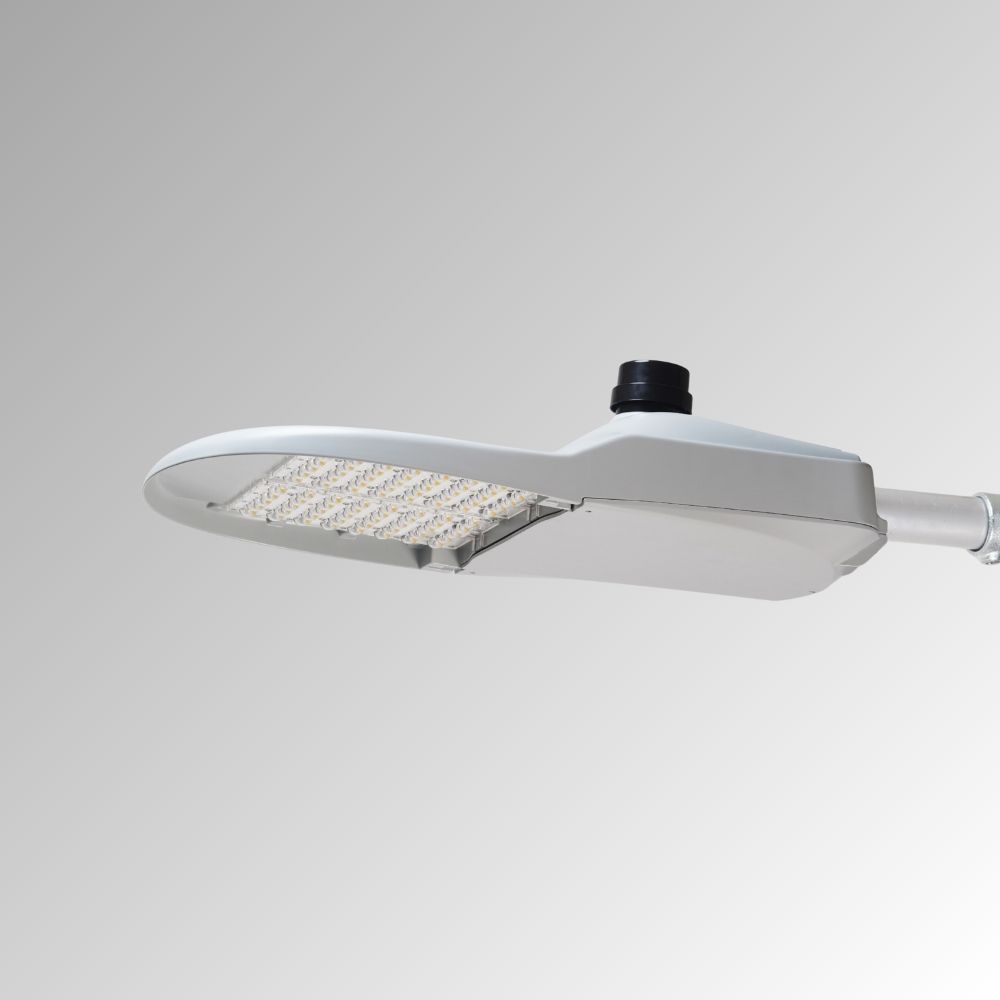

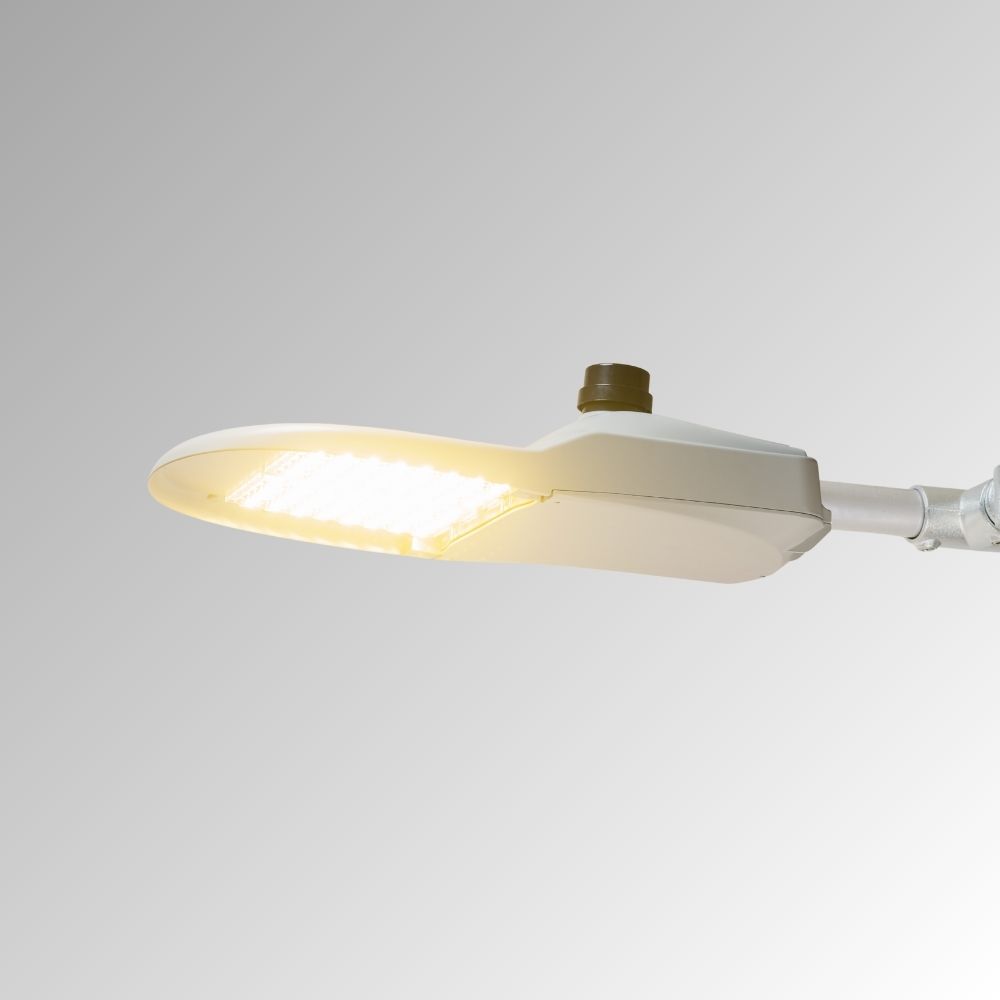

GreenCobra® LED Streetlight – GCL

GreenCobra® GCL Series delivers up to 35,600 lumens with enhanced forward-throw Type 3 optics for superior uniformity and wide roadway coverage. Its advanced heat management ensures long-lasting performance and high lumen maintenance.

Features

  • Clean cobra-head form
  • Uniform light distribution and low glare performance through discrete LED light engine technology
  • Efficacy up to 156 lumens per watt
  • Warm White (2200K), Soft White (3000K), Neutral White (4000K), and Cool White (5000K) color temperatures
  • Durable powder coat paint finish with 5000-hour salt spray exposure rating
  • Standard 10kV/5kA enhanced surge protection that meets ANSI 136.2-2015 standard
  • Optimized Type 3R optic for luminance performance per IES RP-8-14 roadway lighting practices
  • Enhanced forward-throw Type 3 optic offers great uniformity and coverage for the wider roadway scenario
  • Field adjustable lighting levels with integral current selector
  • Tool-less field installable light trespass shields for House-Side, Front-Side, & Cul-de-Sac applications
  • Rubber wildlife guard option conforms to mast arm with no gaps
  • 2-hour burn-in and 100% tested to performance specifications
  • 10 Year Standard Warranty
  • Built in USA

Specifications

Application Roadway & Street
Country North America
Dimming Control Y
Electrical standard UL
Lumen output 15499-35633
Series Green Cobra
Wattage 122-172
Color temperature 2200K, 2700K, 3000K, 3300K, 4000K, 5000K
CRI 70
Distribution Type Type II, Type III, Type IV, Type V
Light Source LED
Mount Type Pole Arm
Voltage 120-277V / 347-480V

Resources

Product Specification(1)
GCL J-Series Specification Sheet
May 19, 2024
|
508.22 KB
Product Specification for Legacy Series(1)
GCL G-Series Specification Sheet
May 19, 2024
|
298.94 KB
Supporting Documentation(7)
Control Options Brochure
May 2, 2024
|
1.72 MB
Control Options FAQ
May 2, 2024
|
689.08 KB
GreenCobra Overview Brochure
May 19, 2024
|
1.5 MB
GreenCobra, ComfortView and E-Cobra Installation Guide
May 19, 2024
|
2.8 MB
Lighting Products Standard Warranty – US
May 2, 2024
|
239.3 KB
PCR7 Wiring Conversion to Control Ready
May 2, 2024
|
1.74 MB
US Terms and Conditions of Sale – General Illumination
April 21, 2024
|
77.44 KB
Accessories(6)
Bird Deterrent Spider Instruction Sheet
May 2, 2024
|
5.19 MB
GC CV EC Mounting Accessories Drawings
May 19, 2024
|
5.57 MB
GCJ-GCM-GCL H-Series House Side Shield Drawing
May 19, 2024
|
392.03 KB
GCJ-GCM-GCL H-Series Front Side Shield Drawing
May 19, 2024
|
493.53 KB
GCJ-GCM-GCL H-Series_Cul-de-Sac Side Shield Drawing
May 19, 2024
|
569.75 KB
GreenCobra GCJ-GCM-GCL Trespass Shield Installation Guide
May 19, 2024
|
1.45 MB
IES Files(14)
GCL J-Series 2200K IES Files
May 19, 2024
|
1.16 MB
GCL J-Series 2700K IES Files
May 19, 2024
|
22.59 MB
GCL J-Series 3000K IES Files
May 19, 2024
|
1.17 MB
GCL J-Series 3000K with Shields IES Files
May 19, 2024
|
628.24 KB
GCL J-Series 4000K IES Files
May 19, 2024
|
1.18 MB
GCL J-Series 4000K with Shields IES Files
May 19, 2024
|
156.89 KB
GCL3 4000K IES Files
May 19, 2024
|
94.94 KB
GCL3 IES 3000K Files
May 19, 2024
|
94.95 KB
GCL G-Series 3000K IES Files
May 19, 2024
|
2.35 MB
GCL G-Series 4000K IES Files
May 19, 2024
|
2.32 MB
GCL G-Series 5000K IES Files
May 19, 2024
|
2.39 MB
GCL G-Series with CSS IES Files
May 19, 2024
|
118.47 KB
GCL G-Series with FSS IES Files
May 19, 2024
|
9.78 KB
GCL G-Series with HSS IES Files
May 19, 2024
|
162.82 KB
