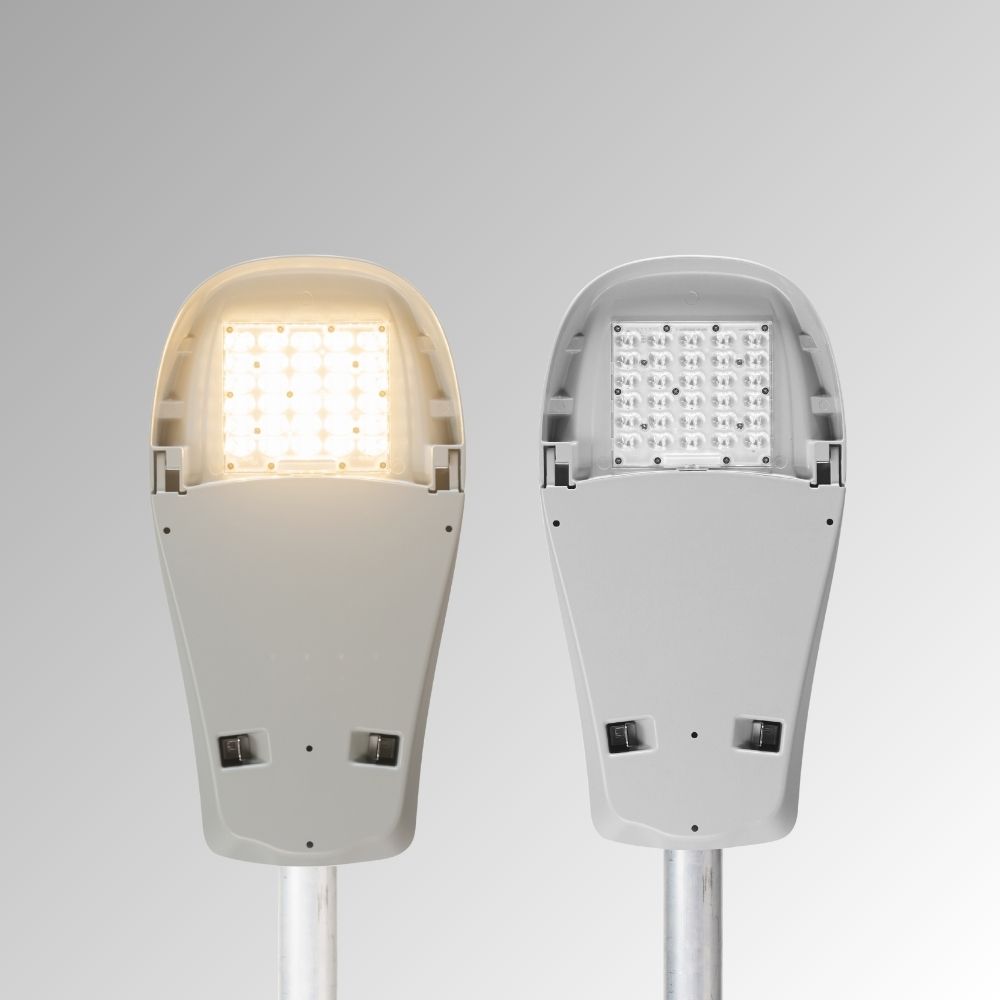

GreenCobra® LED Streetlight – GCJ

GreenCobra® GCJ Series delivers up to 14,400 lumens with superior heat management, ensuring long-lasting performance and uniform light distribution. Featuring 11 wattage options, field adjustability, and advanced optics, it’s built for durability and efficiency.

Features

  • Clean cobra-head form
  • Uniform light distribution and low glare performance through discrete LED light engine technology
  • Efficacy up to 163 lumens per watt
  • Soft White (2200K), Soft White (2700K), Warm White (3000K), Neutral White (4000K), and Cool White (5000K) color temperatures
  • Durable powder coat paint finish with 5000-hour salt spray exposure rating
  • Standard 10kV/5kA enhanced surge protection that meets ANSI 136.2-2015 standard
  • 11 discrete wattage offerings to align with utility wattage tariffs; assures power consumption is the right size for lowest operating cost
  • Improved Type 2R and 3R optics that offer better uniformity and are designed to meet IES RP-8-14 roadway lighting practices
  • Enhanced forward-throw Type 3 optic offers great uniformity and coverage for the wider roadway scenario
  • Type 4 & Type 5 optics for intersection and area lighting applications.
  • Field adjustable lighting levels with integral current selector
  • Tool-less field installable light trespass shields for House-Side, Front-Side, & Cul-de-Sac applications
  • Rubber wildlife guard option conforms to mast arm with no gaps
  • 2-hour burn-in and 100% tested to performance specifications
  • 10 Year Standard Warranty
  • Built in the USA

Specifications

Application Roadway & Street
Country North America
Dimming Control Y
Electrical standard UL
Lumen output 2312-14399
Series Green Cobra
Wattage 17-100
Color temperature 2200K, 2700K, 3000K, 4000K, 5000K
CRI 70
Distribution Type Type II, Type III, Type IV, Type V
Light Source LED
Mount Type Pole Arm
Voltage 120-277V / 347-480V

Resources

Product Specification(1)
GCJ J-Series Spec-Sheet 01-31 24
January 14, 2025
|
666.96 KB
Product Specifications for Legacy Series(2)
GCJ G-Series Specification Sheet
May 19, 2024
|
572.14 KB
GCJ H-Series Specification Sheet
May 19, 2024
|
599.3 KB
Supporting Documentation(8)
Control Options Brochure
May 2, 2024
|
1.72 MB
Control Options FAQ
May 2, 2024
|
689.08 KB
GCJ-GCM Straight Wire Terminal Block
May 19, 2024
|
6.37 MB
GreenCobra Overview Brochure
May 19, 2024
|
1.5 MB
GreenCobra, ComfortView and E-Cobra Installation Guide
May 19, 2024
|
2.8 MB
Lighting Products Standard Warranty – US
May 2, 2024
|
239.3 KB
PCR7 Wiring Conversion to Control Ready
May 2, 2024
|
1.74 MB
US Terms and Conditions of Sale – General Illumination
April 21, 2024
|
77.44 KB
Accessories(6)
Bird Deterrent Spider Instruction Sheet
May 2, 2024
|
5.19 MB
GC CV EC Mounting Accessories Drawings
May 19, 2024
|
5.57 MB
GCJ-GCM J-Series Cul-de-Sac Side Shield Drawing
May 19, 2024
|
361.36 KB
GCJ-GCM J-Series Front Side Shield Drawing
May 19, 2024
|
336.54 KB
GCJ-GCM J-Series House Side Shield Drawing
May 19, 2024
|
333.98 KB
GreenCobra GCJ-GCM-GCL Trespass Shield Installation Guide
May 19, 2024
|
1.45 MB
IES Files - GCJ J-Series(7)
GCJ J-Series 2200K IES Files
May 19, 2024
|
1.73 MB
GCJ J-Series 2700K IES Files
May 19, 2024
|
962.97 KB
GCJ J-Series 3000K IES Files
May 19, 2024
|
1.06 MB
GCJ J-Series 3000K with Shields IES Files
May 19, 2024
|
1006.79 KB
GCJ J-Series 4000K IES Files
May 19, 2024
|
988.73 KB
GCJ J-Series 4000K with Shields IES Files
May 19, 2024
|
703.64 KB
GCJ4 IES Files
May 19, 2024
|
1.05 MB
IES Files - GCJ G-Series(2)
gcj-g-3000k-ww-ies-files (2)
January 3, 2025
|
21.08 KB
gcj-g-4000k-nw-ies-files (1)
January 3, 2025
|
24.81 KB
IES Files - GCJ H-Series(6)
GCJ H-Series 3000K IES Files
June 18, 2024
|
374.39 KB
GCJ H-Series 4000K IES Files
June 18, 2024
|
321.4 KB
GCJ H-Series 5000K IES Files
June 18, 2024
|
8.94 MB
GCJ H-Series with CSS IES Files
June 18, 2024
|
8.27 KB
GCJ H-Series with FSS IES Files
June 18, 2024
|
91.78 KB
GCJ H-Series with HSS IES Files
June 18, 2024
|
21.45 KB

Related Products

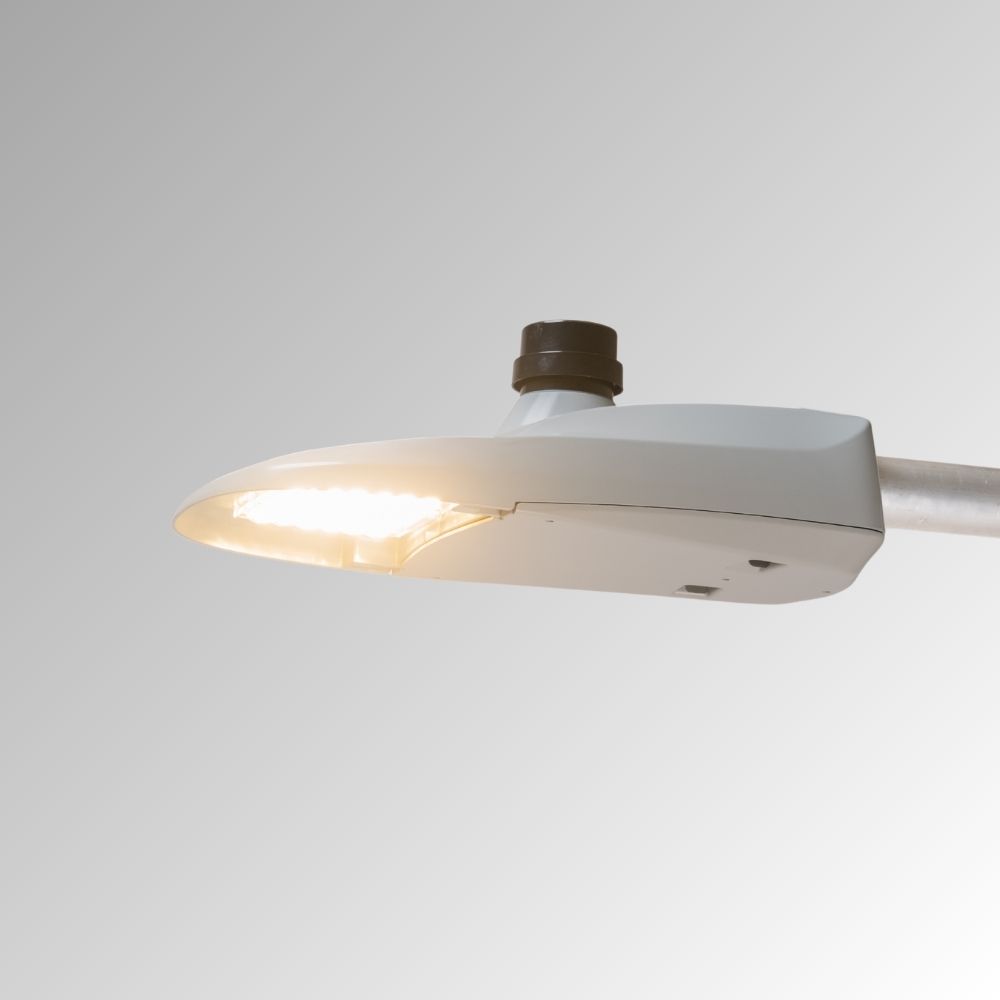

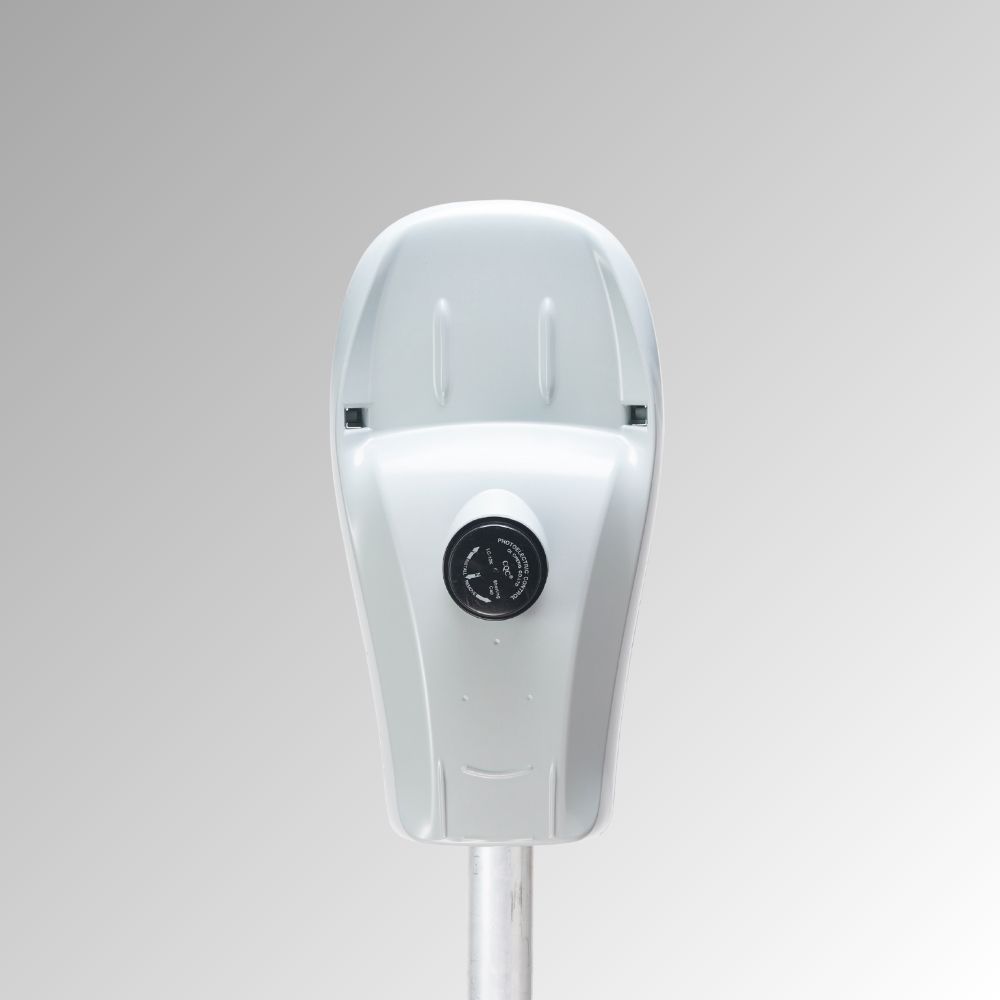

ComfortView™ Neighborhood LED Street Light - CV1
