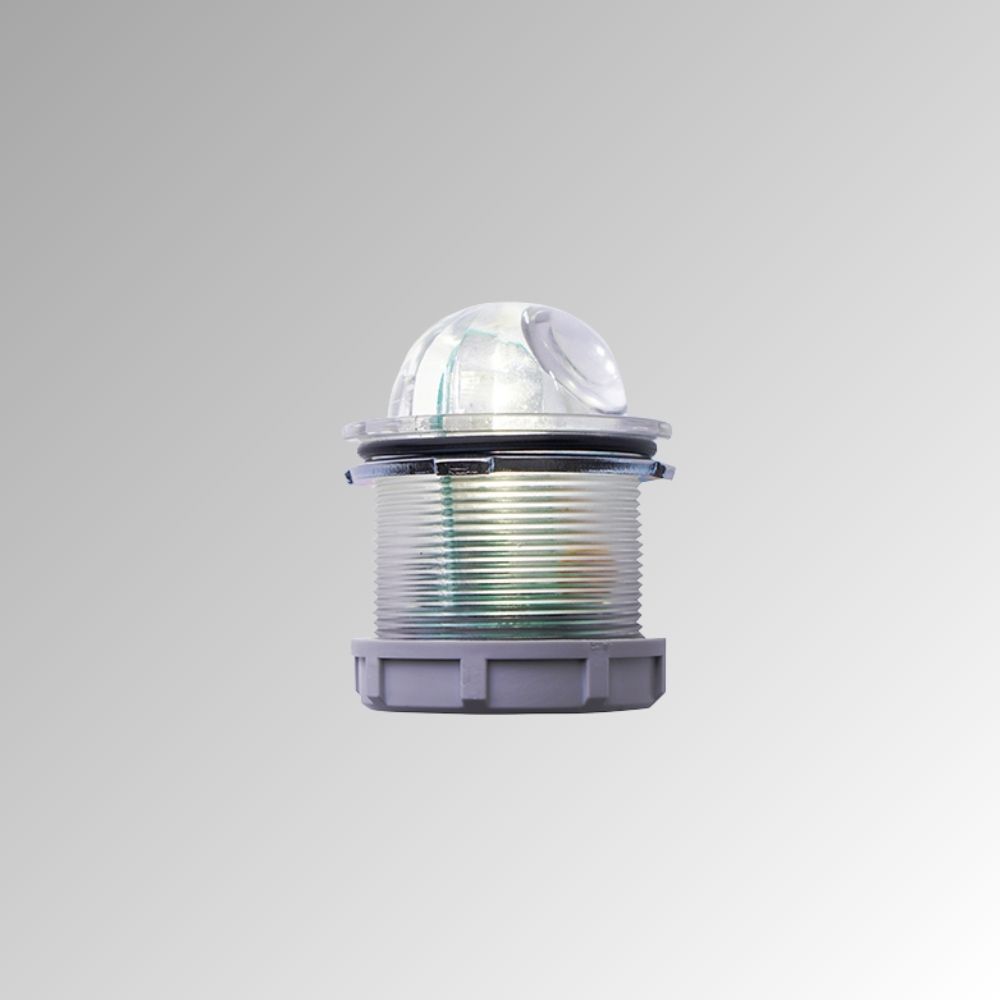

Front view of a circular railroad indicator.

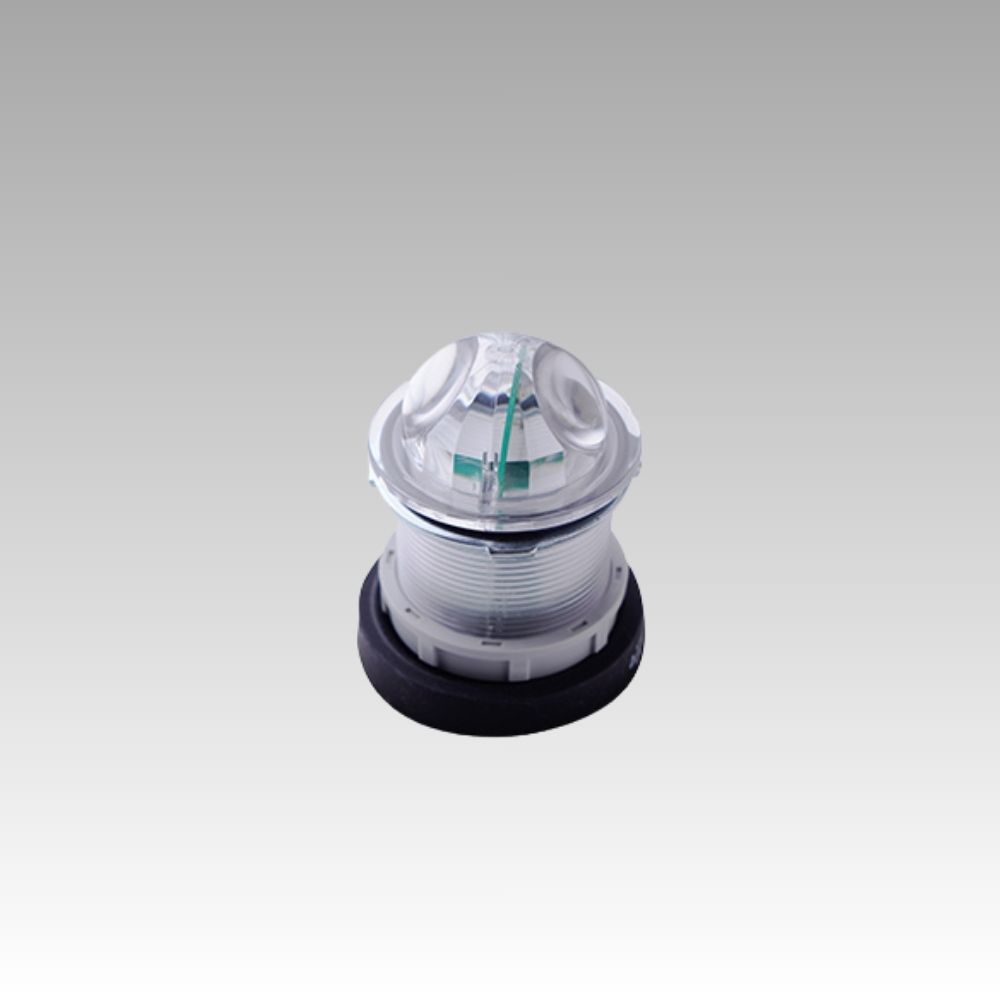

Angled view of a small circular railroad indicator.

LED Railroad Power Off Indicator

Name: LED Railroad Power-Off Indicator | LEOTEK
Brand: LEOTEK

Availability varies by configuration; see the specification sheet.

The LEOTEK LED railroad power-off indicator provides a red or white warning indication for rail-system power-loss monitoring. The published sheet separates its 7–18 Vdc operating supply from its 55–240 Vac detection input; the AC value is a detection range, not the indicator’s supply voltage.

The specification lists TSL-POK-WCF-AB1 at 2.5 W and TSL-POK-RBM-B1 at 2 W, with an optional -WG Wago connector suffix. Check the detection wiring, controller interface and selected color against the project drawing before specifying the unit.

Features

Configuration & Electrical

Red or white railroad power-off indication; 7–18 Vdc operating supply.
Separate 55–240 Vac detection input; 50% duty cycle in the published sheet.
White model TSL-POK-WCF-AB1 draws 2.5 W; red model TSL-POK-RBM-B1 draws 2 W. Optional -WG connector suffix.

Visibility & Durability

Hard-coated, UV-stabilized polycarbonate lens with moisture- and dust-resistant construction.
Published operating temperature −40°C to 70°C; 0–95% non-condensing relative humidity.
Vibration to AREMA Part 11.5.1 C and a three-year limited warranty are specified.

Specifications

Indication

Power Off Indicator

Lens Size

Color of Lens

Clear

Light Color

Red, White

Voltage

7-18Vdc (55-240Vac detection)
