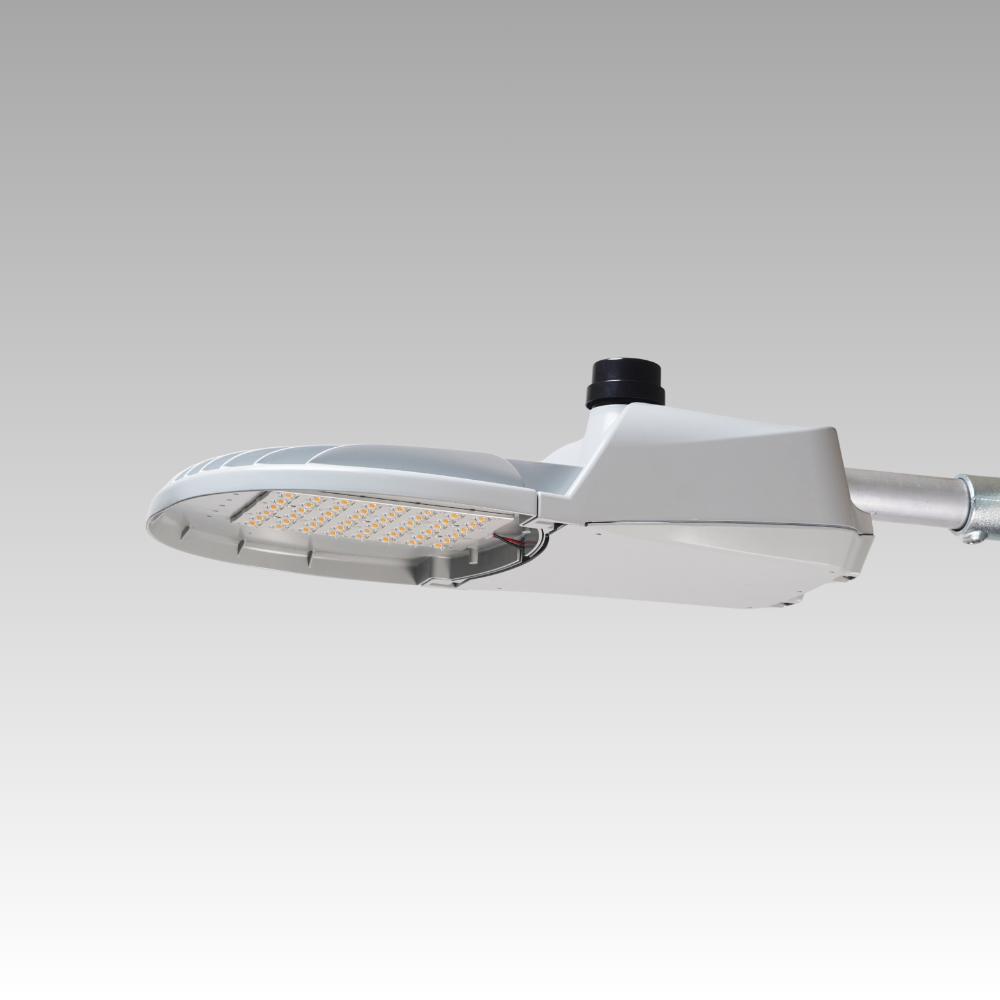

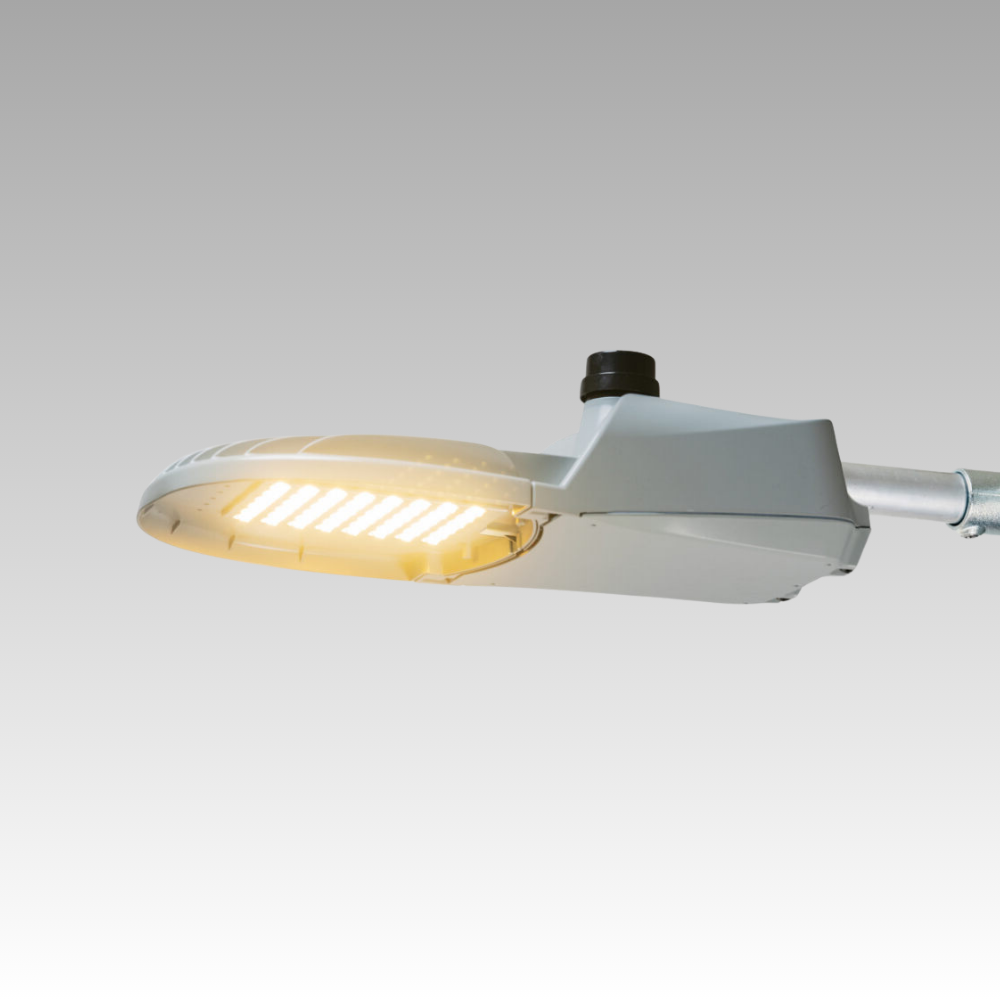

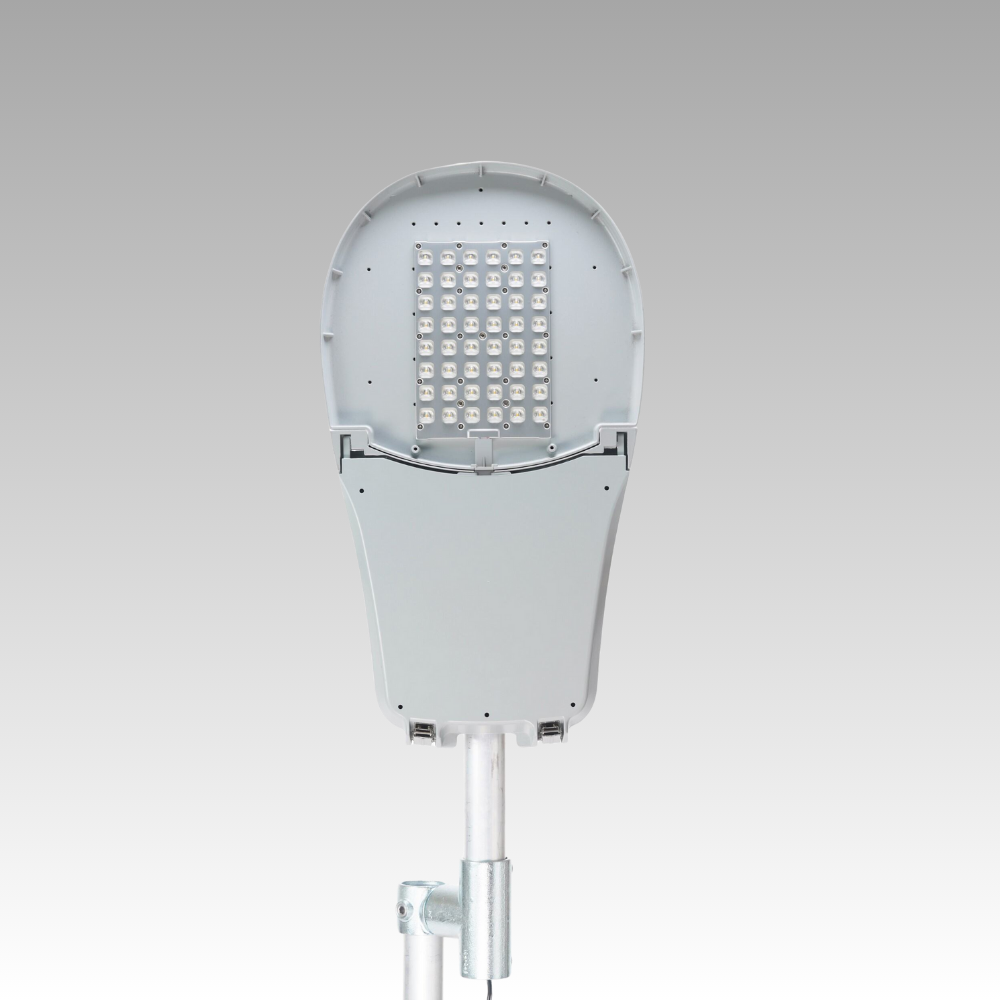

GreenCobra® LED Streetlight – GC2 - Image 2

GreenCobra®

GreenCobra® LED Streetlight – GC2

Name: GC2 GreenCobra LED Streetlight | LEOTEK
Brand: LEOTEK

The GreenCobra® GC2 is an LED streetlight for high-output roadway and utility lighting. Its published nominal performance tables span 27,045–42,843 lumens at 220–307 W across CCT and output configurations. Select the optical distribution and IES file for the road geometry, mounting height and required light levels.

Municipal engineers, utilities and lighting contractors can specify MV or HV power, mounting accessories and external LEOLink controls. For a connected-lighting project, order the factory-wired PCR7-CR option and confirm the controller, driver and electrical configuration before purchase.

Features

Performance & Installation

Published performance: 27,045–42,843 lumens at 220–307 W across the listed CCT and output codes. Nominal lumen values have ±10% normal tolerance; compare the specific IES file. Lower current codes appear in the ordering table but have no published performance rows in this sheet; request factory data before specifying them.
Optics & color: Optical codes 2R, 3R, 4, 4F and 5. 2200K, 2700K, 3000K, 4000K and 5000K options; 70 CRI minimum. Check configuration-specific output and BUG ratings.

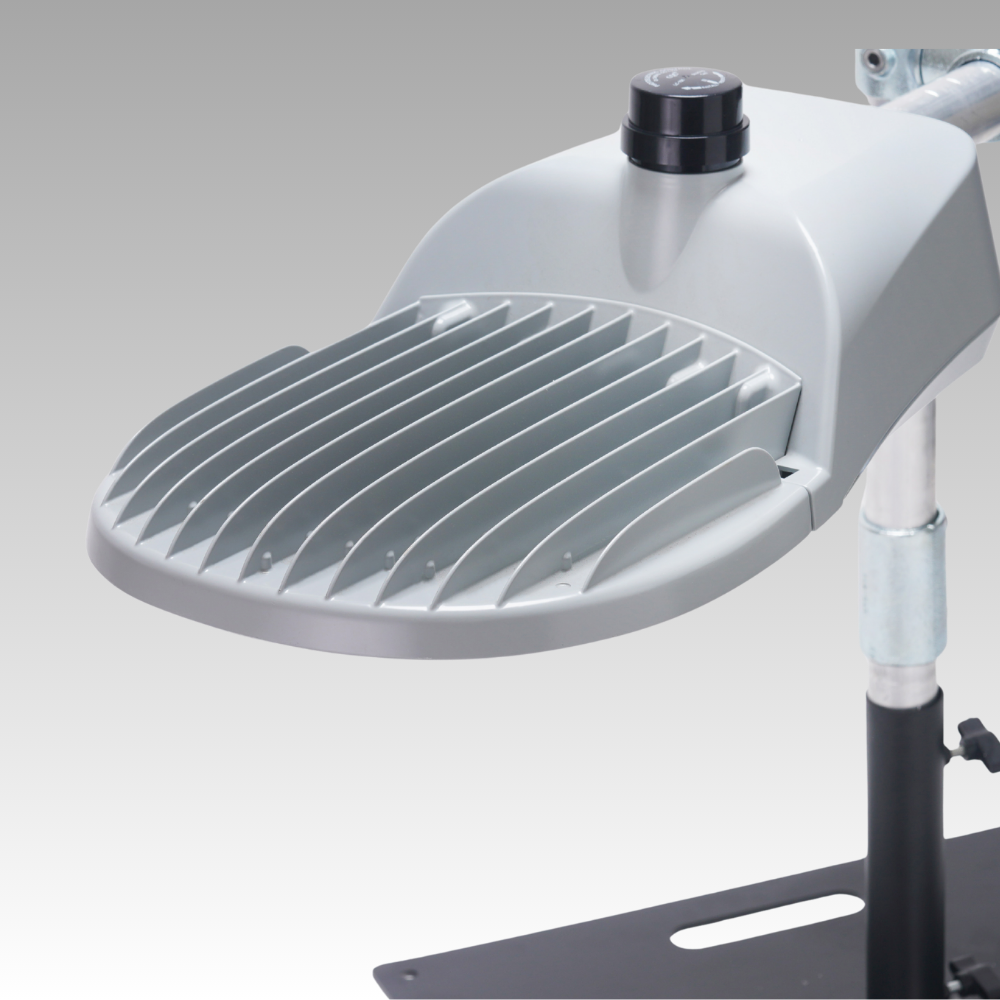

Mounting & service: Four-bolt slipfitter, +10° to −5° leveling in 2.5° steps, integral bubble level and standard rubber wildlife guard. Tool-free access to a removable power door. Fits 1¼–2-inch nominal mast arms (1⅝–2⅜-inch outside diameter). Listed weight: 25 lb (11.3 kg).
Environmental ratings: IP66 optical system and power supply; IK10 housing and optics. Qualified ambient temperature: −40°C to +40°C. Select CF coastal finish where required.

LEOLink External Smart Controls

External smart controller: LEOLink NB01-Plus (NB01P05/10) requires the factory-wired PCR7-CR 7-wire receptacle. Standard controller ordering is MV 120–277V; contact LEOTEK for HV 347–480V.
Output adjustment: The drive-current selector is omitted with FDC or PCR7-CR. PCR7-CR output cannot be increased above the specified factory setting. FDC cannot be combined with PCR7-CR. A generic PCR7 receptacle alone is not the factory control-ready configuration.
Driver interface: The electrical specification lists a 1–10V dimmable power supply. Confirm the ordered driver interface and NB01 compatibility with LEOTEK when specifying PCR7-CR.
CMS & data plan: Each controller requires a RenAI CMS subscription (RXX) and network data plan (DXX). R00 / D00 requires prior LEOTEK approval. Select NB01P05 or NB01P10 for the controller’s 5- or 10-year limited warranty.

Procurement & Reliability

Surge protection: Standard 20kV / 10kA protection; LSSP2 is the fail-to-off option.
Warranty: Standard luminaire and components: 10-year limited warranty. Controller coverage is specified separately; review current warranty terms.
Procurement documents: Specify the BABA ordering code when that build option is required. Request documentation for the selected configuration, including IES data, installation instructions and applicable DLC / DarkSky qualification. Verify project requirements before ordering.

Specification basis: current GC2 download, dated 09-22-26. Confirm the final configuration before purchase.

Specifications

Series

GreenCobra®

Application

Roadway & Street

Lumen Output

27,045–42,843 lm (published nominal range)

Color Temperature

2200K, 2700K, 3000K, 4000K, 5000K

Wattage

220–307 W W

Light Source

LED

CRI

Voltage

120–277V / 347–480V

Dimming Control

Yes

Electrical Standard

Mount Type

Pole Arm

Distribution

Type II, Type III, Type V, Type IV
