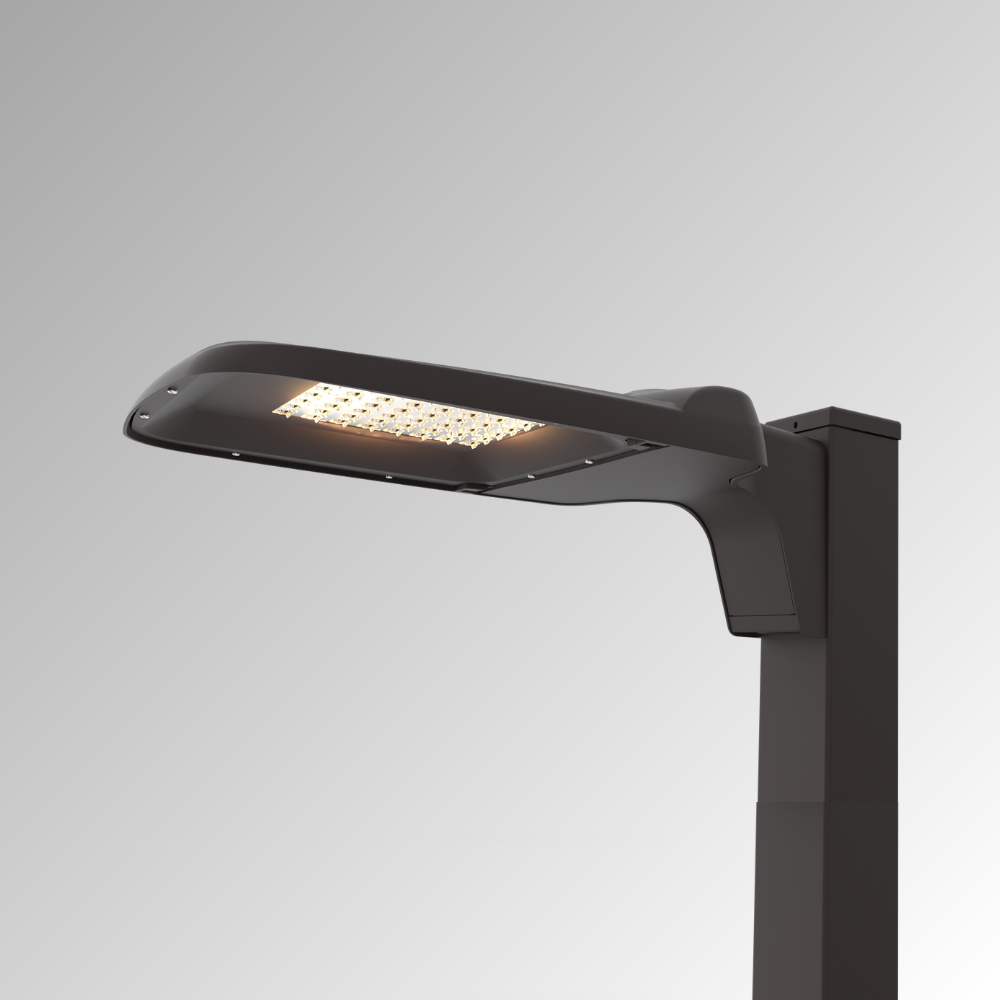

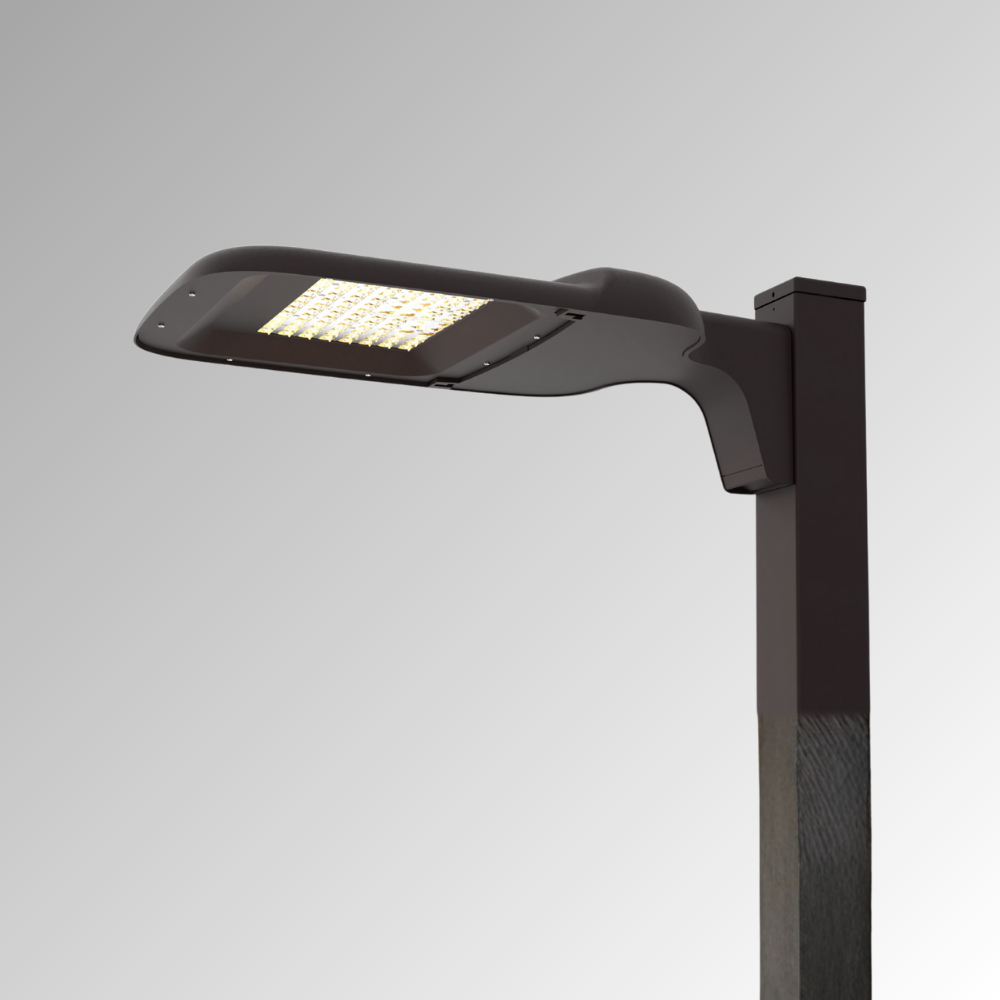

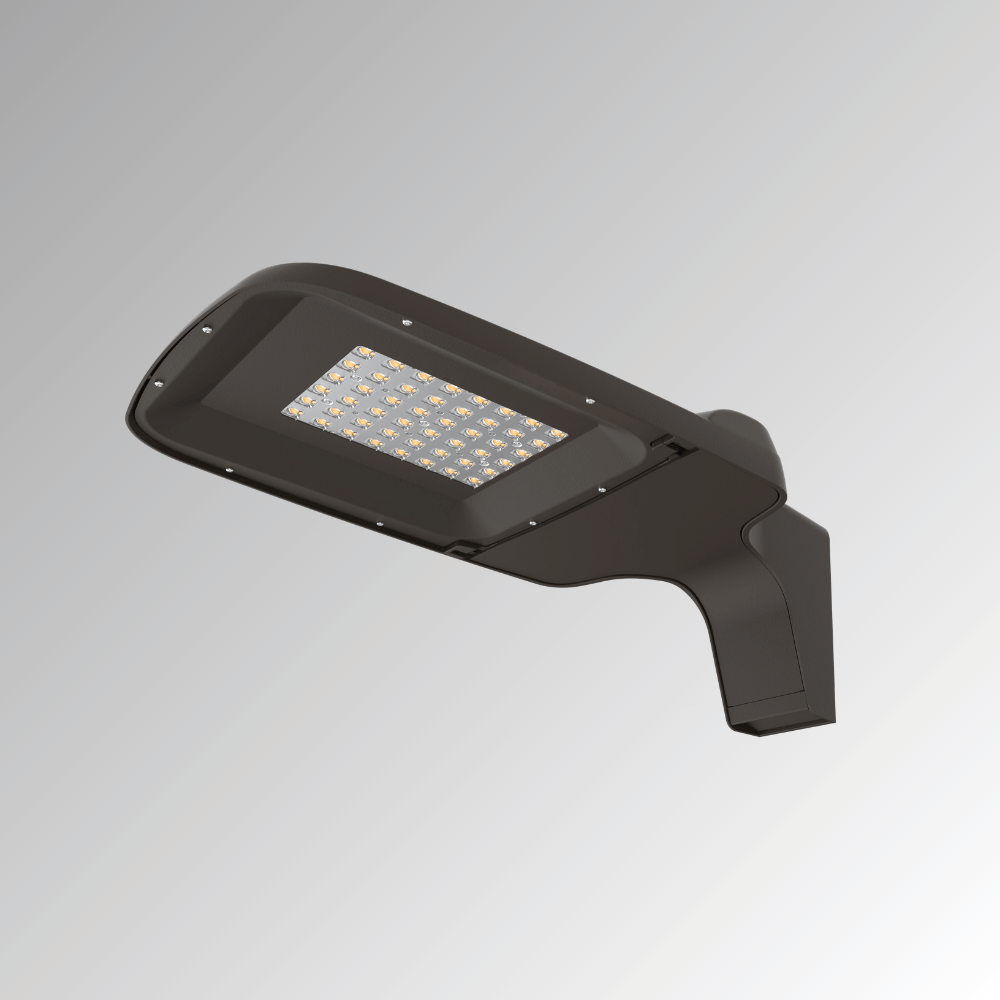

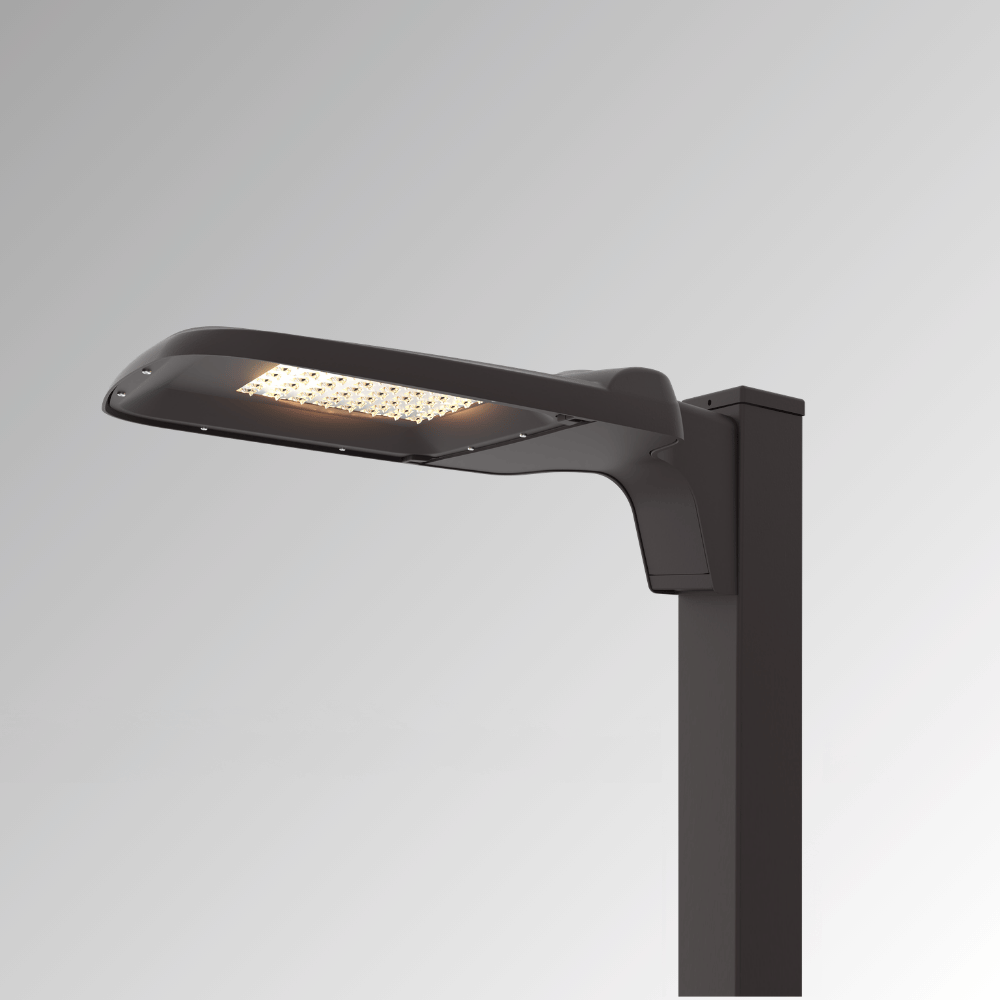

Arieta® Architectural Area Light – AR13

The ARIETA® Architectural LED Area Luminaire features enhanced adjustability with factory-set output codes, Auto Front Row optics for perimeter lighting, and optional coastal finish, providing a versatile, efficient solution tailored for diverse environments compared to the standard AR13.

Features

  • Two housing sizes (AR13 and AR18) to fit a broad range of applications from pedestrian walkways using 15 ft. poles to large parking lots using 40 ft poles.
  • Multiple discrete LEDs offer low glare.
  • Ten year warranty with 100,000 hour-rated light engines and power supplies.
  • Universal mounting design allows for attachment to pole without re-drilling in retrofit applications.
  • Factory programmed part night dimming (PND) and motion sensor options.
  • Upgraded luminaire efficacy with lumen packages up to 40,000 lumens for 1000W HID equivalent.
  • Back Light Shield (BLS option) designed to meet strict light trespass and LEED requirements. BLS can also be field-installed unlike competitors that require factory-installed optics for similar performance.
  • New Auto Front Row optics (AFR option) designed to enhance light levels at site perimeter while minimizing wattage and backlight.

Specifications

Application Site & Area
Country North America
Dimming Control Y
Electrical standard UL
Lumen output 2970-20600
Series Arieta
Wattage 22-149
Color temperature 3000K, 4000K, 5000K
CRI 70
Distribution Type Type II, Type III, Type IV, Type V
Light Source LED
Mount Type Pole Arm,Wall Mount
Voltage 120-277V / 347-480V

Resources

Product Specification(1)
AR13 N-Series Specification Sheet
April 21, 2024
|
729.72 KB
Product Specification for Legacy Series(1)
AR13 M2-Series Specification Sheet
April 21, 2024
|
644.54 KB
Supporting Documentation(9)
AR13-AR18 Back Plate and Pole Drilling Dimensions
April 21, 2024
|
109.98 KB
AR13-AR18 Installation Guide
April 21, 2024
|
1.59 MB
Architectural Site & Area Lighting Brochure
May 2, 2024
|
8.24 MB
Arieta N-Series Overview Brochure
May 2, 2024
|
10.16 MB
Control Options Brochure
May 2, 2024
|
1.72 MB
Control Options FAQ
May 2, 2024
|
689.08 KB
Lighting Products Standard Warranty – US
May 2, 2024
|
239.3 KB
PCR7 Wiring Conversion to Control Ready
May 2, 2024
|
1.74 MB
US Terms and Conditions of Sale – General Illumination
April 21, 2024
|
77.44 KB
Accessories(3)
Arieta Mounting Accessories Drawings
May 2, 2024
|
2.22 MB
Arieta N-Series Back Light Shield Information Sheet
May 2, 2024
|
374.75 KB
Bird Deterrent Spider Instruction Sheet
May 2, 2024
|
5.19 MB
IES Files(4)
AR N-Series 3000K IES Files
May 19, 2024
|
1.57 MB
AR N-Series 4000K IES Files
May 19, 2024
|
1.56 MB
AR N-Series 5000K IES Files
May 19, 2024
|
1.54 MB
BLS Shield IES Files
May 19, 2024
|
1.06 MB
