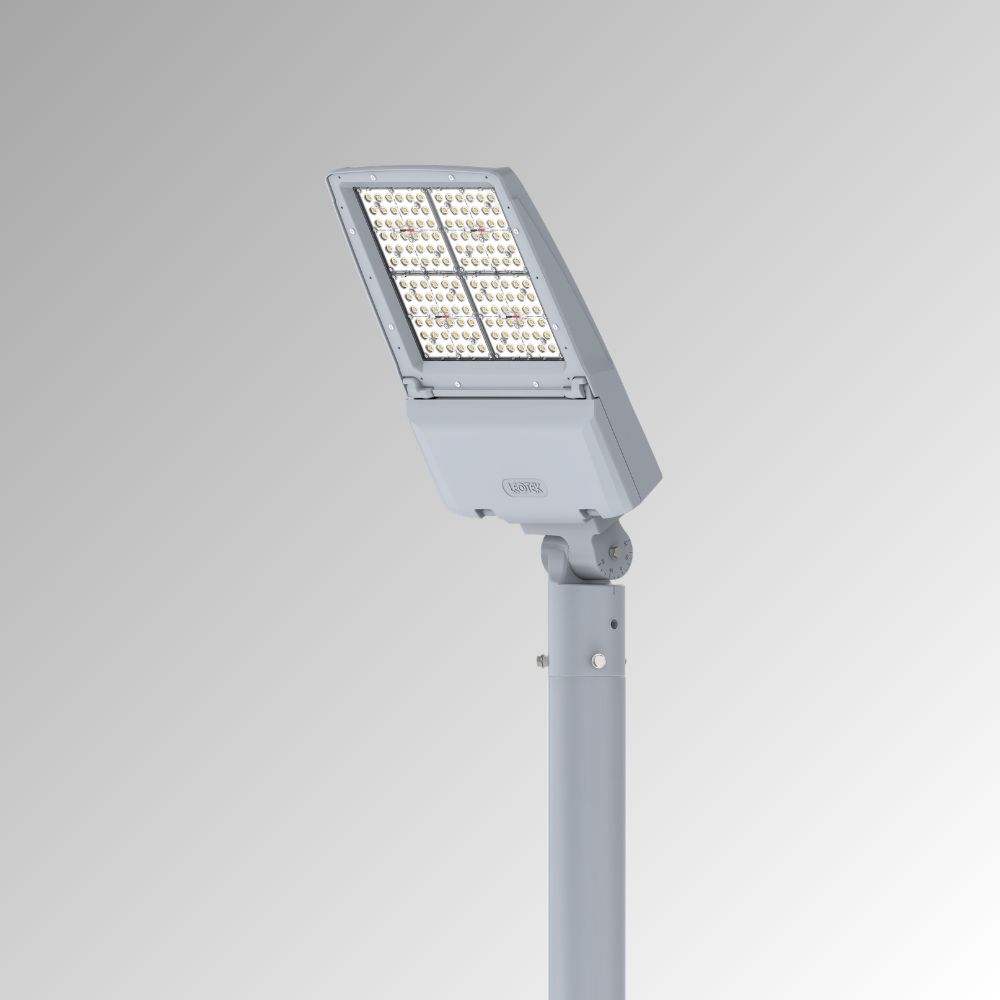

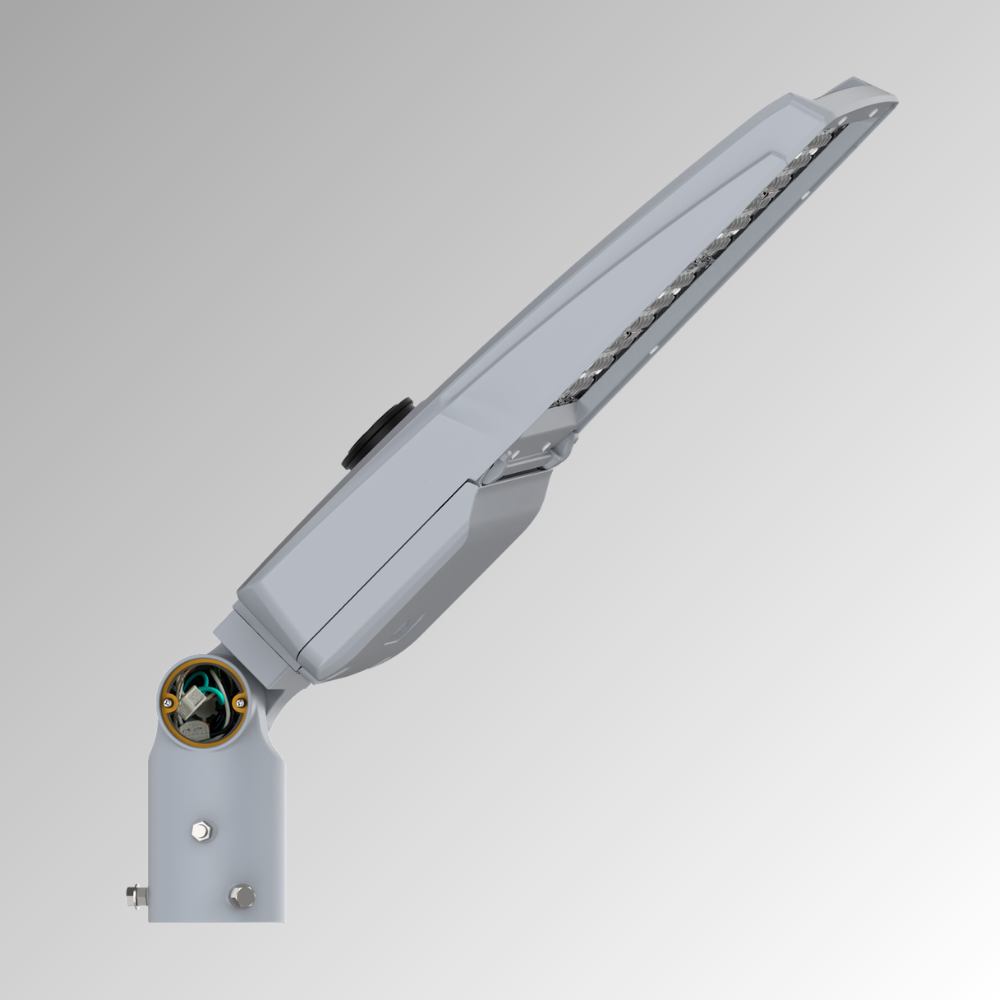

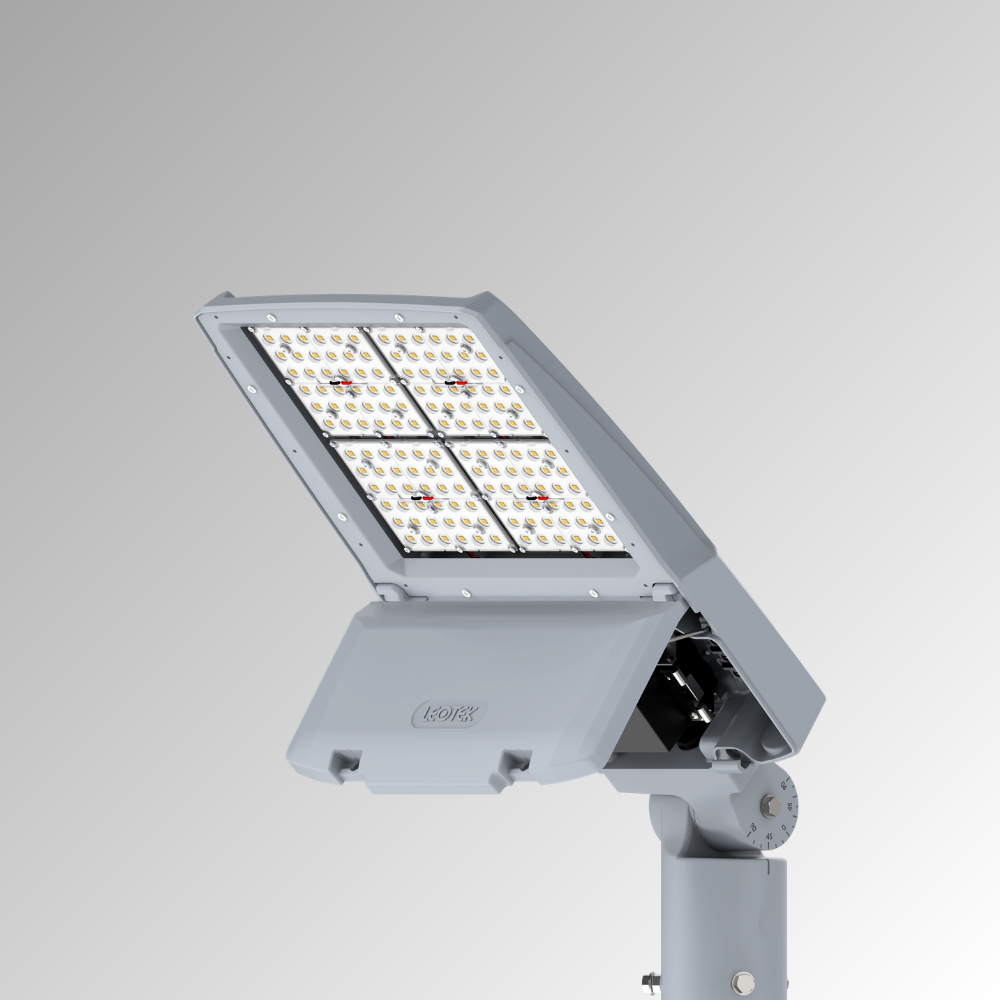

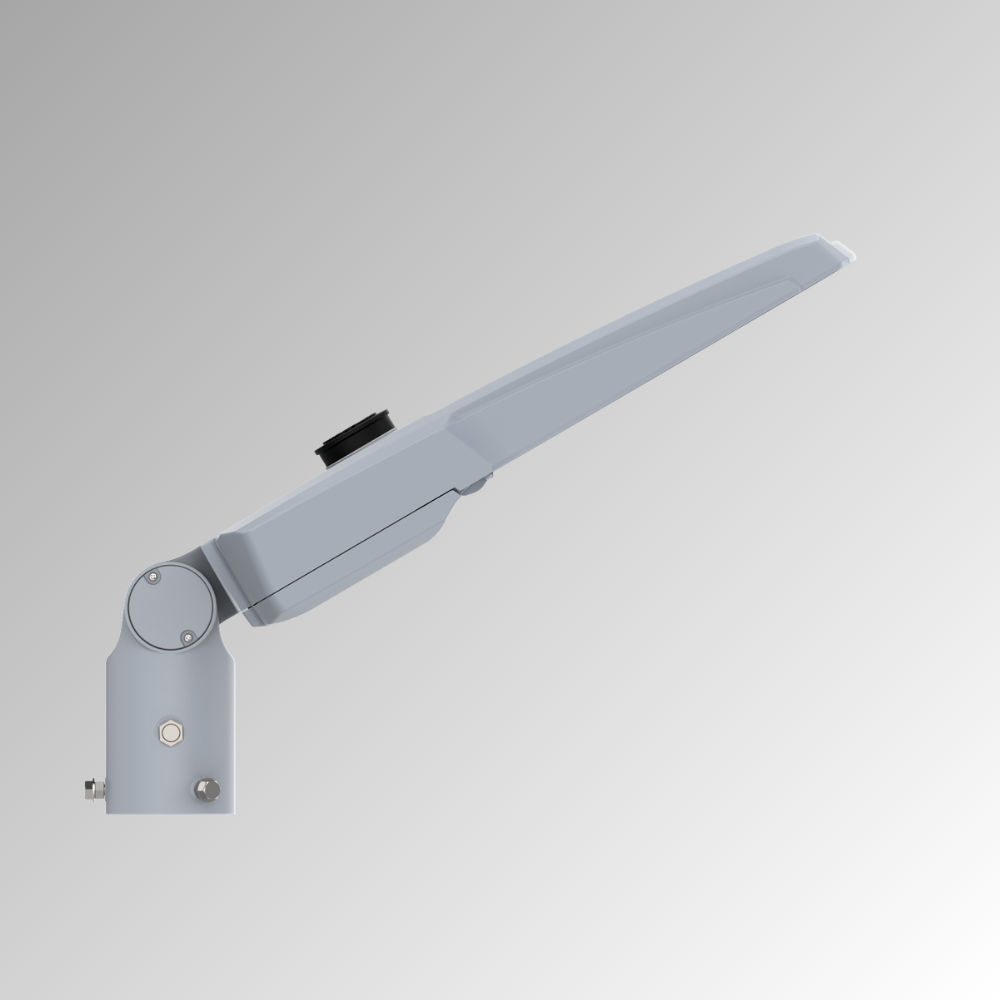

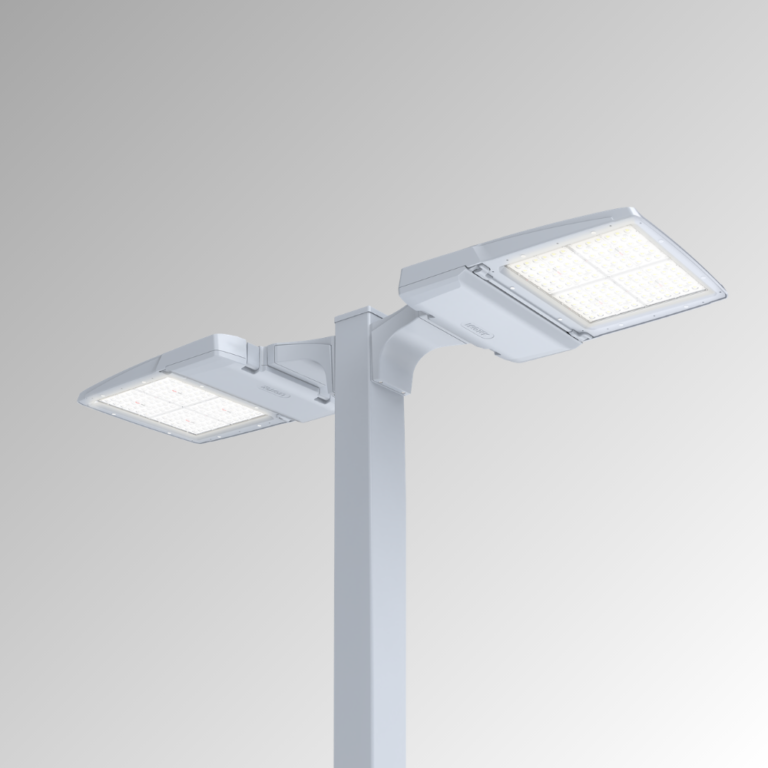

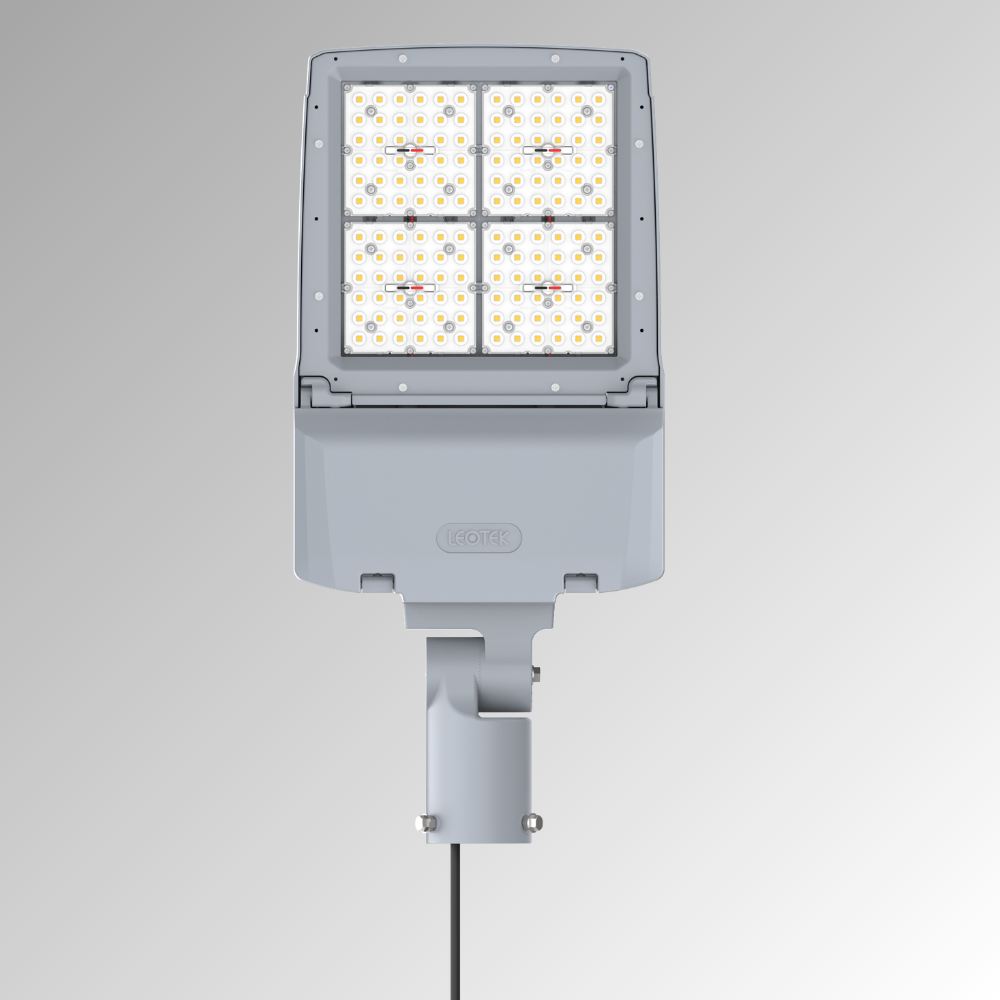

VersaTEK® Medium OFF-Roadway Series – VTMOR

BABA compliant
Assembled-in-USA
UL-Listed

The VersaTEK® Medium OFF-Roadway (VTMOR) delivers specification-grade performance for site, perimeter, parking, and industrial lighting applications. Engineered with advanced thermal management and precision micro-lens optics, VTMOR provides exceptional light control, high efficacy, and long-term reliability in a rugged, field-proven platform.

With lumen outputs up to 51,500 lumens and performance configurations from 57W to 307W, VTMOR scales seamlessly from energy-conscious projects to high-output installations. Multiple optical distributions ensure optimized illumination while minimizing glare and light trespass.

Features

  • Rugged A360 die-cast aluminum housing (<0.6% copper) with integral heat sink fins
  • IP66 rated luminaire, fully sealed micro-lens optical system
  • Hi-flux / Hi-power LEDs with ≥90% lumen maintenance at 95,000 hours (IES TM-21)
  • Available in 2700K, 3000K, 4000K, 5000K (70CRI standard, 80CRI optional*)
  • 0-10V dimmable driver standard
  • Optional DALI D4i driver configuration
  • Field Adjustable Performance Selector (PS) – 8-step lumen/wattage adjustment
  • ANSI C136.41 7-wire Control Ready Receptacle (PCR7CR) option
  • Multiple OFF-Roadway mounting options (SF, SFH, SFC, SPM, RPM, MAF, ASPM, ARPM)
  • 10kV/5kA surge protection standard (SP1)
  • Optional 20kV/10kA extreme surge protection (SP2 / LSSP2)
  • 3G vibration rated (ANSI C136.31-2010 Normal Application, Bridge & Overpass)
  • -40°C to 50°C operating temperature
  • 10-Year Limited Warranty

*80CRI available in 3000K, 4000K, 5000K only

Specifications

Series
VersaTEK
Application
Roadway & Street
Lumen Output
26516-51526
Color Temperture
2700K, 3000K, 4000K, 5000K
Wattage
57-307 W
Light Source
LED
CRI
70, 80
Voltage
120-277V / 347-480V
Dimming Control
Yes
Electrical Standard
Mount Type
SF, SFH, SFC, ASPM, ARPM, SPM, RPM, MAF
Distribution
NR, MR, WR, T2R, T2F, T3R, T3F, T4R, T4F, T5

Resources

Download all

VersaTEK - VTMOR

pdf

VTMOR Spec Sheet (12.17.25 V1)

Size: 2.80 MB
Hits: 7
Date added: 25-02-2026
DownloadPreview
pdf

Leotek General Illumination Products Warranty North America

Version: V36
Size: 280.82 KB
Hits: 1084
Date added: 21-07-2025
DownloadPreview
pdf

Converting PCR7 Photocell Receptacle to PCR7-CR

Size: 1.74 MB
Hits: 680
Date added: 12-12-2019
DownloadPreview
pdf

Control Options Brochure

Size: 1.72 MB
Hits: 617
Date added: 07-11-2018
DownloadPreview
pdf

Controls FAQ

Size: 689.08 KB
Hits: 415
Date added: 11-11-2020
DownloadPreview
pdf

VTM & VTL Installation Guide

Version: v4
Size: 5.19 MB
Hits: 283
Date added: 11-04-2025
DownloadPreview
