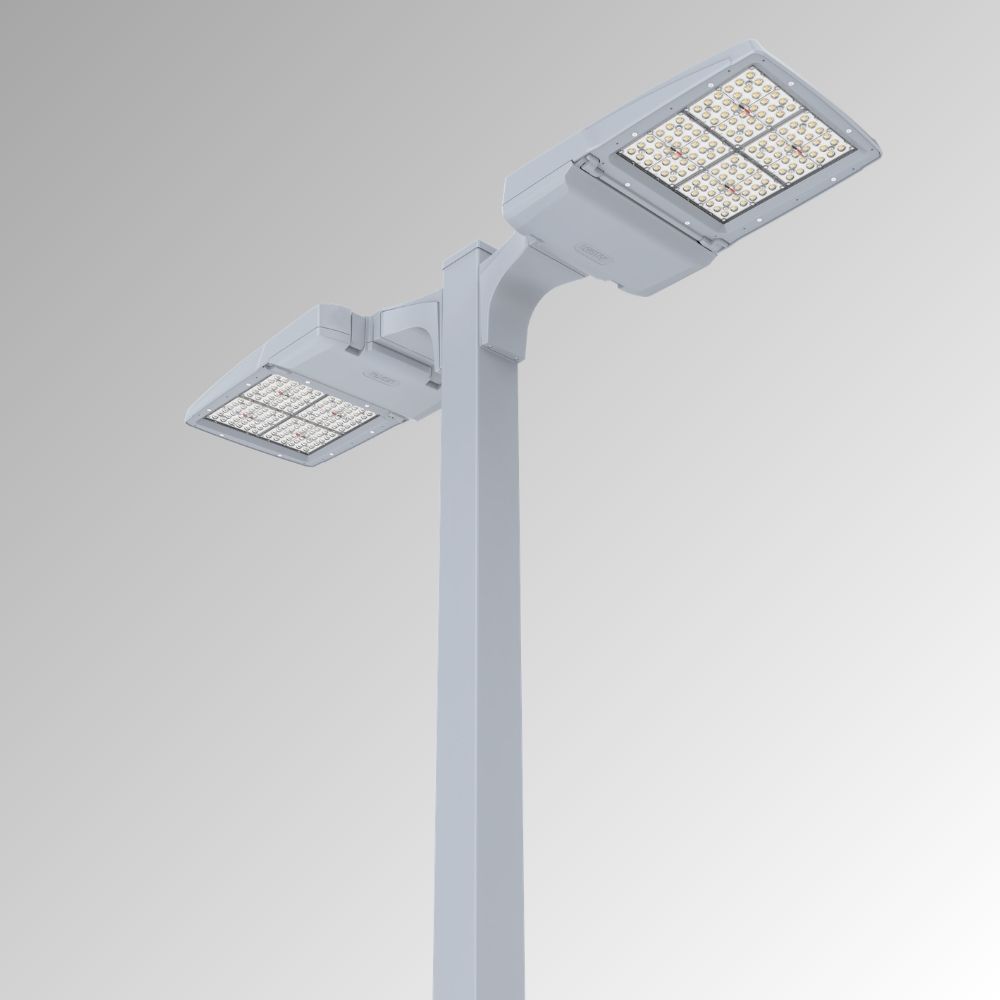

VTMOR SA-SPM Twin Tall Pole ISO View LEDs

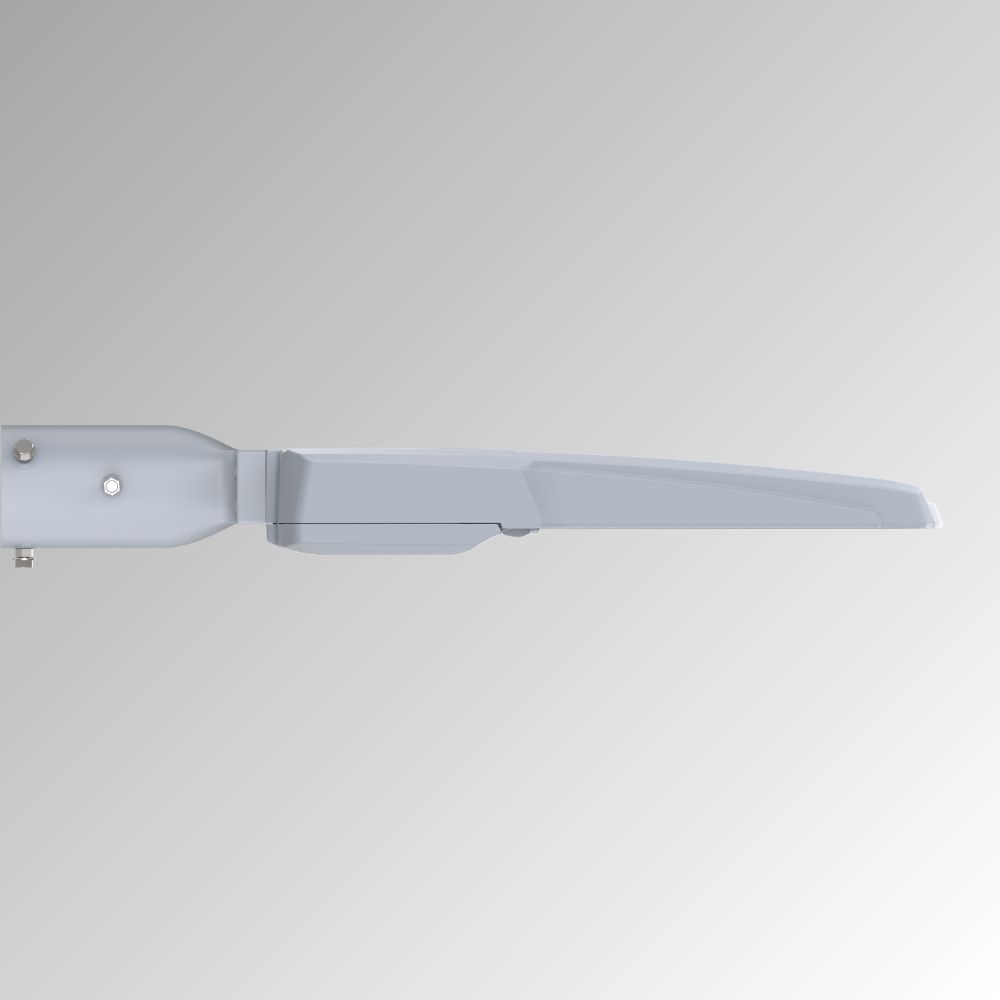

VTMOR SA-MAF Profile View

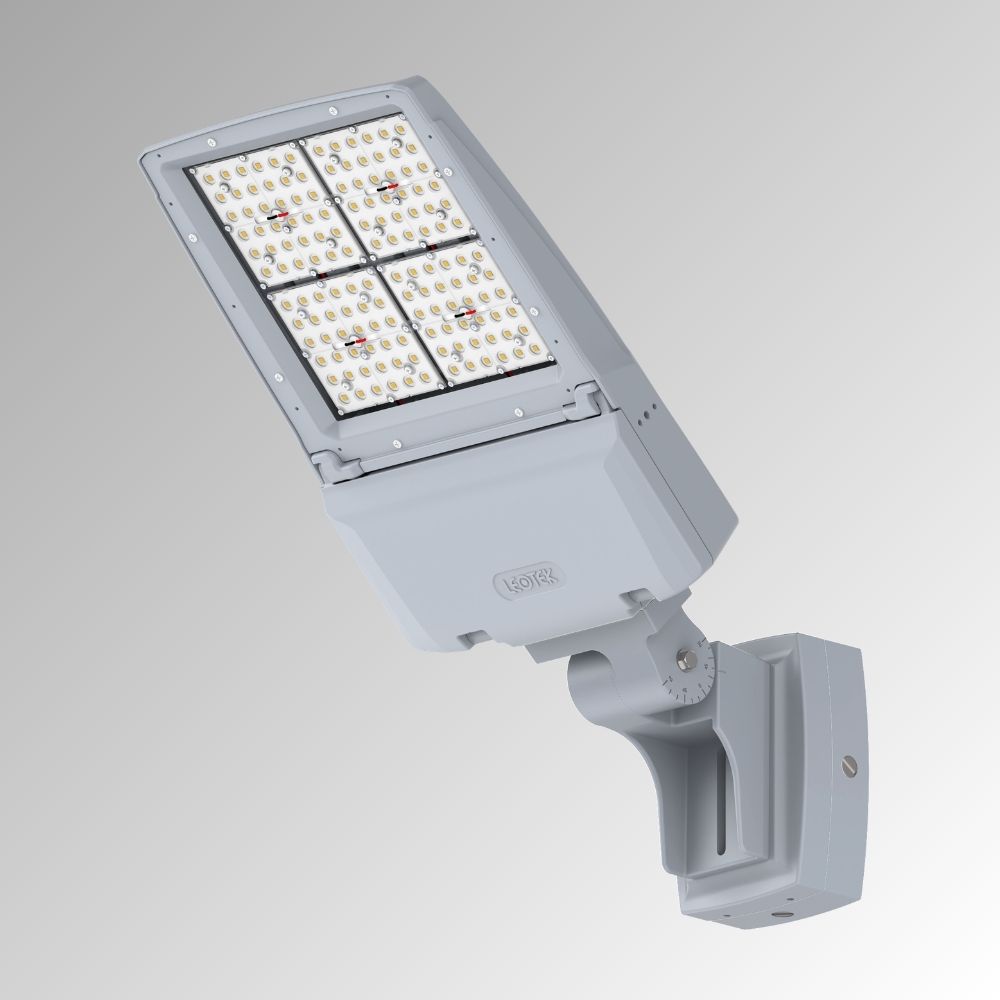

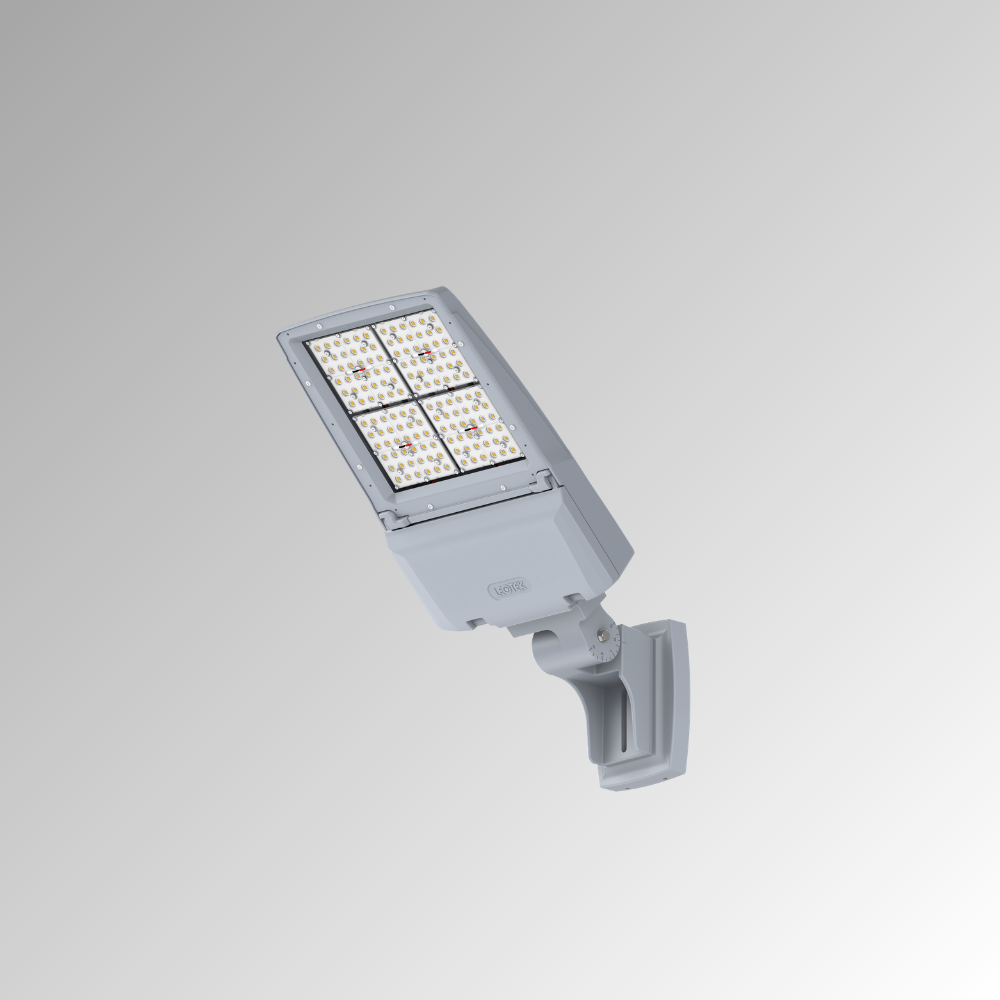

VTMOR SA-AWMSC ISO View 45 Degree

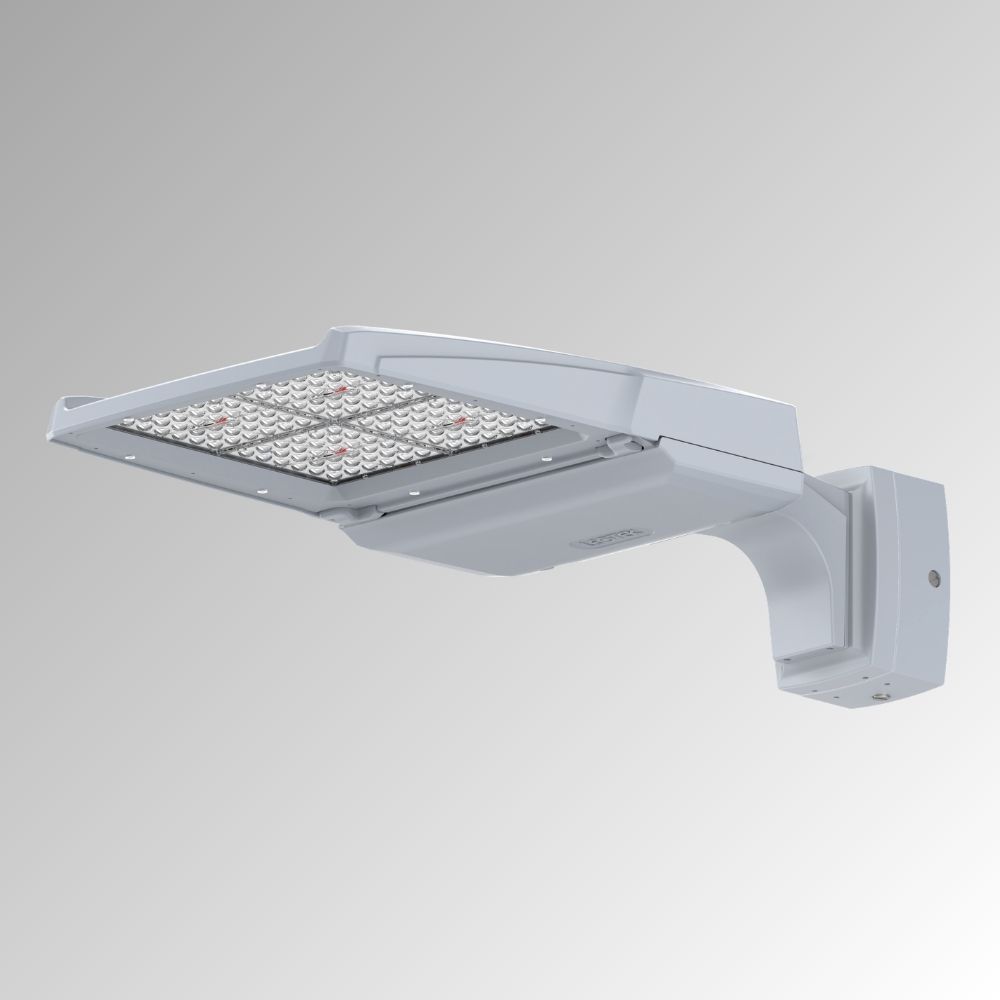

VTMSA-WMSC ISO View

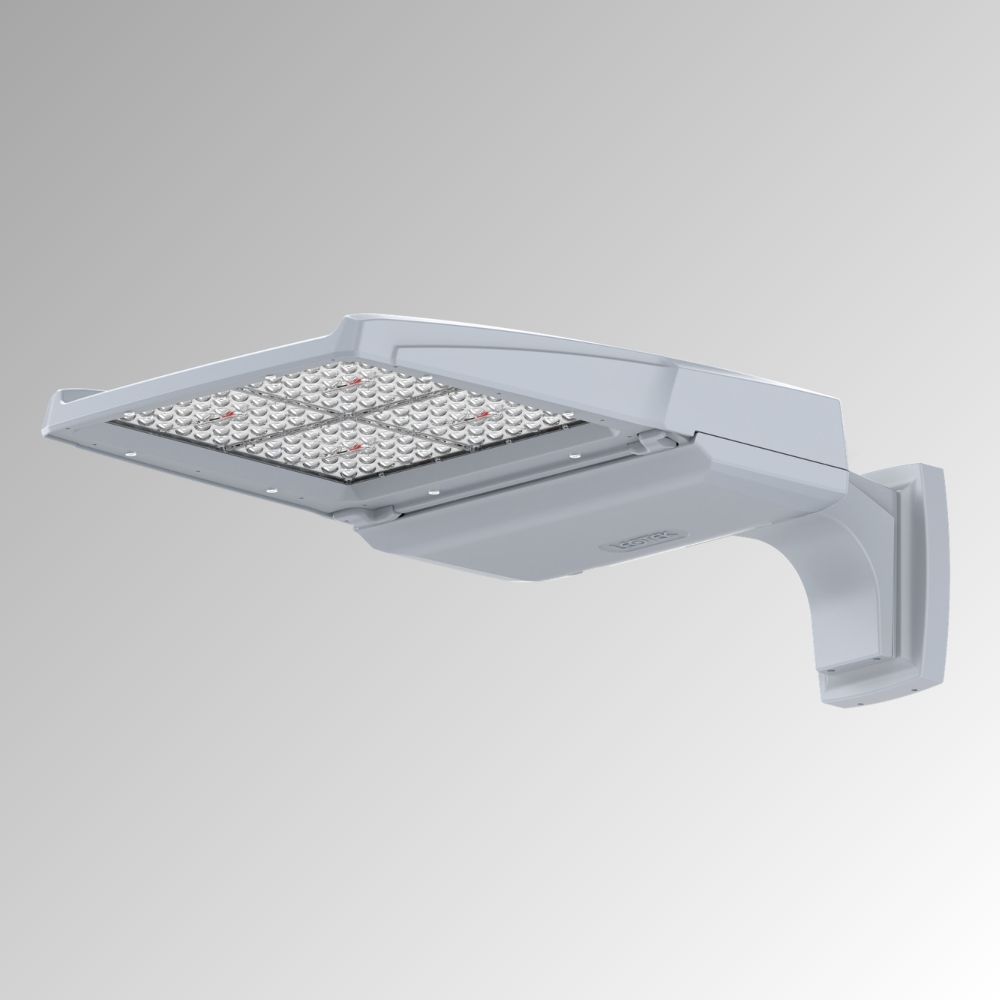

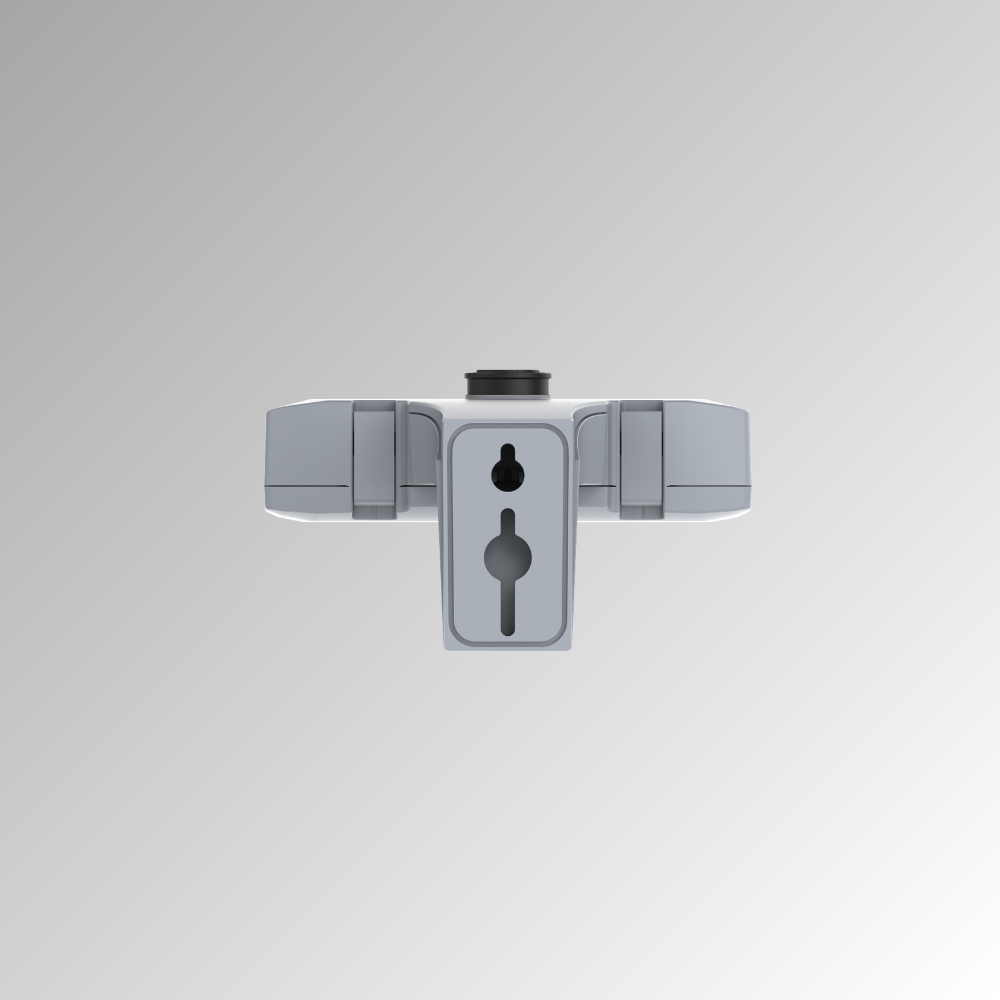

VTMSA-WM ISO View

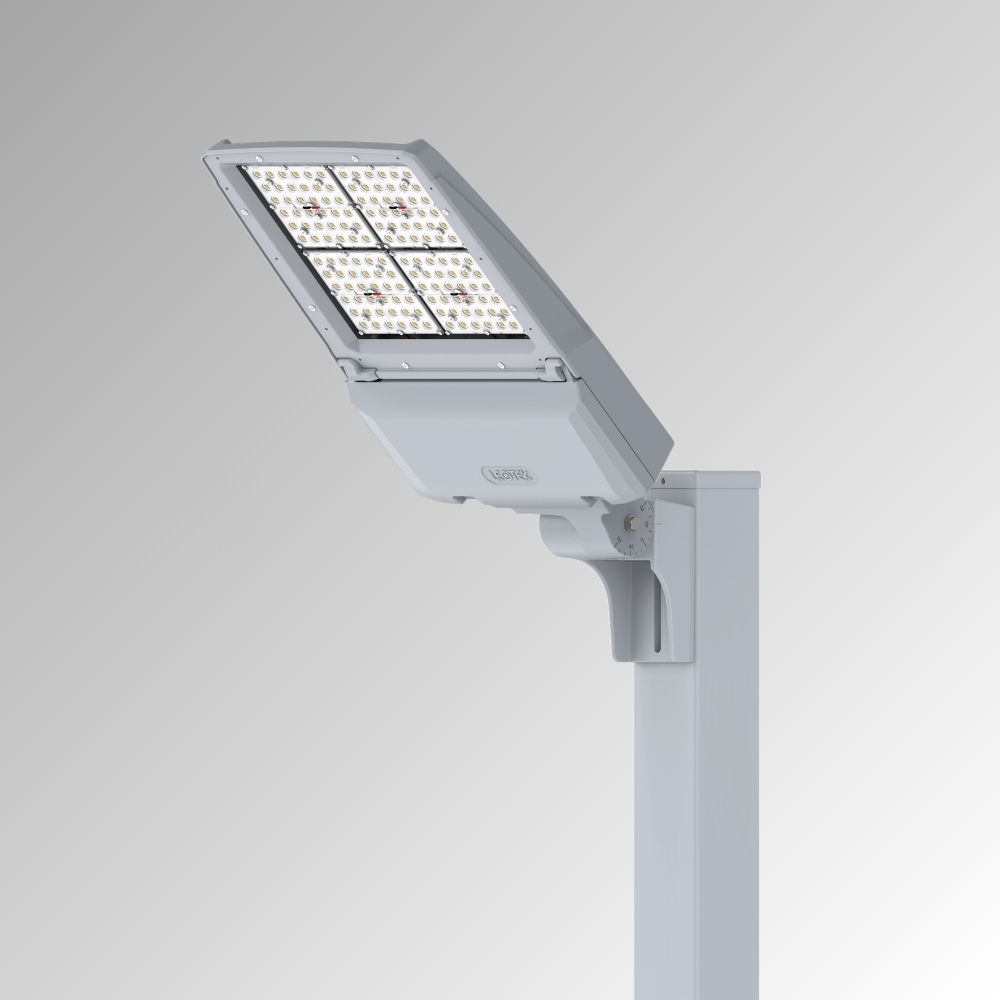

VTMOR SA-ASPM ISO View Tall
VersaTEK® Medium Site & Area Series - VTMSA - Image 7
VersaTEK

VersaTEK® Medium Site & Area Series – VTMSA

BABA compliant
Assembled-in-USA
UL-Listed
The VersaTEK® Medium Site & Area (VTMSA) blends clean, architectural design with rugged reliability for industrial, commercial, and campus parking applications. Constructed with a low-profile, A360 die-cast low-copper housing and a standard 3G vibration rating, the VTMSA guarantees long-term resilience even in high-wind environments, overpasses, and bridges.
Scaling effortlessly from energy-conscious setups to high-output demands, it delivers up to 51,526 lumens with system wattages from 59W to 307W and industry-leading efficacies up to 189 LPW. Factory-rotatable optics, paired with multiple field-installable shields and advanced DALI D4i control capabilities, ensure perfectly uniform illumination while strictly controlling visual glare and light trespass.

Features

  • Delivers 8,878 to 51,526 lumens with efficacies up to 189+ LPW.
  • Acts as a true 250-750 watt HID replacement for 70%+ energy savings.
  • Includes a Performance Selector option for easy field adjustment of wattage and lumens.
  • Compatible with LEOLink ILS Intelligent Lighting System and the wireless ‘NB01-Plus’ smart controller.
  • Powered by a next-gen performance LED platform with Site & Area and Roadway optics and shielding.
  • Offered in 2700K, 3000K, 4000K, and 5,000K CCT options.
  • Lightweight design weighs just 19 to 20 lbs. for safe, single-person installation.
  • Comes standard with 10kV integral surge protection, with a 20kV extreme surge upgrade available.
  • The entire luminaire and optical assembly is IP66 rated.
  • Standard 50°C (122°F) high-ambient rating for hot environments.
  • Engineered with a pass-thru convective cooling system and integral thermal heatsink.
  • Housed in A360 die-cast low copper content alloy (< 0.6%).
  • Features a standard 5,000-hour salt spray finish with an available coastal finish.
  • All exposed hardware features stainless steel, captive fasteners.
  • Includes a 3G vibration rating, making it suitable for high winds, overpasses, and bridges.
  • Assembled in the USA Built at LEOTEK’s facility, ensuring quality control, supply chain reliability, and compliance with the Buy American Act (BAA) and Build America Buy America (BABA).

Specifications

Series
VersaTEK
Application
Site & Area
Lumen Output
8878-51526
Color Temperture
2700K, 3000K, 4000K, 5000K
Wattage
57-307 W
Light Source
LED
CRI
70, 80
Voltage
120-277V / 347-480V
Dimming Control
Yes
Electrical Standard
UL
Mount Type
AWM, AWMSC, ASPM, ARPM, SPM, RPM, MAF, WM, WMSC
Distribution
NR, MR, WR, T2R, T2F, T3R, T3F, T4R, T4F, T5, AFR, ORR, ORL
