DIL Pedestrian Crosswalk Singal LED module (4)

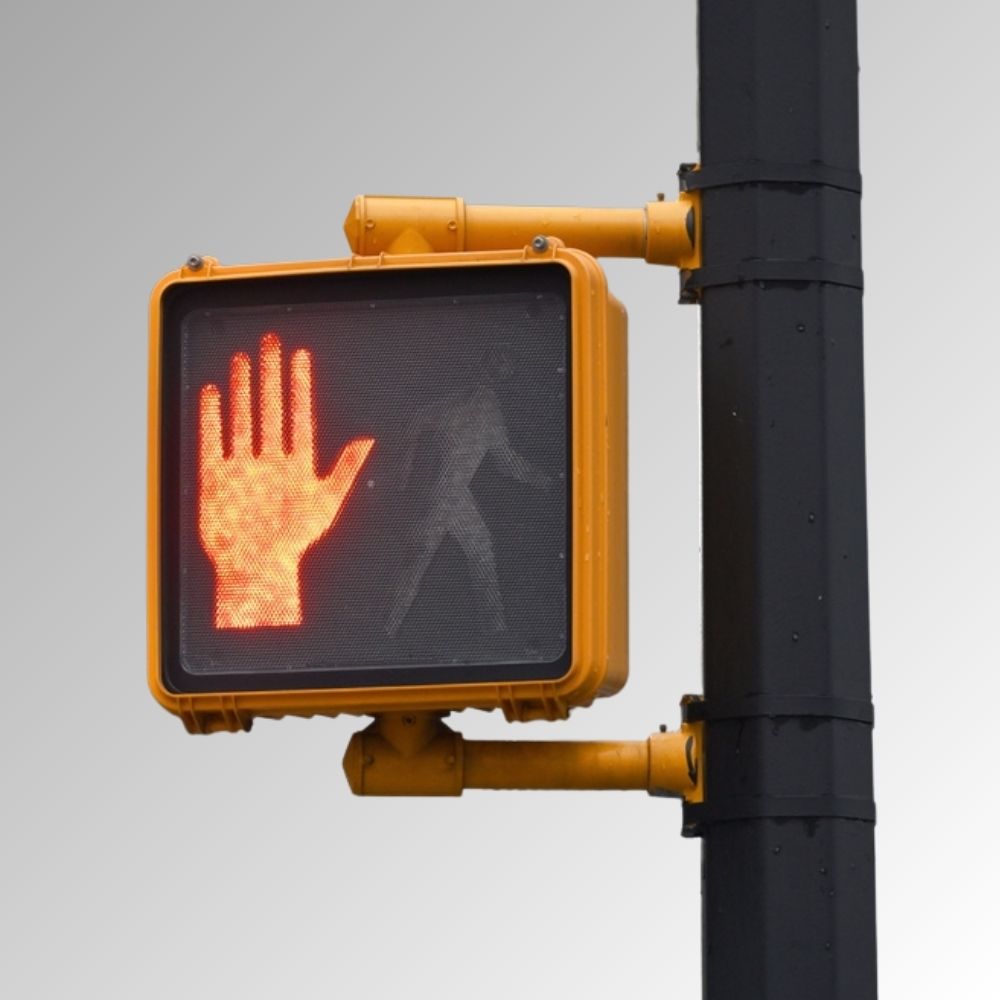

DIL Series 16″ x 18″ Pedestrian Signal Module, Hand & Person Side by Side

The LEOTEK DIL Series 16″ x 18″ Side-by-Side Pedestrian Signal Module combines the Upraised Hand and Walking Person indications in a large, high-visibility square display for American intersections. Available in DIL (Incandescent Look) —the module ensures consistent, highly recognizable pedestrian messaging while meeting ITE performance requirements. Backed by millions of installed LEOTEK signal products across North America, this module features rugged environmental sealing, uniform brightness, long-life LED technology, and multiple independent power supplies to maximize safety and reliability in demanding outdoor conditions.

Features

Provides Hand & Walking Person indications displayed side-by-side.
Available in DIL (Incandescent Look) optical system.
Designed to meet ITE performance standards for U.S. pedestrian signals.
Wider viewing angles and enhanced uniformity for improved visibility.
Maintains ≥ 70% luminous intensity after 100,000 hours of operation.
UV-stabilized, hard-coated polycarbonate lens offers exceptional durability.
Complete O-ring sealing for superior dust and moisture resistance.
Constant current drive maintains consistent light output.
Superior thermal management supports extended service life.
Multiple independent power supplies improve safety and reliability.
Rugged one-piece housing design for long-term outdoor use.
Energy-efficient and environmentally friendly.
Backed by a 5-year limited warranty.

Specifications

Indication

Hand & Person

Lens Size

16" x 18"

Light Color

Lunar White, Portland Orange

Voltage

120Vac (80-135Vac)

Warranty (Years)

5 year(s)

Resources

Download all

DIL/DP Series 16″ Pedestrian Signal Module, Hand & Person Side by Side, 80-135Vac, USA, Square

pdf

Leotek TSL Product Brochure

Size: 3.01 MB

Date added: 03-12-2025

Date modified: 05-12-2025

Download Preview

pdf

DIL DP Series 16'' Pedestrian Signal Installation Guide

Size: 312.21 KB

Date added: 14-11-2017

Date modified: 05-12-2025

Download Preview
