HM series hand crosswalk singal Module (1)
HM series hand crosswalk singal Module (1)
HM Series 12″ x 12″ Pedestrian Signal Module, Hand & Person Overlap - Image 3
HM Series 12″ x 12″ Pedestrian Signal Module, Hand & Person Overlap - Image 4

HM Series 12″ x 12″ Pedestrian Signal Module, Hand & Person Overlap

RoHS Logo
ISO 9001 Logo
BABA compliant

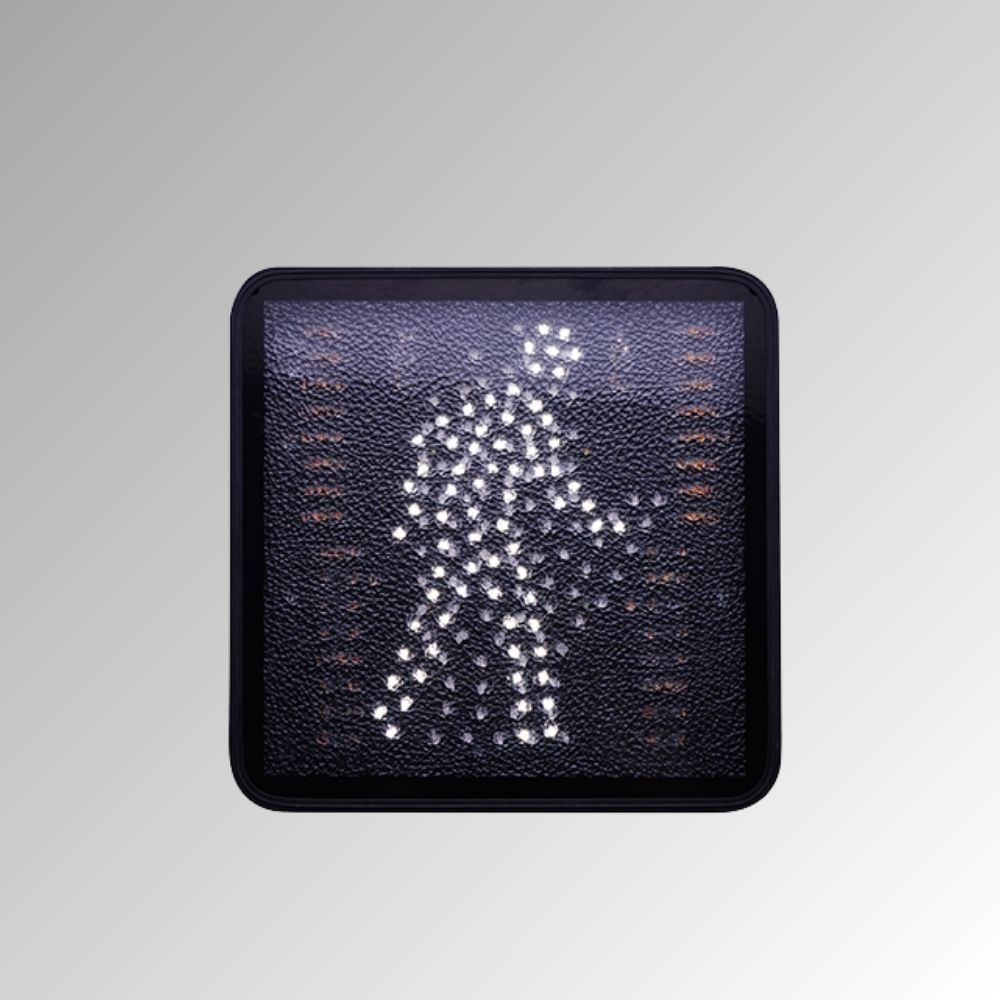

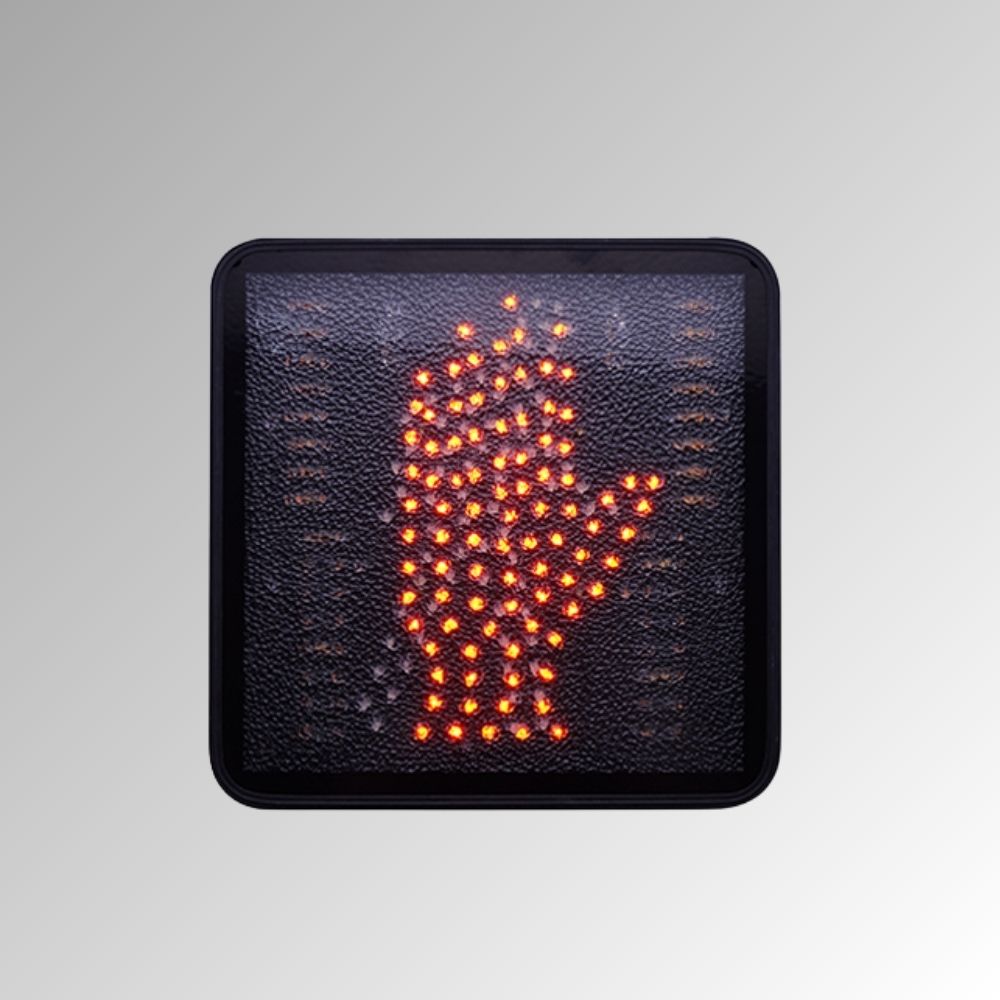

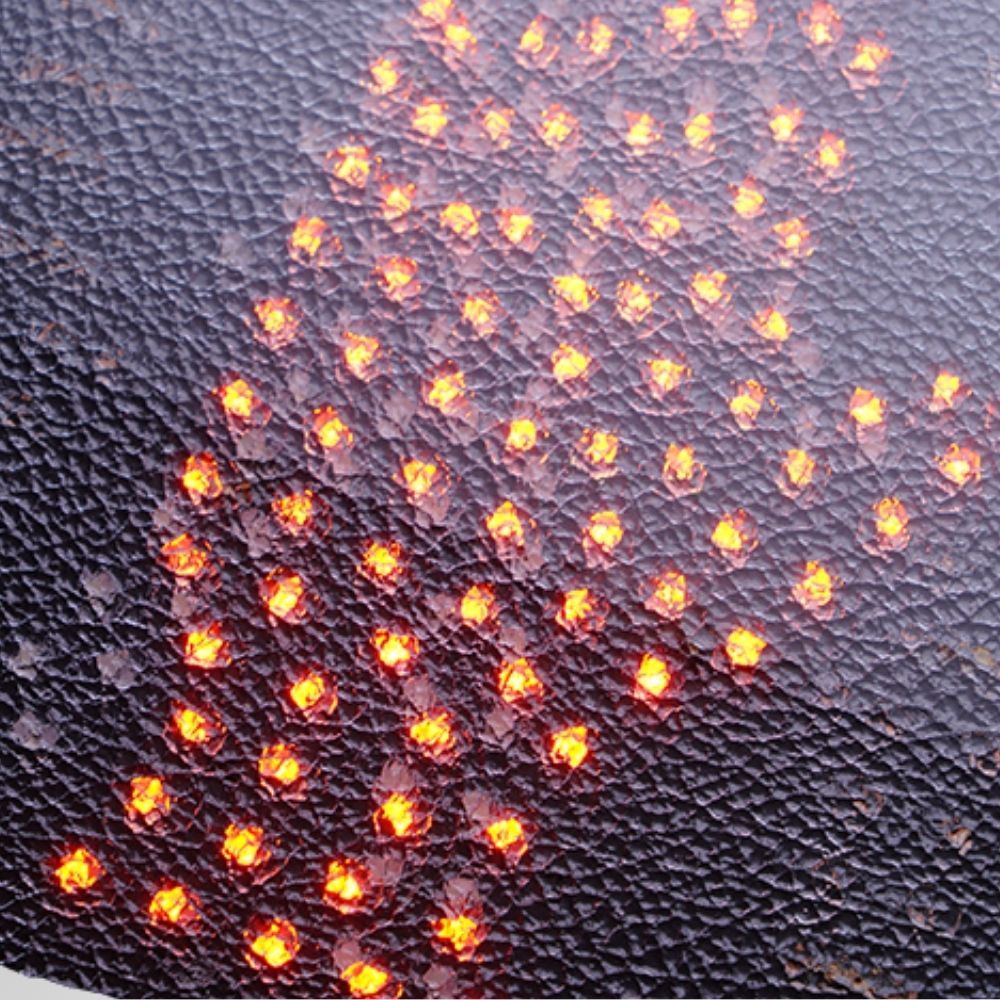

The HM Series 12″ x 12″ Pedestrian Signal Module features  pixelated LED and incandescent display, designed to deliver clear and reliable Hand & Person Overlap indications for pedestrian crossings.

For Canadian market, this product series also come with outlined pixelated LED look.

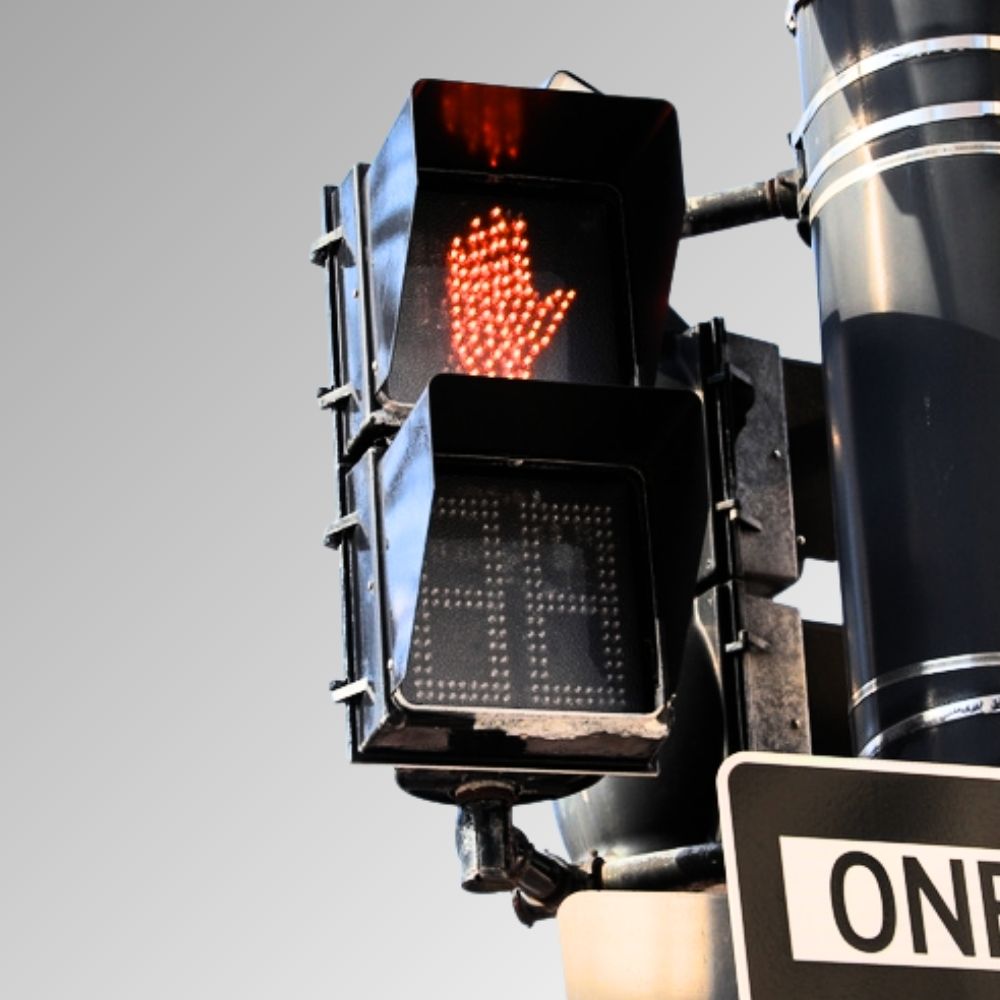

By simultaneously presenting the “Don’t Walk” hand and “Walk” person symbols, the HM Series enhances visibility, improves comprehension, and increases pedestrian safety at signalized intersections.

LEOTEK pedestrian signal solutions are trusted throughout North America, with products installed in over 30% of U.S. intersections and more than 14 million traffic signal modules deployed worldwide, making the HM Series a proven and dependable choice for transportation agencies.

Please confirm the certification details with your agent, as certifications may not be applicable to all product SKUs.

Features

  • 12″ x 12″ LED display with excellent brightness uniformity
  • Hand & Person Overlap indication for improved pedestrian clarity and safety
  • Patented optical technology for wider viewing angles and enhanced readability
  • Multiple electrical connection options to support diverse applications
  • Complete O-ring sealing for superior moisture and dust resistance
  • UV-stabilized, hard-coated polycarbonate lens for long-term outdoor durability
  • Constant Current Source (CCS) ensures consistent light output over time
  • Superior thermal management for extended service life
  • Maintains 70% of initial lumen output after 100,000 hours of operation
  • Energy-efficient and environmentally friendly design
  • 5-year limited warranty

Specifications

Indication
Hand & Person Overlap
Lens Size
12" x 12"
Light Color
Lunar White, Portland Orange
Voltage
120Vac (80-135Vac)
Warranty (Years)
5 year(s)
Termination
Faston with Spade Insert, Spade Terminals, Stripped and Tinned W
Certification
ETL, CSA

Resources

Download all

HM Series 12″ Pedestrian Signal Module, Hand & Person Overlap

HM Series 12″ Pedestrian Signal Module, Hand & Person Overlap, 80-135Vac, Canada, Square HM Series 12″ Pedestrian Signal Module, Hand & Person Overlap, 80-135Vac, Canada, Round HM Series 12″ Pedestrian Signal Module, Hand & Person Overlap, 80-135Vac, USA, Square
pdf

CD-WM-HM-EH-Series 12-inch Pedestrian Signal Module Spec-Sheet

Version: v1
Size: 443.79 KB
Hits: 278
Date added: 11-02-2026
Date modified: 11-02-2026
DownloadPreview
