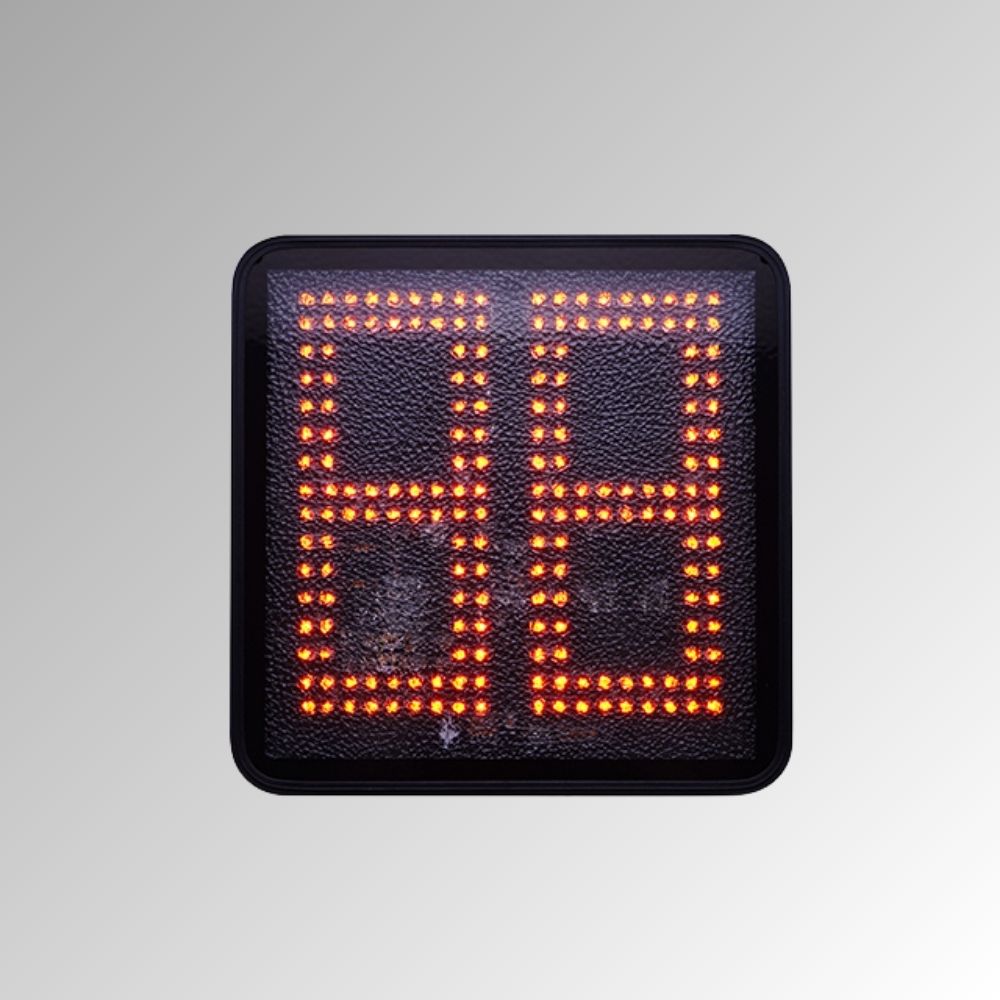

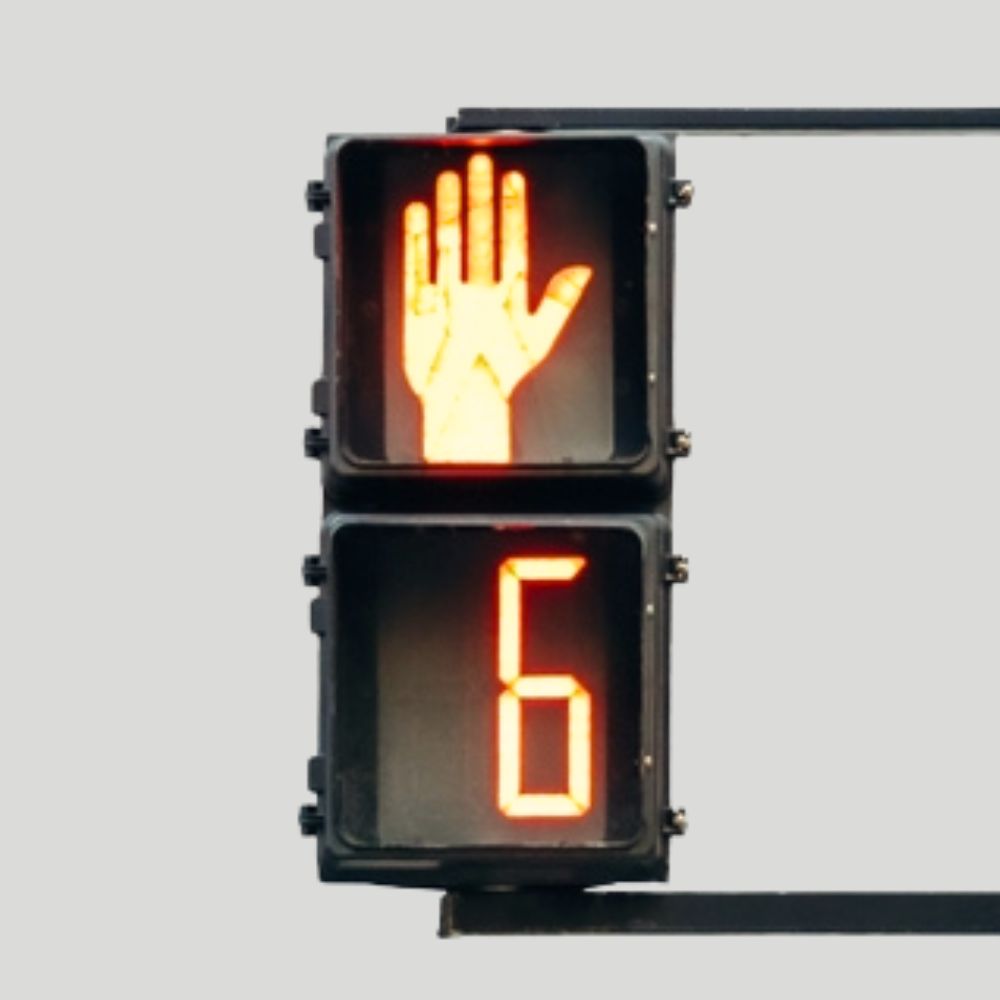

CD Series 12″ x 12″ Countdown Signal Module

The CD Series 12″x 12″ Countdown Signal Module comes with incandescent or pixelated design.  is a high-performance,  LED pedestrian countdown display designed to enhance pedestrian safety and traffic flow at signalized intersections. Utilizing LEOTEK’s patented optical technology, the CD Series delivers clear, highly uniform countdown digits with wide viewing angles, ensuring excellent visibility in all ambient lighting conditions.

LEOTEK pedestrian signal solutions are widely adopted across North America, with LED traffic signal modules installed in over 30% of U.S. intersections, more than 6 million modules in North America, and over 14 million units worldwide, making the CD Series a trusted and proven solution for municipalities and transportation authorities.

Features

  • 12″ x 12″ pixelated & incandescent LED countdown display for clear, legible pedestrian timing
  • Patented optical technology for superior uniformity and wide viewing angles
  • Easy retrofit installation into existing pedestrian signal housings
  • Multiple electrical connection options to support varied field requirements
  • Overmolded electrical connectors providing a fully weatherized seal
  • Complete O-ring sealing for excellent moisture and dust resistance
  • UV-stabilized, hard-coated polycarbonate lens for long-term outdoor durability
  • Superior thermal management for extended product life
  • Maintains 70% of initial lumen output after 100,000 hours of operation
  • Energy-efficient and environmentally friendly design
  • 5-year limited warranty

Specifications

Indication
Countdown digits
Lens Size
12" x 12"
Light Color
Portland Orange
Voltage
120Vac (80-135Vac)
Country
USA, Canada
Warranty (Years)
5 year(s)
Termination
Faston with Spade Insert, Spade Terminals, Stripped and Tinned W
Certification
ETL, CSA
