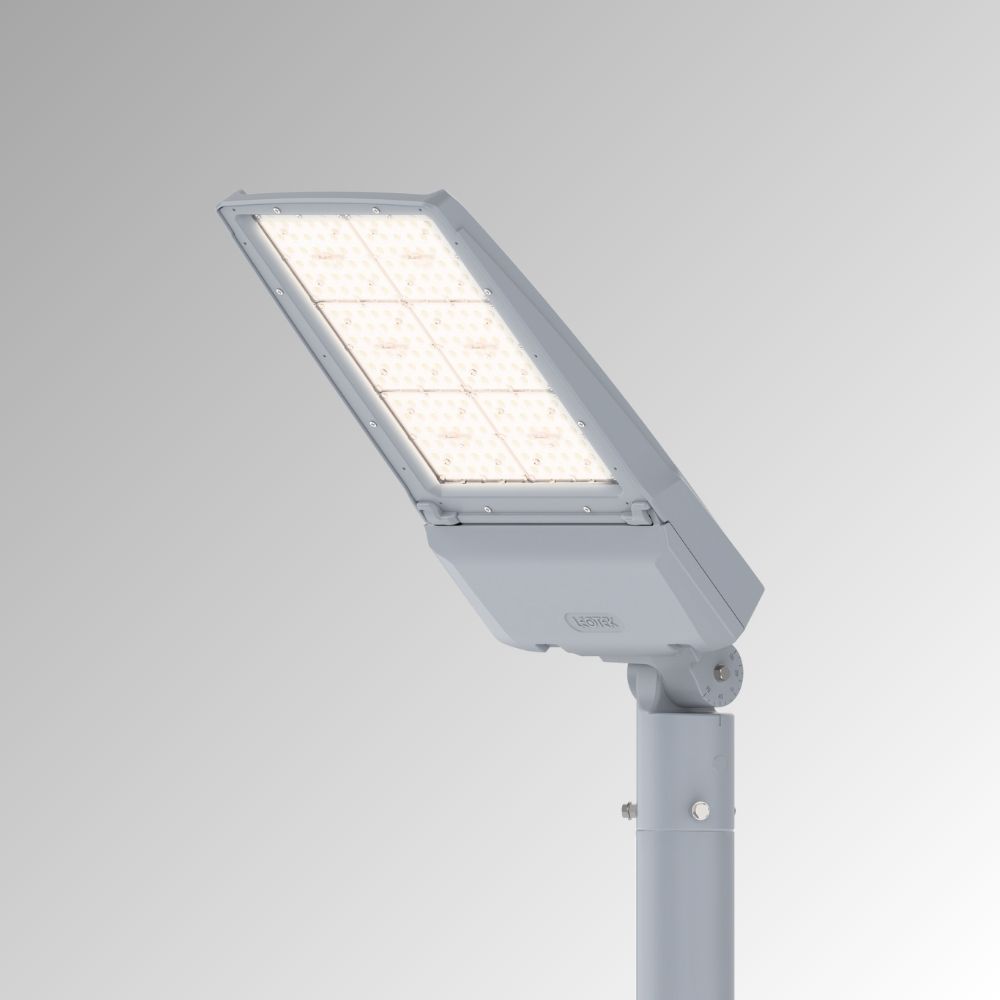

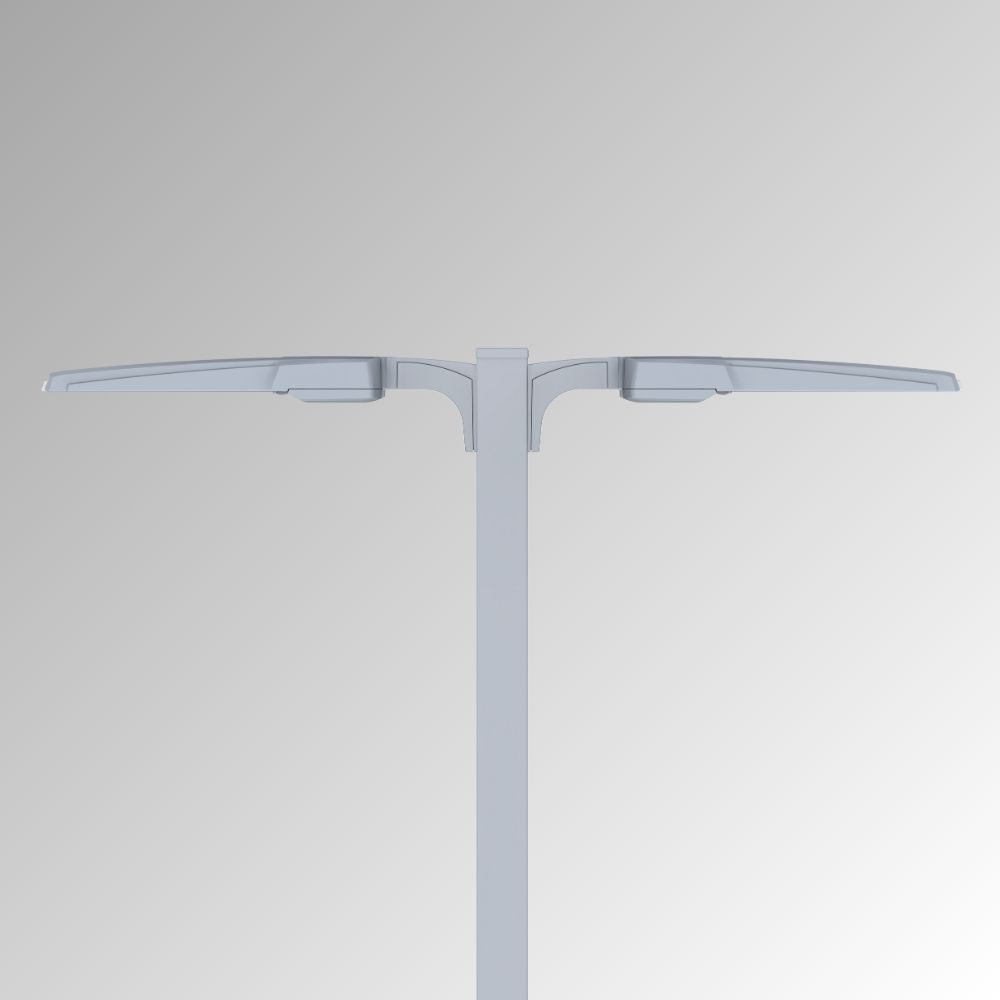

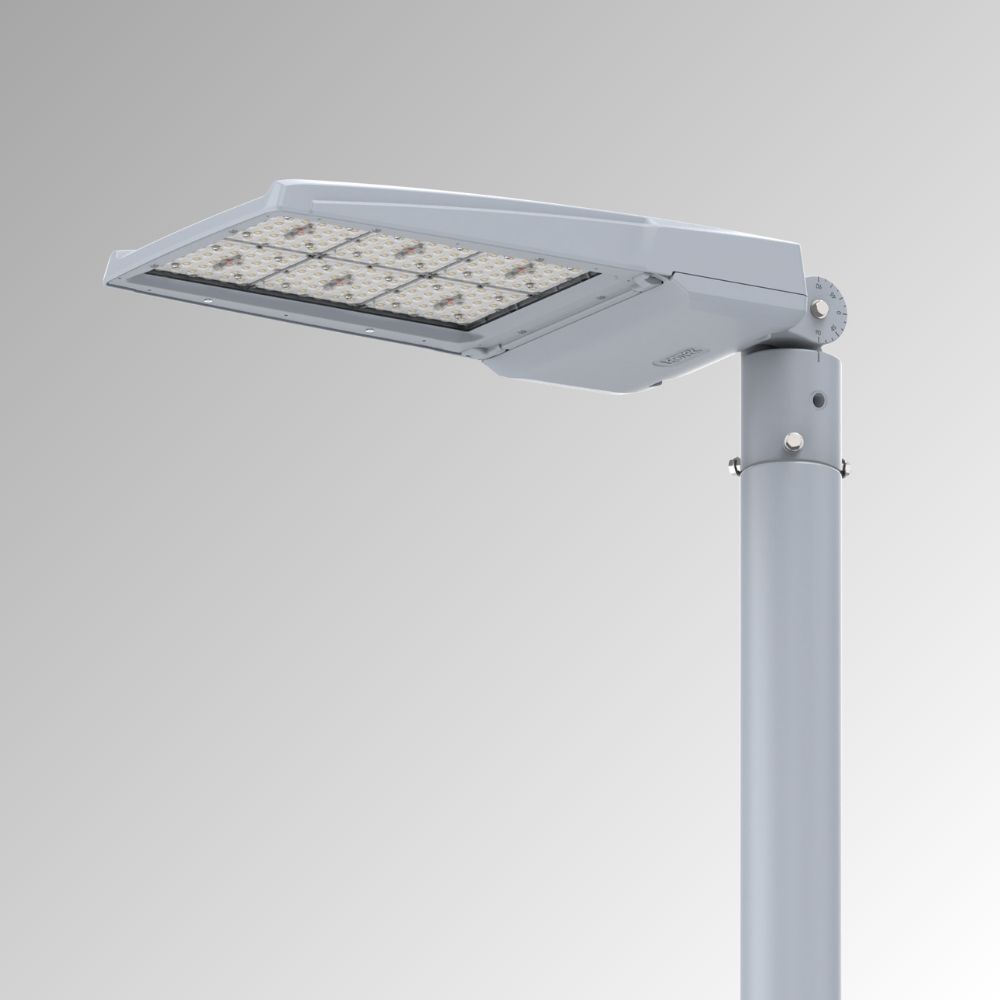

VersaTEK® Large OFF-Roadway – VTLOR

The VersaTEK OFF-Roadway Series delivers elite illumination performance and enhanced safety for a wide range of offset roadway, arterial, and interstate highway applications, while significantly reducing infrastructure costs over the system’s installed life.

Designed with safety in mind—for both drivers navigating high-speed roadways and the crews responsible for year-round installation and maintenance—VersaTEK OFF-Roadway features precision-engineered performance optics with field-adjustable tilt capability. This allows maximum roadway coverage and exceptional uniformity, helping improve visibility and driving confidence under all nighttime conditions.

Thanks to wider on-center spacing and broad multi-lane coverage, required pole counts are significantly reduced. Eliminating the need for secondary pole arms also lowers pipe, wiring, and installation costs, delivering approximately 70–80% combined energy and maintenance savings along with reduced infrastructure expenses over the full lifecycle of the system.

For added safety and service efficiency, an optional tool-free, removable “Power Door” allows all serviceable electrical components to be accessed, removed, and replaced in under 15 seconds. This minimizes time spent in a lift truck on active roadways and keeps pole downtime to an absolute minimum—prioritizing safety for both maintenance crews and the traveling public.

Features

  • 30,000 to 65,000+ Lumens
    Delivers high-output illumination with efficacies up to 190+ lm/W for large-scale roadway and area lighting applications.
  • True 400–1000+ Watt HID Replacement
    Achieves 70%+ energy savings while maintaining or exceeding legacy HID light levels.
  • Performance Selector (PS) Option
    Field-adjustable wattage and lumen output provide flexibility for changing site requirements and inventory reduction.
  • Next-Generation LED Platform
    Optimized site & area and roadway optics with shielding options for improved uniformity, visibility, and glare control.
  • Multiple CCT Options
    Available in 2700K, 3000K, 4000K, and 5000K to meet environmental, visual comfort, and regulatory needs.
  • Lightweight Design for Safer Installation
    Weighs only 30–35 lb, enabling safe, single-person installation compared to traditional high-wattage luminaires.
  • Tool-Free Electrical Access
    Standard tool-free access with optional removable, tool-free “Power Door” simplifies maintenance and servicing.
  • Advanced Surge Protection
    10kV integral surge protection standard, with 20kV extreme surge option available for harsh electrical environments.
  • IP66-Rated Luminaire & Optical Assembly
    Fully sealed design ensures protection against dust, water ingress, and environmental exposure.
  • 50°C (122°F) High-Ambient Rating
    Engineered for reliable operation in hot-climate installations.

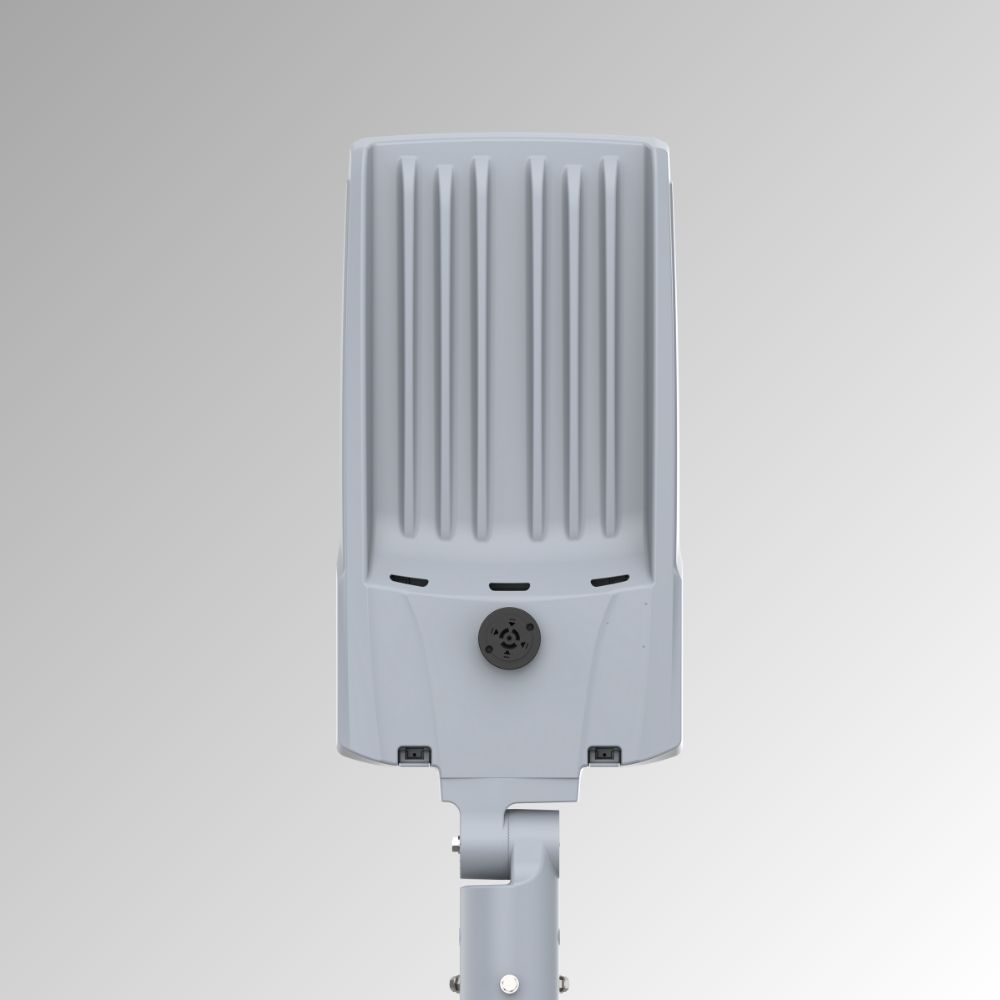

  • Pass-Thru Convective Cooling System
    Integrated thermal heatsink design maximizes heat dissipation for long LED life and stable performance.
  • A360 Low-Copper Die-Cast Aluminum Housing
    (<0.6% copper) provides superior corrosion resistance, especially in coastal environments.
  • 5,000-Hour Salt Spray Finish (Standard)
    Coastal-grade finish available for extreme marine or corrosive conditions.
  • Stainless Steel, Captive Fasteners
    All exposed hardware is corrosion-resistant and retained to prevent field loss.
  • 3G Vibration Rated
    Suitable for high-wind zones, bridges, overpasses, and elevated structures.
  • Burn-In & Performance Validation
    Each luminaire is tested before and after a rigorous 2-hour burn-in cycle to ensure reliability.
  • Assembled in the USA
    Built at LEOTEK’s San Jose, California facility, ensuring quality control and supply chain reliability.

Specifications

Series
VersaTEK
Application
Site & Area
Lumen Output
31759-65563
Color Temperture
2700K, 3000K, 4000K, 5000K
Wattage
182-376 W
Light Source
LED
CRI
70, 80
Voltage
120-277V / 347-480V
Dimming Control
Yes
Electrical Standard
UL
Mount Type
SF, SFH, SFC, ASPM, ARPM, SPM, RPM, MAF
Distribution
NR, MR, WR, T2R, T2F, T3R, T3F, T4R, T4F, T5, ORR, ORL
