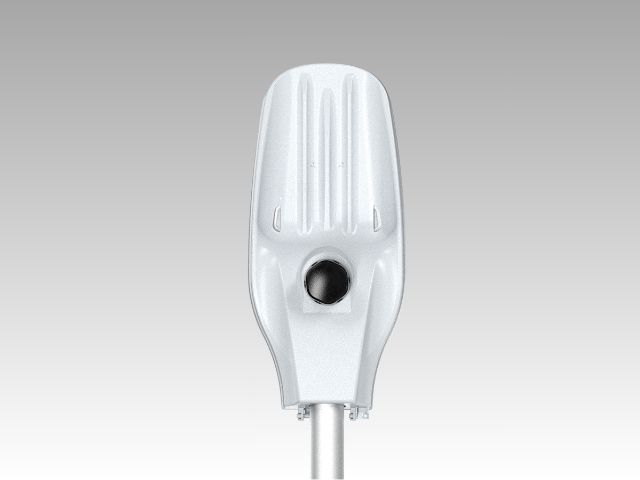

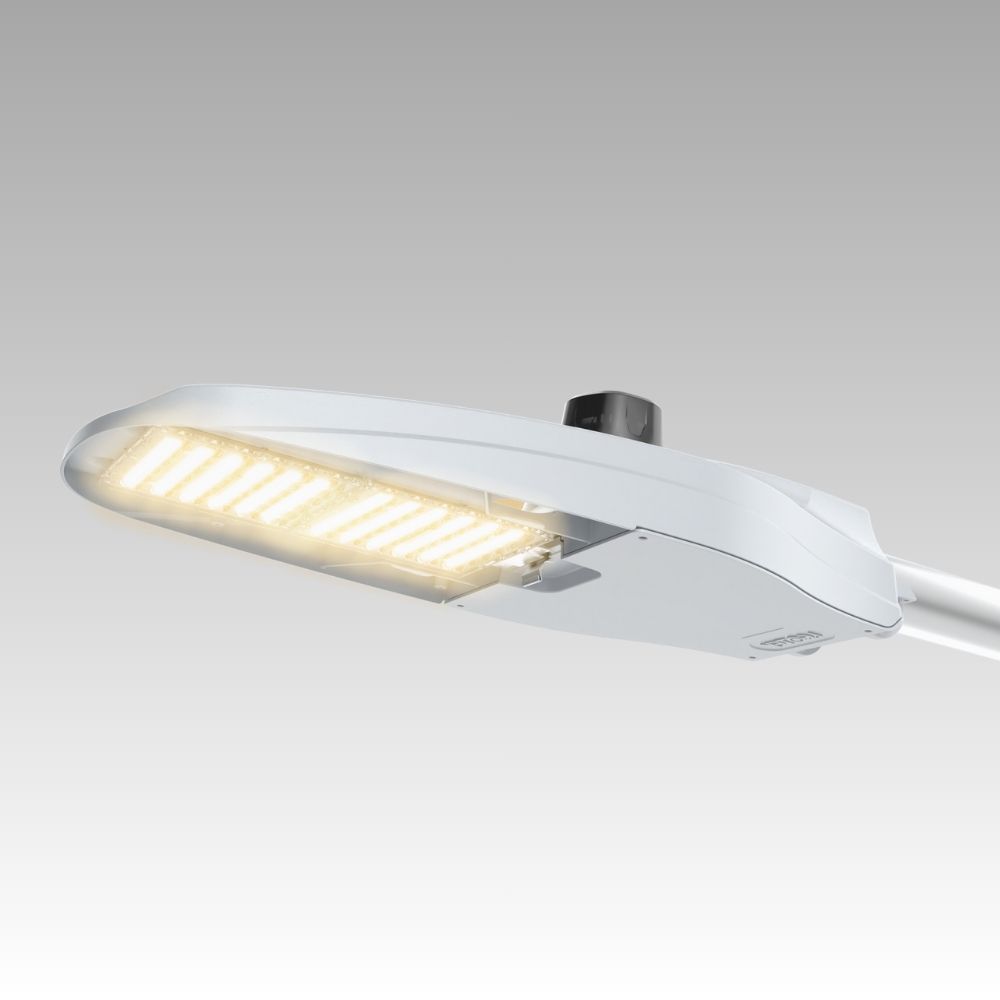

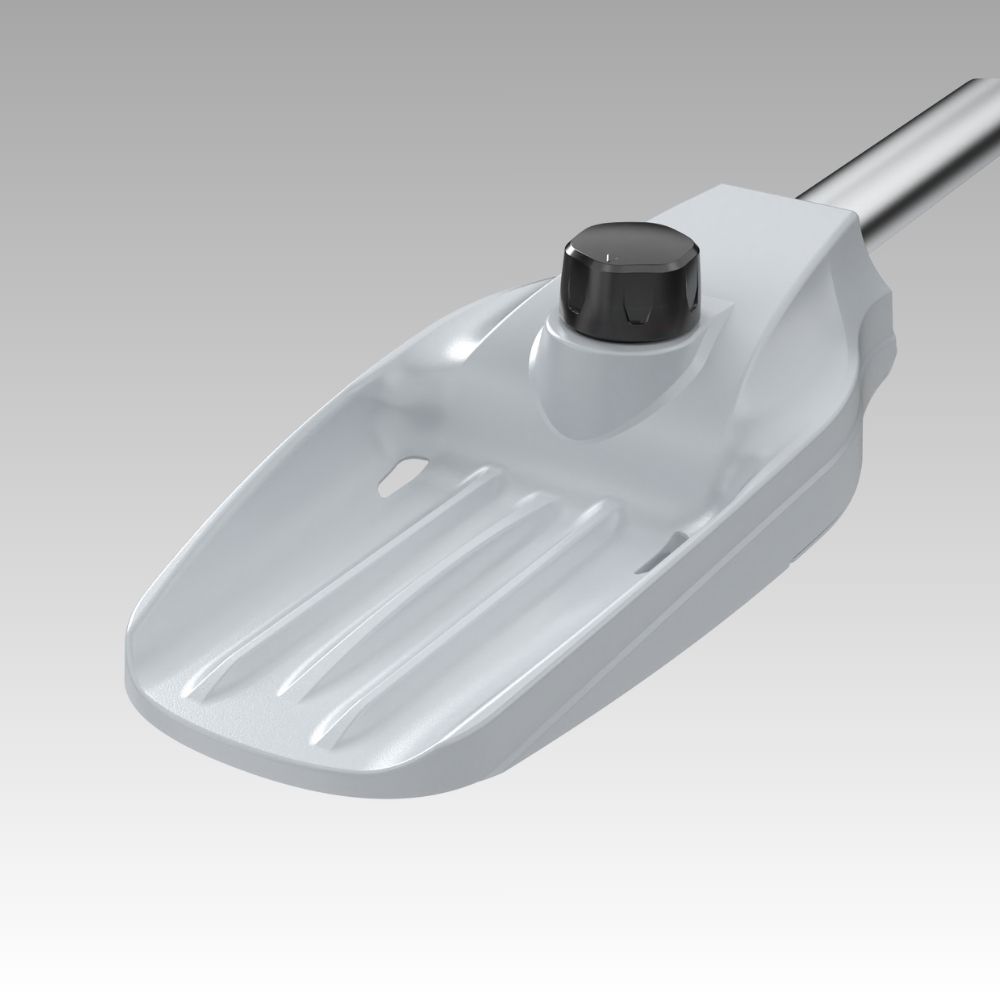

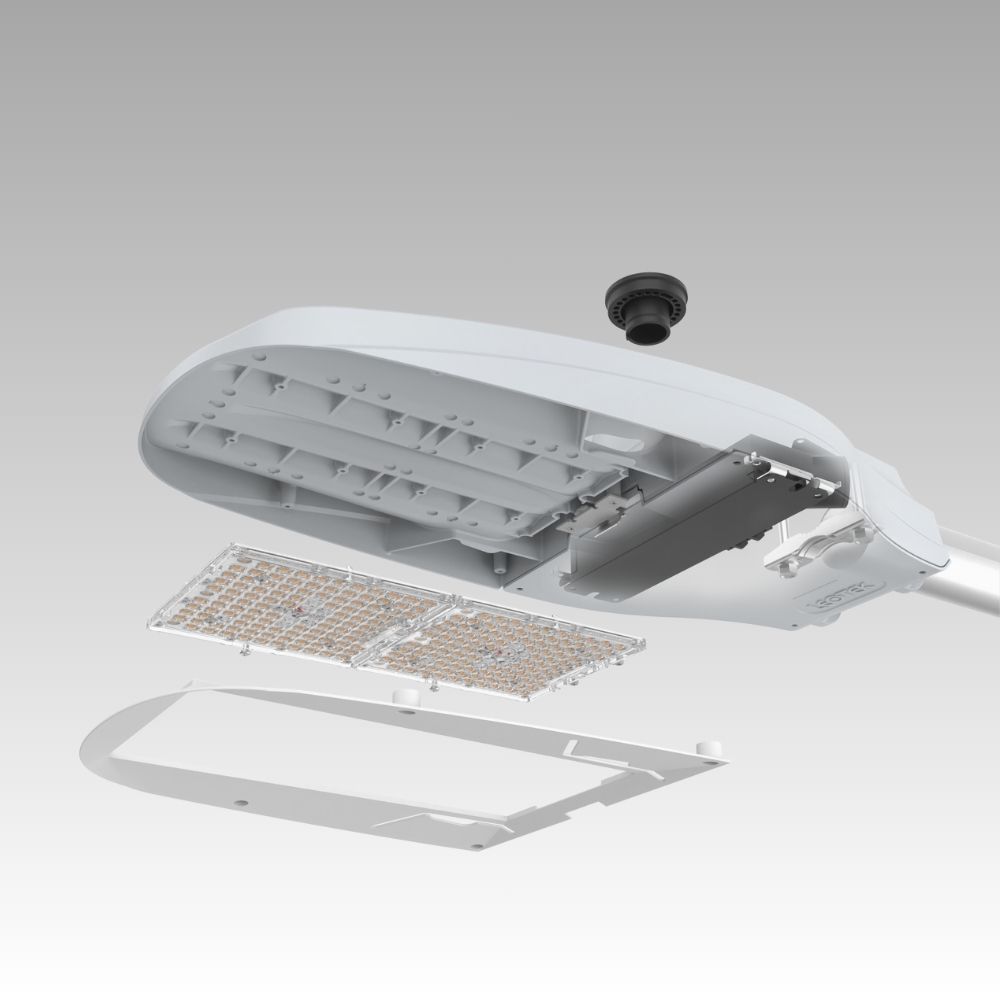

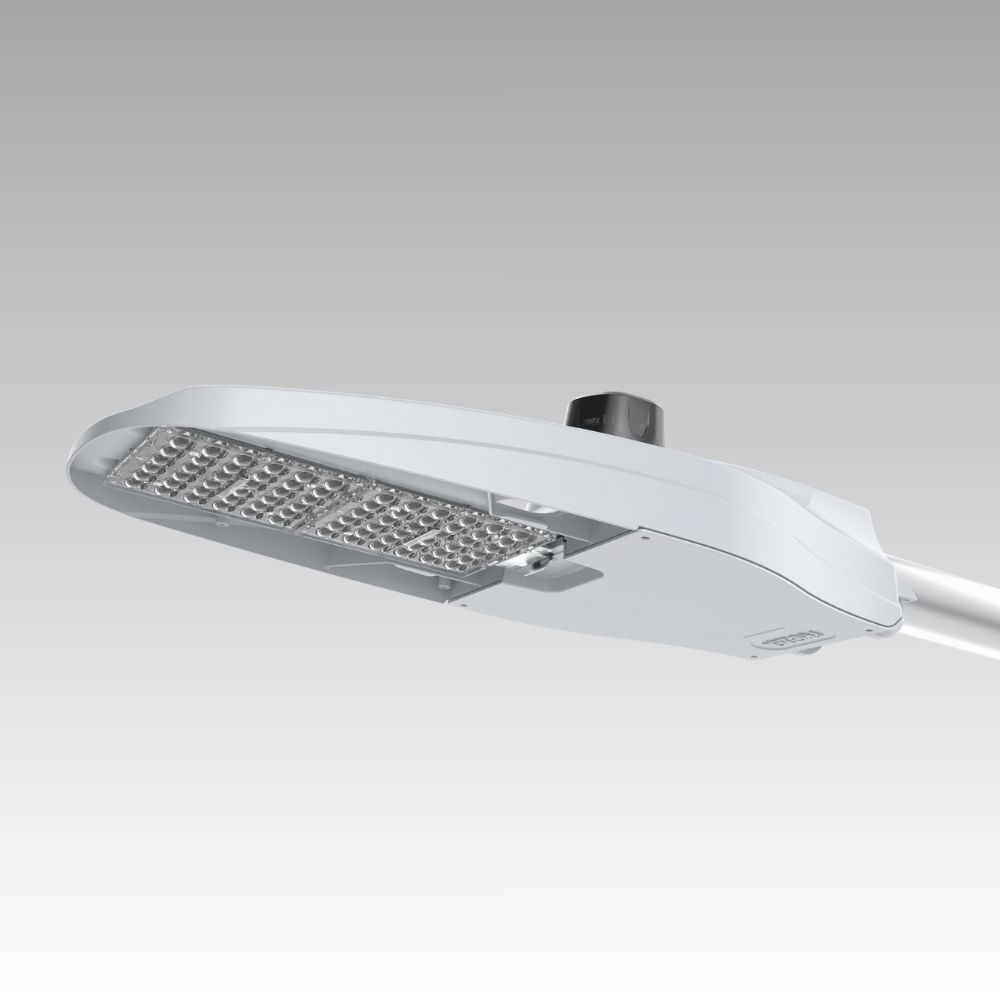

KarbonCobra – KC2

The KarbonCobra KC2 is purpose-built for main roads, highways, and large commercial applications, delivering up to 29,000 lumens with outstanding efficiency of up to 175 lm/W—all at a lightweight 10.6 lbs (4.8 kg). Designed to replace 250–400W+ HID fixtures, KC2 upgrades lighting quality, slashes energy use and maintenance costs, and is ready for instant smart city connectivity.

Features

Key Features:

  • 7 Pin Control Ready Receptacle Standard.
  • Luminaire-level IP54 rating optional.
  • Up to 20 Performance Codes.
  • Full dimming capability with PS, up to 2000+ output options.
  • Up to 50°C rating.
  • Die-cast aluminum ADC1 housing.
  • Single Hand door release, tool free.
  • Improved Optical Performance with more distribution options.
  • Standard 3-position straight terminal block.

KarbonCobra KC2—ultra-bright, ultra-efficient, and smart-ready for sustainable highway and city infrastructure.

Specifications

Application Roadway & Street
Country USA
Dimming Control Y
Electrical standard UL
Lumen output 10000-29000
Series KabonCobra
Wattage 74-188
Color temperature 2200K, 2700K, 3000K, 4000K, 5000K
CRI 70,80
Distribution Type Type II, Type III, Type IV, Type V
Light Source LED
Mount Type Pole Arm
Voltage 120-277V / 347-480V

Resources

Spec Sheets(1)
KC2 Spec Sheet (7.28.25_V5)
July 31, 2025
|
983.87 KB
Sell Sheet(1)
KarbonCobra Sell Sheet 1024
July 30, 2025
|
1.74 MB
Brochure(1)
KarbonCobra Brochure_d5
July 31, 2025
|
4.9 MB
IES Files(5)
KC2 2200K
July 31, 2025
|
2.53 MB
KC2 2700K
July 31, 2025
|
2.93 MB
KC2 3000K
July 31, 2025
|
3.06 MB
KC2 4000K
July 31, 2025
|
3.46 MB
KC2 5000K
July 31, 2025
|
3.46 MB
Supporting Documentation(1)
KarbonCobra Installation-Guide (4.22.25)
July 31, 2025
|
1.35 MB
