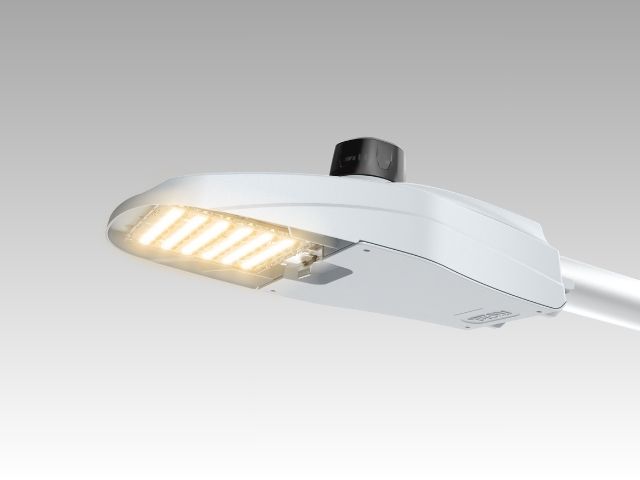

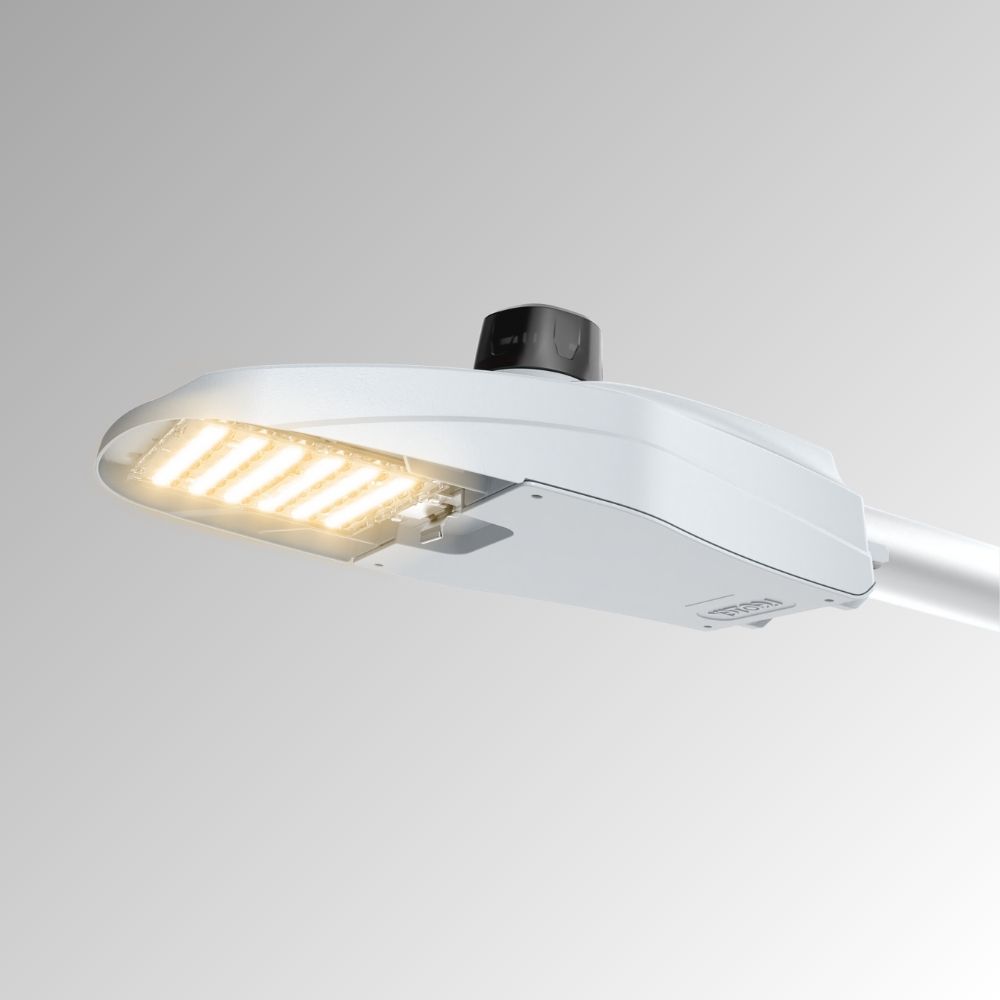

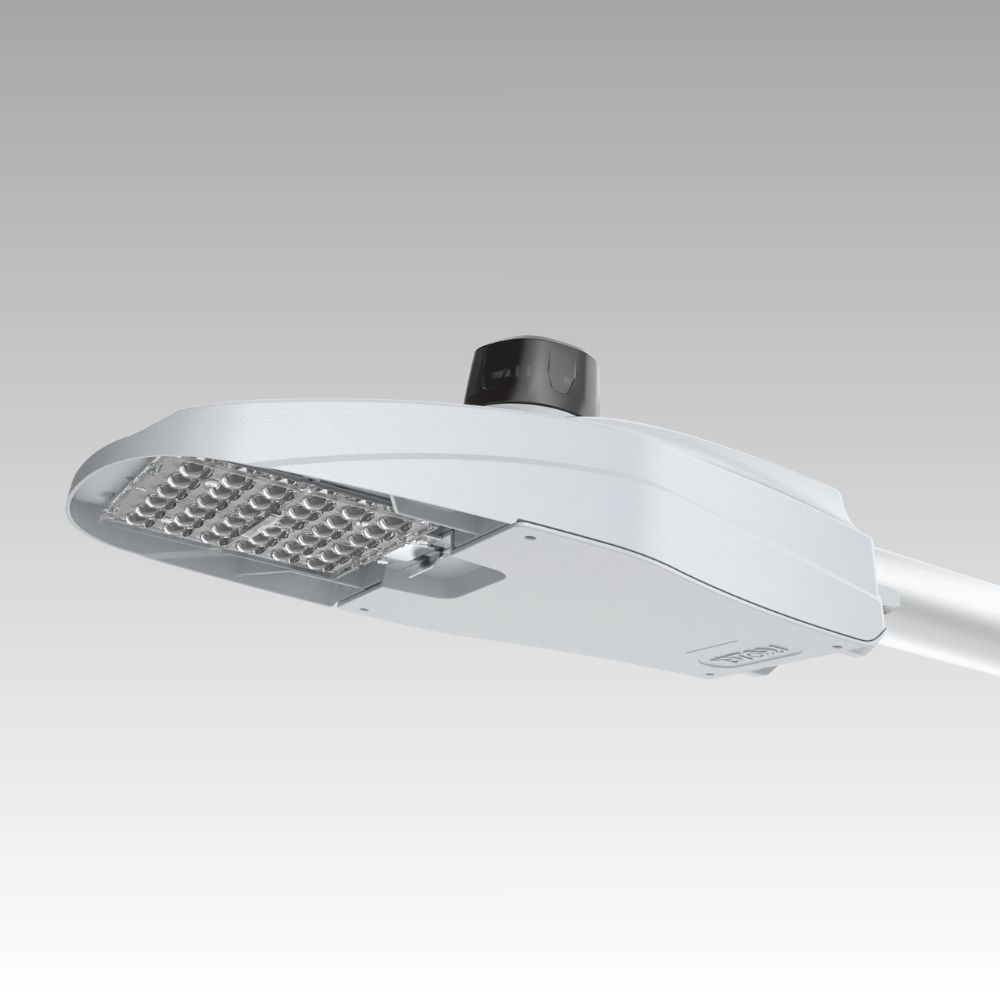

KarbonCobra – KC1

The KarbonCobra KC1 combines top-tier efficiency and versatile output, making it the ideal choice for city streets, urban areas, and public spaces. Delivering up to 15,700 lumens with a maximum efficacy of 176 lm/W, the KC1 weighs only 7.7 lbs (3.5 kg) and enables quick, tool-free, one-person installation. Designed as a direct replacement for 70–250W HID fixtures, it dramatically reduces energy and maintenance costs while supporting instant smart city integration.

Features

Key Features:

7 Pin Control Ready Receptacle Standard.
Luminaire-level IP54 rating optional.
Up to 20 Performance Codes.
Full dimming capability with PS, up to 2000+ output options.
Up to 50°C rating.
Die-cast aluminum ADC1 housing.
Single Hand door release, tool free.
Improved Optical Performance with more distribution options.
Standard 3-position straight terminal block.

Choose KarbonCobra KC1—setting a new benchmark for energy-efficient, safe, and sustainable urban lighting.

Specifications

Application	Roadway & Street
Country	USA
Dimming Control	Y
Electrical standard	UL
Lumen output	2100-15700
Series	KabonCobra
Wattage	15-105

Color temperature	2200K, 2700K, 3000K, 4000K, 5000K
CRI	70,80
Distribution Type	Type II, Type III, Type IV, Type V
Light Source	LED
Mount Type	Pole Arm
Voltage	120-277V / 347-480V

Resources

Spec Sheets(1)

KC1 Spec Sheet (7.28.25 V8)

July 31, 2025

979.33 KB

Sell Sheets(1)

KarbonCobra Sell Sheet 1024

July 30, 2025

1.74 MB

Brochure(1)

KarbonCobra Brochure_d5

July 31, 2025

4.9 MB

IES Files(5)

KC1 2700K

July 31, 2025

2.39 MB

KC1 3000K

July 31, 2025

2.39 MB

KC1 4000K

July 31, 2025

2.51 MB

KC1 5000K

July 31, 2025

2.51 MB

KC1 2200K

July 31, 2025

2.01 MB

Supporting Documentation(1)

KarbonCobra Installation-Guide (4.22.25)

July 31, 2025

1.35 MB
