KarbonCobra®

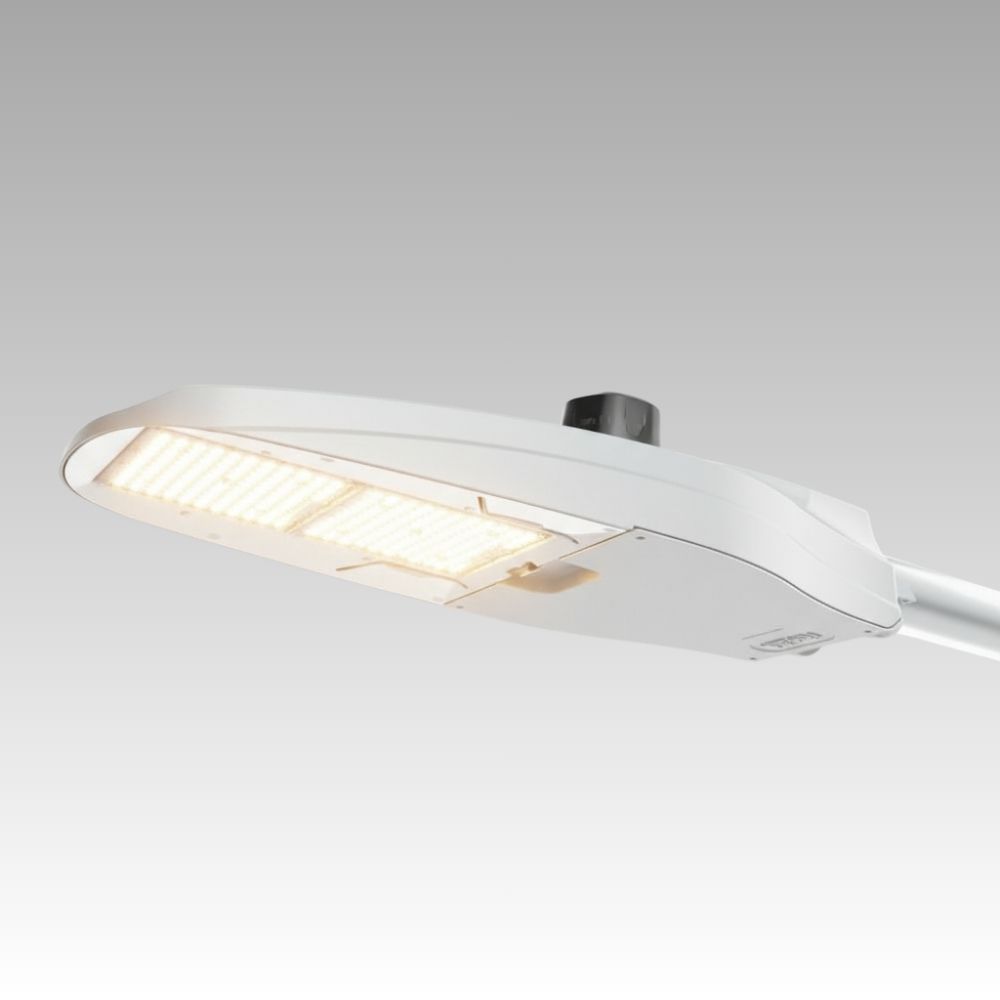

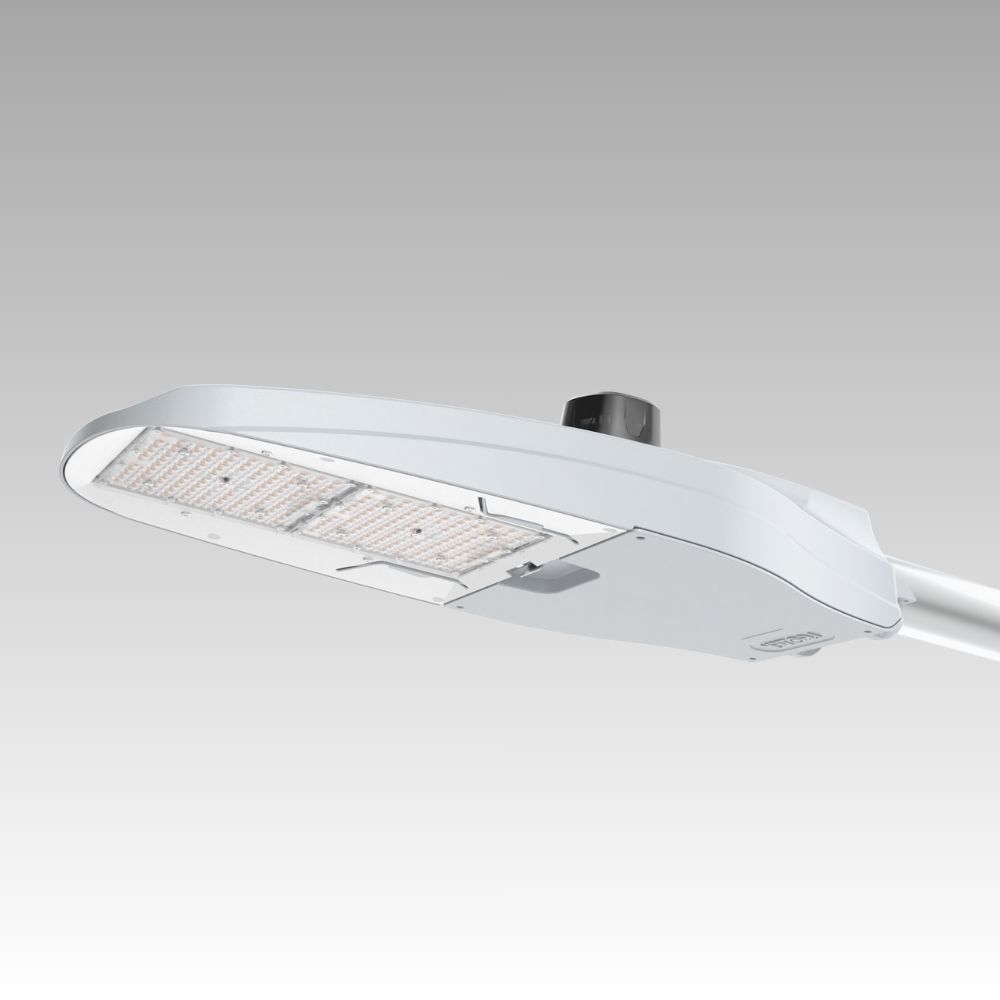

KarbonCobra® ComfortEnhanced – KC2CE

The KarbonCobra® KC2CE brings ComfortEnhanced™ technology to main roads, highways, and large-area commercial lighting, combining high-output performance with superior visual comfort. Delivering up to 25,000 lumens at 173 lm/W in a lightweight 10.6 lb (4.8 kg) design, it ensures clear, low-glare illumination that enhances safety for drivers and pedestrians alike. Built to replace 250–400 W HID fixtures, KC2CE reduces energy consumption, lowers maintenance costs, and is fully smart-control ready for connected roadway infrastructure.

Features

  • ComfortEnhanced™ Optics: Low-glare illumination enhances driver visibility and pedestrian comfort on major roads.
  • High Efficiency: Up to 25,000 lumens with 173 lm/W for superior brightness and energy savings.
  • Smart City Ready: 7-pin control receptacle standard for adaptive and networked lighting systems.
  • Flexible Output: Up to 16 performance codes and 2,000+ programmable dimming options via Performance Selector (PS).

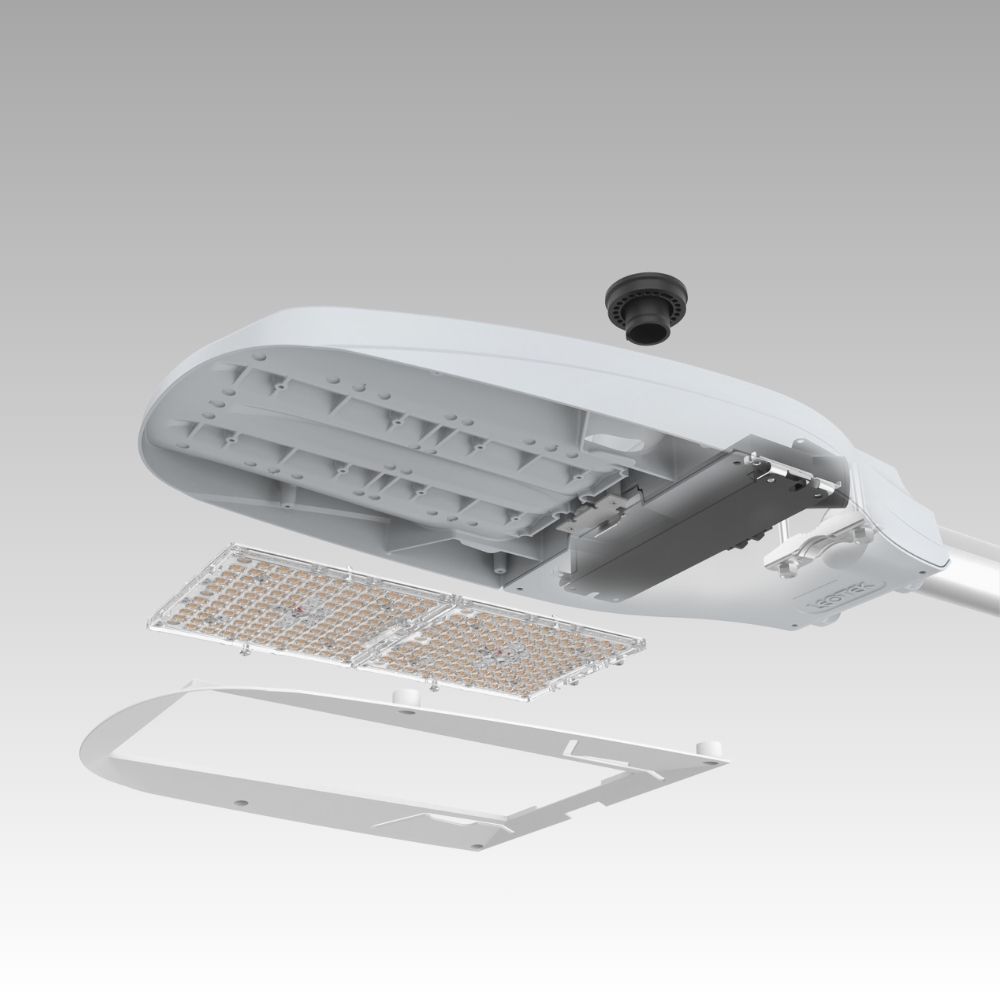

  • Tool-Free Access: Single-hand door release for quick, one-person maintenance.
  • Durable Build: Die-cast ADC1 aluminum housing, optional IP54 protection, and 50°C high-ambient operation.
  • Optimized Distributions: Available in Type II and Type III optics for high-speed roadway and arterial lighting.
  • Lightweight Design: Just 10.6 lbs (4.8 kg) for easy, safe installation.
  • Direct HID Replacement: Replaces 250–400 W HID fixtures, reducing total lifecycle cost and carbon footprint.

The KarbonCobra® KC2CE delivers the perfect balance of power, comfort, and efficiency — offering human-centric highway lighting that supports safer, smarter, and more sustainable transportation networks.

Specifications

Series
KarbonCobra®
Application
Roadway & Street
Lumen Output
9000-25000
Color Temperture
2700K, 3000K, 4000K, 5000K
Wattage
62-171 W
Distribution
Type II, Type III, Type V, Type IV
Mount Type
Pole Arm
Light Source
LED
CRI
70, 80
Voltage
120-277V / 347-480V
Dimming Control
Yes
Electrical Standard
UL

Resources

Download all

KarbonCobra - KC2CE

IES Files KC2CE
pdf

KC2CE-Spec-Sheet

Version: V3
Size: 1.02 MB
Hits: 19
Date added: 23-07-2025
Date modified: 10-11-2025
pdf

KarbonCobra-Sell-Sheet

Version: V1
Size: 1.74 MB
Hits: 21
Date added: 24-10-2025
Date modified: 10-11-2025
pdf

KarbonCobra-Installation-Guide

Size: 1.35 MB
Hits: 11
Date added: 22-04-2025
Date modified: 10-11-2025
pdf

KarbonCobra-Brochure

Version: 1
Size: 4.92 MB
Hits: 29
Date added: 05-08-2025
Date modified: 10-11-2025
pdf

Control Options Brochure

Size: 1.72 MB
Hits: 22
Date added: 07-11-2018
Date modified: 10-11-2025
