LEOTEK EVSE
Smart, Safe, and Ready for Tomorrow
From residential to commercial fleets, LEOTEK offers scalable EV charging solutions with cutting-edge technology and seamless integration.
WHY LEOTEK EV Charging ?
Comprehensive EV Charging Solutions
LEOTEK leads the industry by offering a wide range of electric vehicle chargers designed to meet diverse needs. From residential single-family homes and multi-unit dwellings to large commercial fleets and public infrastructure, our products cover it all.
Compliance with Latest EV Codes & Standards
Our chargers are engineered to comply with the newest EV regulations and codes across multiple states, ensuring safe, efficient, and future-proof installations.
Smart Charging
Equipped with smart connectivity, seamless payment integration, and robust protection features, LEOTEK chargers deliver convenience and reliability for users and operators alike.
Application Scenarios
Residential
Convenient, reliable Level 2 charging for single-family homes and apartments.Commercial
Scalable solutions for offices and employee/visitor parking lots.Public & Municipal
Weatherproof chargers for streetlight poles and public parking areas.Fleet & Depot
Fast, efficient Level 2 and Level 3 chargers for commercial vehicle fleets.Hospitality & Retail
Integrated payment and easy access for hotels, shopping centers, and restaurants.
Our goals
AI Roadway Infrastructure Management System
LEOTEK is aligned with aggressive EV adoption goals like California’s plan to install over 2 million public and private EV chargers by 2035. Our chargers are designed to meet growing demand with scalable power levels, modular installation, and integration-ready capabilities.
We serve diverse sectors including municipalities, commercial enterprises, hospitality, fleet operators, and residential customers, ensuring each solution is tailored to user needs and future-proof against evolving EV standards.
Distribution & Partnership Opportunities
LEOTEK partners with distributors and agents who have strong local market reach and technical support capabilities.
Our EV chargers are engineered for high reliability and minimal maintenance, reducing service demands for partners.
We provide comprehensive product training, detailed documentation, and marketing materials to empower distributors.
Focus your resources on sales and customer relationships while LEOTEK delivers quality, durable products backed by solid warranty terms.
Key Features
High Reliability
Durable chargers designed for long life and minimal maintenance.
Easy Integration
Compatible with major protocols and payment systems for seamless deployment.
Comprehensive Support Materials
Training, specs, and marketing tools provided to empower distributors.
Scalable Solutions
Flexible product lineup to meet diverse customer needs from residential to commercial.
Model Details

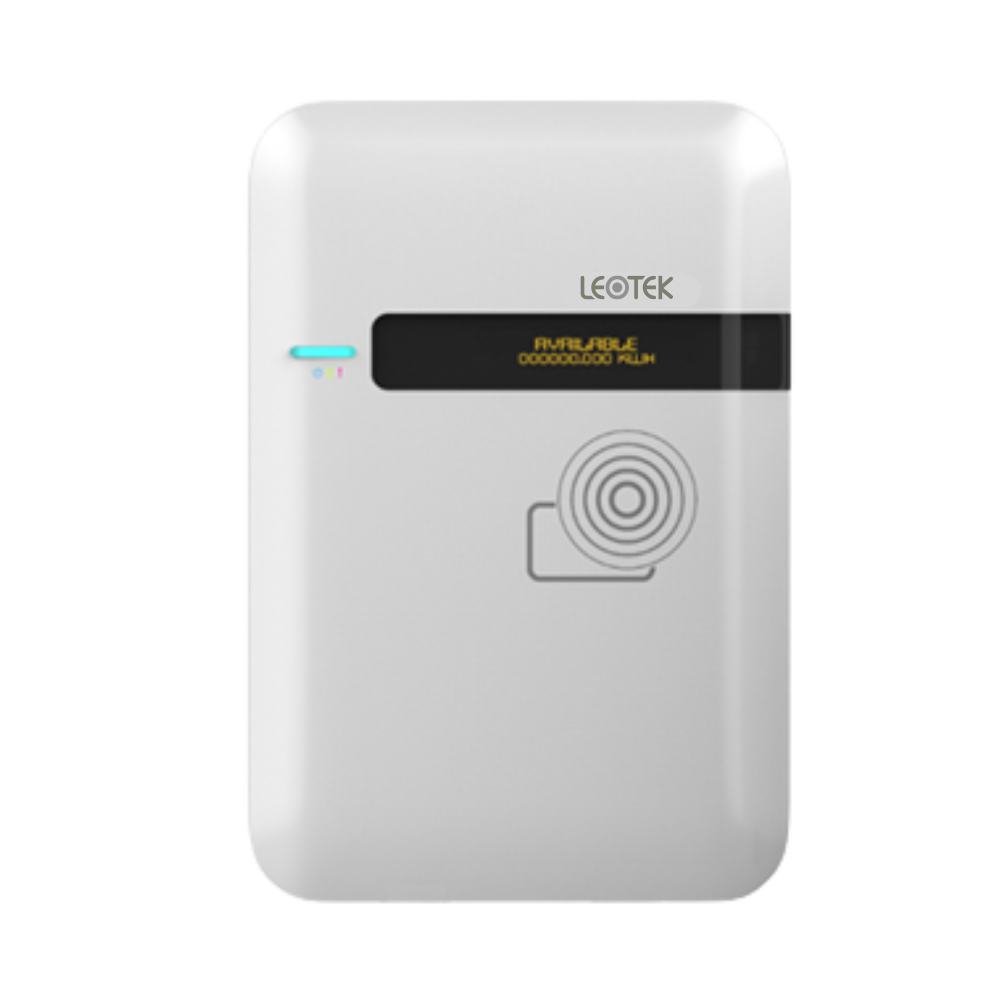

Marcus II
- Max. current: 32/40A
- Input rating: 208 / 240 Vac
- Connector type: SAE J1772 Type 1
- Cable length: 25 ft
Connectivity: Supports Ethernet, Wi-Fi and 4G LTE connections - IP/IK ratings: NEMA 4 protection/IK10 impact resistance
- Display: Dot matrix OLED
- User authentication: RFID reader
- Backend protocol: OCPP 1.6J (Open Charge Point Protocol)
Download Materials
Lucious I
- Input Operating Range and Current:
- 240 Vac Single Phase: 216 to 252 V, 150 A max, 60 Hz
- 208/240 Vac 3-Phase Delta: 190 to 252 V, 100 A max, 60 Hz
- 480 Vac 3-Phase Wye: 432 to 504 V, 45 A max, 60 Hz
- Output Power: 30 kW maximum
- Output Voltage: 250 to 920 Vdc
- Efficiency: 95%
- Charging Connector: NACS
- Charging Cable Length: 16ft, 5m standard
- Charging/Data Protocols: DIN 70121 and OCPP 1.6J compliant
- Network Interface: Cellular 4G LTE, Wi-Fi
- RFID: ISO/IEC 14443 A/B, ISO 15393, NFC Reader Mode
- Display: 7” color LCD
- Operational Temperature: -30 °C to +50 °C
- Storage Temperature: -40 °C to +80 °C
- Relative Humidity: Up to 95% non-condensing
- Altitude: 2000 m (6560 ft)
- Enclosure Rating: NEMA 3S; IP54
- Impact Resistance: IK10
- Weight: Up to 140 kg
- Mounting: Wall-mounted or pedestal (both sold separately)
- Certifications: cETLus listed to UL 2202, UL2231-1 & -2, and CSA C22.2 No. 281.1, 281.2 and 346
Lucious II
- Highly flexible power input with no de-rating
- Field scalable power, from 30 up to 60 kW
- Greater than 1 million hours MTBF on PSU topology
- IP20/NEMA 1 Enclosure or IP54/NEMA 3R enclosure
- Field replaceable power modules
- Multiple initiation/authorization methods
- Power derating feature for application flexibility
Lucious III
- Input Voltage: 208 or 240 Vac 3-Phase (3P + PE) Delta
- Input Operating Range and Current:
- 208 V/240 V 3-Phase Delta: 190 V to 252 V, 400 A max, 50-60 Hz
- 480 V 3-Phase Wye: 432 V to 504 V, 175 A max, 50-60 Hz
- Output Power: 120 kW
- Output Voltage: 250 to 920 Vdc
- Efficiency: 95%
- Charging Connector: CCS1 and NACS
- Charging Cable Length:
- 18ft, 5.5m (with no cable management)
- 26ft, 8m (with cable management)
- Charging/Data Protocols: DIN 70121 and OCPP 1.6J compliant
- RFID: ISO/IEC 14443 A/B, ISO 15393, NFC Reader Mode
- Display: 7” color LCD
- Operational Temperature: -30 °C to +50 °C
- Storage Temperature: -40 °C to +80 °C
- Relative Humidity: Up to 95% non-condensing
- Altitude: 2000 m (6560 ft)
- Enclosure Rating: NEMA 3R; IP54
- Impact Resistance: IK10
- Weight: 760 kg
Model Details

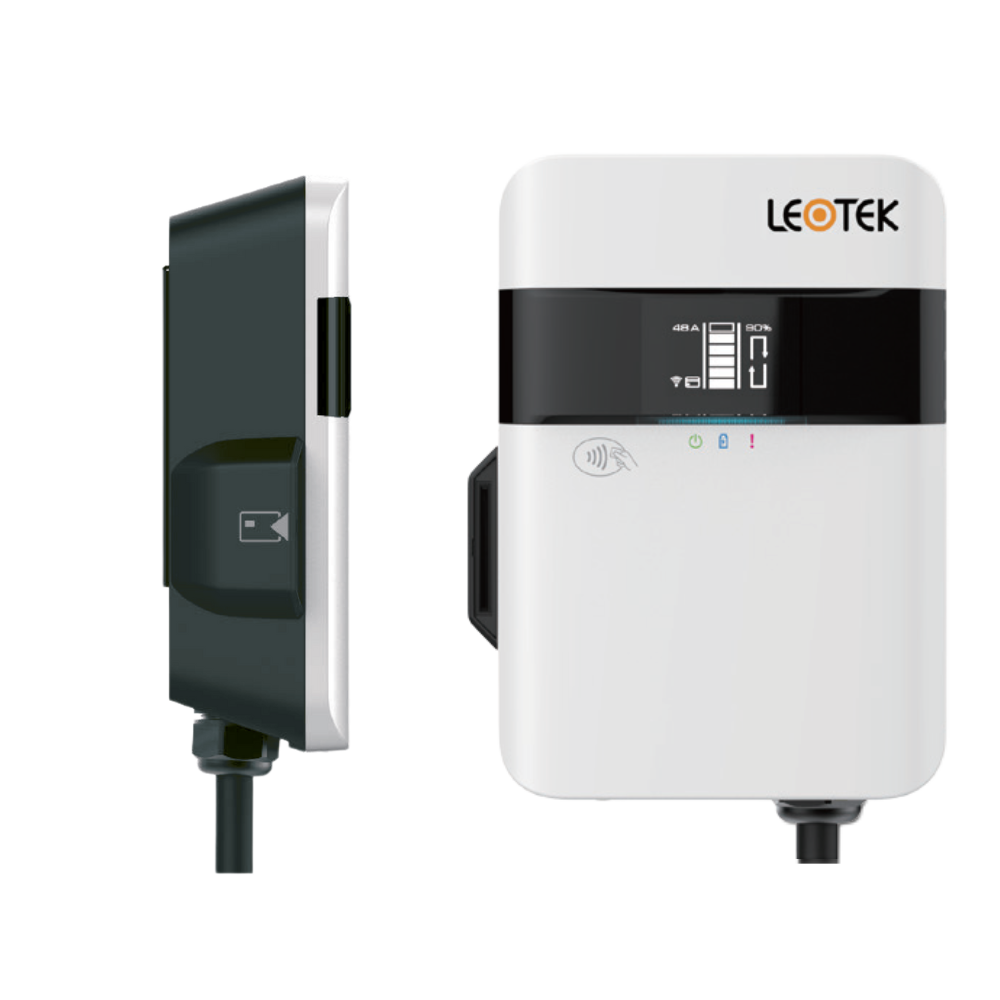

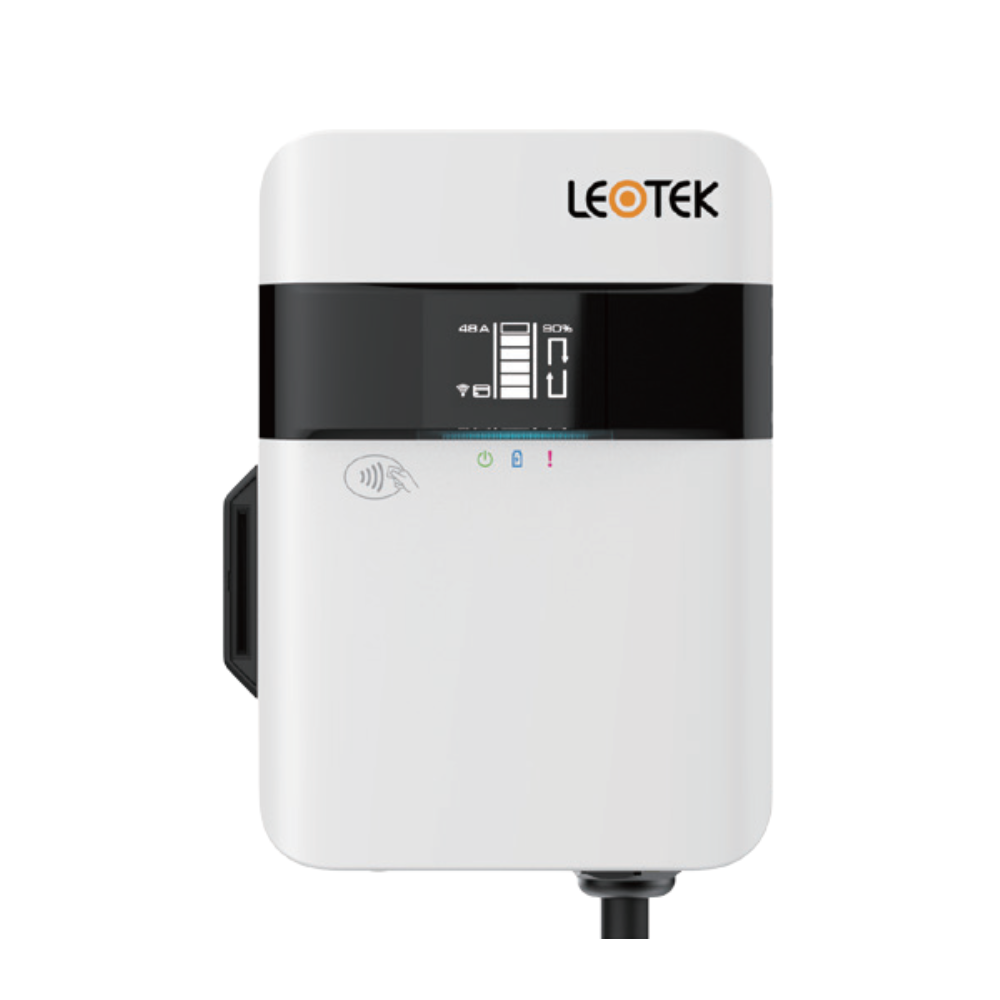

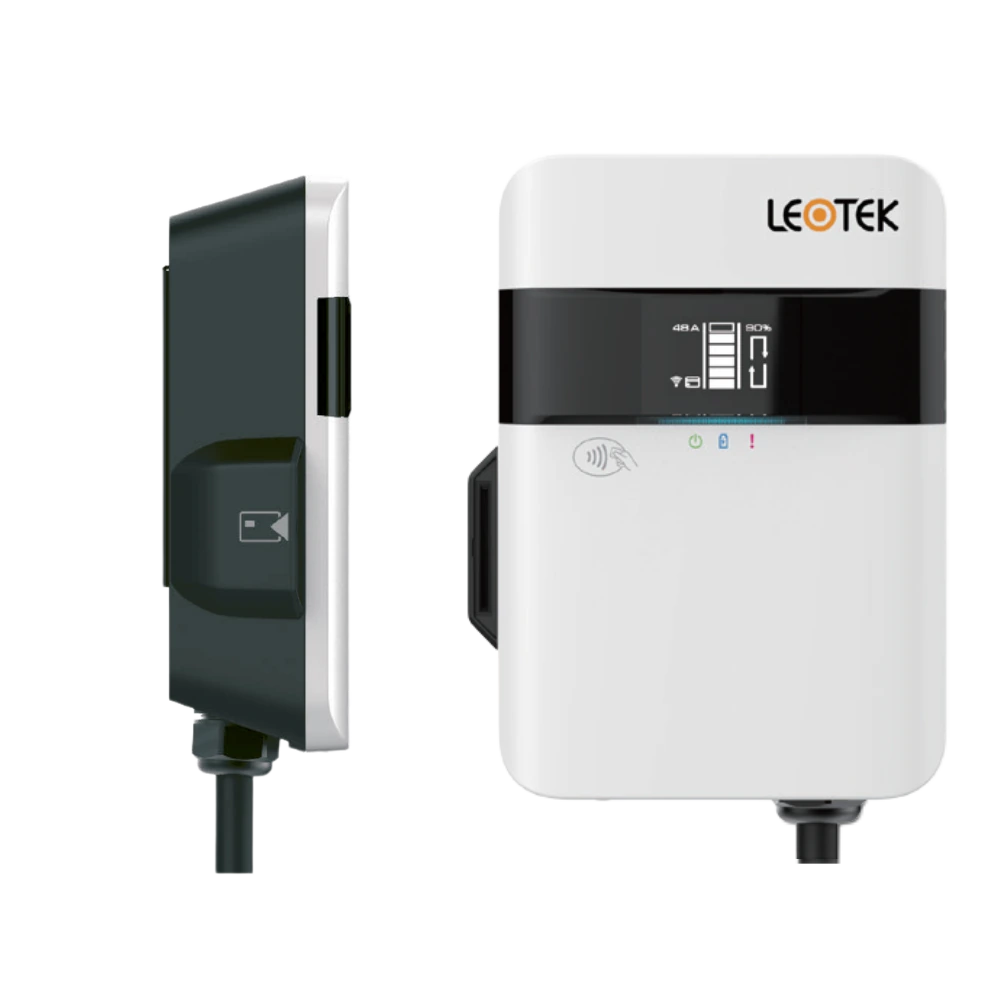

Marcus I
- Max. current: 32/40/48A
Input rating: 208 / 240 Vac
Connector type: SAE J1772 Type 1
Cable length: 25 ft
Connectivity: Supports Ethernet, Wi-Fi and 4G LTE connections
IP/IK ratings: NEMA 4 protection/IK10 impact resistance
Display: 3.5″ LCD
User authentication: RFID reader
Backend protocol: OCPP 1.6J/OCPP 2.0.1 - Supports ISO 15118 Vehicle to Grid Com
- Credit Card Tap to Pay Compatible (3rd party POS payment service required)
Marcus II
- Max. current: 32/40A
- Input rating: 208 / 240 Vac
- Connector type: SAE J1772 Type 1
- Cable length: 25 ft
Connectivity: Supports Ethernet, Wi-Fi and 4G LTE connections - IP/IK ratings: NEMA 4 protection/IK10 impact resistance
- Display: Dot matrix OLED
- User authentication: RFID reader
- Backend protocol: OCPP 1.6J (Open Charge Point Protocol)

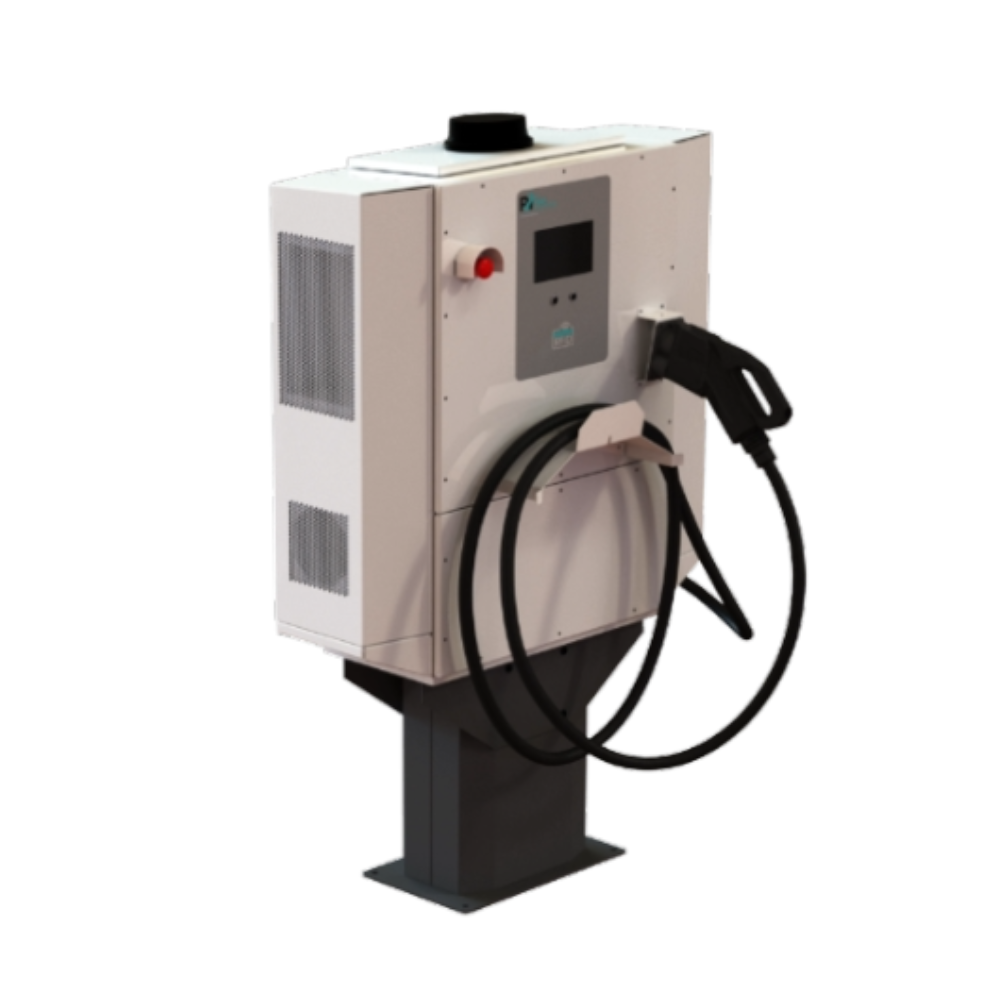

Lucious I
- Input Operating Range and Current:
- 240 Vac Single Phase: 216 to 252 V, 150 A max, 60 Hz
- 208/240 Vac 3-Phase Delta: 190 to 252 V, 100 A max, 60 Hz
- 480 Vac 3-Phase Wye: 432 to 504 V, 45 A max, 60 Hz
- Output Power: 30 kW maximum
- Output Voltage: 250 to 920 Vdc
- Efficiency: 95%
- Charging Connector: NACS
- Charging Cable Length: 16ft, 5m standard
- Charging/Data Protocols: DIN 70121 and OCPP 1.6J compliant
- Network Interface: Cellular 4G LTE, Wi-Fi
- RFID: ISO/IEC 14443 A/B, ISO 15393, NFC Reader Mode
- Display: 7” color LCD
- Operational Temperature: -30 °C to +50 °C
- Storage Temperature: -40 °C to +80 °C
- Relative Humidity: Up to 95% non-condensing
- Altitude: 2000 m (6560 ft)
- Enclosure Rating: NEMA 3S; IP54
- Impact Resistance: IK10
- Weight: Up to 140 kg
- Mounting: Wall-mounted or pedestal (both sold separately)
- Certifications: cETLus listed to UL 2202, UL2231-1 & -2, and CSA C22.2 No. 281.1, 281.2 and 346

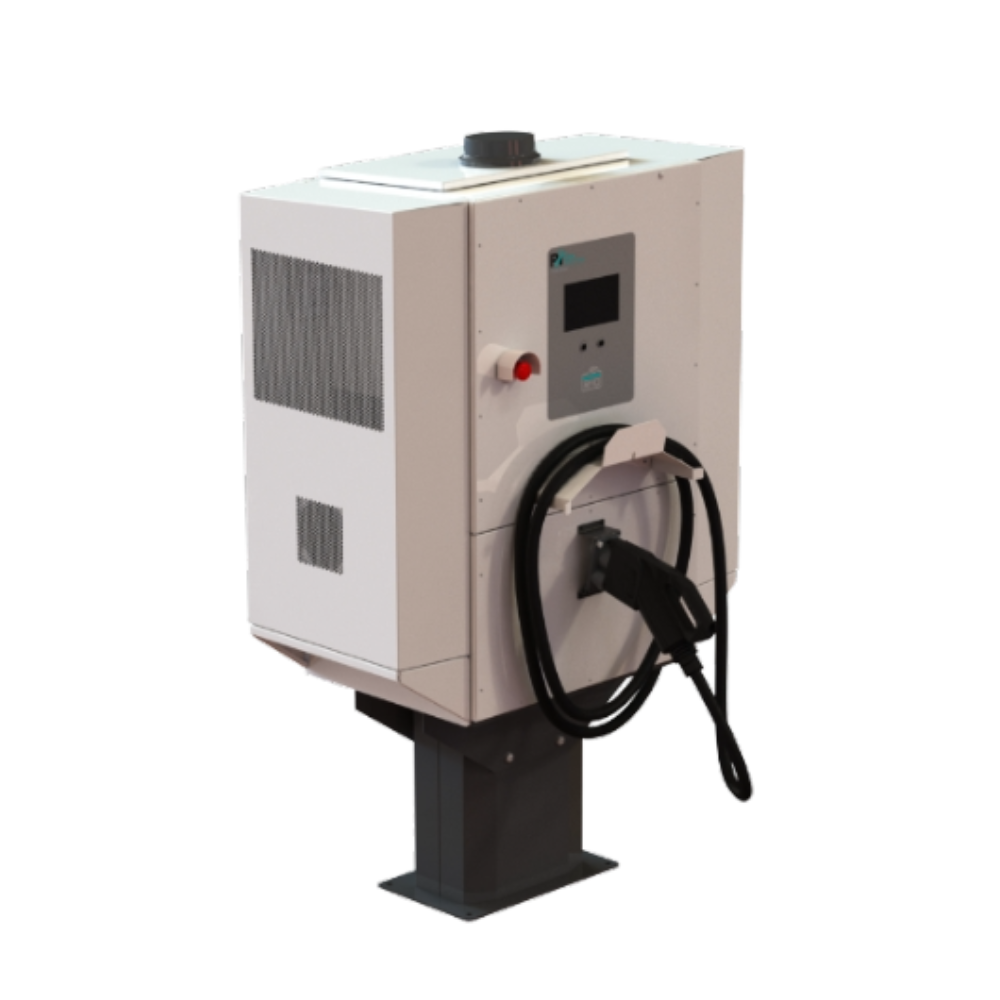

Lucious II
- Highly flexible power input with no de-rating
- Field scalable power, from 30 up to 60 kW
- Greater than 1 million hours MTBF on PSU topology
- IP20/NEMA 1 Enclosure or IP54/NEMA 3R enclosure
- Field replaceable power modules
- Multiple initiation/authorization methods
- Power derating feature for application flexibility

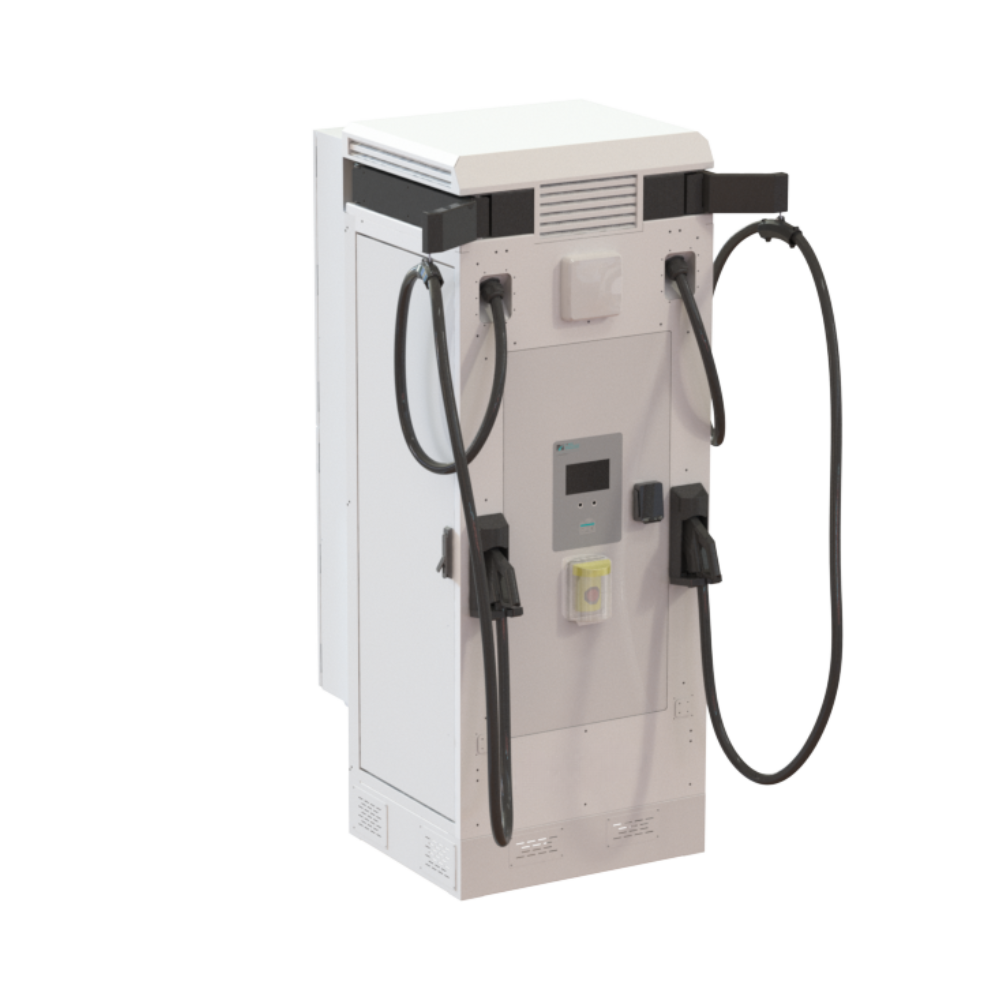

Lucious III
- Input Voltage: 208 or 240 Vac 3-Phase (3P + PE) Delta
- Input Operating Range and Current:
- 208 V/240 V 3-Phase Delta: 190 V to 252 V, 400 A max, 50-60 Hz
- 480 V 3-Phase Wye: 432 V to 504 V, 175 A max, 50-60 Hz
- Output Power: 120 kW
- Output Voltage: 250 to 920 Vdc
- Efficiency: 95%
- Charging Connector: CCS1 and NACS
- Charging Cable Length:
- 18ft, 5.5m (with no cable management)
- 26ft, 8m (with cable management)
- Charging/Data Protocols: DIN 70121 and OCPP 1.6J compliant
- RFID: ISO/IEC 14443 A/B, ISO 15393, NFC Reader Mode
- Display: 7” color LCD
- Operational Temperature: -30 °C to +50 °C
- Storage Temperature: -40 °C to +80 °C
- Relative Humidity: Up to 95% non-condensing
- Altitude: 2000 m (6560 ft)
- Enclosure Rating: NEMA 3R; IP54
- Impact Resistance: IK10
- Weight: 760 kg
Contact LEOTEK NOW
Partner with LEOTEK and offer reliable, scalable EV charging solutions backed by industry-leading support.
Contact us today to become a distributor!
