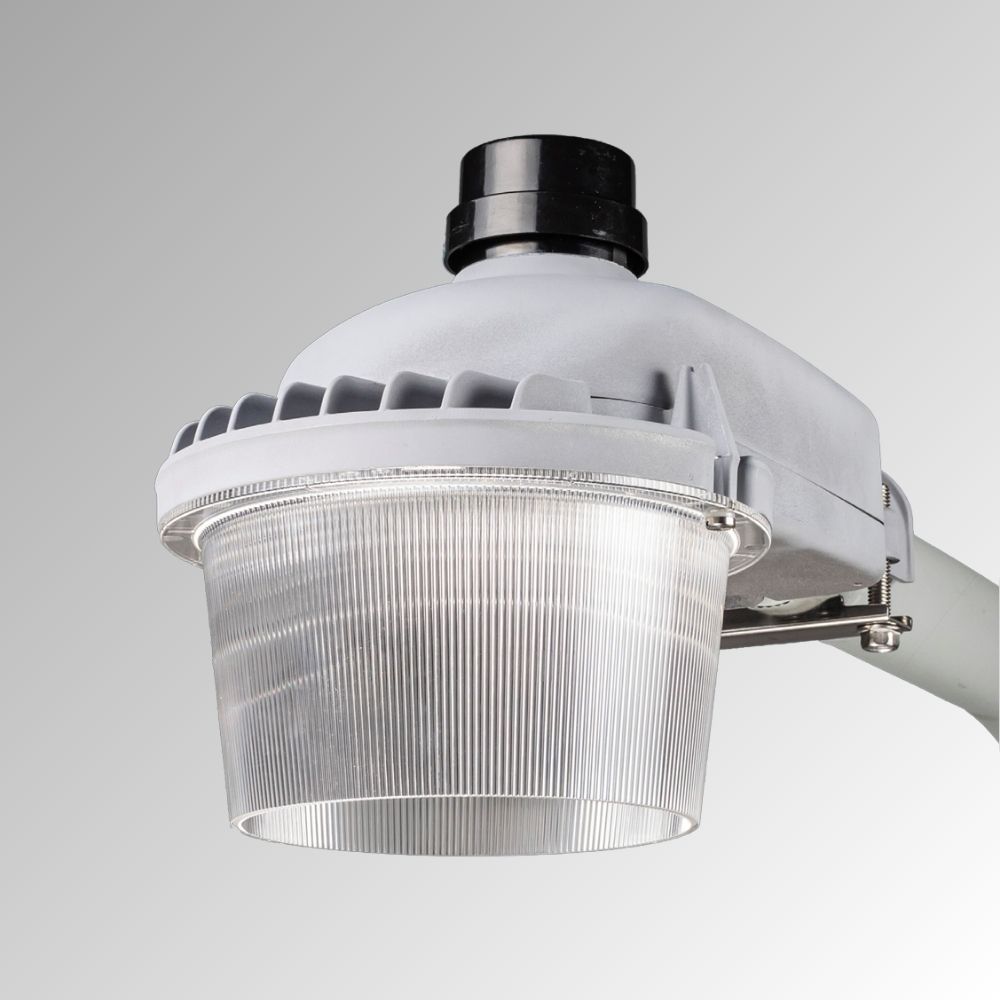

SafeGuard™ Utility Grade Light – UTL2

UTL2 offers enhanced performance over UTL1, with higher lumen output (7,427-9,656 vs. 3,071-7,731) and wattage (60-75W vs. 21-54W), ideal for demanding utility applications.

Features

Standard version full cut-off requiring no supplemental shield
“DR” drop down refractor option for vertical illumination
Accepts industry standard NEMA refractor/reflector
Type 2, Type 3 and Type 5 light distributions for superior application efficiency
Dimmable driver standard
Surge protection standard. Optional 20kA/10kV and 10kA/5kA
3 position terminal block standard
IP66 rated light engines
3-pin photocontrol receptacle standard. Optional 7-pin
Stainless steel, captive, toolless door latches standard
Field installable light trespass shields available
Field controllable light output selector available
Field controllable color temperature filter available
Complete offering of mounting accessories
2 hour burn-in and performance testing prior to shipment
5-Year standard warranty

Specifications

Application	Roadway & Street, Site & Area
Country	North America
Dimming Control	Y
Electrical standard	UL
Lumen output	7427-9656
Series	SafeGuard
Wattage	60-75

Color temperature	3000K, 4000K
CRI	70
Distribution Type	Type II, Type III, Type V
Light Source	LED
Mount Type	Pole Arm
Voltage	120-277V / 347-480V
